How to End a Troubleshooting Session

NOTE: This is the only information provided by the manufacturer for clearing diagnostic trouble codes.

How to Reset the ECM/PCM

You can reset the ECM/PCM in either of two ways:
- Use the OBD II scan tool or Honda PGM Tester to clear the ECM/PCM memory.

See the OBD II scan tool or Honda PGM Tester user's manuals for specific instructions.

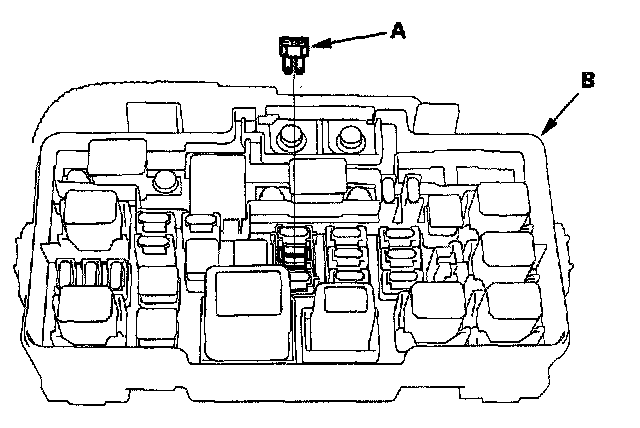

- Turn the ignition switch OFF, and remove the No.6 ECU (ECM/PCM) (15 A) fuse (A) from the under-hood fuse/relay box (B) for 10 seconds.

How to End a Troubleshooting Session (required after any troubleshooting)

1. Reset the ECM/PCM as described above.
2. Turn the ignition switch OFF.
3. Disconnect the OBD II scan tool or Honda PGM Tester from the DLC.

NOTE: The ECM/PCM is part of the immobilizer system. If you replace the ECM/PCM, it will have a different immobilizer code. In order for the engine to start, you must rewrite the immobilizer code with the Honda PGM Tester.
