Driving Position Memory Switch Test

Driving Position Memory Switch Test

1. Remove the driver's door panel.

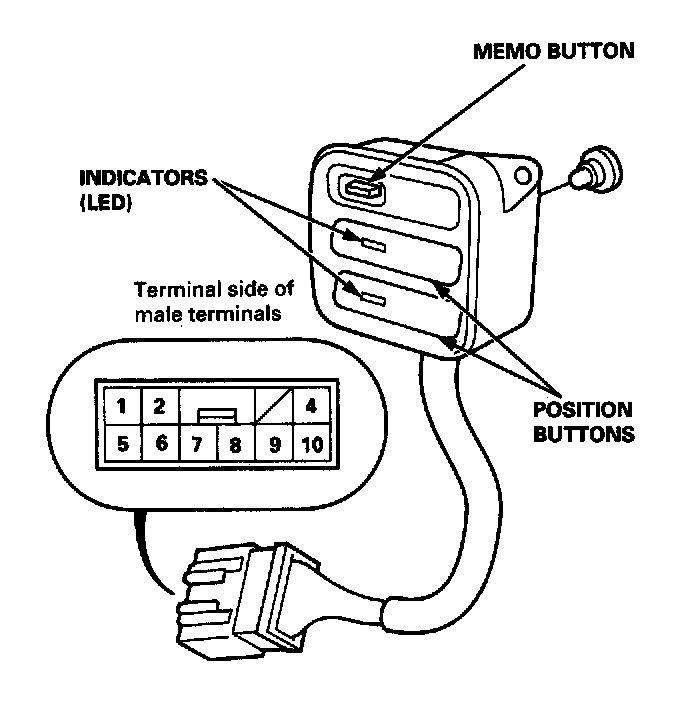

2. Disconnect the 10P connector from the memory switch.

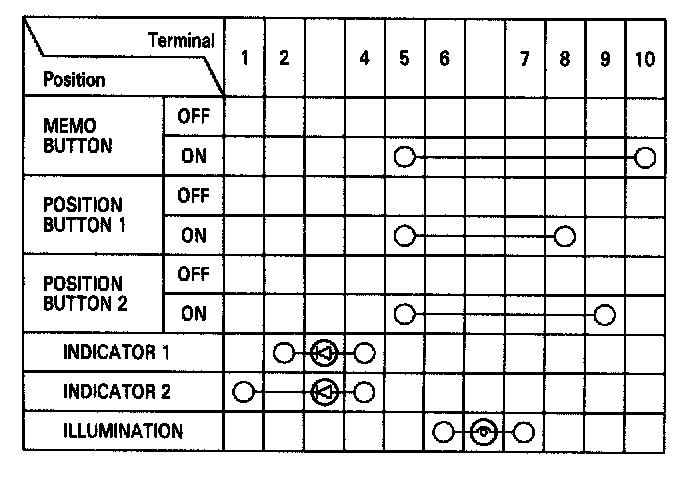

3. Check for continuity between the terminals in each switch position according to the table.
