Powertrain Management: Locations

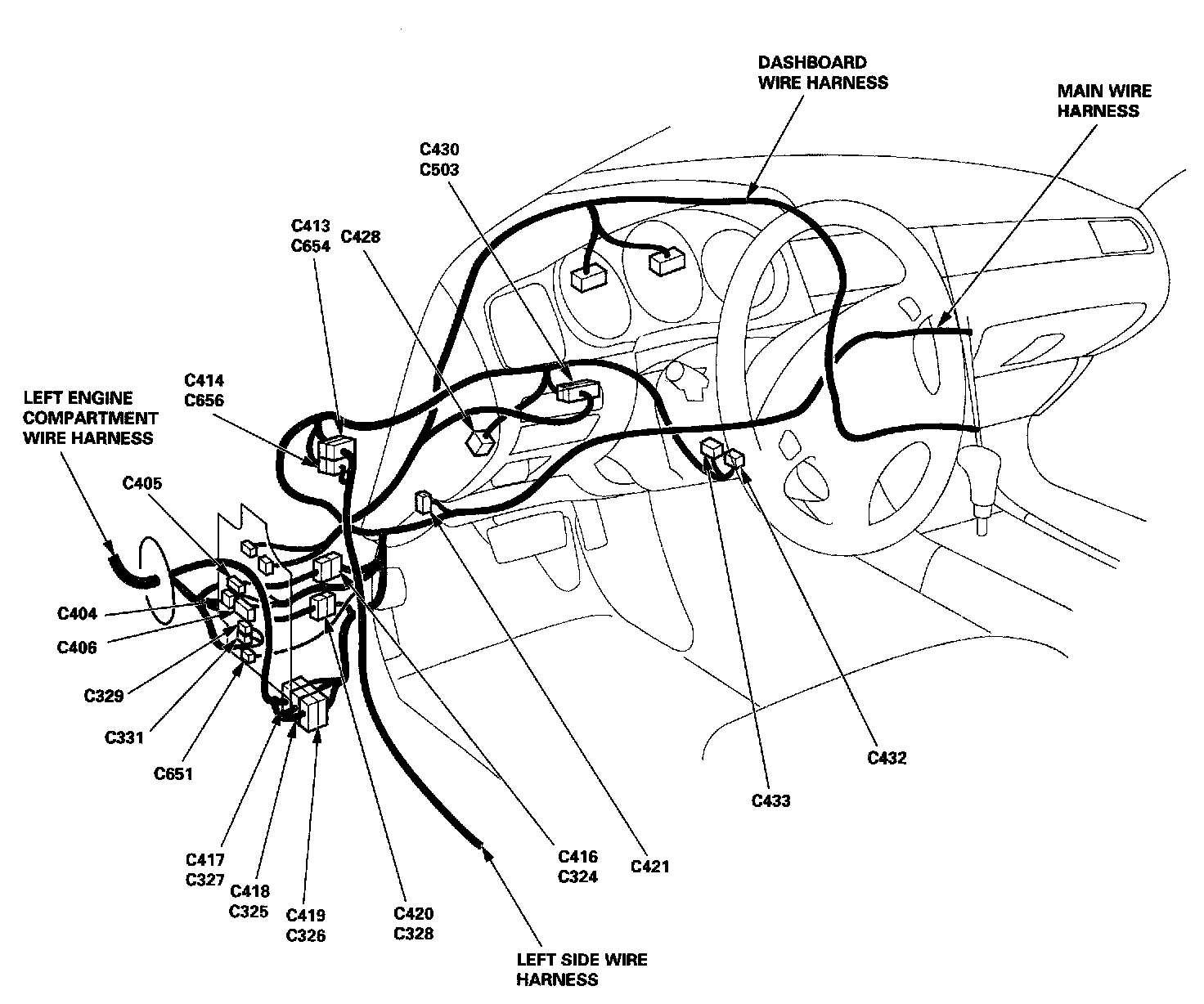

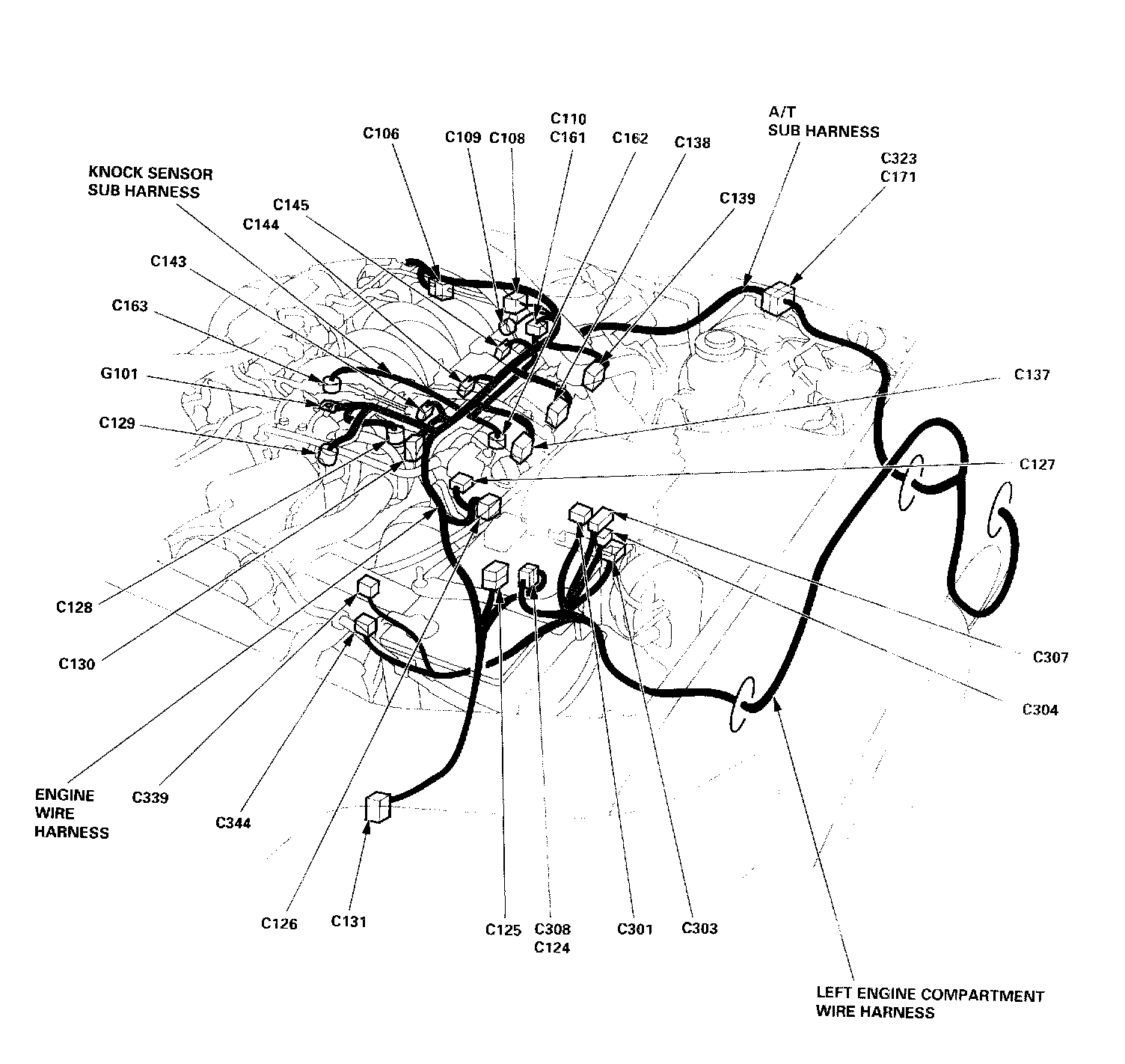

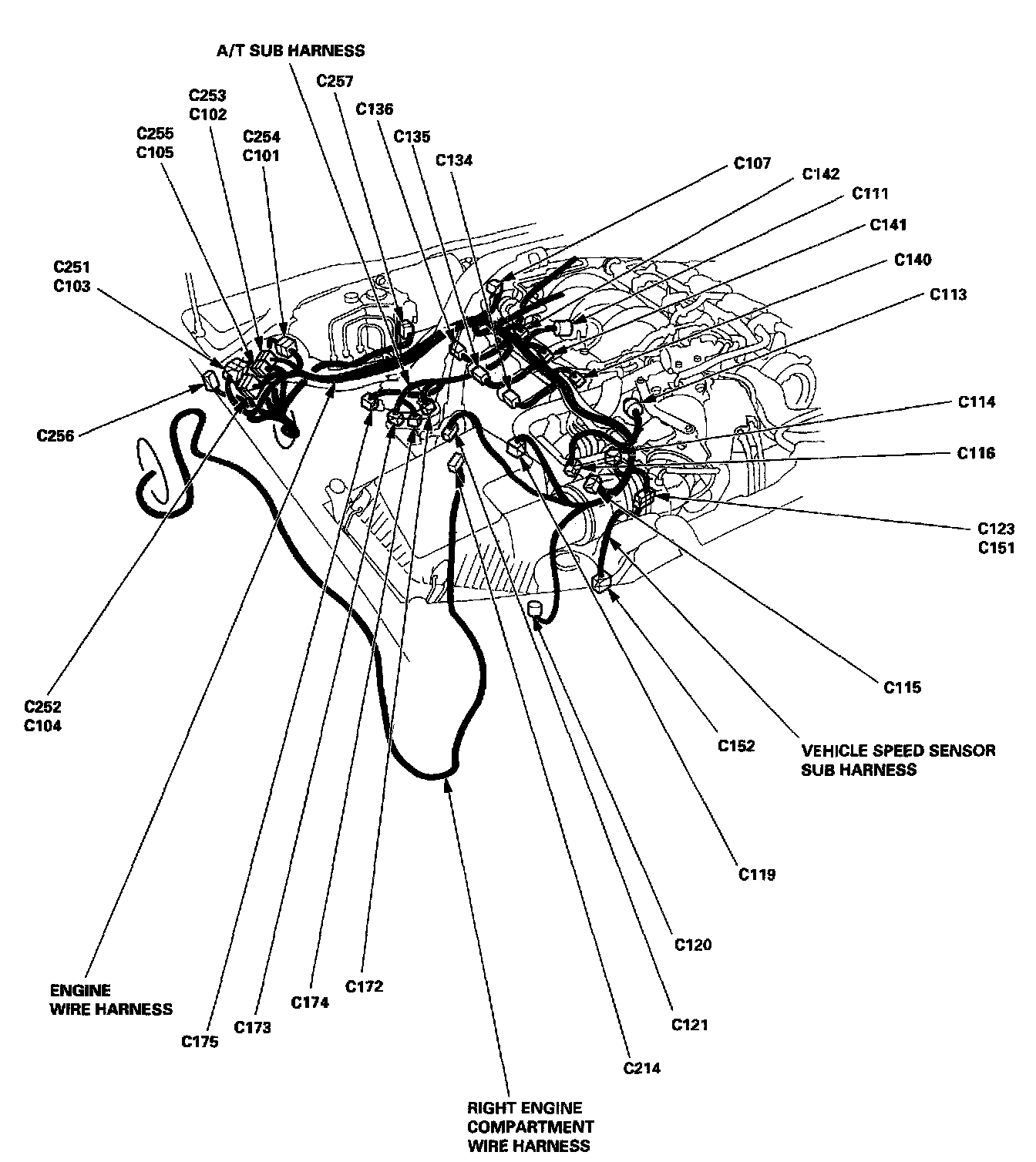

System Connectors (Engine Compartment) - Location (Part 1):

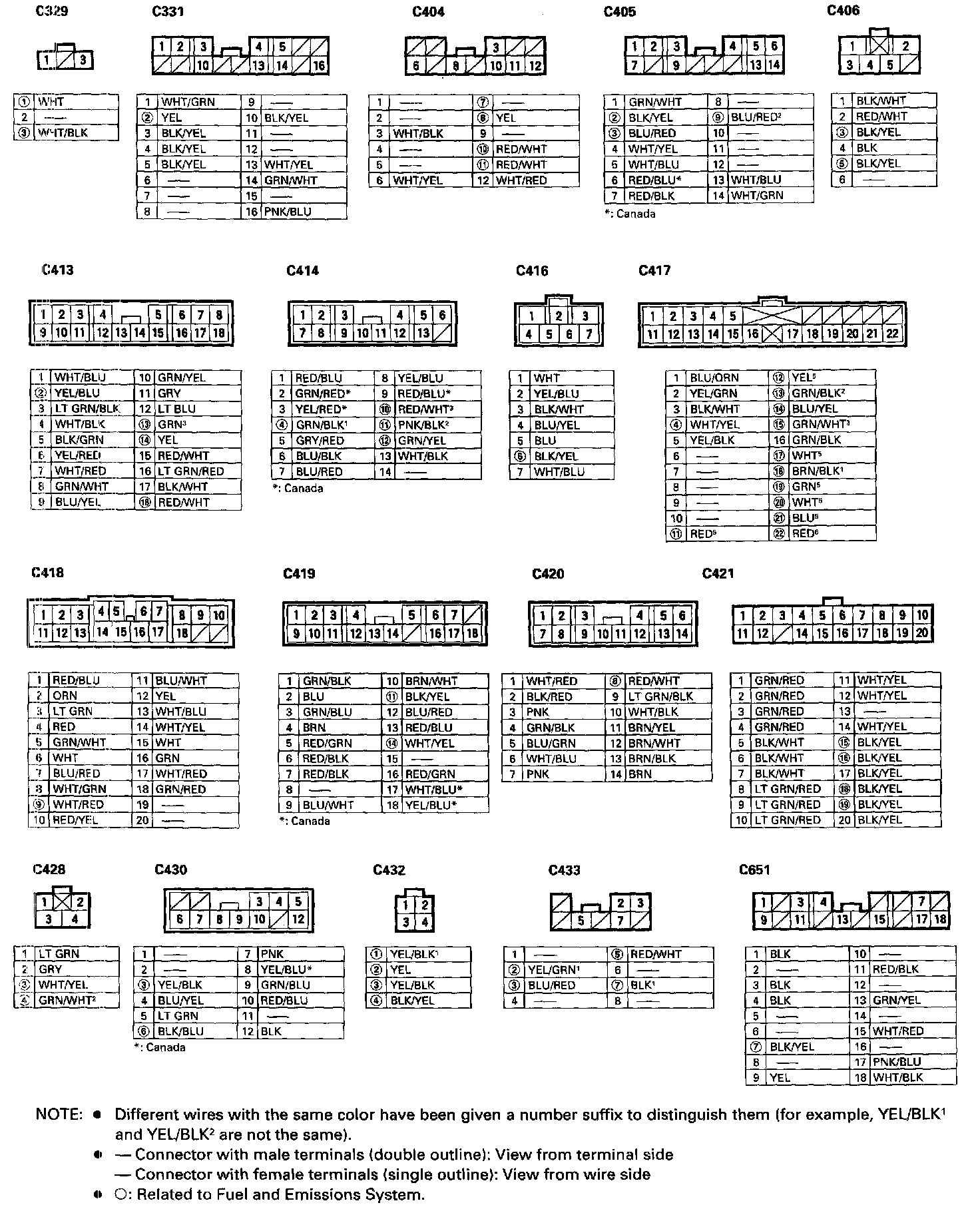

System Connectors (Engine Compartment) - View (Part 1):

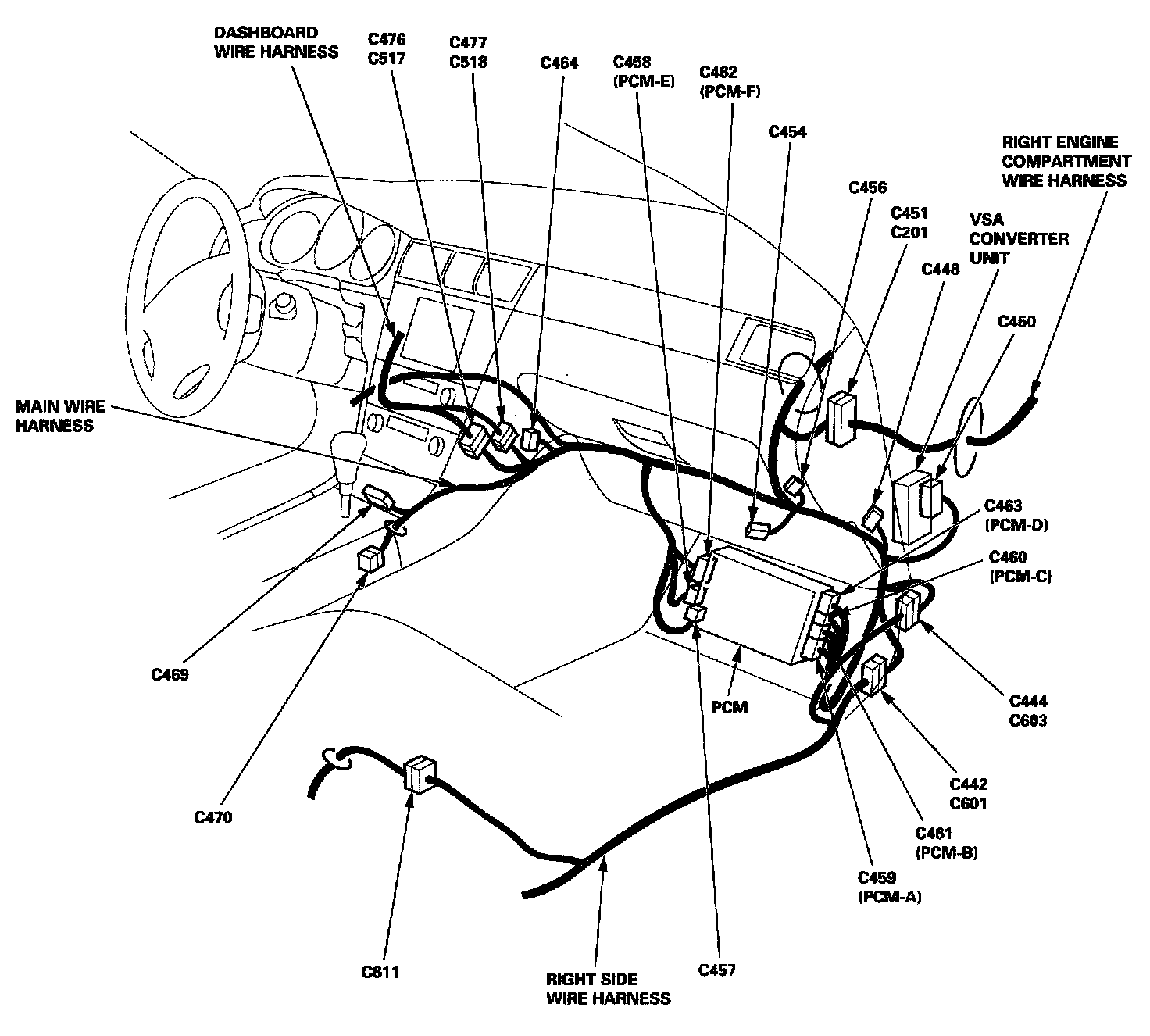

System Connectors (Engine Compartment) - Location (Part 2):

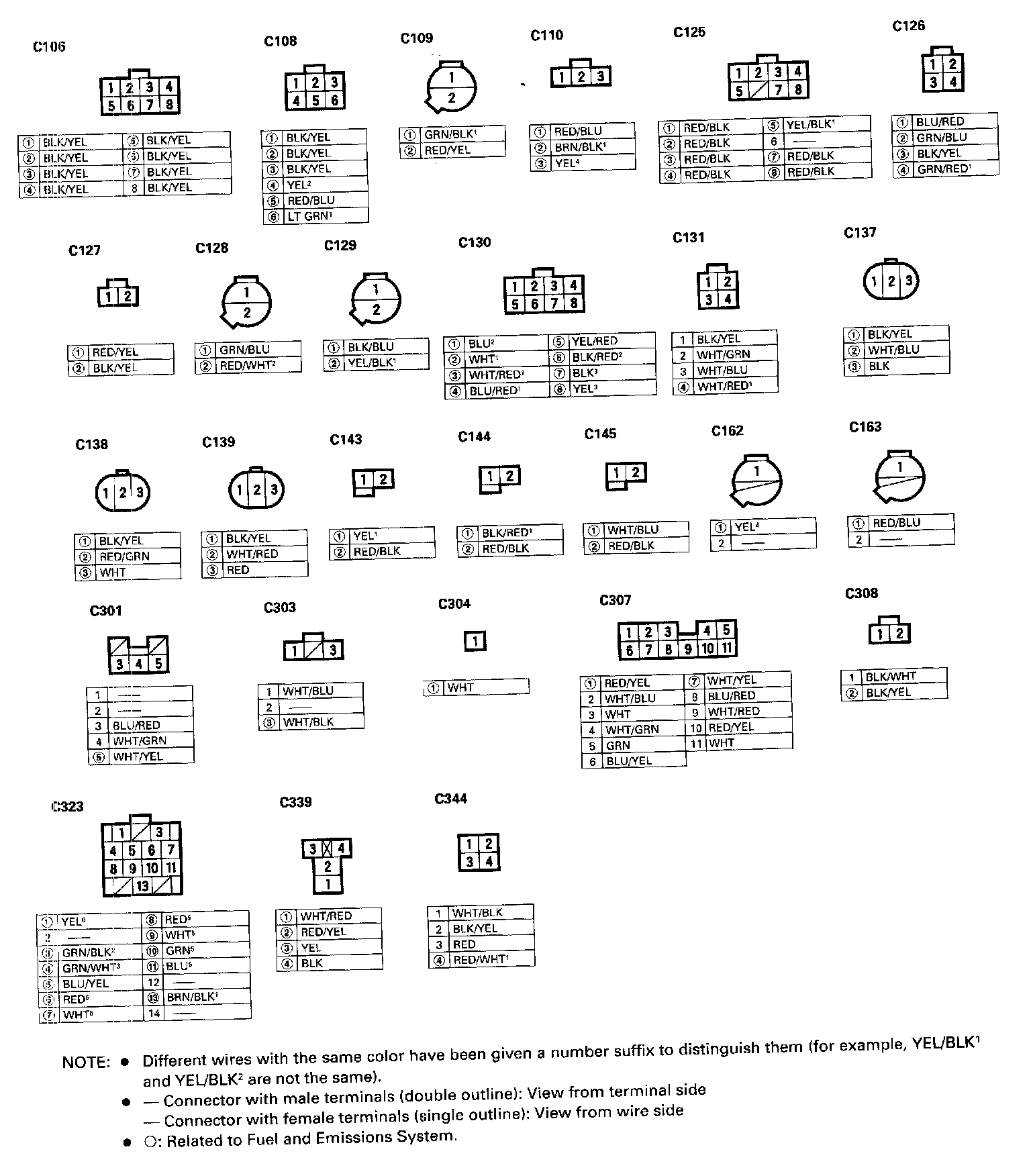

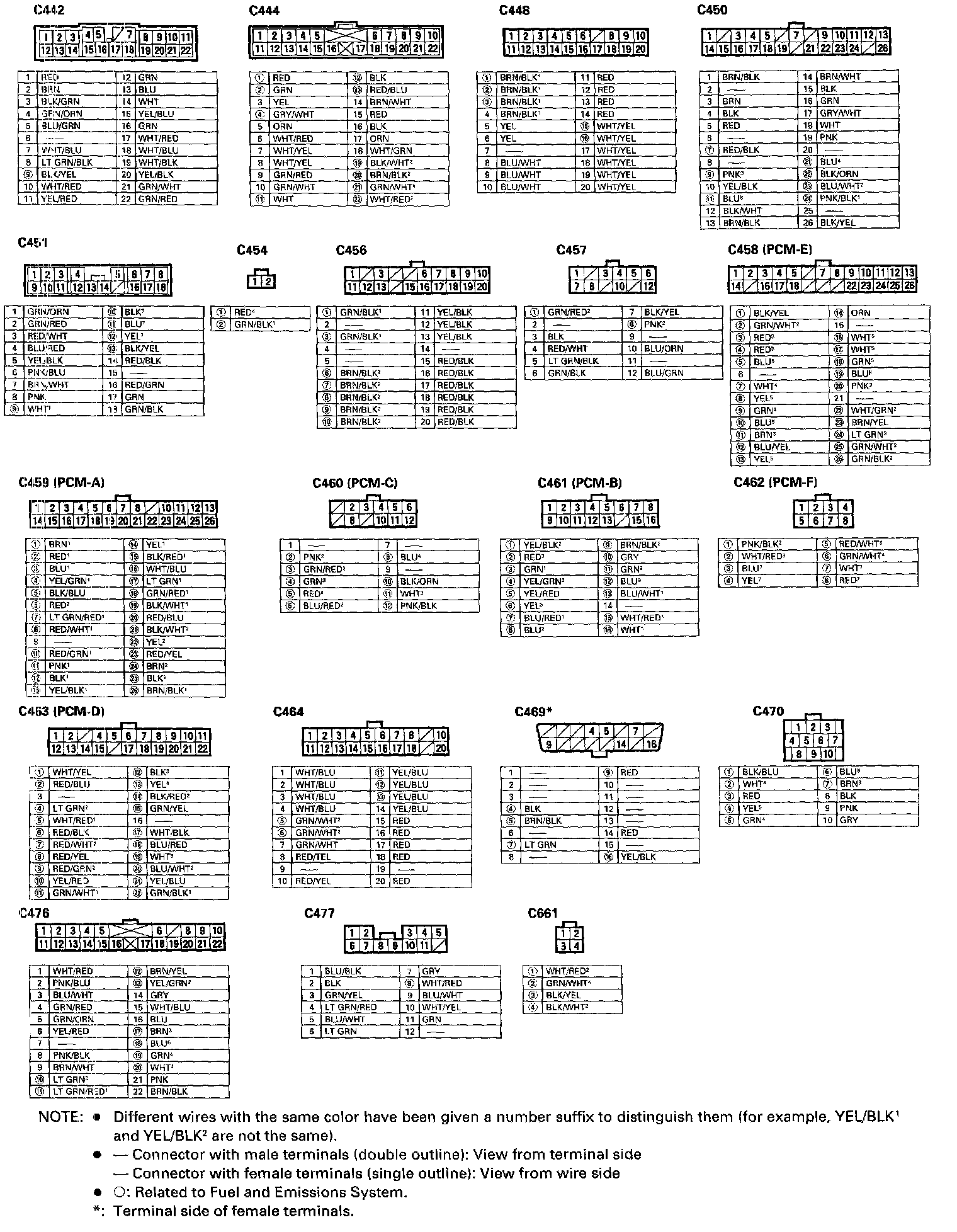

System Connectors (Engine Compartment) - View (Part 2):

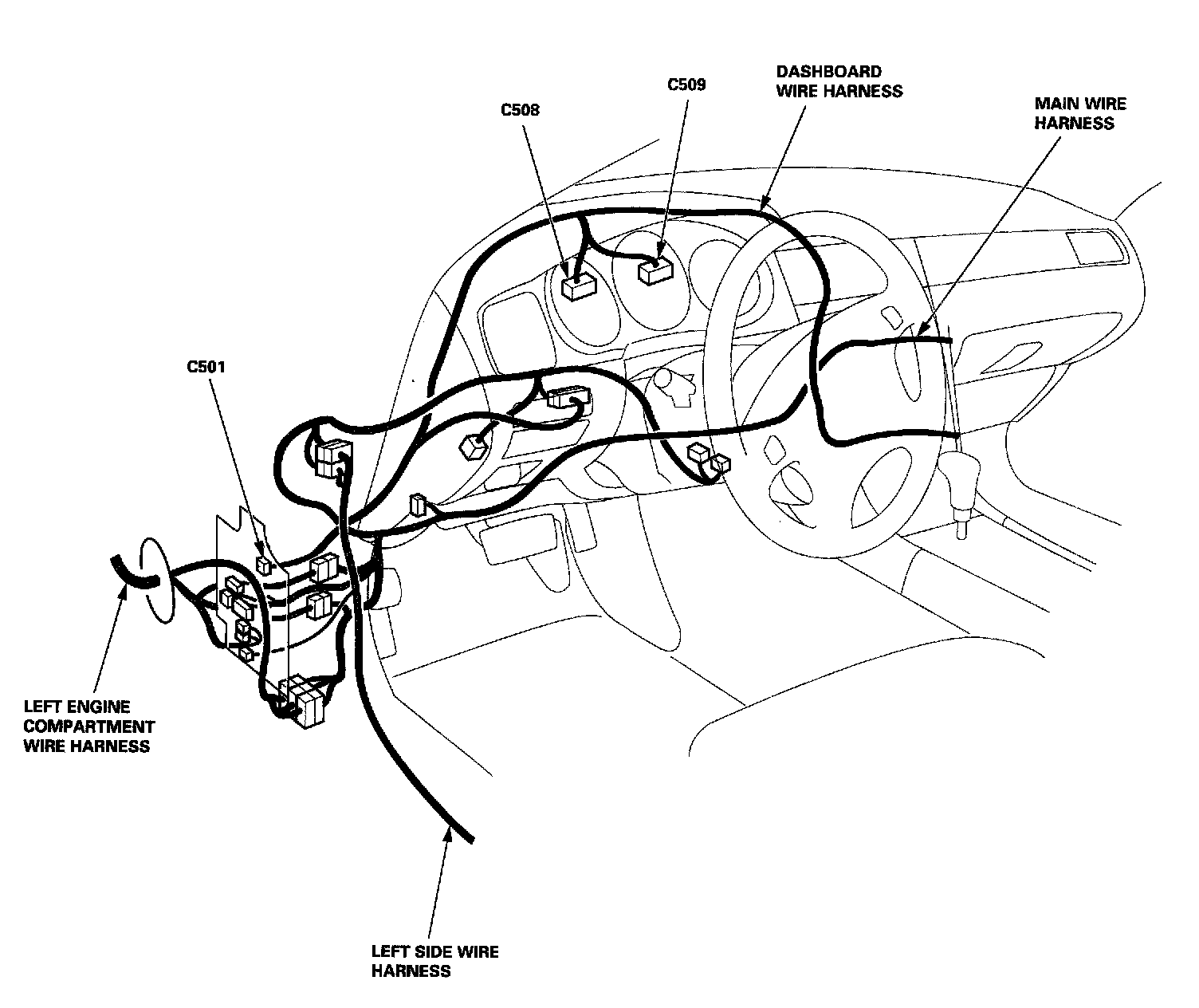

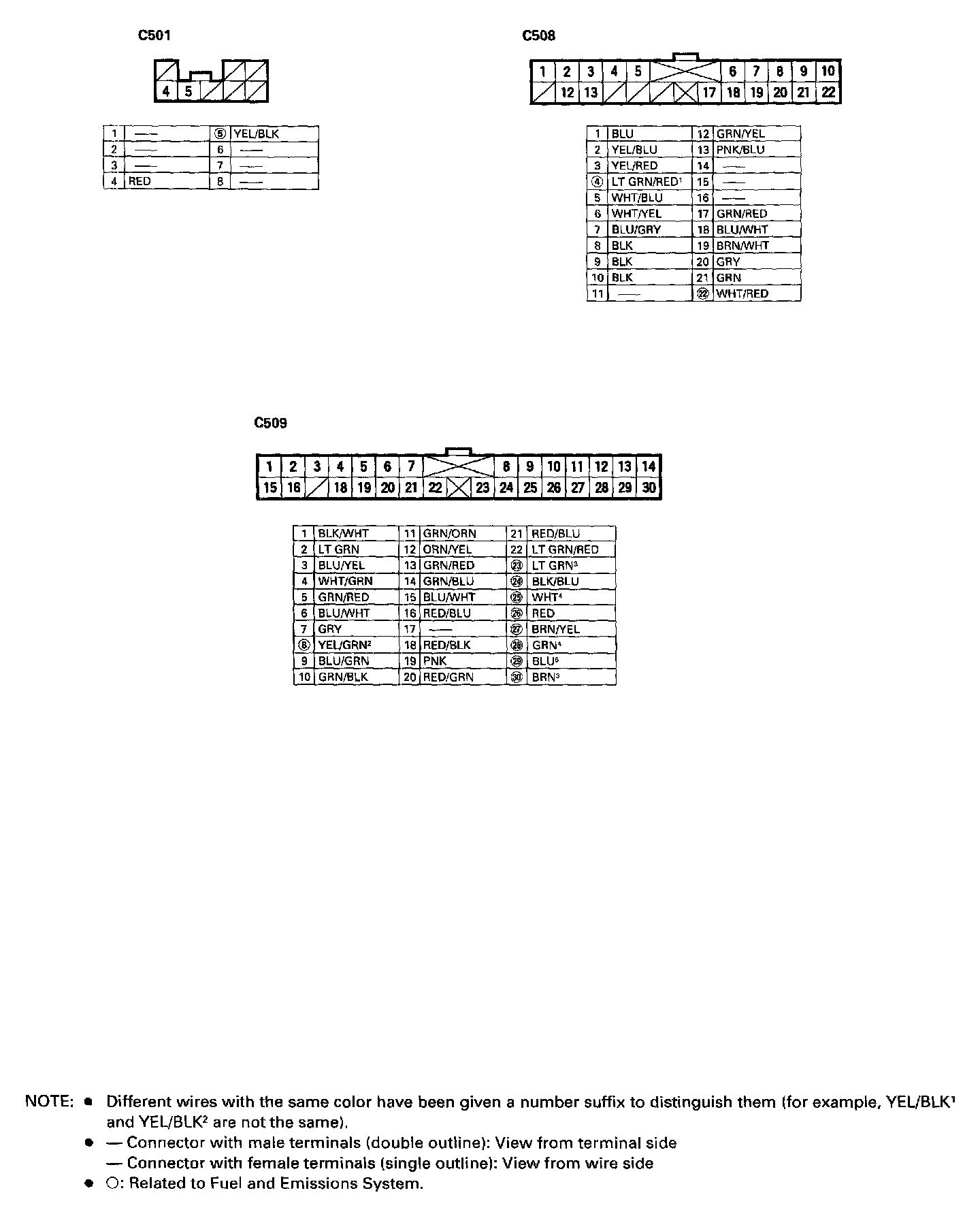

System Connectors (Dash And Floor) - Location (Part 1):

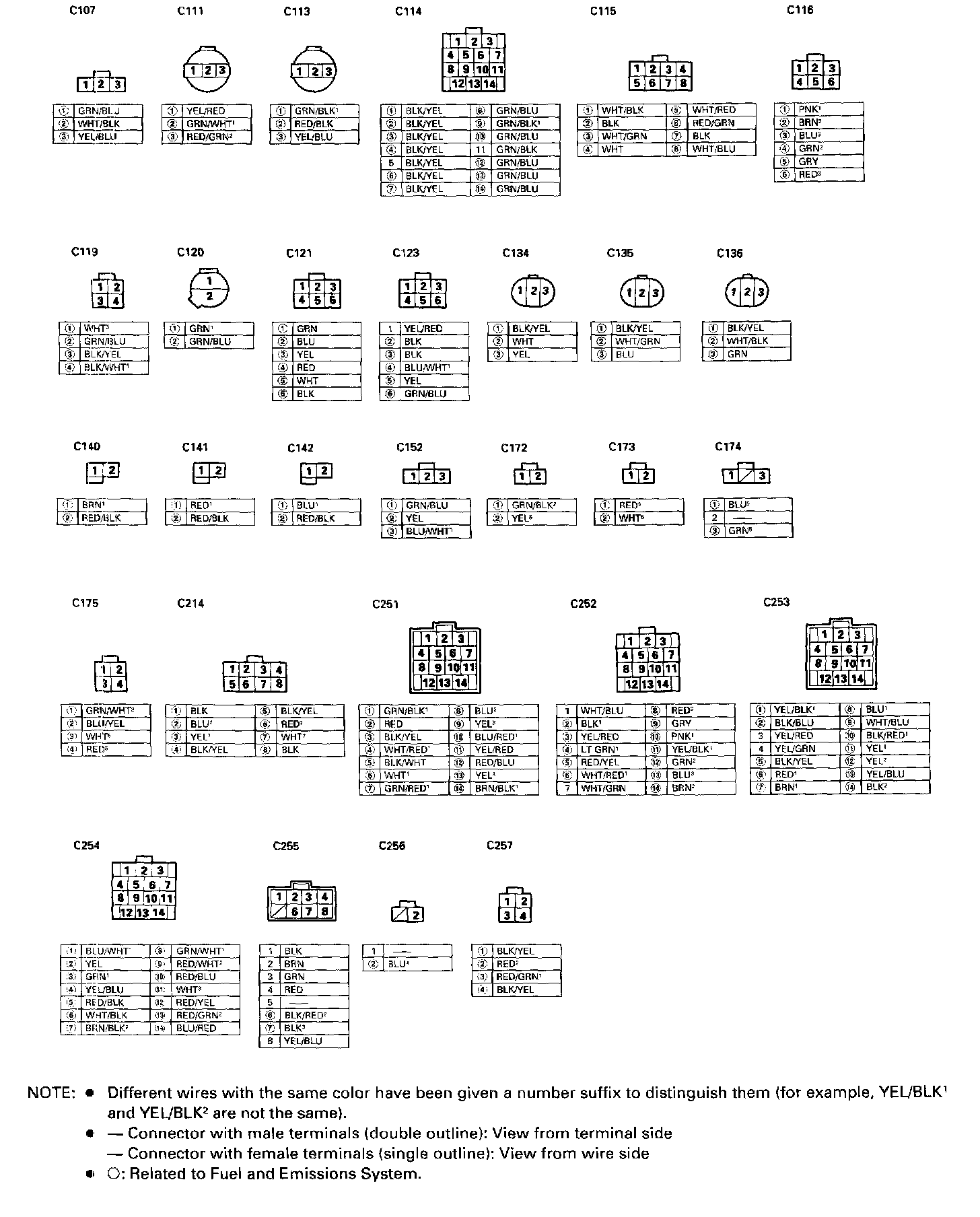

System Connectors (Dash And Floor) - View (Part 1):

System Connectors (Dash And Floor) - Location (Part 2):

System Connectors (Dash And Floor) - View (Part 2):

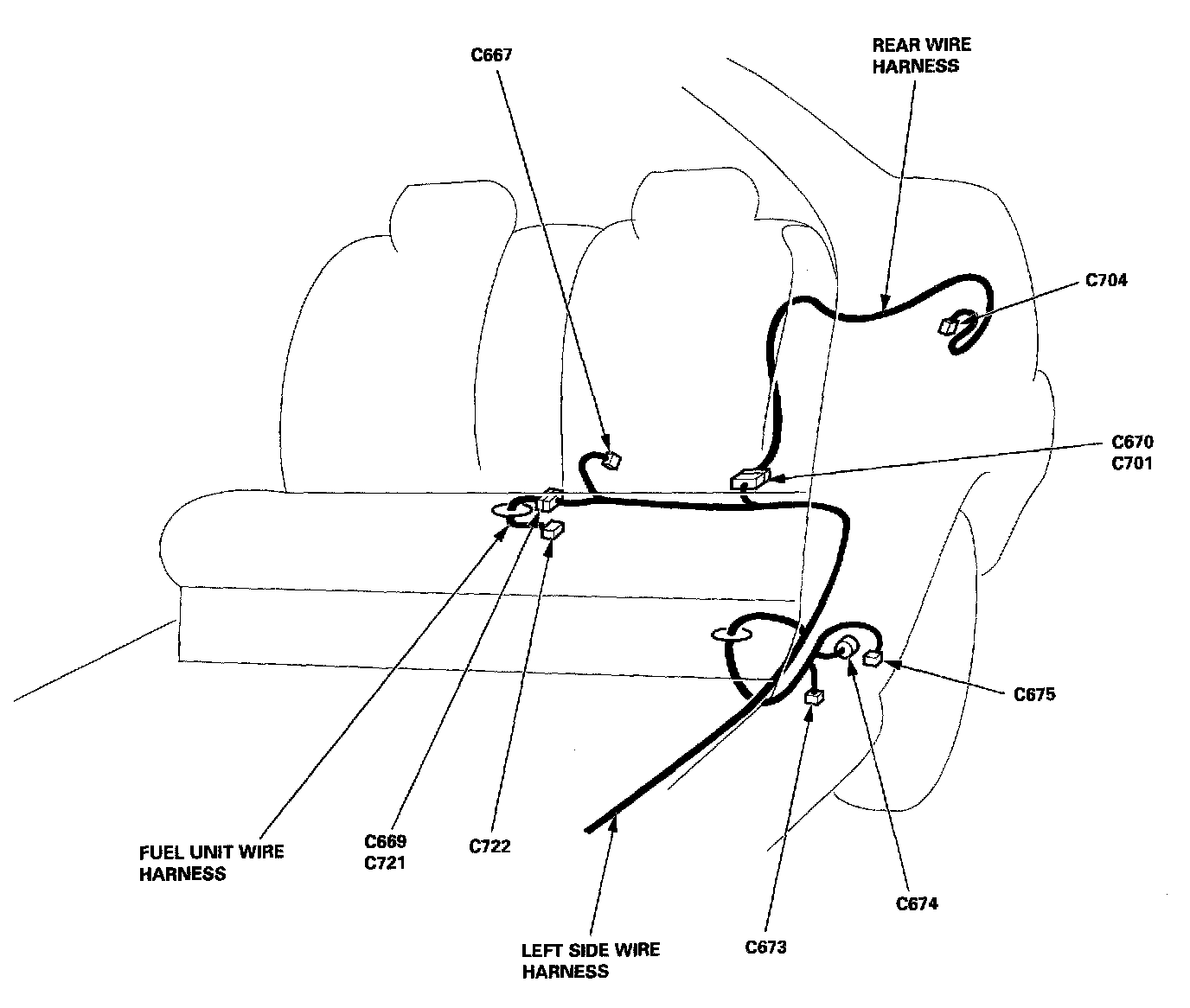

System Connectors (Dash And Floor) - Location (Part 3):

System Connectors (Dash And Floor) - View (Part 3):

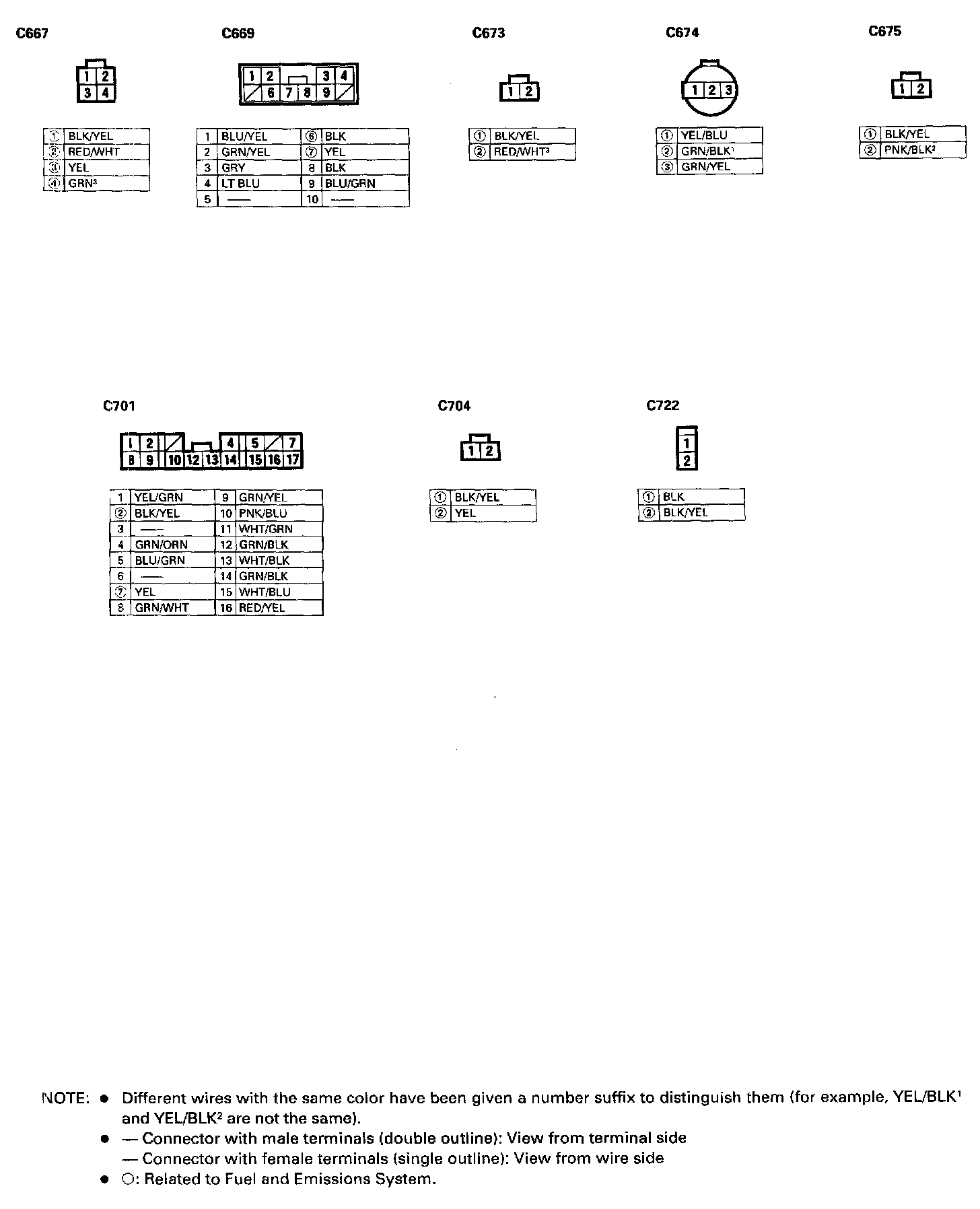

System Connectors (Dash And Floor) - Location (Part 4):

System Connectors (Dash And Floor) - View (Part 4):
