Torque Specifications

Engine Tightening Torques

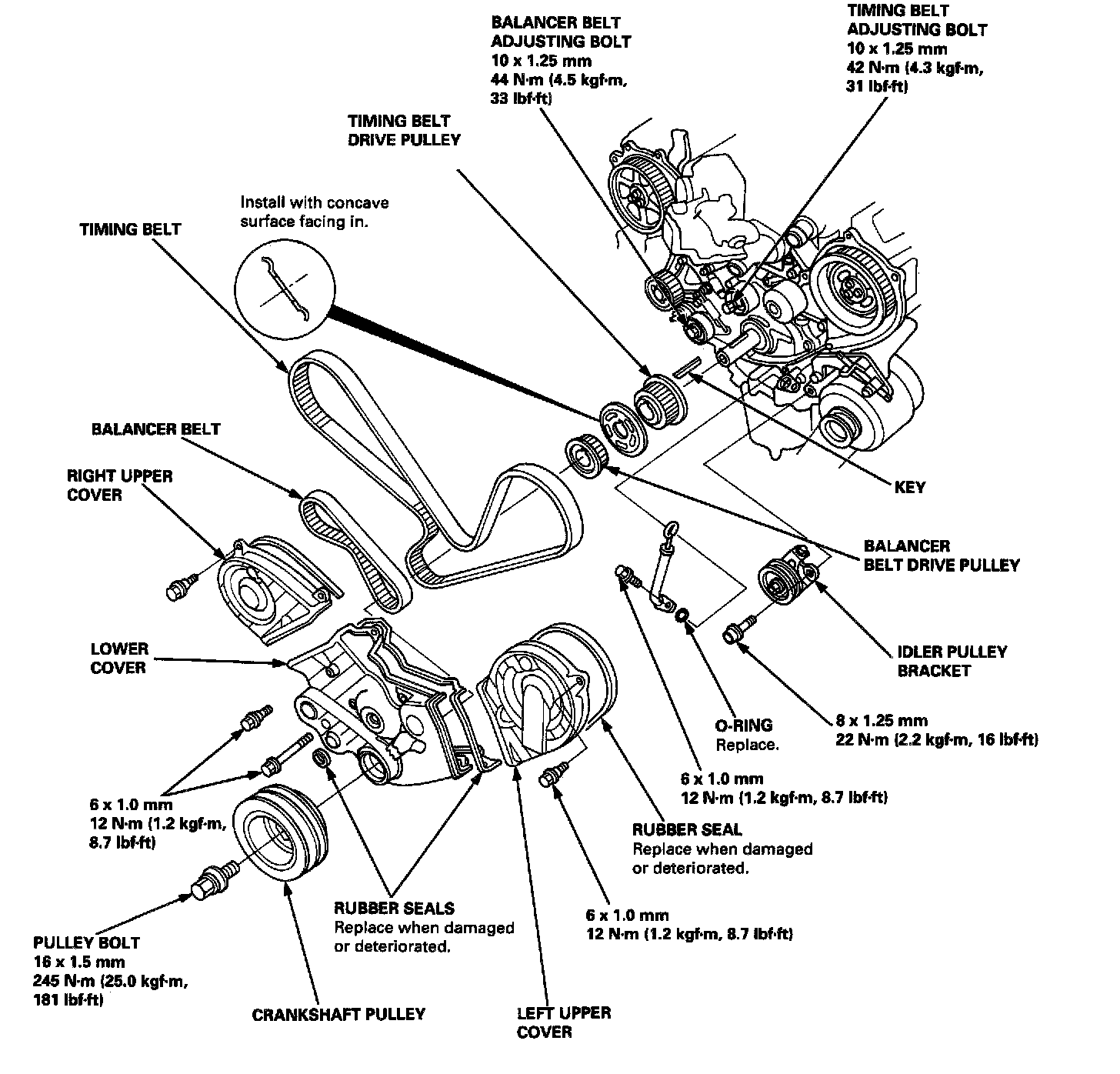

Timing Covers, Crankshaft Pulley

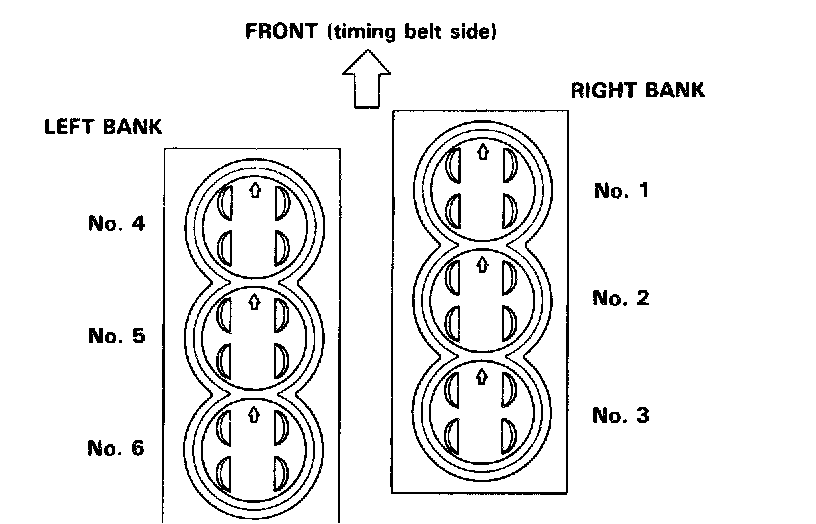

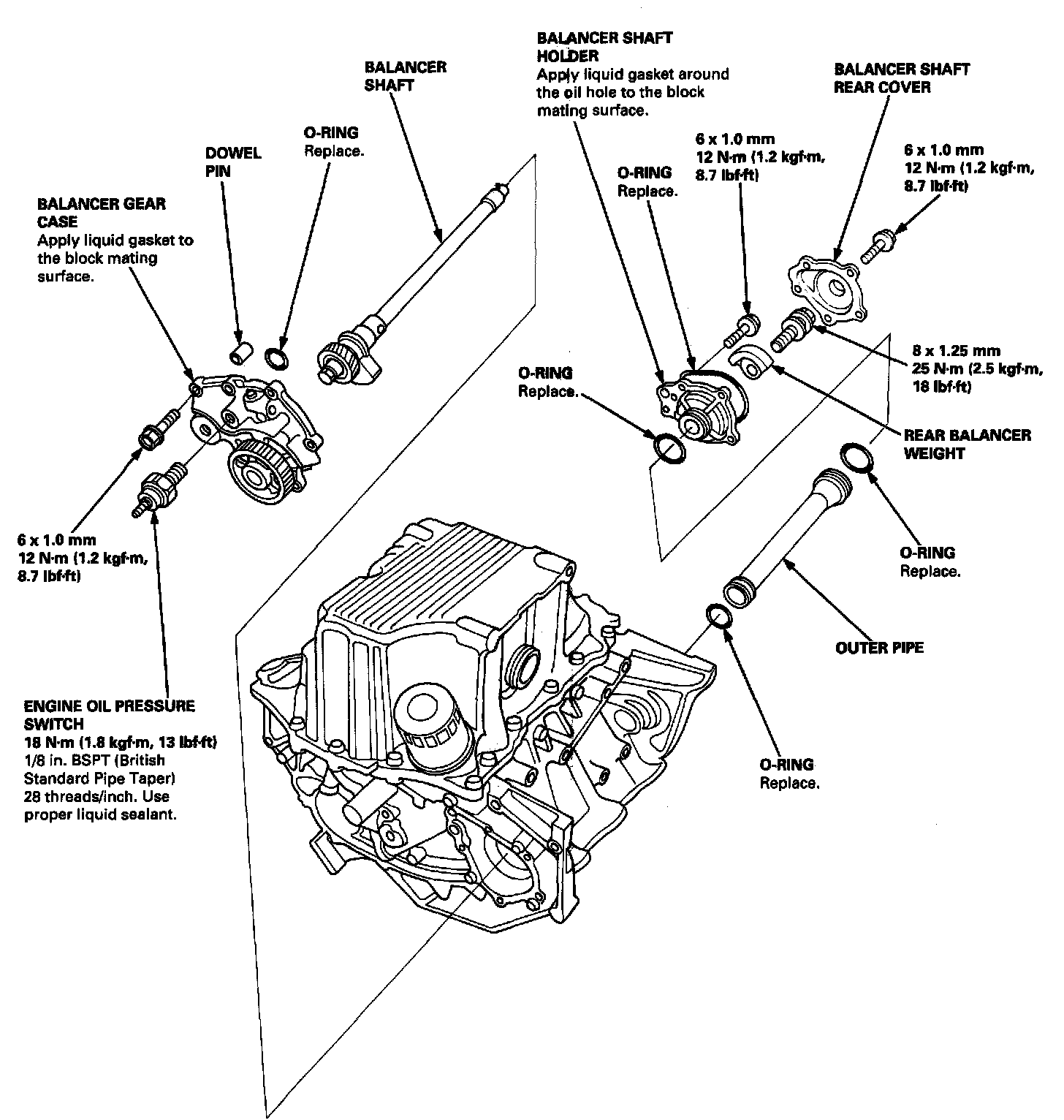

Engine Block

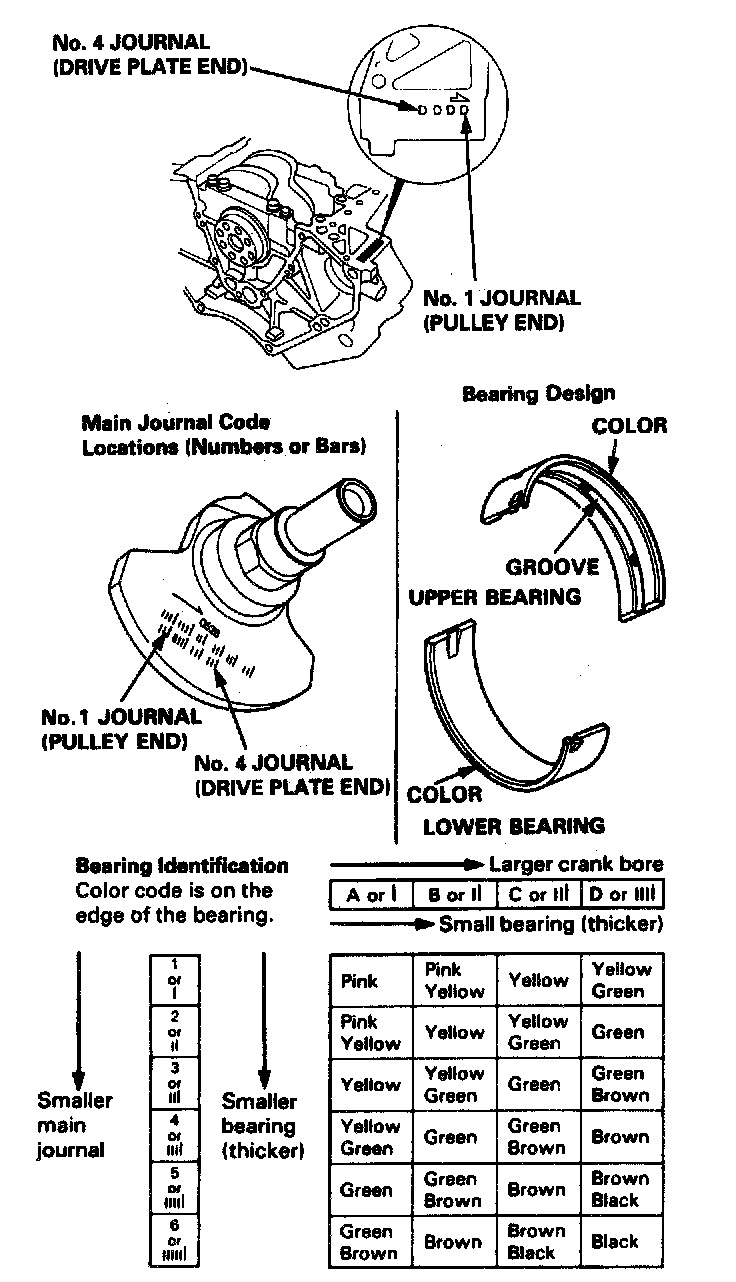

Crankshaft Main Bearing Size Codes

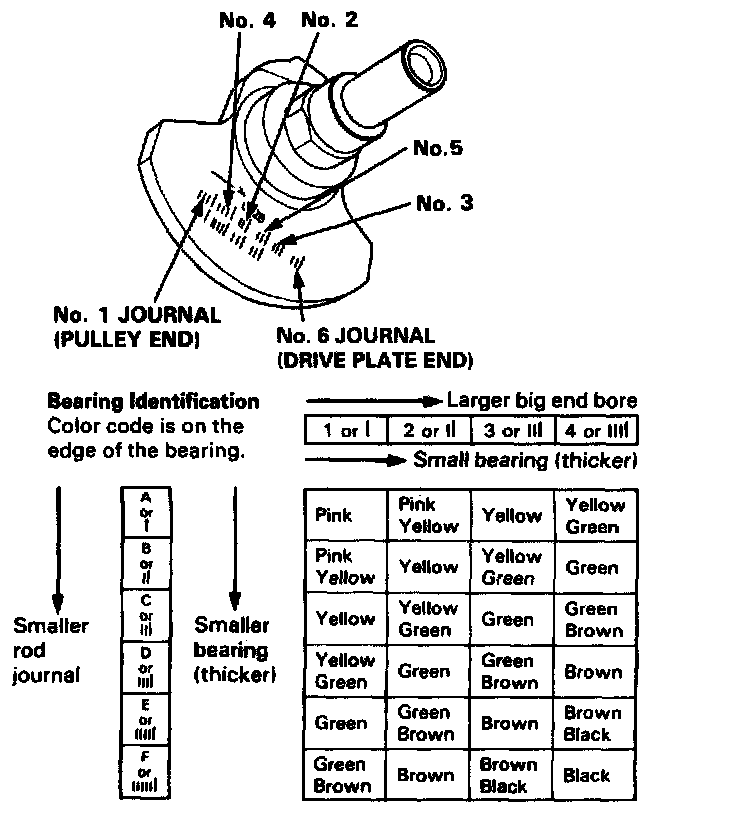

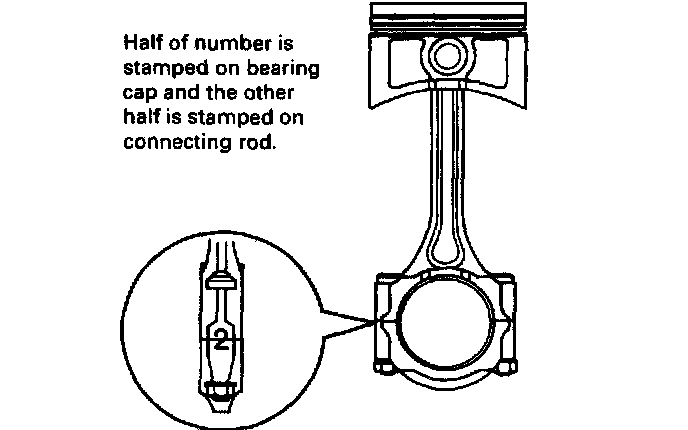

Connecting Rod Bearing Size Codes

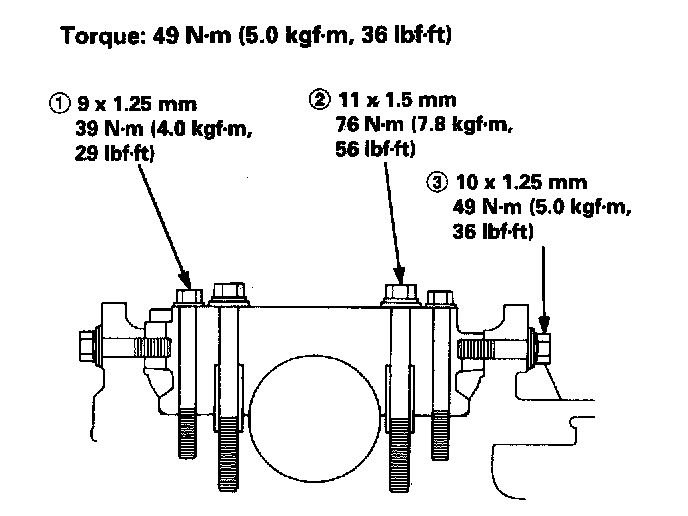

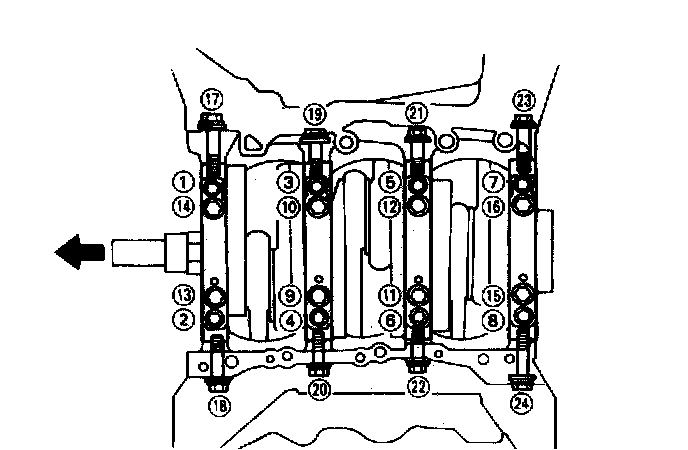

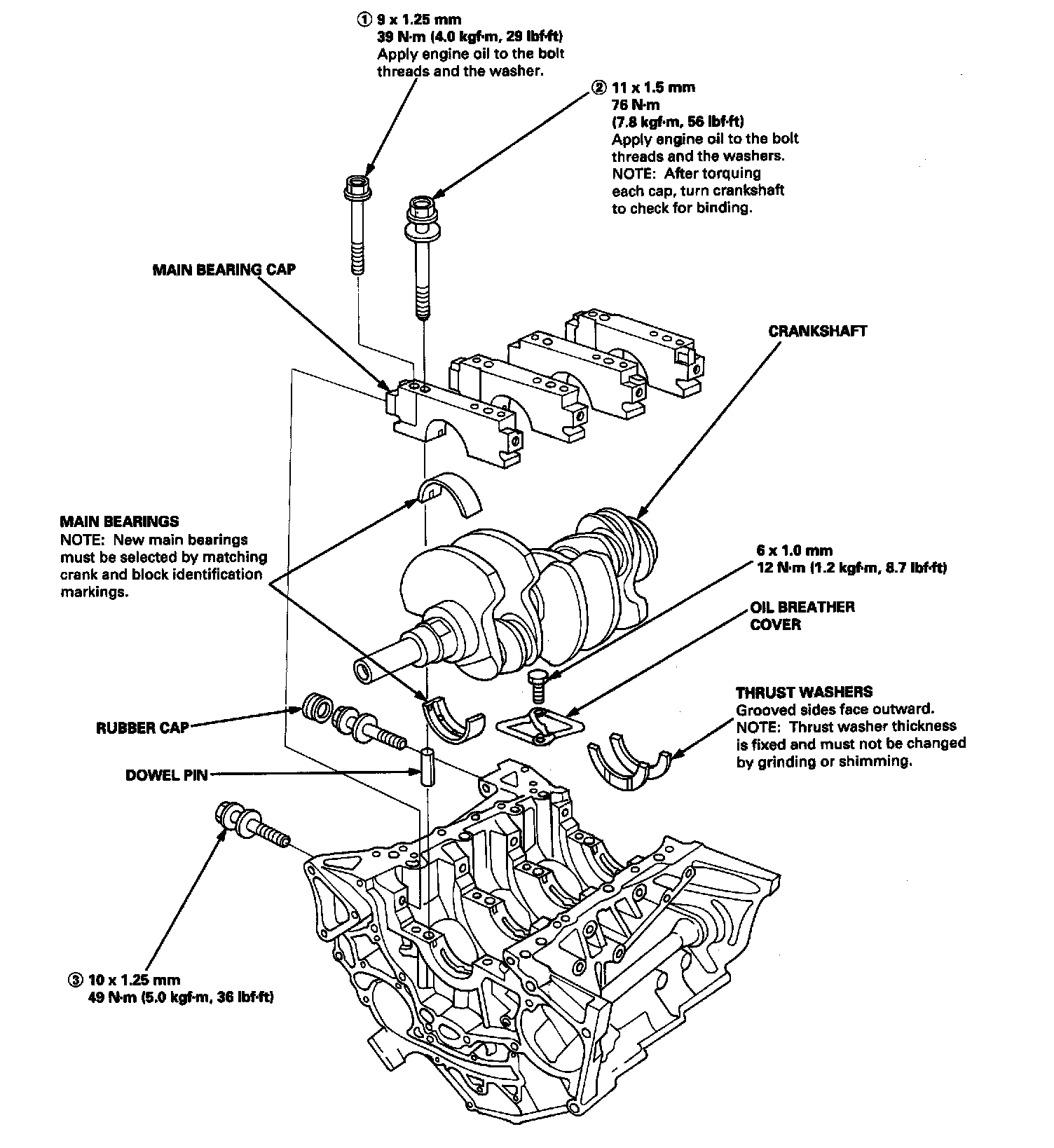

Crankshaft, Main Bearing Caps

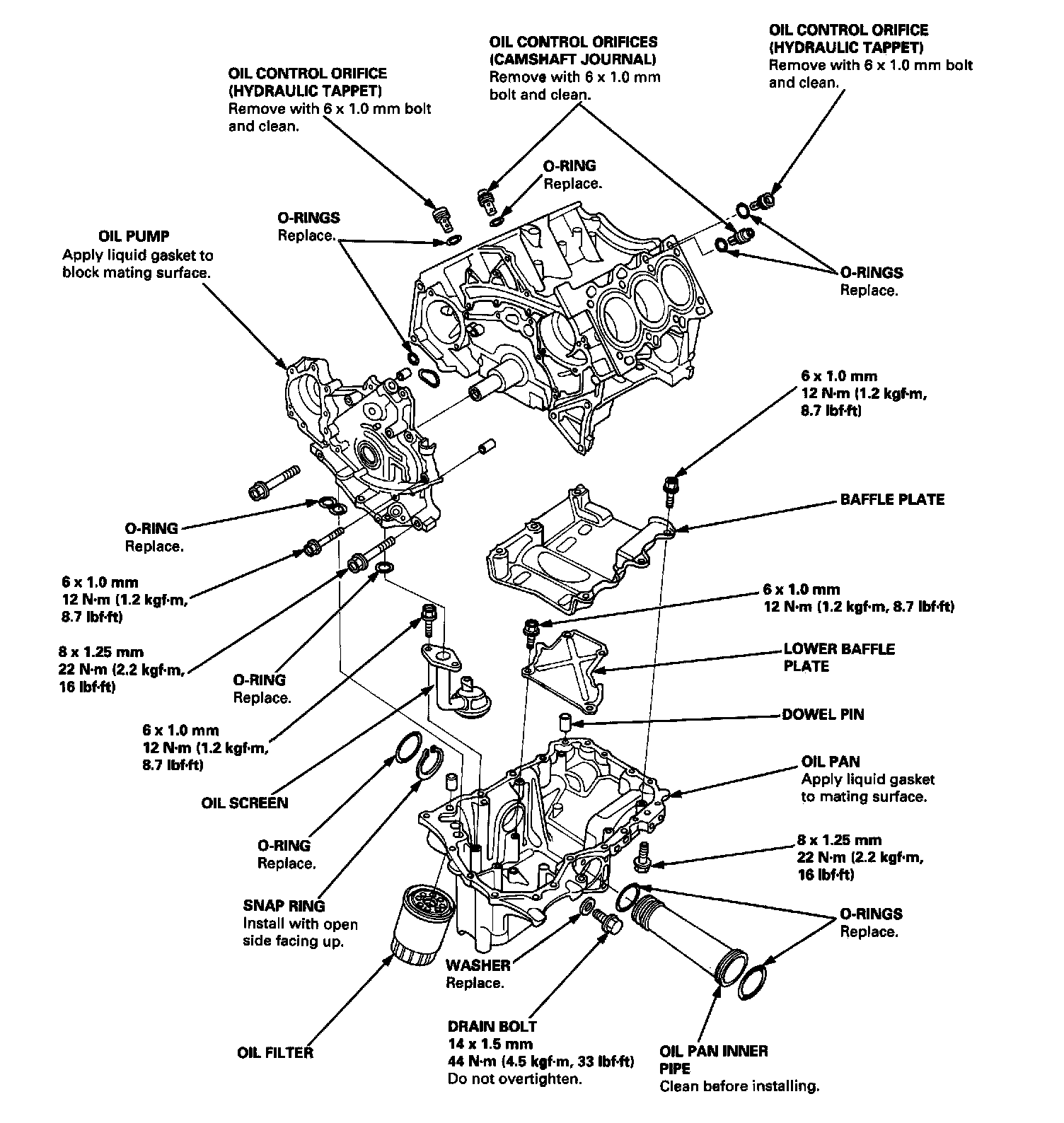

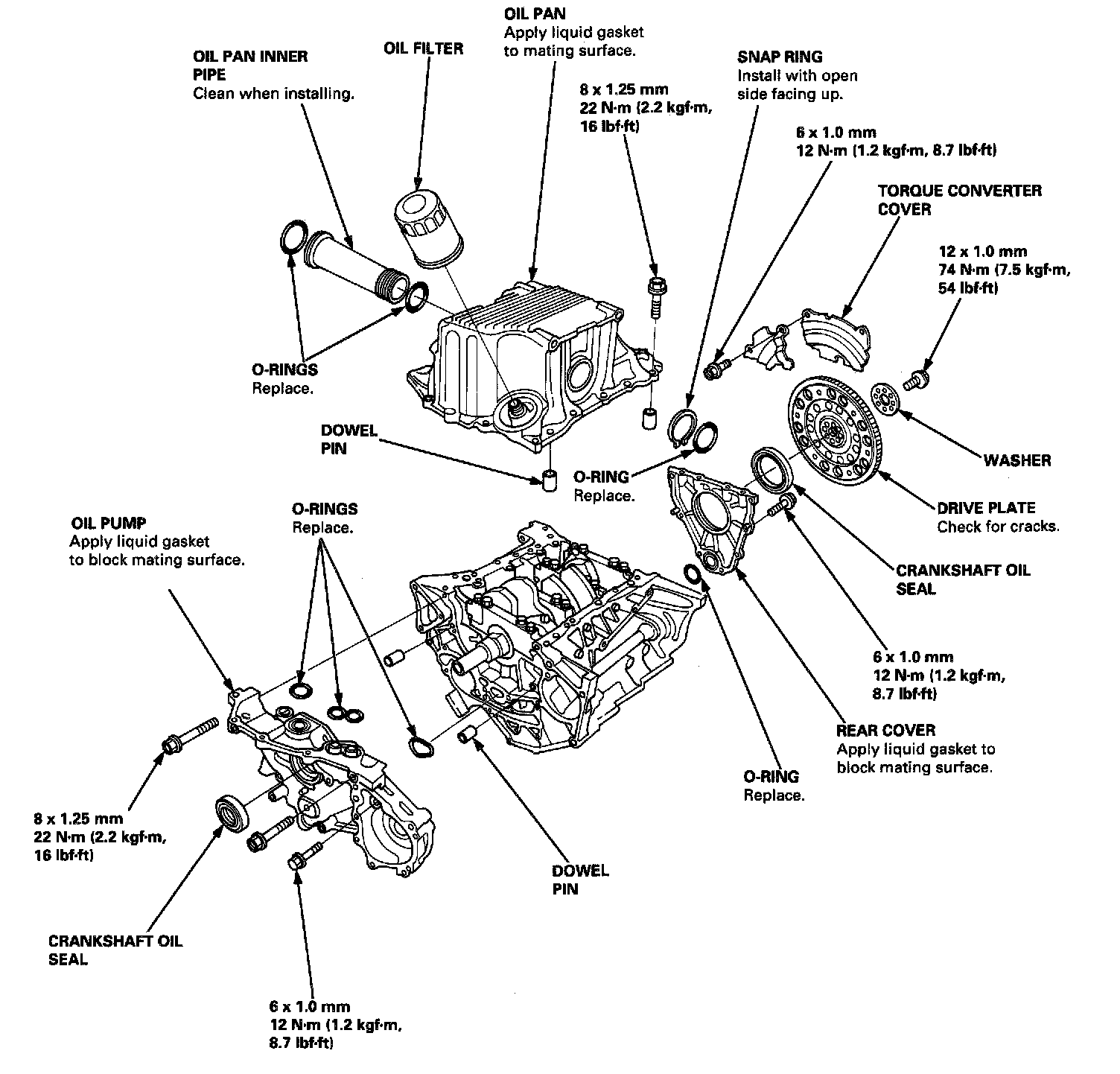

Oil Pan




Lubrication System
