Front Passenger's Power Seat Switch Connector End View

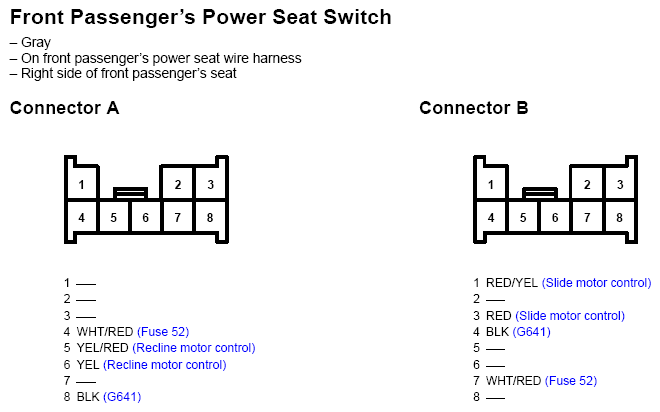

Fig 1: Front Passenger's Power Seat Switch Connector End View
G11247600Courtesy of AMERICAN HONDA MOTOR CO., INC.
