Navigation Unit Inputs and Outputs for Connector B (14P)

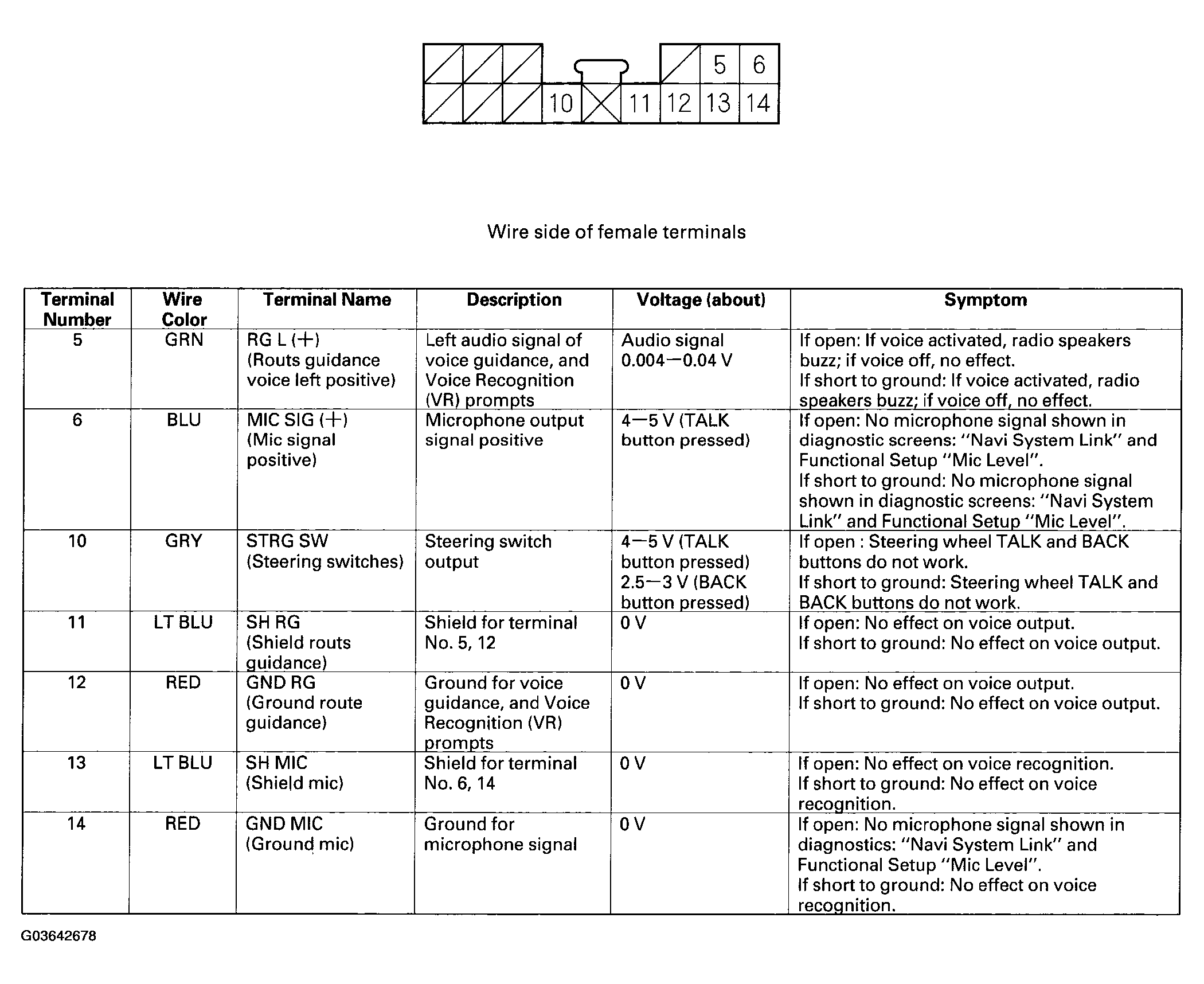

Fig 1: Identifying Wire Side Of Female Terminals (Connector B (14P))
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
