TPMS Control Unit Inputs and Outputs for Connector A (12P)

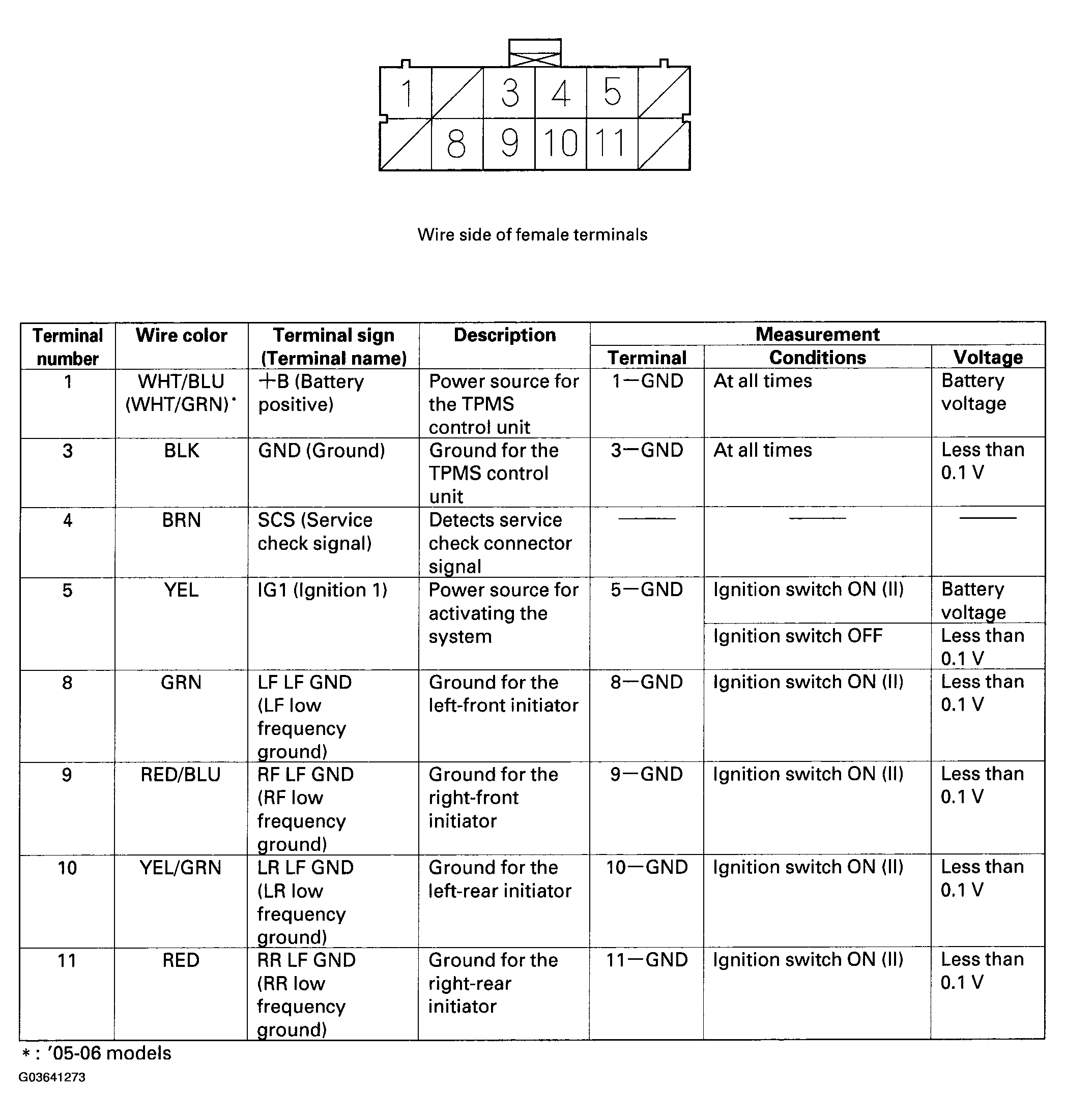

Fig 1: Identifying TPMS Control Unit Inputs And Outputs For Connector A (12P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
