TPMS Control Unit Inputs and Outputs for Connector B (22P)

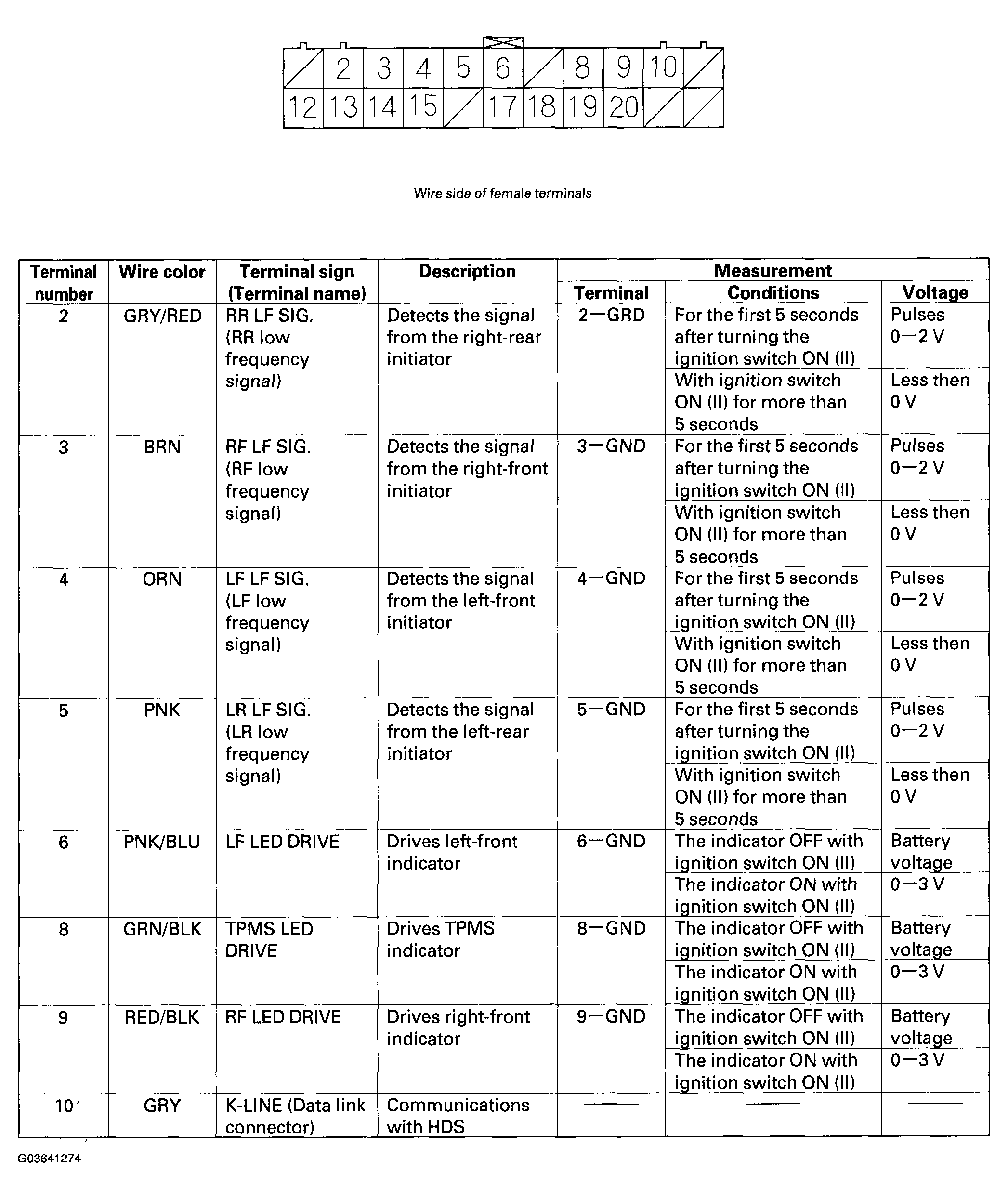

Fig 1: Identifying TPMS Control Unit Inputs And Outputs For Connector B (22P) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

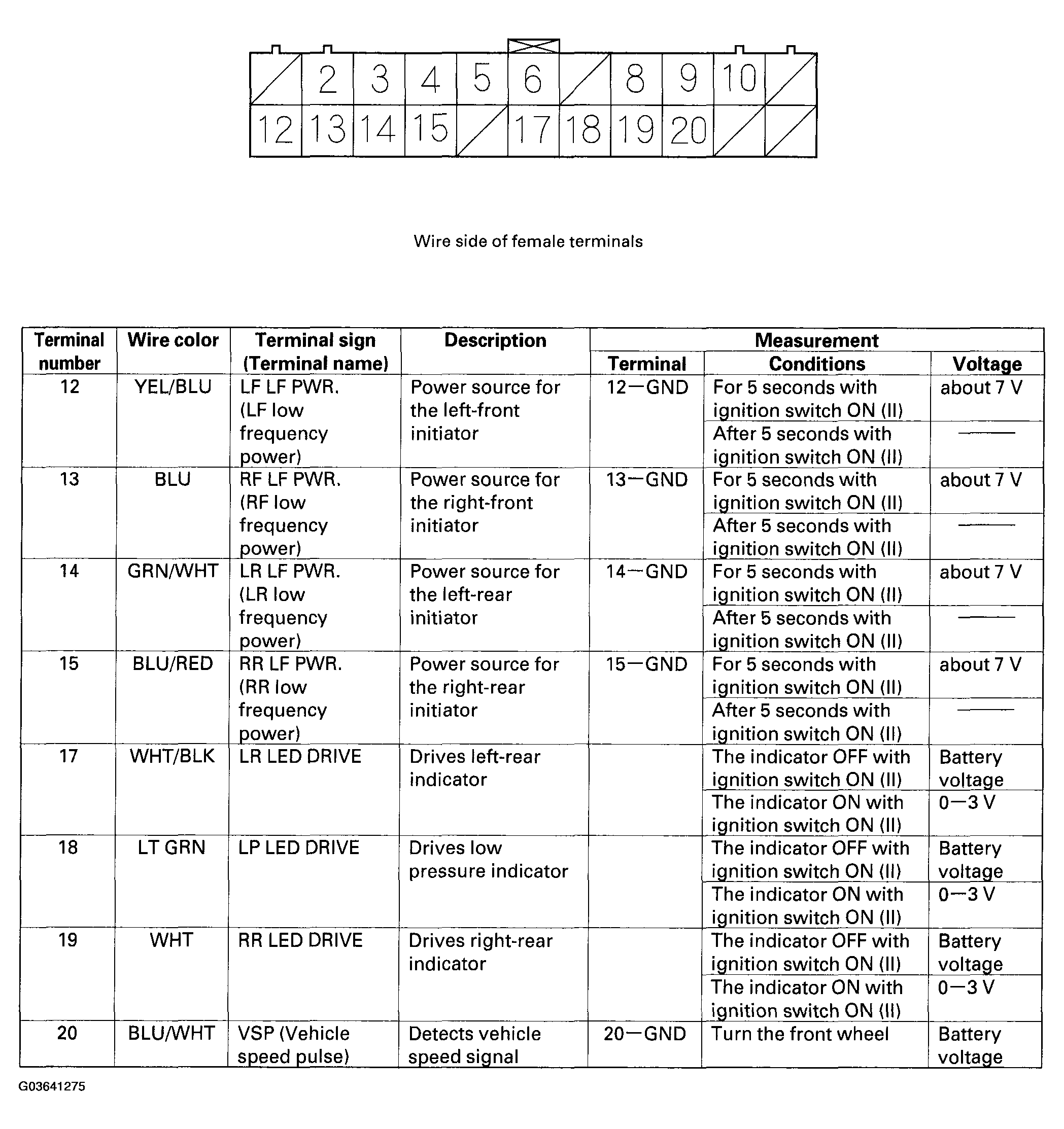

Fig 2: Identifying TPMS Control Unit Inputs And Outputs For Connector B (22P) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
