Rear Window Wiper Intermittent Control Unit Input Test

Remove the left rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA ).
Disconnect the 8P connector (A) from the rear window wiper intermittent control unit (B).

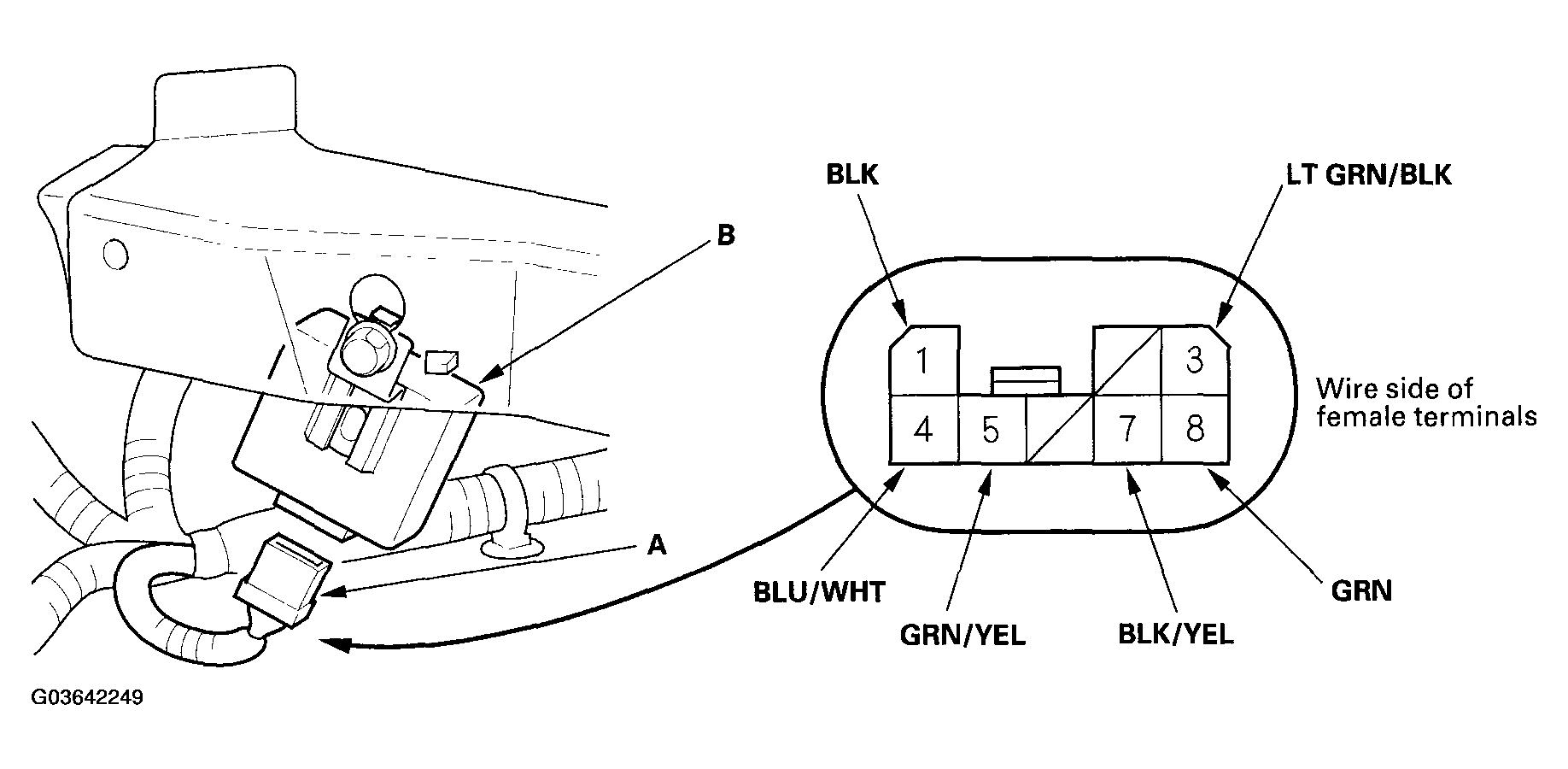

Fig 1: Disconnecting 8P Connector From Rear Window Wiper Intermittent Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

Reconnect the connector and make these input tests at the connectors.

If any test indicates a problem, find and correct the cause, then recheck the system.

If all the input tests prove OK, go to step 5.

REAR WINDOW WIPER INTERMITTENT CONTROL UNIT INPUT TEST (1 OF 2)

Cavity	Wire	Test condition	Test: Desired result	Possible cause if result is not obtained
1	BLK	Under all conditions	Check for voltage to ground: There should be less than 1 V.	Poor ground (G602) An open in the wire
3	LT GRN/BLK	Ignition switch ON (II) and rear window wiper in parked position	Check for voltage to ground: There should be battery voltage.	Blown No. 11 (10 A) fuse in the driver's under-dash fuse/relay box Faulty rear window wiper motor An open in the wire
4	BLU/WHT	Ignition switch ON (II) and rear window wiper switch ON	Check for voltage to ground: There should be battery voltage.	Blown No. 11 (10 A) fuse in the driver's under-dash fuse/relay box Faulty wiper/washer switch An open in the wire
5	GRN/YEL	Ignition switch ON (II) and rear window washer switch ON	Check for voltage to ground: There should be battery voltage.
7	BLK/YEL	Ignition switch ON (II)	Check for voltage to ground: There should be battery voltage.	Blown No. 11 (10 A) fuse in the driver's under-dash fuse/relay box An open in the wire

Disconnect the 8P connector, and make this test at the connector.

If the test indicates a problem, find and correct the cause, then recheck the system.

If the input test proves OK, the control unit must be faulty; replace it.

REAR WINDOW WIPER INTERMITTENT CONTROL UNIT INPUT TEST (2 OF 2)

Cavity	Wire	Test condition	Test: Desired result	Possible cause if result is not obtained
8	GRN	Ignition switch ON (II)	Attach to ground: The rear window wiper motor should run.	Blown No. 11 (10 A) fuse in the driver's under-dash fuse/relay box Faulty rear window wiper motor An open in the wire
