Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00267839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00267841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

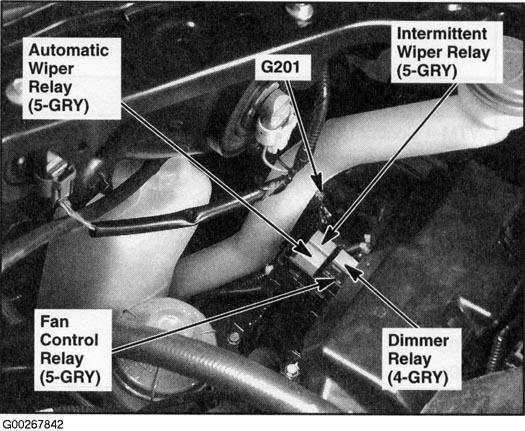

Fig 3: Right Side Of Engine Compartment

G00267842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

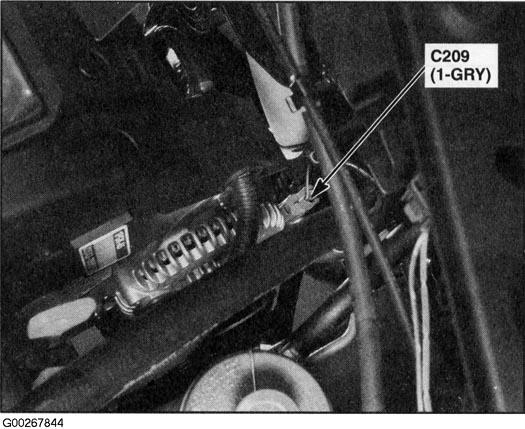

Fig 4: Middle Of Engine Compartment

G00267844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

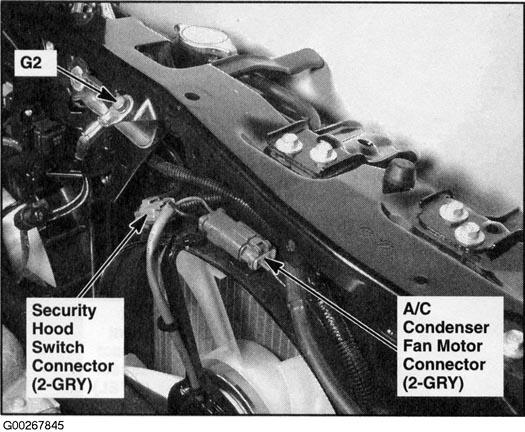

Fig 5: Front Of Engine Compartment

G00267845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

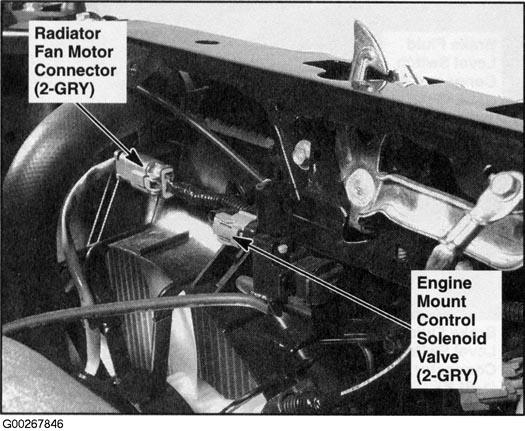

Fig 6: Front Of Engine Compartment

G00267846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

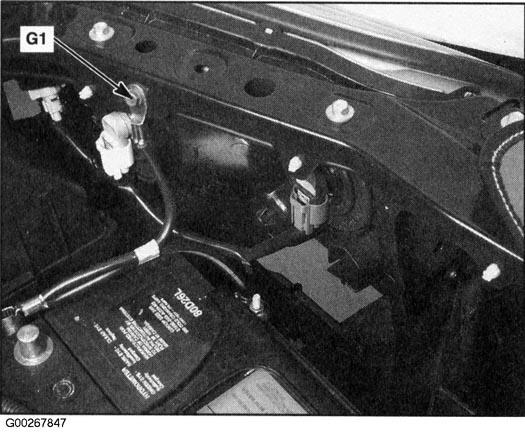

Fig 7: Left Side Of Engine Compartment

G00267847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

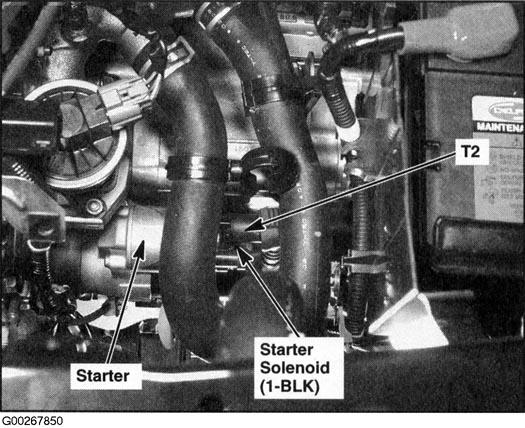

Fig 8: Left Side Of Engine Compartment

G00267850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

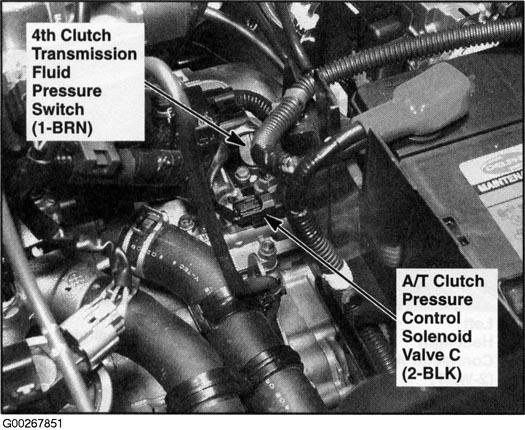

Fig 9: Transmission Housing

G00267851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Left Side Of Engine Compartment

G00267852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Left Side Of Engine Compartment

G00267853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

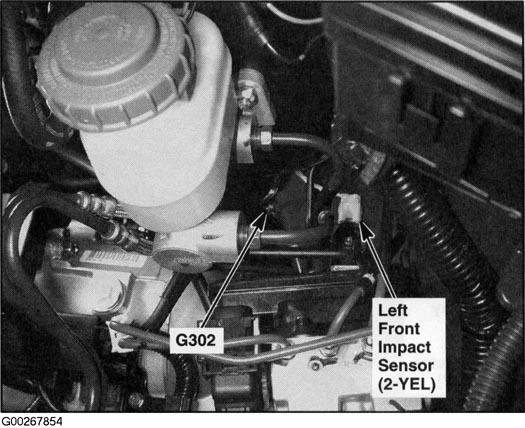

Fig 12: Left Side Of Engine Compartment

G00267854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

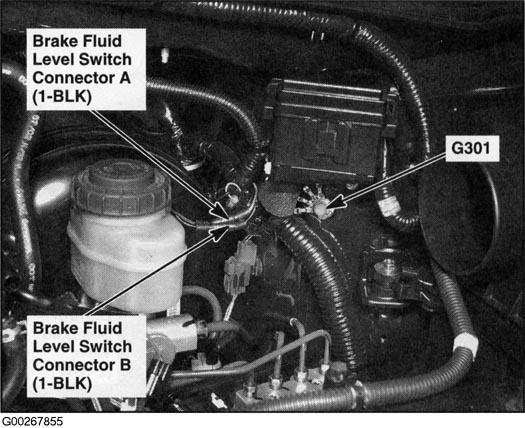

Fig 13: Left Side Of Engine Compartment

G00267855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

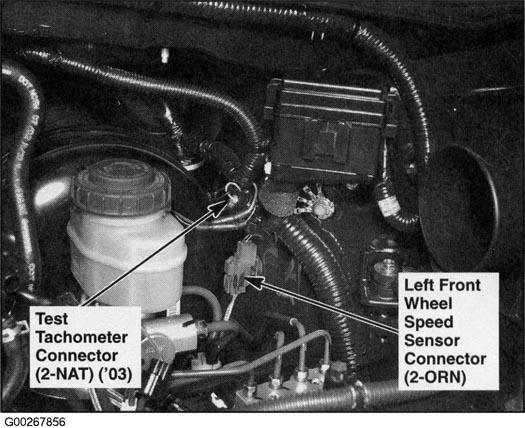

Fig 14: Left Side Of Engine Compartment

G00267856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

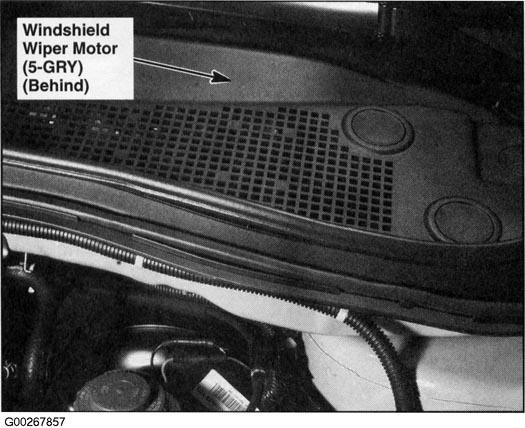

Fig 15: Windshield Wiper Motor

G00267857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

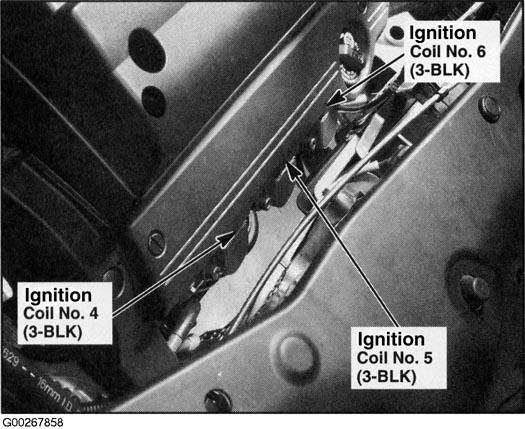

Fig 16: Middle Of Engine Compartment

G00267858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

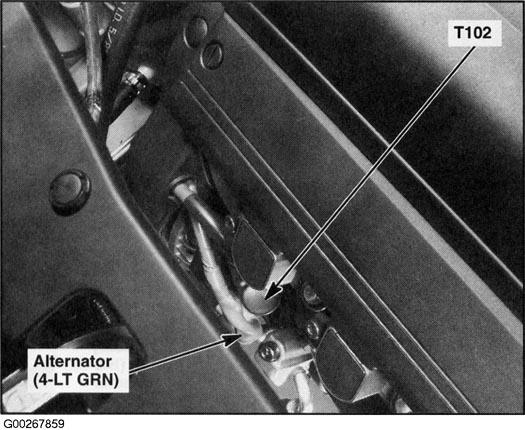

Fig 17: Middle Of Engine Compartment

G00267859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

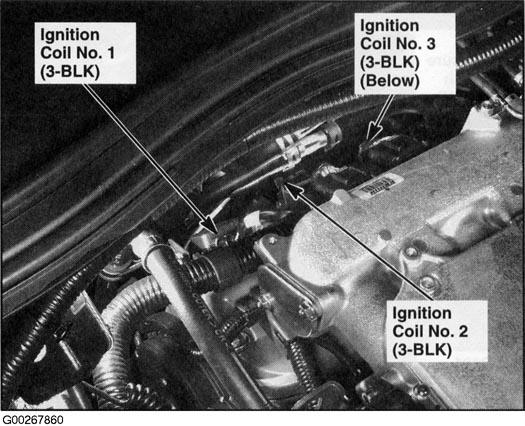

Fig 18: Middle Of Engine Compartment

G00267860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

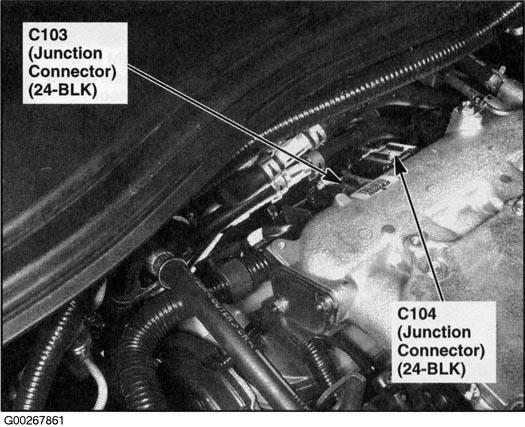

Fig 19: Middle Of Engine Compartment

G00267861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

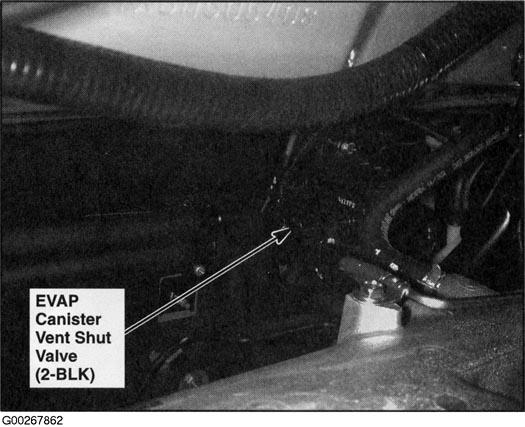

Fig 20: Middle Of Engine Compartment

G00267862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

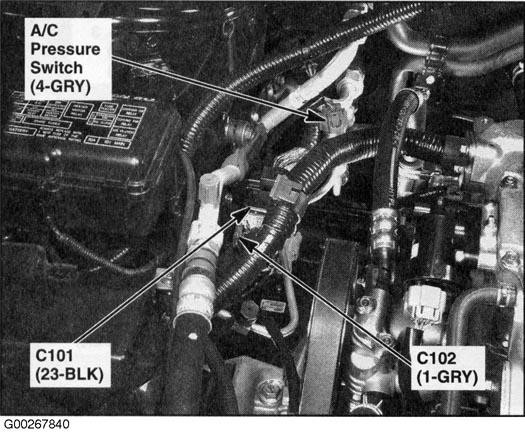

Fig 21: Right Side Of Engine Compartment

G00267840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

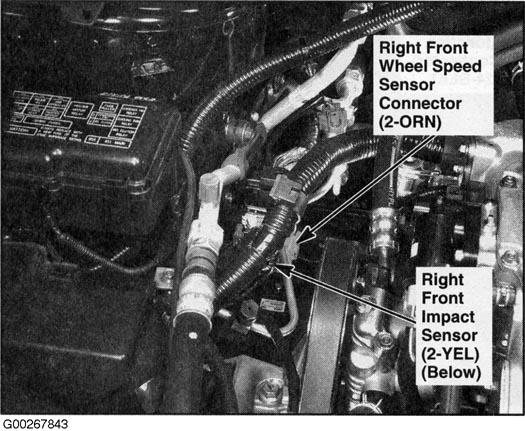

Fig 22: Right Side Of Engine Compartment

G00267843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

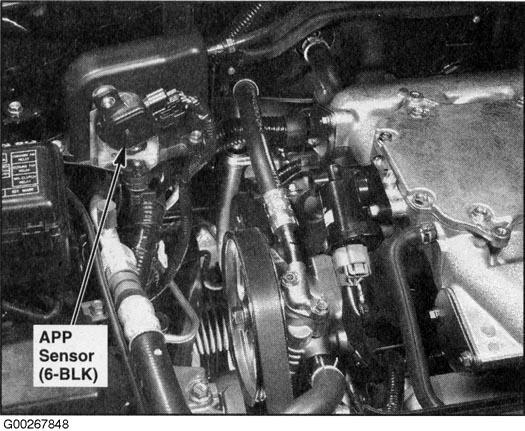

Fig 23: Right Side Of Engine Compartment

G00267848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

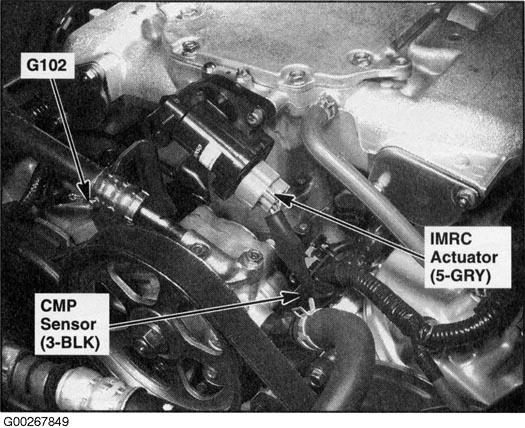

Fig 24: Right Side Of Engine Compartment

G00267849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

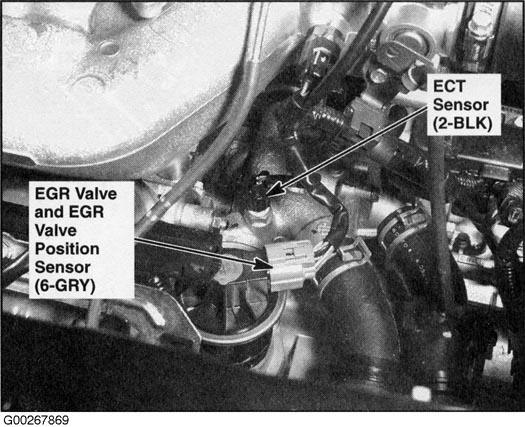

Fig 25: Left Side Of Engine Compartment

G00267869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

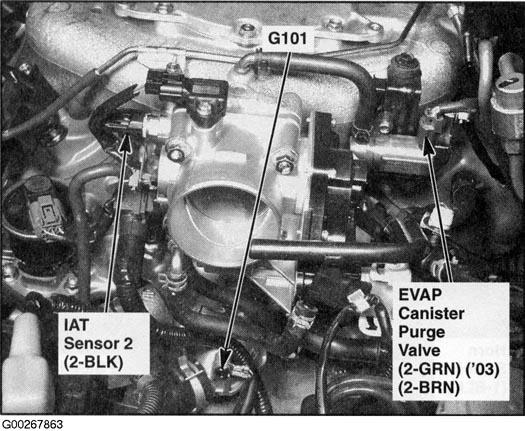

Fig 26: Left Side Of Engine Compartment

G00267863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Side Of Engine Compartment

G00267864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

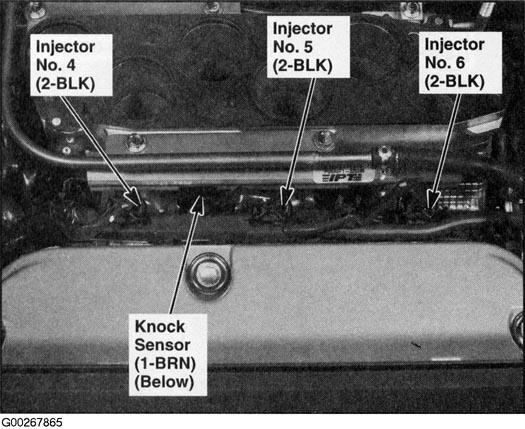

Fig 28: Middle Of Engine Compartment

G00267865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

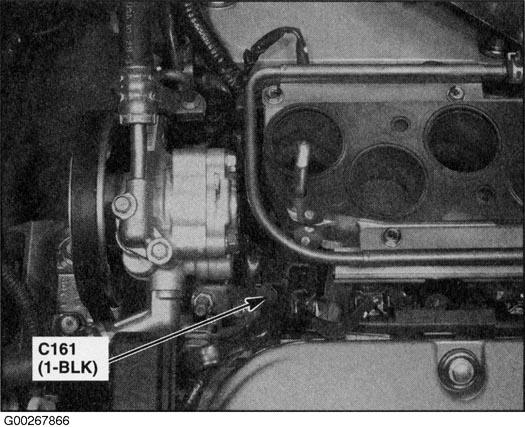

Fig 29: Right Side Of Engine Compartment

G00267866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

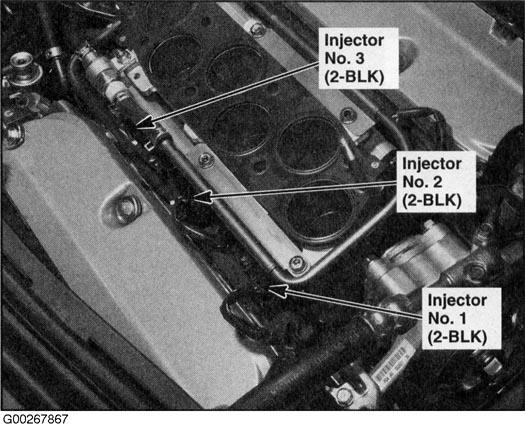

Fig 30: Middle Of Engine Compartment

G00267867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

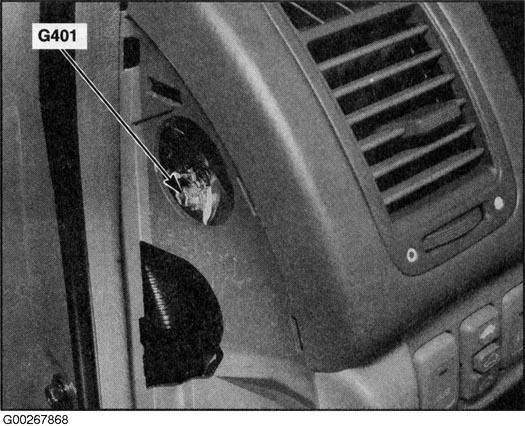

Fig 31: Left Side Of Dash

G00267868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

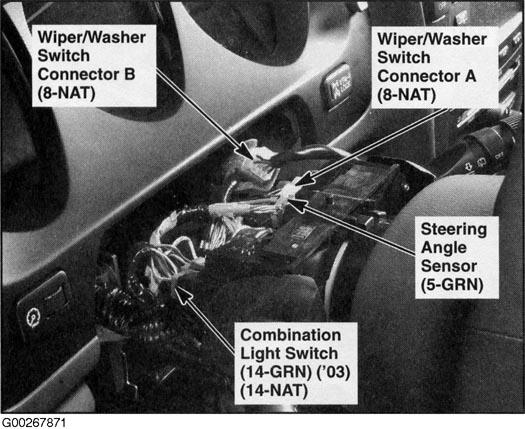

Fig 32: In Steering Column Cover

G00267871

Courtesy of AMERICAN HONDA MOTOR CO., INC.

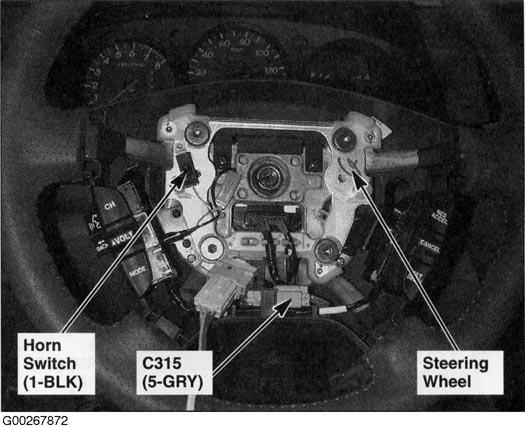

Fig 33: Inside Of Steering Wheel

G00267872

Courtesy of AMERICAN HONDA MOTOR CO., INC.

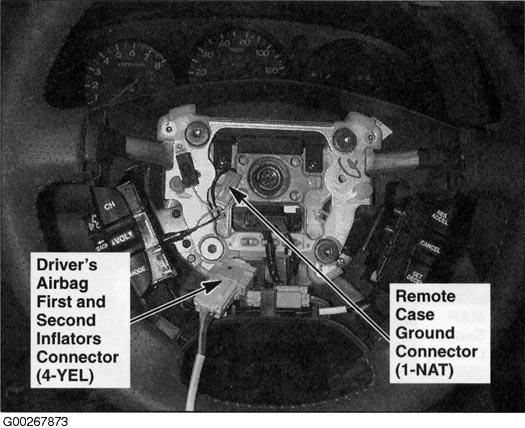

Fig 34: Inside Steering Wheel

G00267873

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: In Steering Column Cover

G00267875

Courtesy of AMERICAN HONDA MOTOR CO., INC.

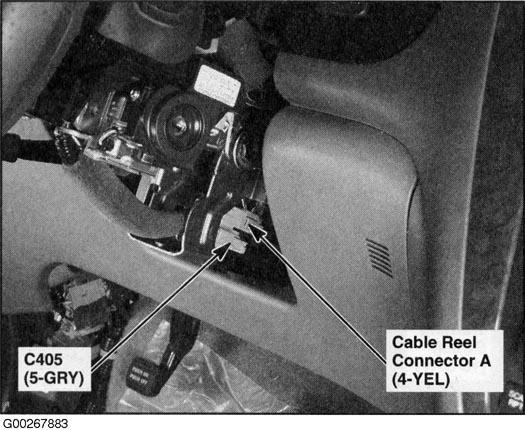

Fig 36: Behind Steering Column Cover

G00267883

Courtesy of AMERICAN HONDA MOTOR CO., INC.

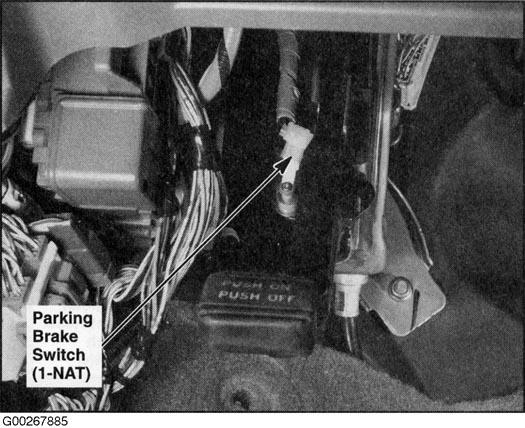

Fig 37: Under Left Side Of Dash

G00267885

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Left Side Of Dash

G00267886

Courtesy of AMERICAN HONDA MOTOR CO., INC.

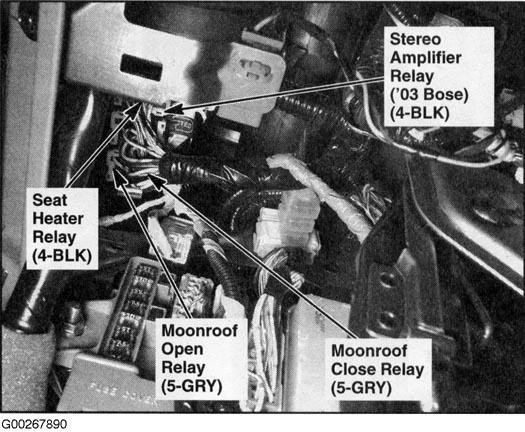

Fig 39: Under Left Side Of Dash

G00267890

Courtesy of AMERICAN HONDA MOTOR CO., INC.

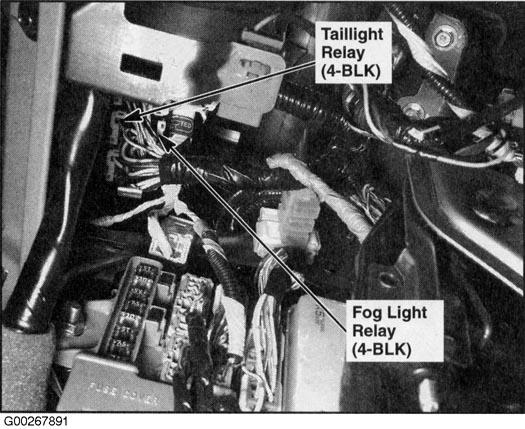

Fig 40: Under Left Side Of Dash

G00267891

Courtesy of AMERICAN HONDA MOTOR CO., INC.

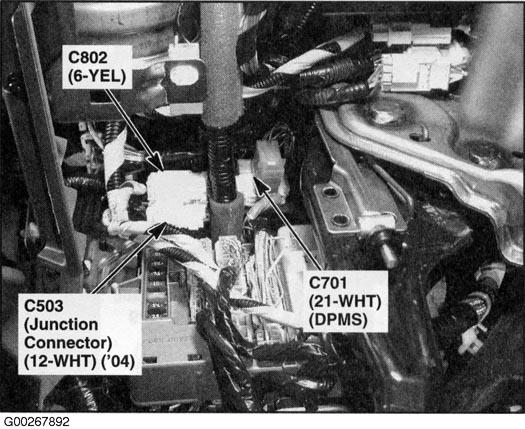

Fig 41: Under Left Side Of Dash

G00267892

Courtesy of AMERICAN HONDA MOTOR CO., INC.

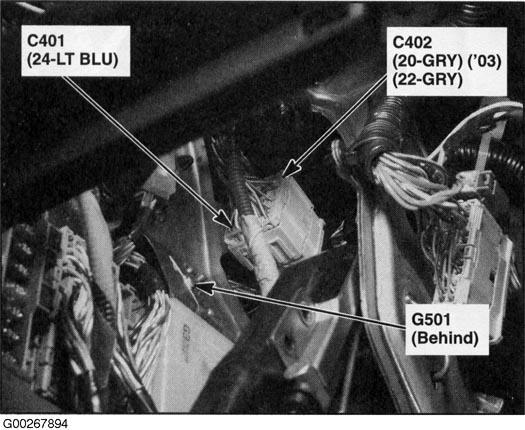

Fig 42: Under Left Side Of Dash

G00267894

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00267895

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Left Side Of Dash

G00267896

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Under Left Side Of Dash

G00267897

Courtesy of AMERICAN HONDA MOTOR CO., INC.

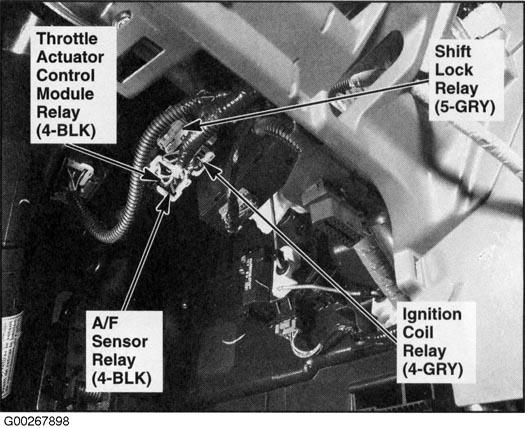

Fig 46: Under Left Side Of Dash

G00267898

Courtesy of AMERICAN HONDA MOTOR CO., INC.

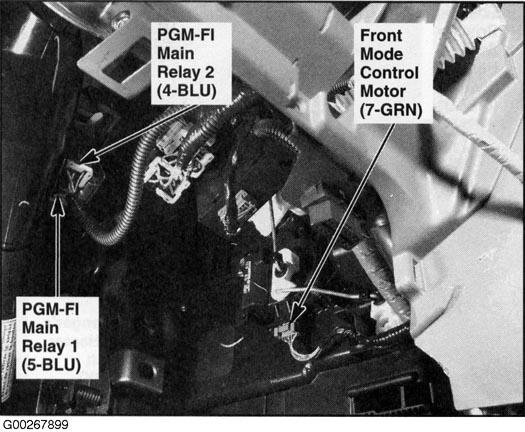

Fig 47: Under Left Side Of Dash

G00267899

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Under Left Side Of Dash

G00267900

Courtesy of AMERICAN HONDA MOTOR CO., INC.

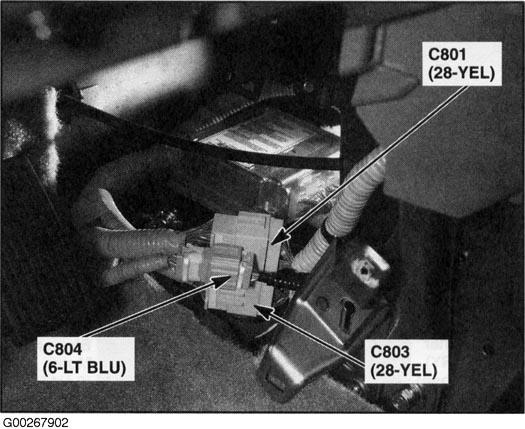

Fig 49: Under Middle Of Dash

G00267902

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Center Console

G00267903

Courtesy of AMERICAN HONDA MOTOR CO., INC.

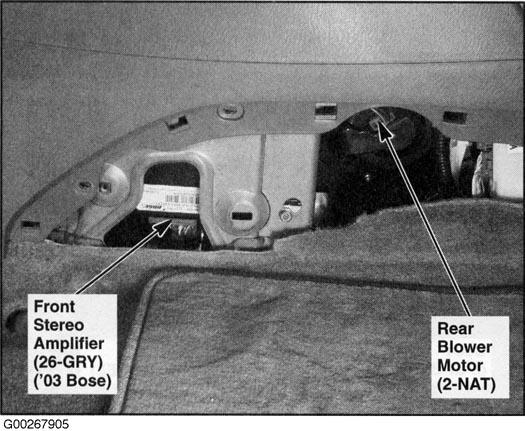

Fig 51: Under Center Console

G00267905

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Right Side Of Dash

G00267906

Courtesy of AMERICAN HONDA MOTOR CO., INC.

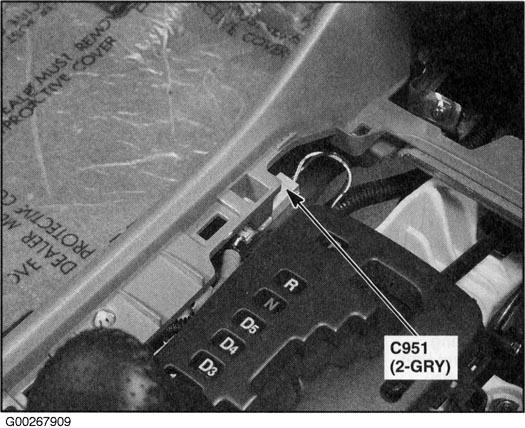

Fig 53: Under Middle Of Console

G00267909

Courtesy of AMERICAN HONDA MOTOR CO., INC.

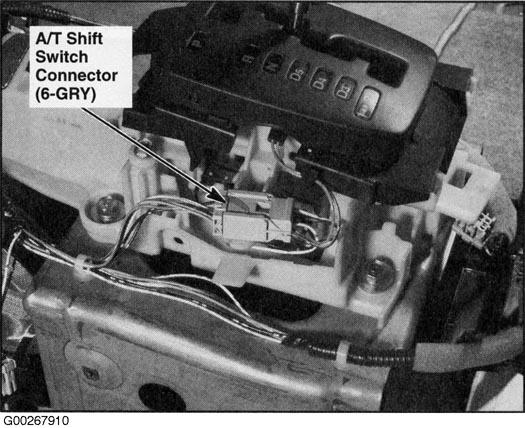

Fig 54: Behind Center Console

G00267910

Courtesy of AMERICAN HONDA MOTOR CO., INC.

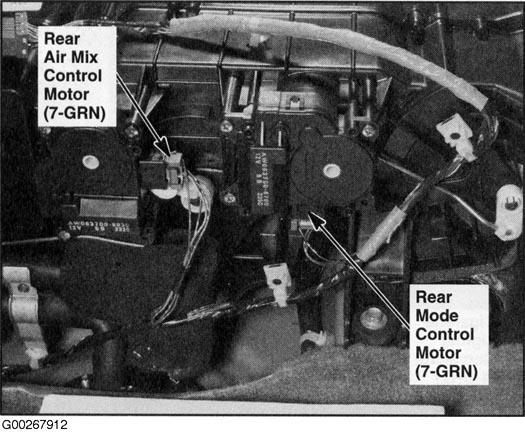

Fig 55: Under Center Console

G00267912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

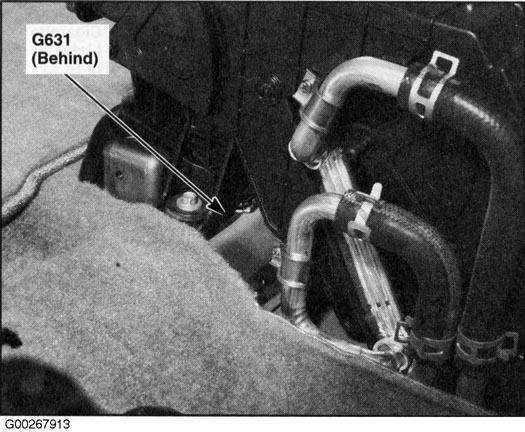

Fig 56: Under Rear Center Console Panel

G00267913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

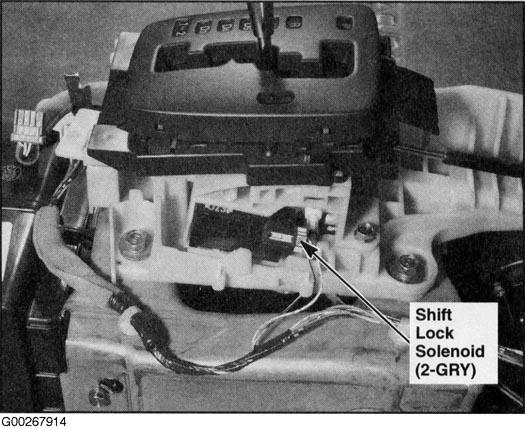

Fig 57: Behind Center Console Panel

G00267914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

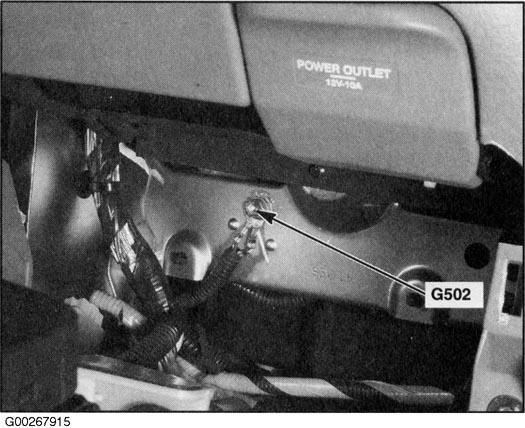

Fig 58: Under Middle Of Dash

G00267915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

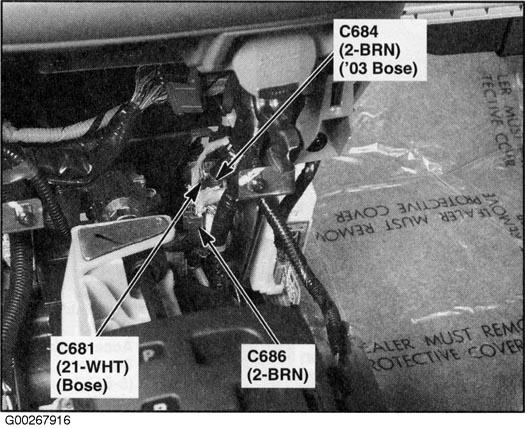

Fig 59: Under Middle Of Dash

G00267916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

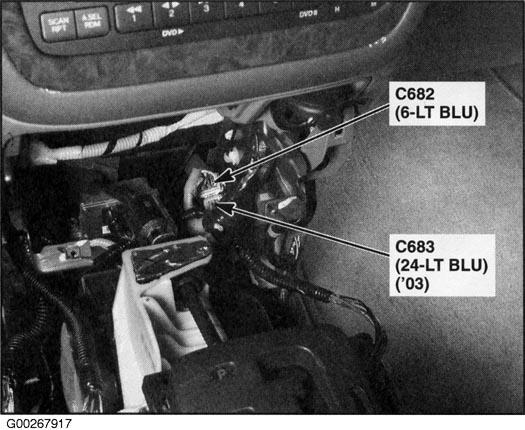

Fig 60: Under Middle Of Dash (Navigation)

G00267917

Courtesy of AMERICAN HONDA MOTOR CO., INC.

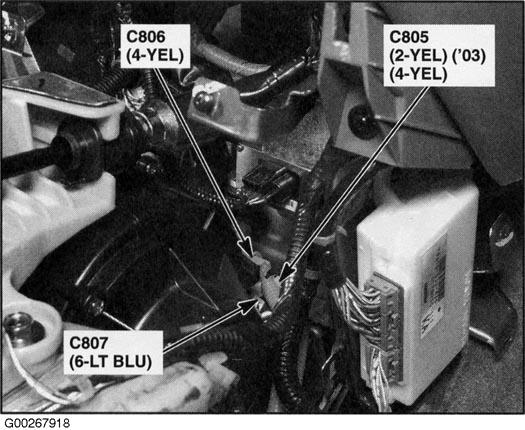

Fig 61: Under Center Console

G00267918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

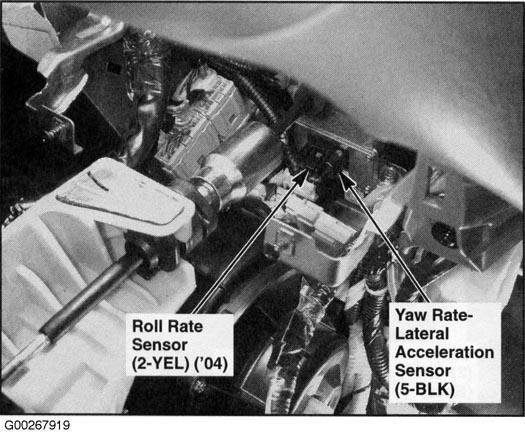

Fig 62: Under Middle Of Dash

G00267919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

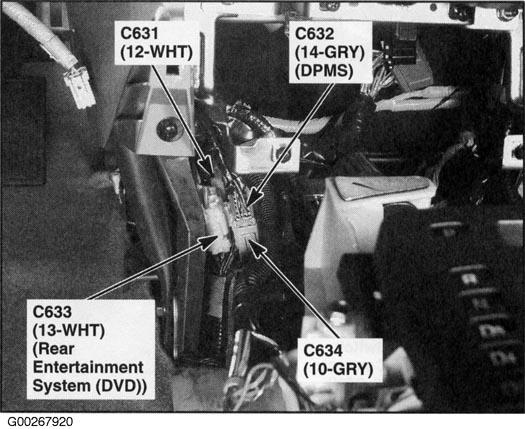

Fig 63: Under Middle Of Dash

G00267920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

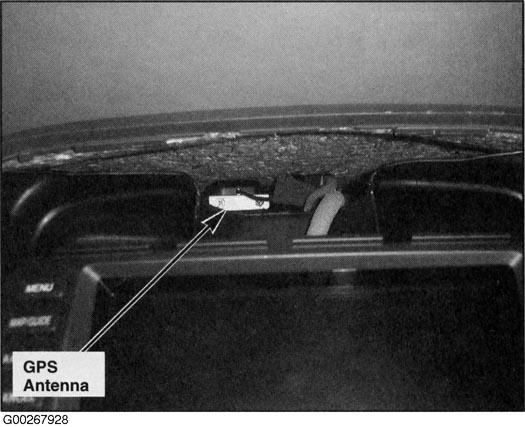

Fig 64: Middle Of Dash (Navigation)

G00267928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Behind Glove Box

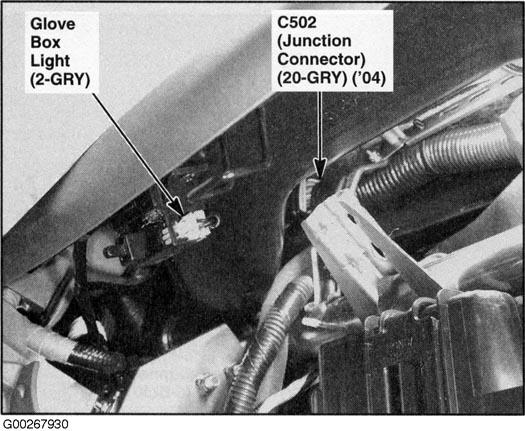

G00267930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

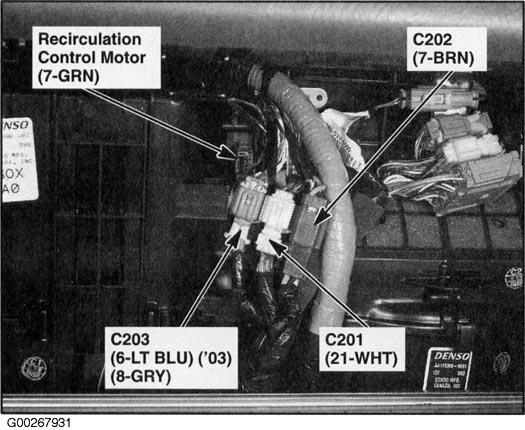

Fig 66: Behind Glove Box

G00267931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

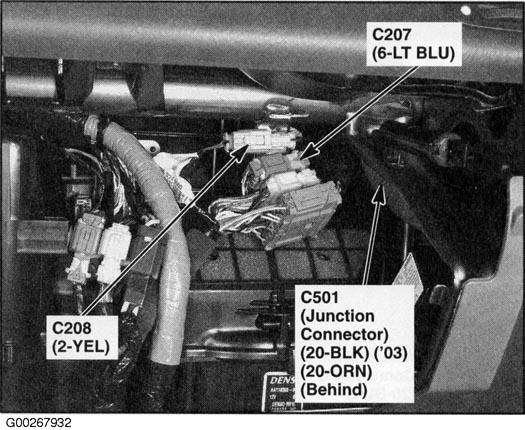

Fig 67: Behind Glove Box

G00267932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

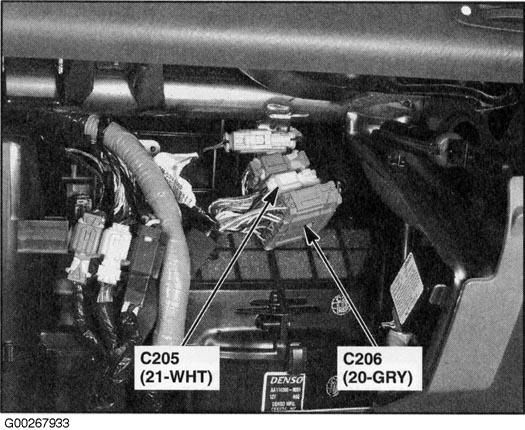

Fig 68: Behind Glove Box

G00267933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Behind Glove Box

G00267934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

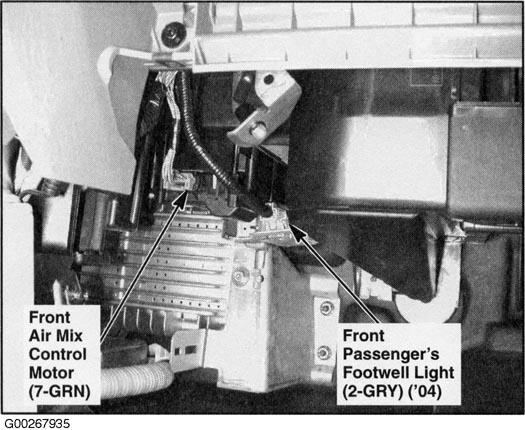

Fig 70: Under Right Side Of Dash

G00267935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Under Right Side Of Dash

G00267936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Behind Right Kick Panel

G00267937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

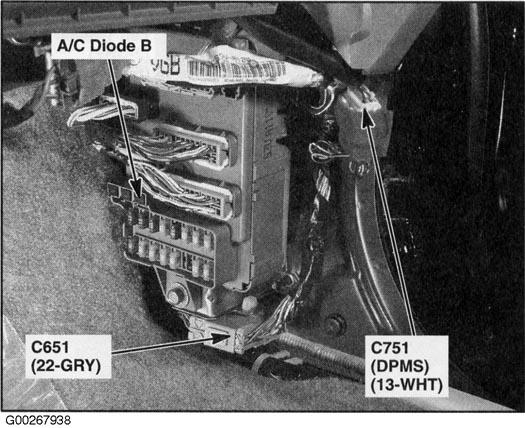

Fig 73: Behind Right Kick Panel

G00267938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

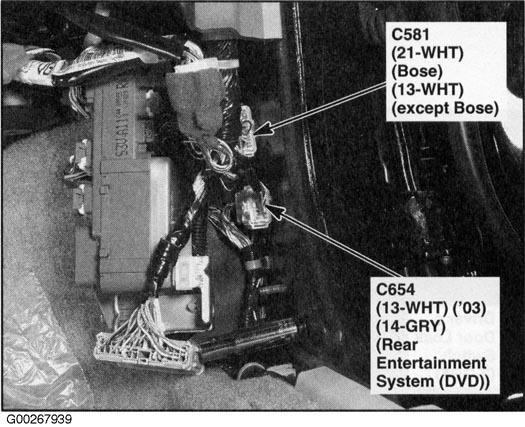

Fig 74: Behind Right Kick Panel

G00267939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 75: Under Right Side Of Dash

G00267940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Driver's Door

G00267950

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Driver's Door

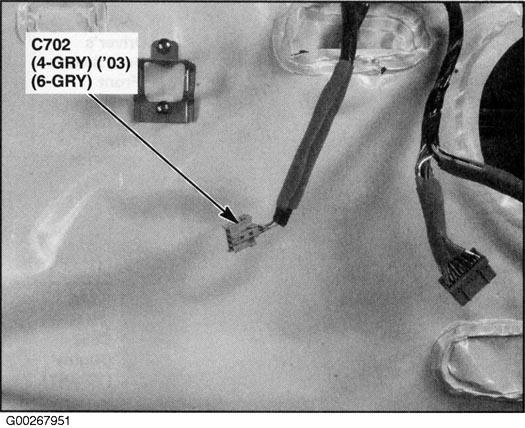

G00267951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

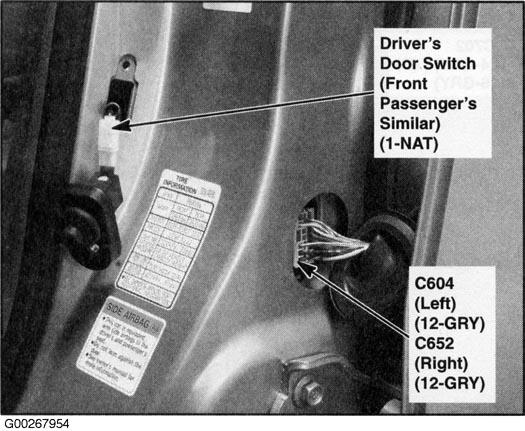

Fig 78: Left "B" Pillar (Right Similar)

G00267954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

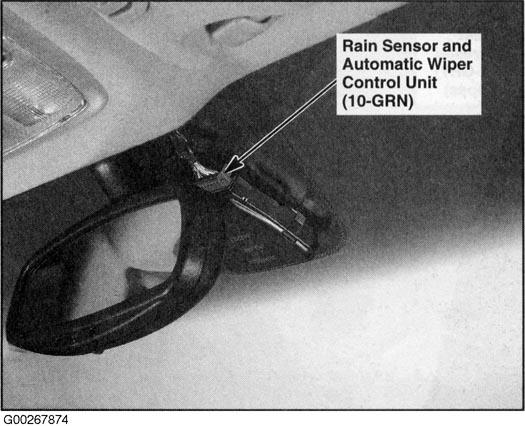

Fig 79: Front Middle Of Roof (Auto Wiper)

G00267874

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Middle Of Roof

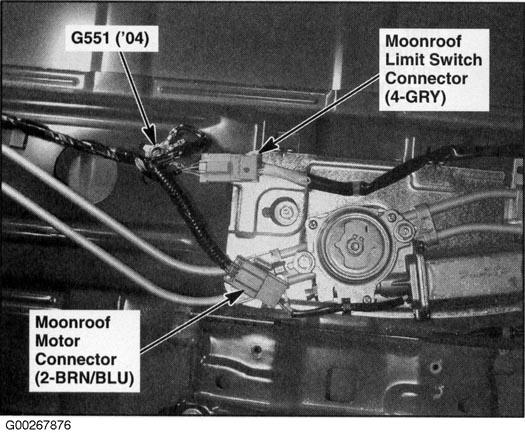

G00267876

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Middle Of Roof (Except Navigation)

G00267877

Courtesy of AMERICAN HONDA MOTOR CO., INC.

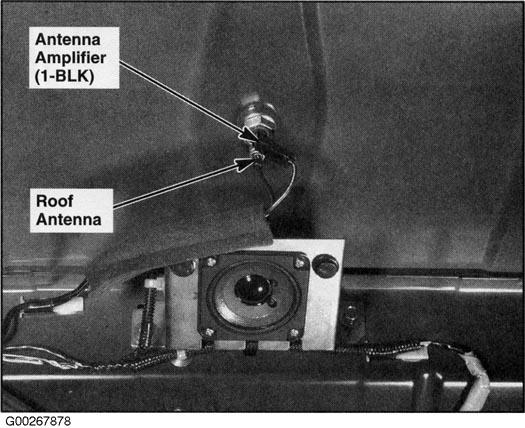

Fig 82: Rear Middle Of Roof

G00267878

Courtesy of AMERICAN HONDA MOTOR CO., INC.

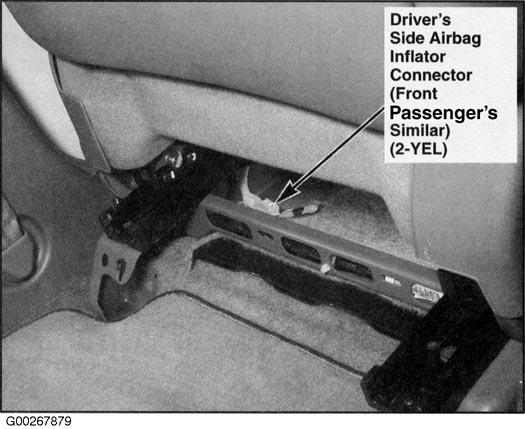

Fig 83: Behind Driver's Seat (Front Passenger's Similar)

G00267879

Courtesy of AMERICAN HONDA MOTOR CO., INC.

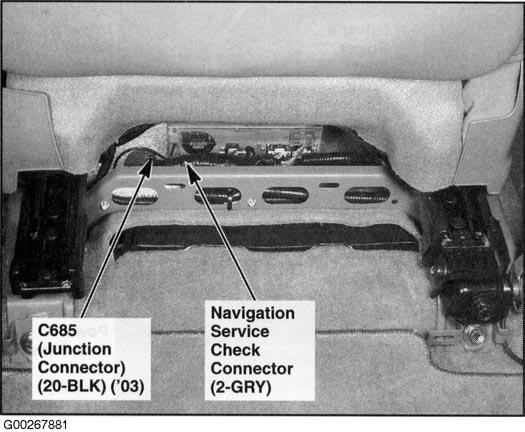

Fig 84: Under Front Passenger's Seat (Navigation)

G00267881

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Under Driver's Seat (Except DPMS)

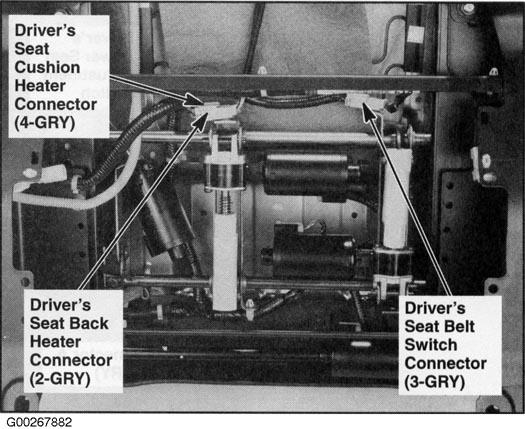

G00267882

Courtesy of AMERICAN HONDA MOTOR CO., INC.

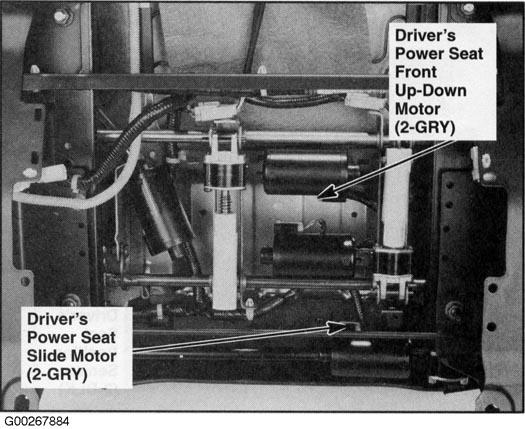

Fig 86: Under Driver's Seat (Except DPMS)

G00267884

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Under Driver's Seat (Except DPMS)

G00267904

Courtesy of AMERICAN HONDA MOTOR CO., INC.

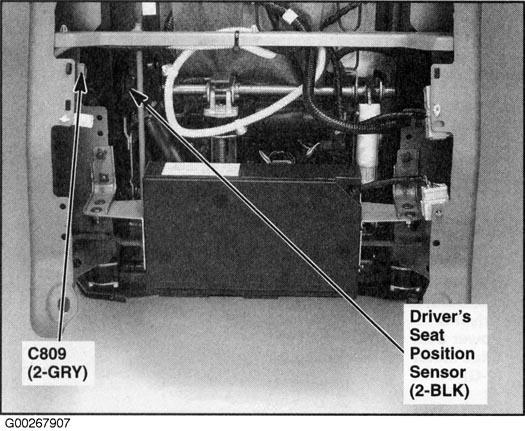

Fig 88: Under Driver's Seat

G00267907

Courtesy of AMERICAN HONDA MOTOR CO., INC.

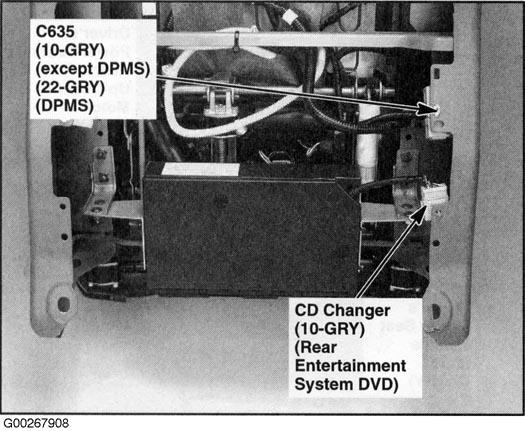

Fig 89: Under Driver's Seat

G00267908

Courtesy of AMERICAN HONDA MOTOR CO., INC.

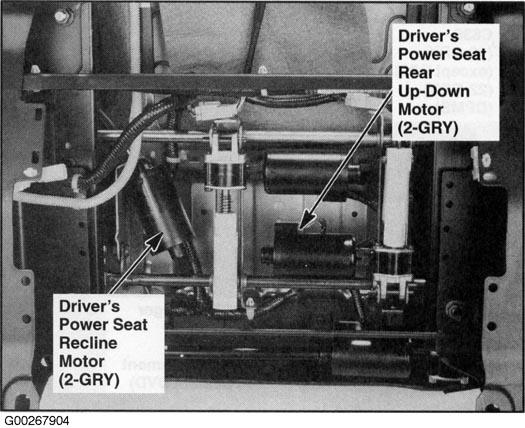

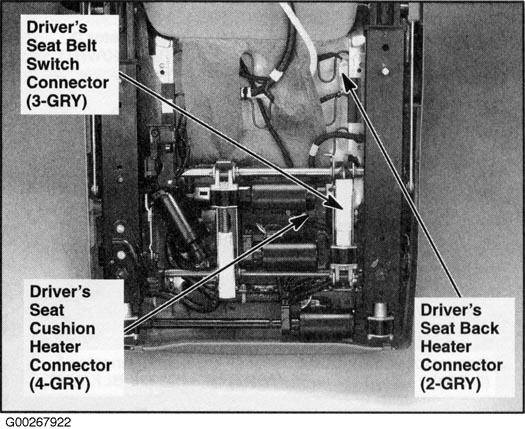

Fig 90: Under Driver's Seat

G00267922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

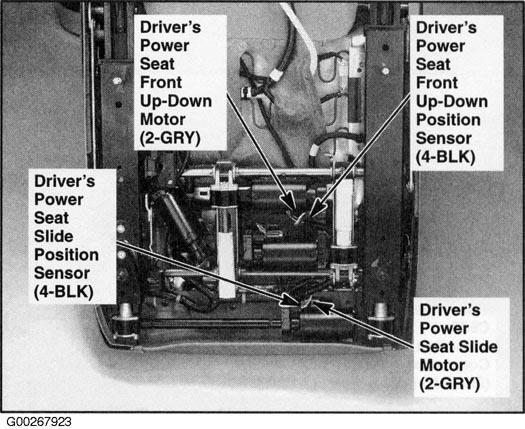

Fig 91: Under Driver's Seat (DPMS)

G00267923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

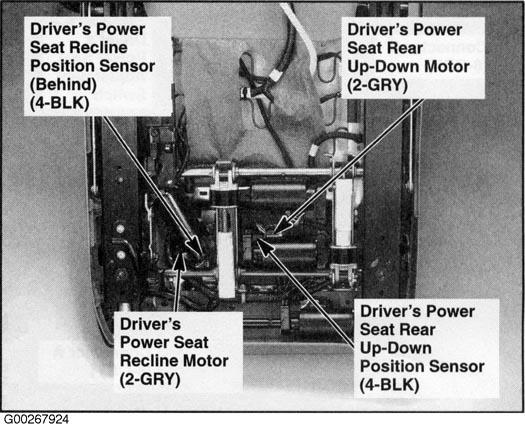

Fig 92: Under Driver's Seat (DPMS)

G00267924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Under Driver's Seat (DPMS)

G00267925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

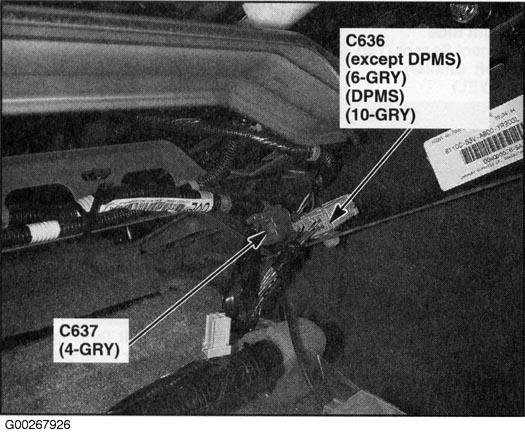

Fig 94: Under Front Passenger's Seat

G00267926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Under Front Passenger's Seat

G00267927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

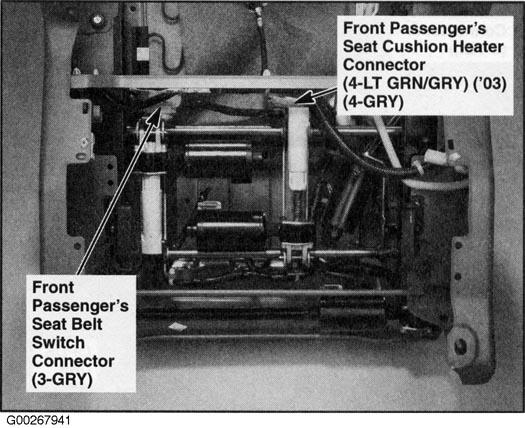

Fig 96: Under Front Passenger's Seat

G00267941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

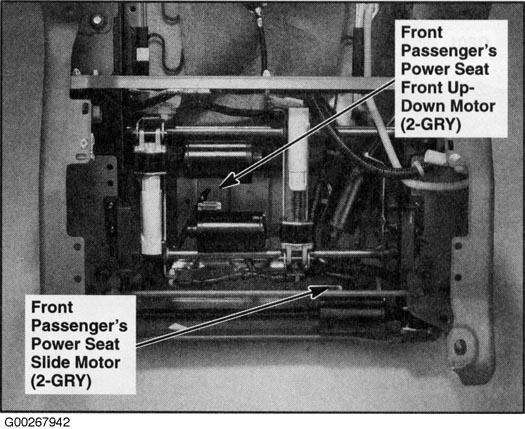

Fig 97: Under Front Passenger's Seat (DPMS)

G00267942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

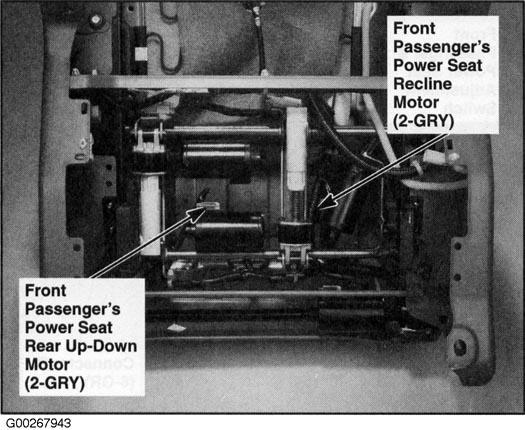

Fig 98: Under Front Passenger's Seat (DPMS)

G00267943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Front Passenger's Seat

G00267944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Left Side Of Floor

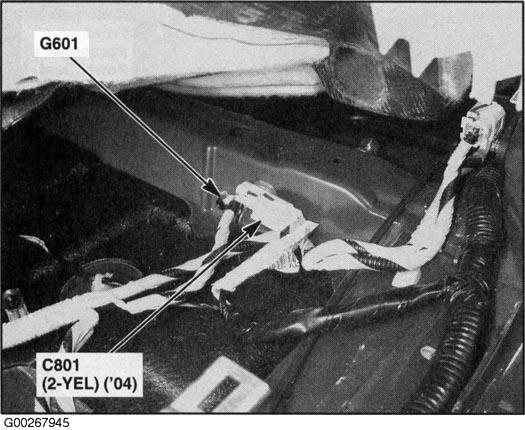

G00267945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

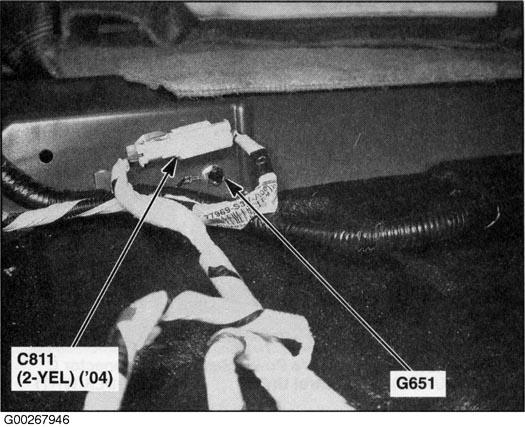

Fig 101: Right Side Of Floor

G00267946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

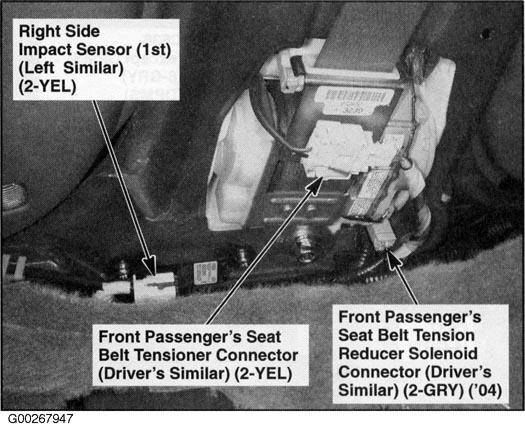

Fig 102: Right "B" Pillar (Left Similar)

G00267947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

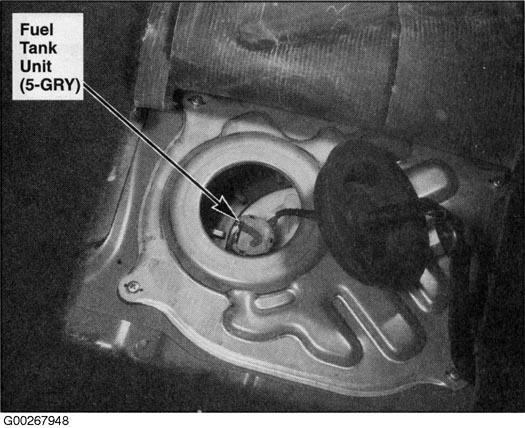

Fig 103: Middle Of Floor

G00267948

Courtesy of AMERICAN HONDA MOTOR CO., INC.

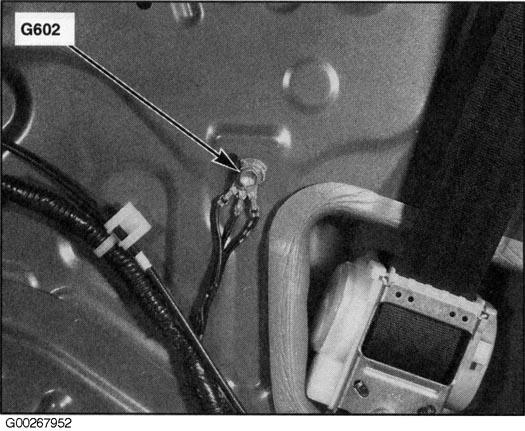

Fig 104: Behind Left Rear Lining

G00267952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Left Side Of Cargo Area

G00267953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

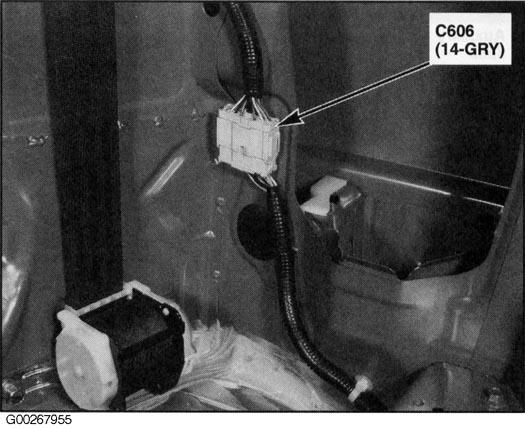

Fig 106: Left Side Of Cargo Area

G00267955

Courtesy of AMERICAN HONDA MOTOR CO., INC.

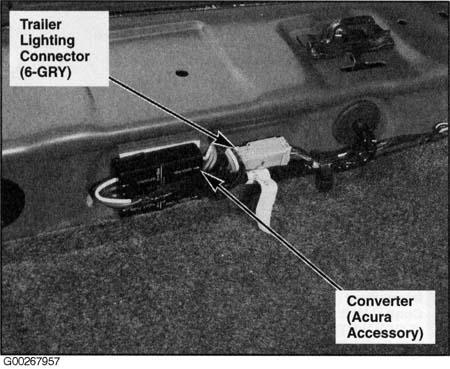

Fig 107: Left Side Of Cargo Area

G00267957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

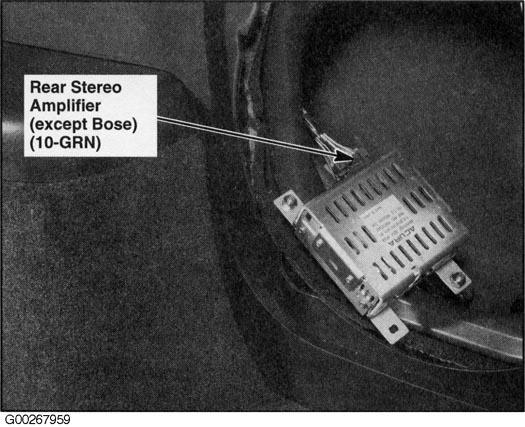

Fig 108: Right Side Of Cargo Area (Except Bose)

G00267959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

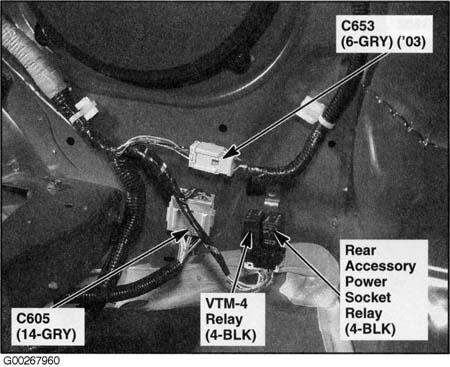

Fig 109: Right Side Of Cargo Area

G00267960

Courtesy of AMERICAN HONDA MOTOR CO., INC.

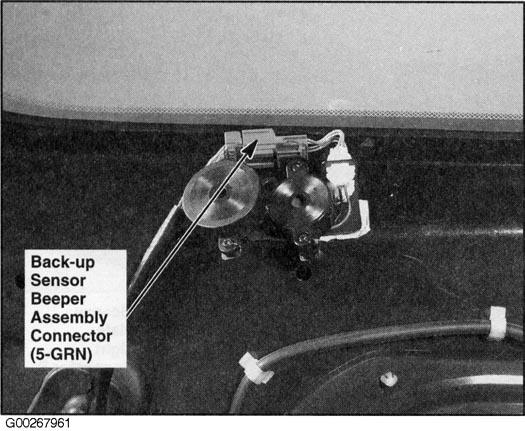

Fig 110: Right Side Of Cargo Area (Acura Accessory)

G00267961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 111: Right Side Of Cargo Area (Navigation)

G00264156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Left Rear Side Of Trim Panel

G00264157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Right Side Of Cargo Area

G00264158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

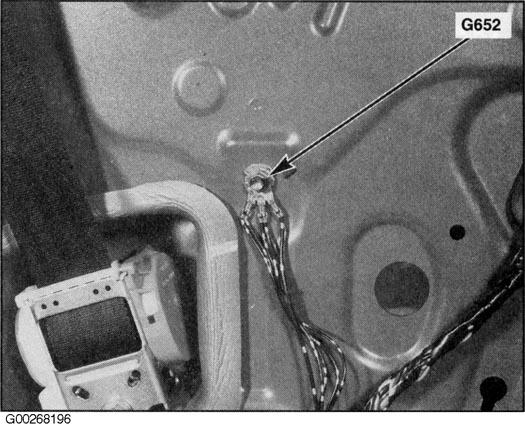

Fig 114: Behind Right Rear Lining

G00268196

Courtesy of AMERICAN HONDA MOTOR CO., INC.

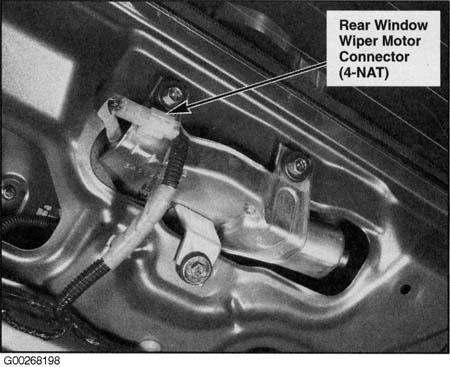

Fig 115: Behind Tailgate Trim Panel

G00268198

Courtesy of AMERICAN HONDA MOTOR CO., INC.

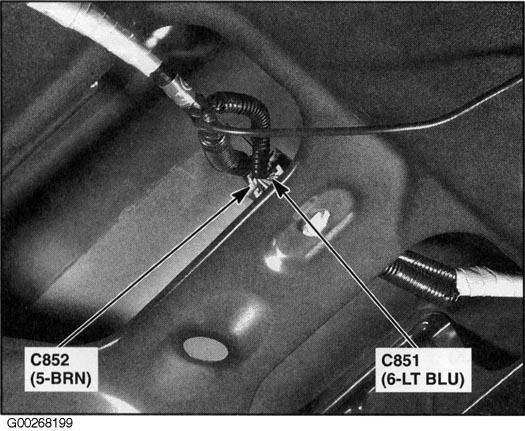

Fig 116: Behind Tailgate Trim Panel

G00268199

Courtesy of AMERICAN HONDA MOTOR CO., INC.

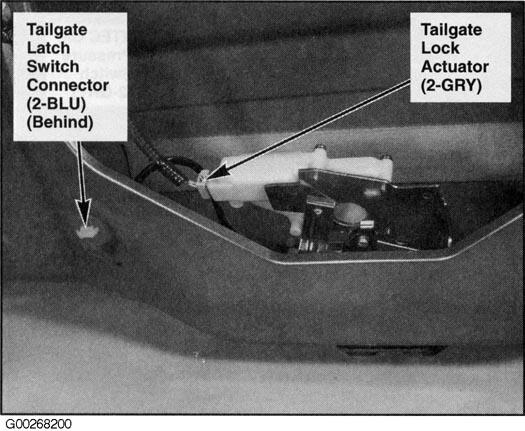

Fig 117: Behind Tailgate Trim Panel

G00268200

Courtesy of AMERICAN HONDA MOTOR CO., INC.

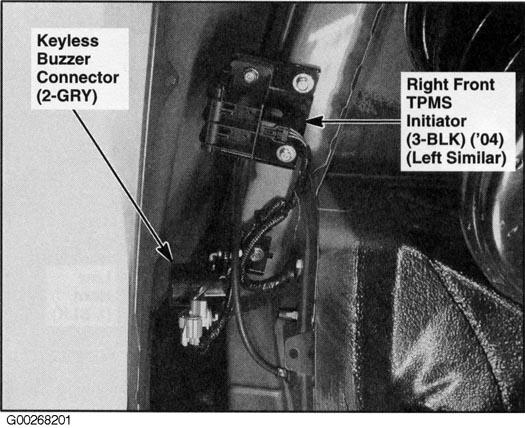

Fig 118: Behind Right Fender

G00268201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

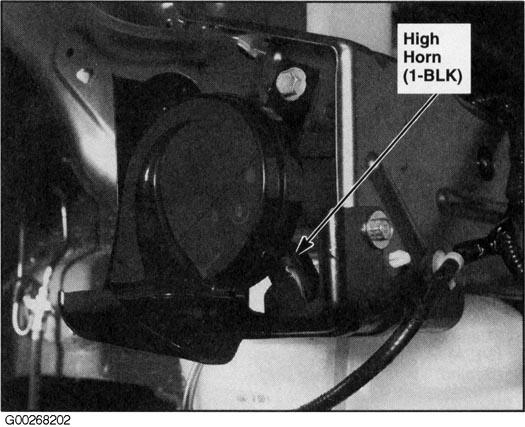

Fig 119: Right Side Of Front Bumper

G00268202

Courtesy of AMERICAN HONDA MOTOR CO., INC.

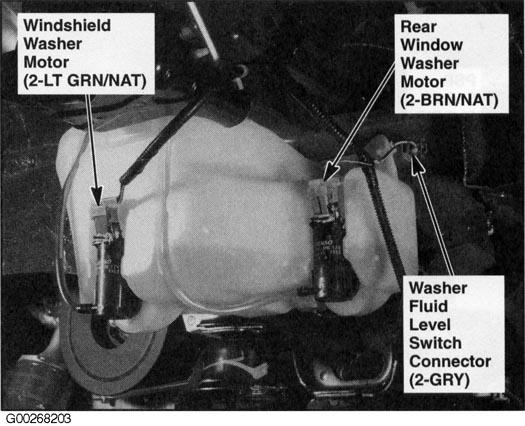

Fig 120: Behind Right Side Of Front Bumper

G00268203

Courtesy of AMERICAN HONDA MOTOR CO., INC.

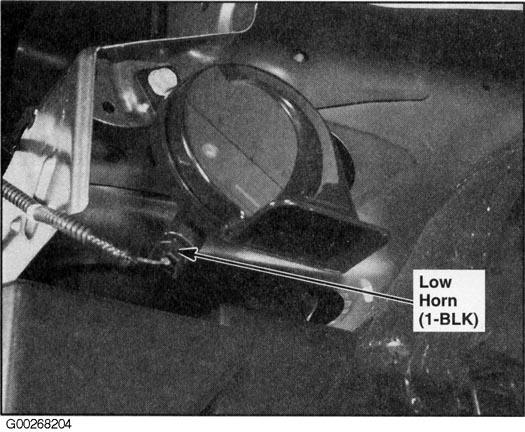

Fig 121: Behind Left Side Of Front Bumper

G00268204

Courtesy of AMERICAN HONDA MOTOR CO., INC.

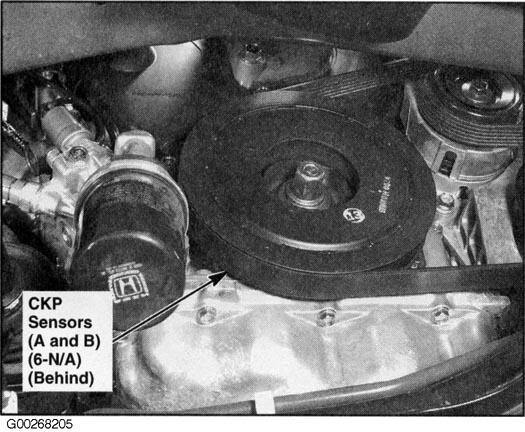

Fig 122: Right Side Of Engine Compartment

G00268205

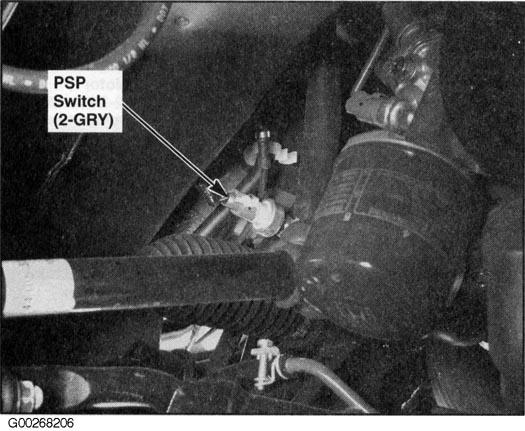

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 123: Right Side Of Engine Compartment

G00268206

Courtesy of AMERICAN HONDA MOTOR CO., INC.

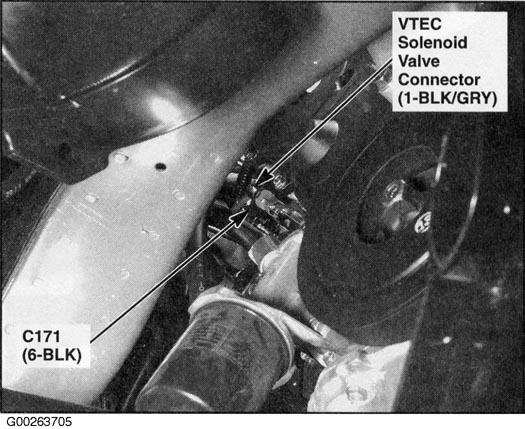

Fig 124: Right Side Of Engine Compartment

G00263705

Courtesy of AMERICAN HONDA MOTOR CO., INC.

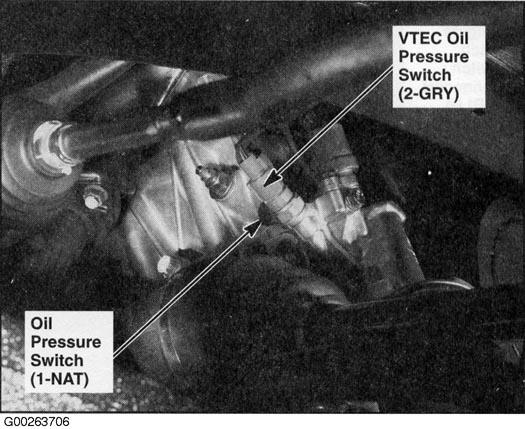

Fig 125: Right Side Of Engine Compartment

G00263706

Courtesy of AMERICAN HONDA MOTOR CO., INC.

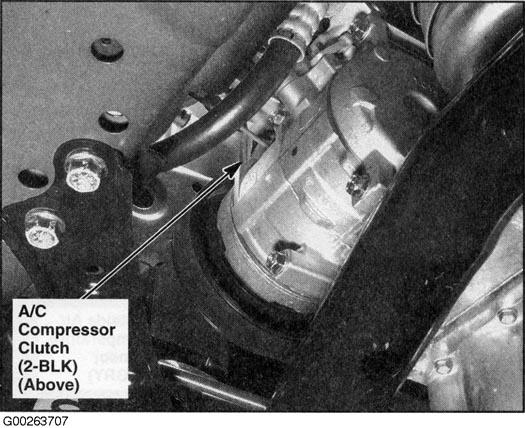

Fig 126: Right Side Of Engine Compartment

G00263707

Courtesy of AMERICAN HONDA MOTOR CO., INC.

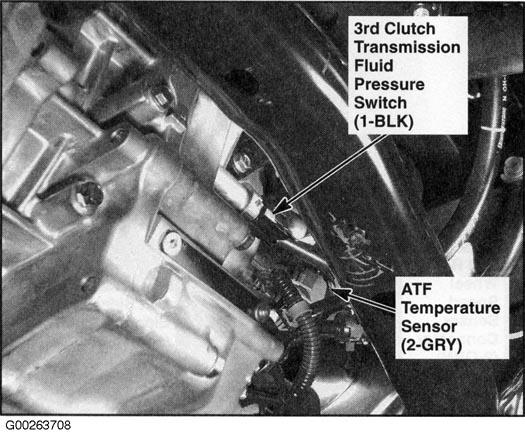

Fig 127: Transmission Housing

G00263708

Courtesy of AMERICAN HONDA MOTOR CO., INC.

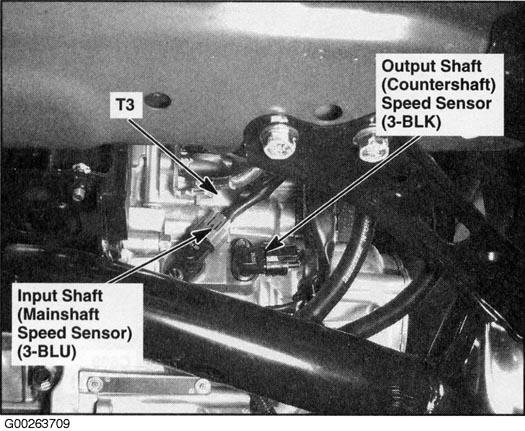

Fig 128: Transmission Housing

G00263709

Courtesy of AMERICAN HONDA MOTOR CO., INC.

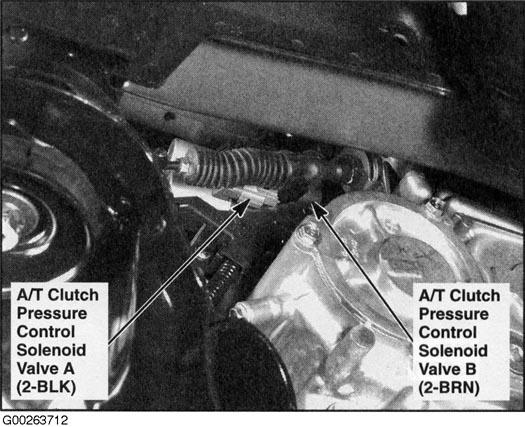

Fig 129: Transmission Housing

G00263712

Courtesy of AMERICAN HONDA MOTOR CO., INC.

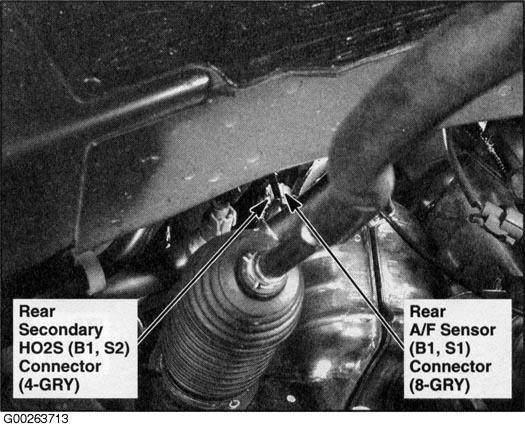

Fig 130: Left Side Of Engine Compartment

G00263713

Courtesy of AMERICAN HONDA MOTOR CO., INC.

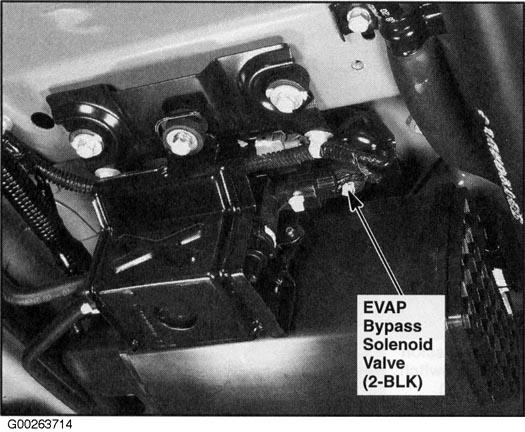

Fig 131: Under Left Side Of Vehicle

G00263714

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Under Left Side Of Vehicle

G00263715

Courtesy of AMERICAN HONDA MOTOR CO., INC.

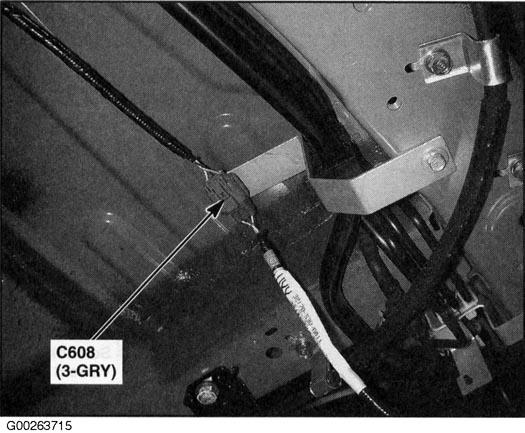

Fig 133: Under Left Side Of Vehicle

G00263716

Courtesy of AMERICAN HONDA MOTOR CO., INC.

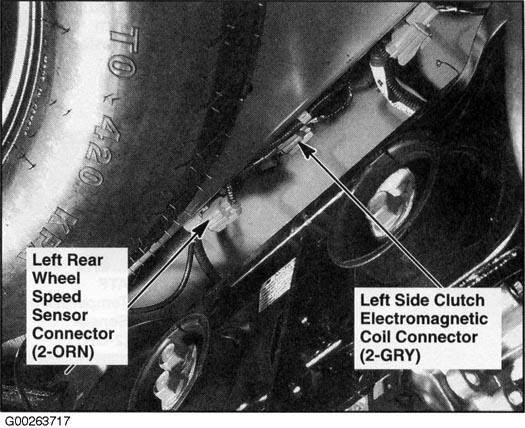

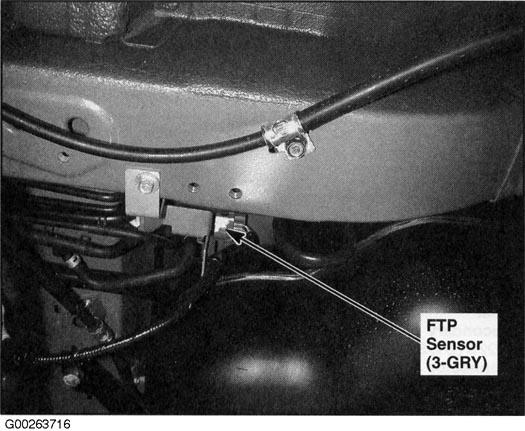

Fig 134: Under Rear Of Vehicle

G00263717

Courtesy of AMERICAN HONDA MOTOR CO., INC.

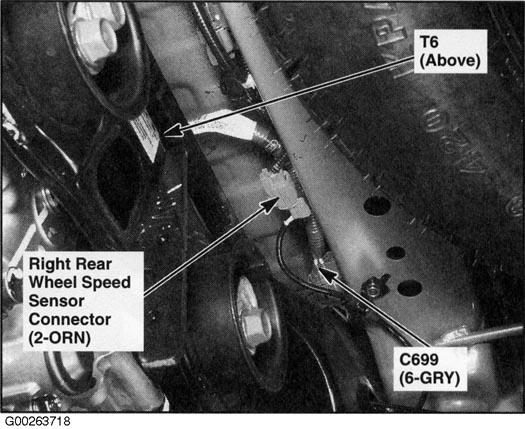

Fig 135: Under Rear Of Vehicle

G00263718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

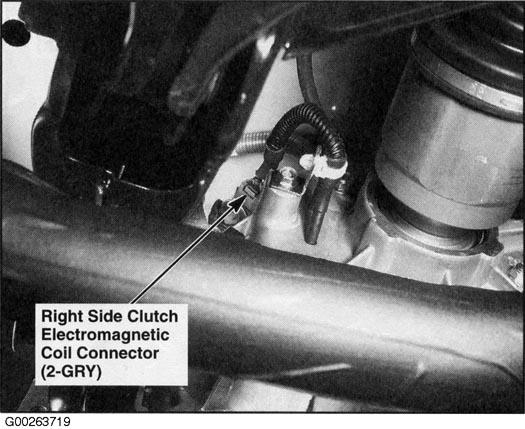

Fig 136: Under Rear Of Vehicle

G00263719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

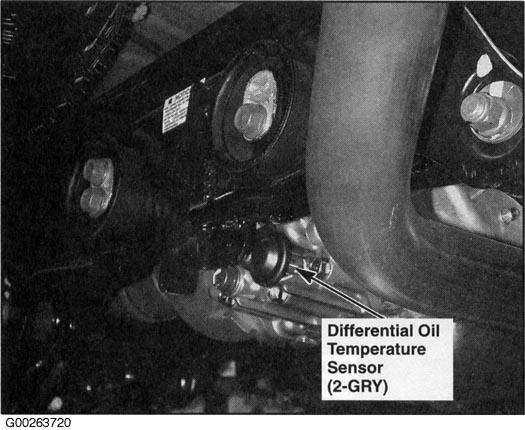

Fig 137: Differential Oil Temperature Sensor

G00263720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

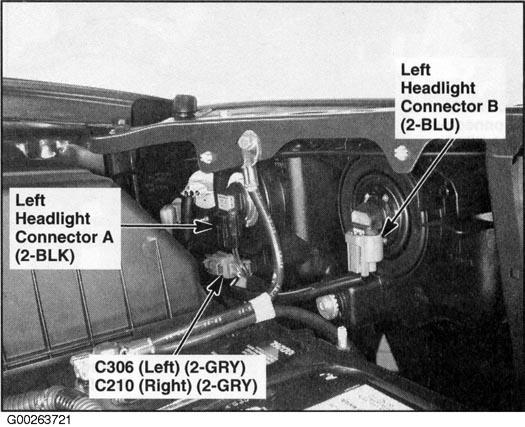

Fig 138: Behind Left Headlight Assembly (Right Similar)

G00263721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 139: Under Middle Of Dash

G00263734

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 140: Under Middle Of Dash

G00263722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

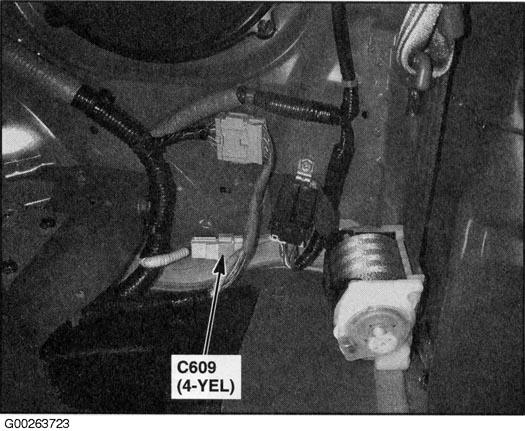

Fig 141: Right Side Of Cargo Area

G00263723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

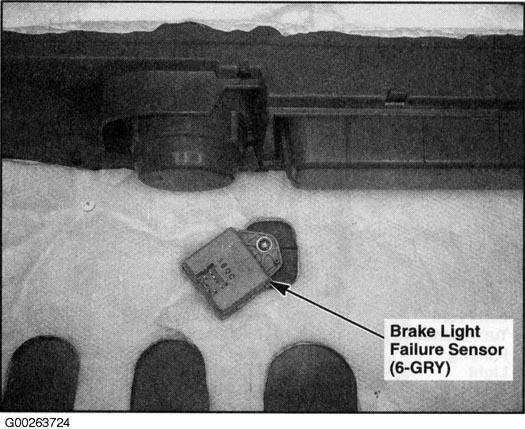

Fig 142: Behind Left Rear Lining

G00263724

Courtesy of AMERICAN HONDA MOTOR CO., INC.

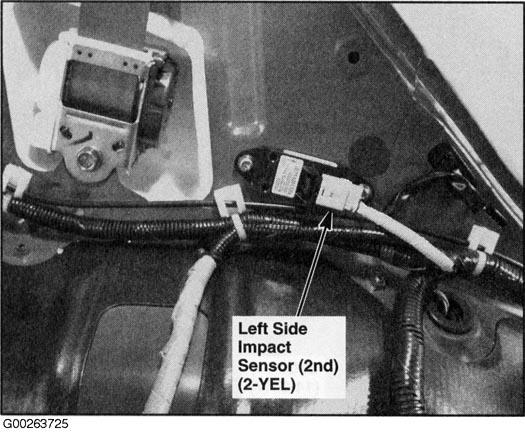

Fig 143: Behind Left Rear Lining (Right Similar)

G00263725

Courtesy of AMERICAN HONDA MOTOR CO., INC.

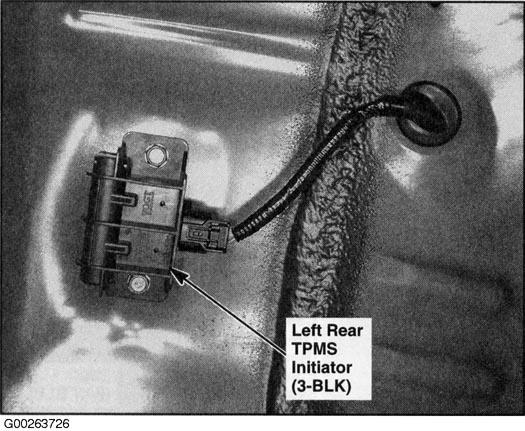

Fig 144: Front of Left Rear Wheelwell (Right Similar)

G00263726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

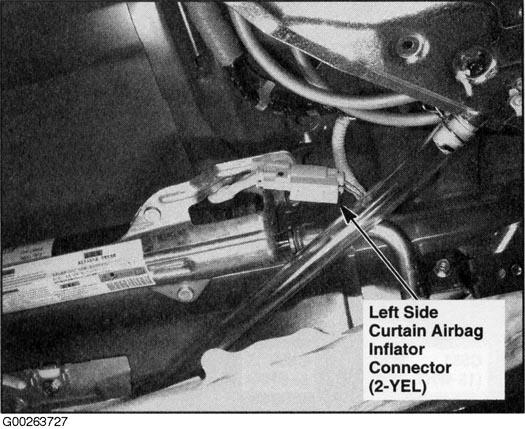

Fig 145: Left Side Of Roof (Right Similar)

G00263727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

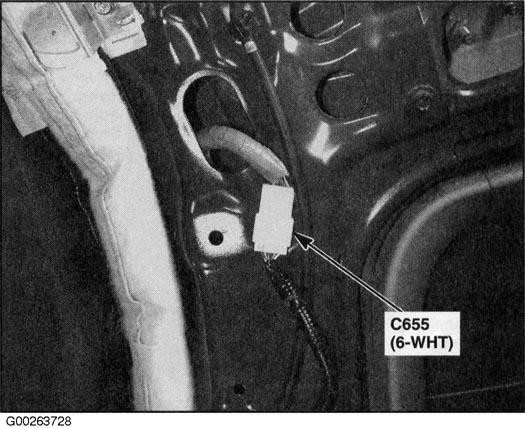

Fig 146: Right "D" Pillar

G00263728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

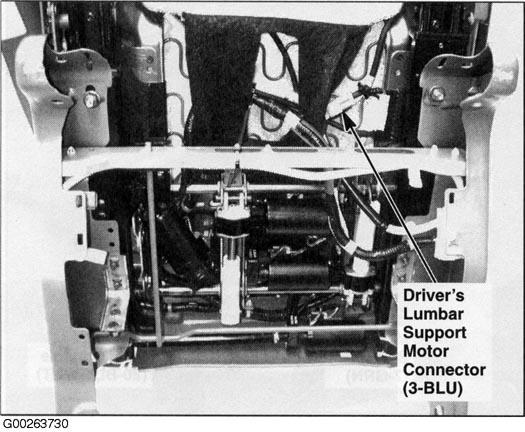

Fig 147: Under Driver's Seat

G00263730

Courtesy of AMERICAN HONDA MOTOR CO., INC.

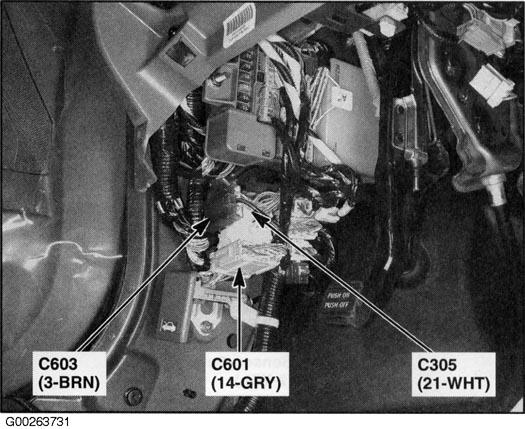

Fig 148: Behind Left Kick Panel

G00263731

Courtesy of AMERICAN HONDA MOTOR CO., INC.

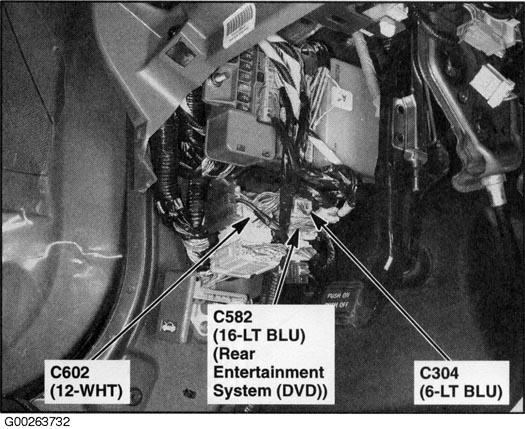

Fig 149: Behind Left Kick Panel

G00263732

Courtesy of AMERICAN HONDA MOTOR CO., INC.

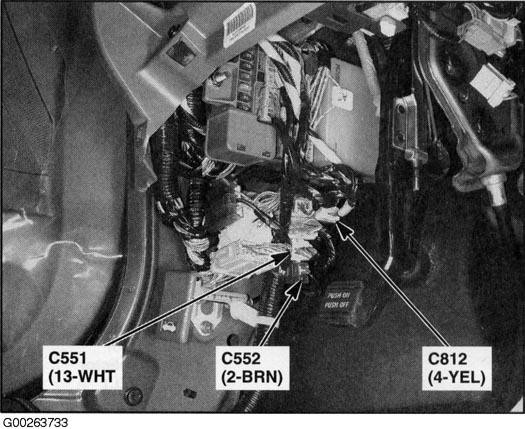

Fig 150: Behind Left Kick Panel

G00263733

Courtesy of AMERICAN HONDA MOTOR CO., INC.

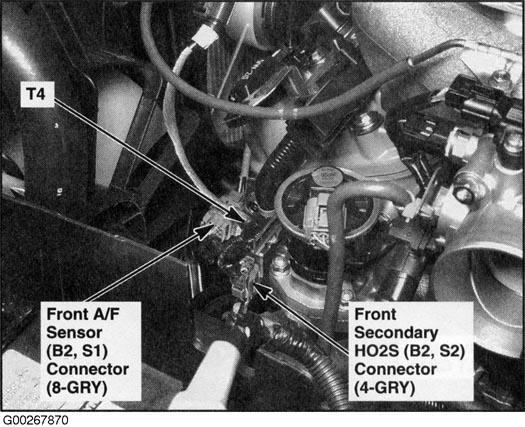

Fig 151: Left Side Of Engine Compartment

G00267870

Courtesy of AMERICAN HONDA MOTOR CO., INC.

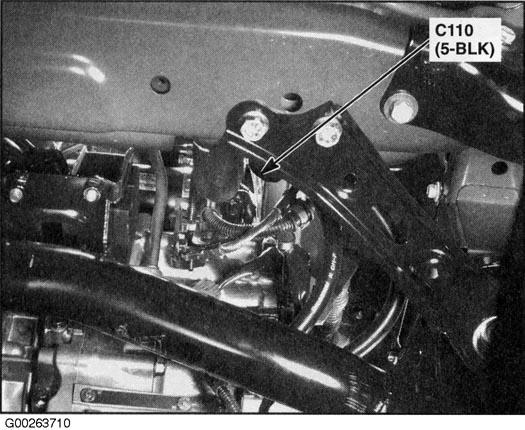

Fig 152: Transmission Housing

G00263710

Courtesy of AMERICAN HONDA MOTOR CO., INC.

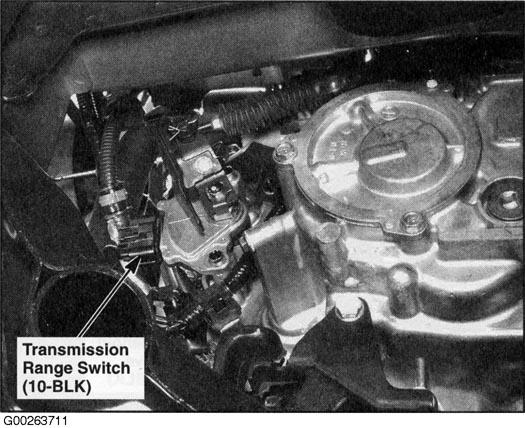

Fig 153: Transmission Housing

G00263711

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 154: Driver's Underdash Fuse/Relay Box

G00292062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Passenger's Underdash Fuse/Relay Box

G00292063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 156: Under-Hood Fuse/Relay Box

G00292064

Courtesy of AMERICAN HONDA MOTOR CO., INC.
