Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Diode A | Behind right side of dash. See Figure. |
| A/C Diode B | In passenger's underdash fuse/relay box. See Figure. |

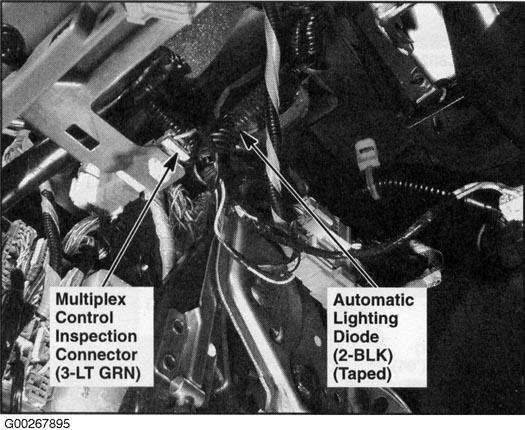

| Automatic Lighting Diode | Under left side of dash. See Figure. |
| Diode | In under-hood fuse/relay box. See Figure. |
| Driver's Underdash Fuse/Relay Box | Behind left end of dash. See Figure. |
| ELD Unit | In under-hood fuse/relay box. See Figure. |
| Front Blower Power Transistor | Under right side of dash. See Figure. |
| In-Line Diode 1 | In driver's underdash fuse/relay box. See Figure. |
| In-Line Diode 2 | In driver's underdash fuse/relay box. See Figure. |
| In-Line Diode 3 | In passenger's underdash fuse/relay box. See Figure. |
| In-Line Diode 4 | In passenger's underdash fuse/relay box. See Figure. |
| Passenger's Underdash Fuse/Relay Box | Behind right kick panel. See Figure. |
| Rear Blower Motor Power Transistor | Under center console. See Figure. |
| Shift Lock Diode | Under right side of dash. See Figure. |
| Under-Hood Fuse/Relay Box | At right side of engine compartment. See Figure. |

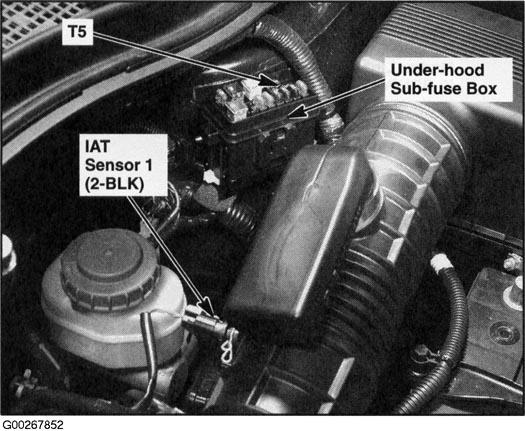

| Under-Hood Fuse Sub-Fuse Box | Left side of engine compartment. See Figure. |
