Blower Unit Removal and Installation

Remove the passenger's dashboard lower cover (see PASSENGER'S DASHBOARD LOWER COVER REMOVAL/INS ), the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

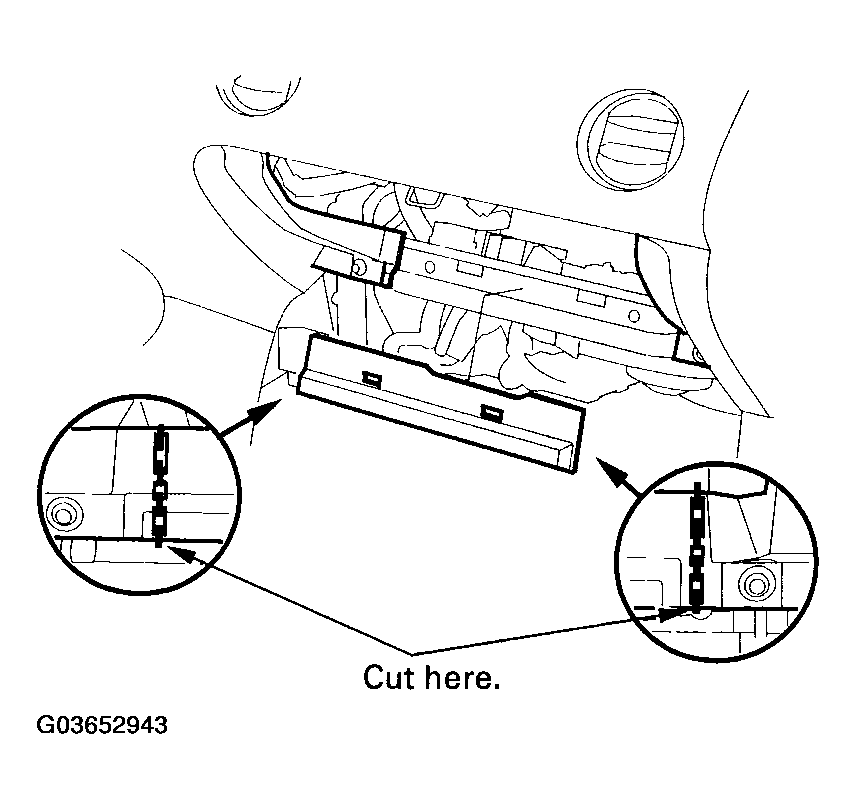

Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown. Remove and discard the plastic cross brace.

Fig 1: Cutting Plastic Cross Brace In Glove Box Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.

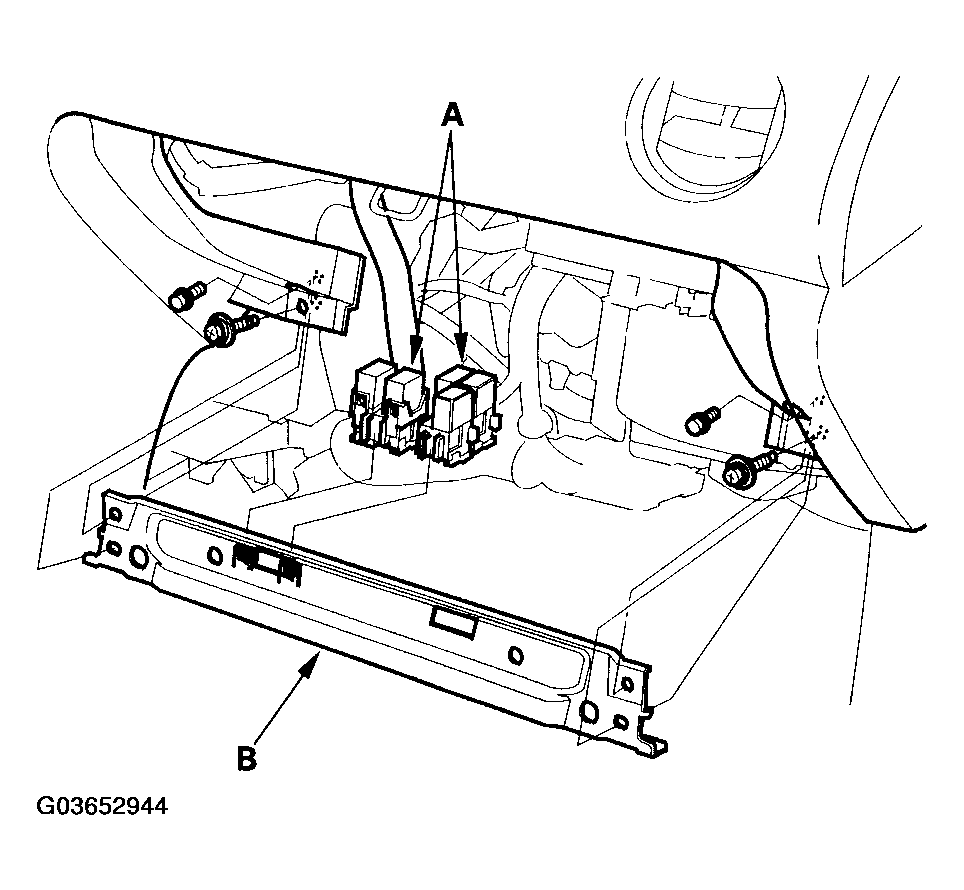

Remove the relays (A), then remove the bolts and the glove box frame (B).

Fig 2: Removing Relays
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the ECM/PCM.
- '02-04 models (see ECM/PCM REPLACEMENT )
- '05-06 models (see ECM/PCM REPLACEMENT )

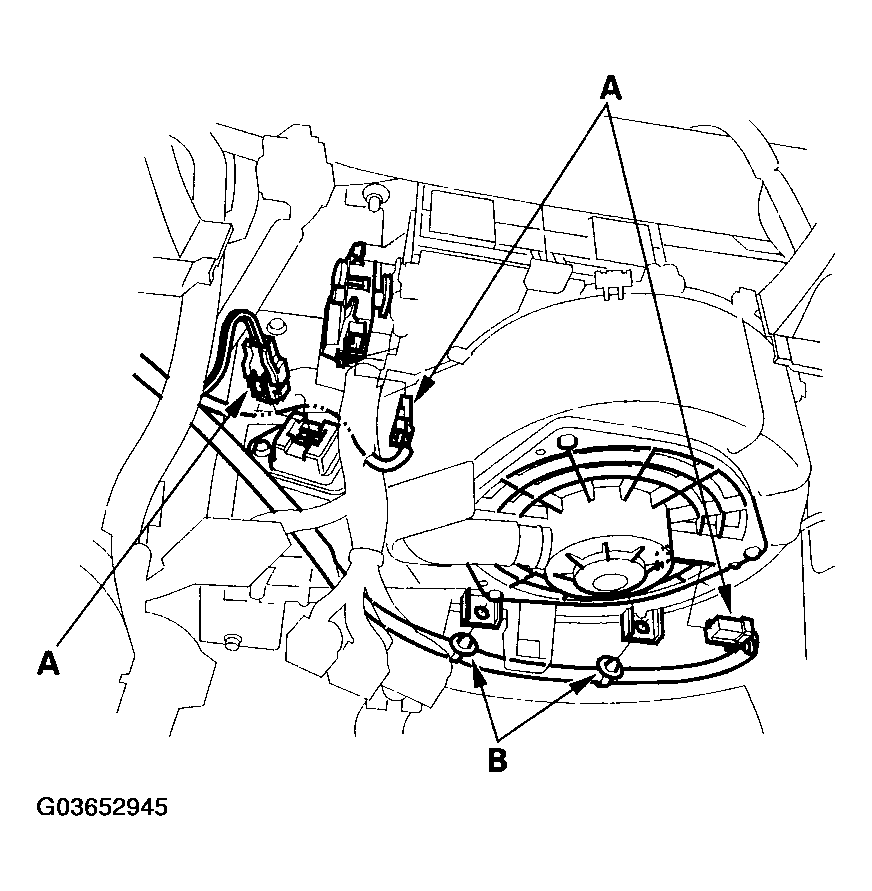

Disconnect the connectors (A) from the blower motor, the power transistor, and the recirculation control motor, then remove the wire harness clips (B).

Fig 3: Disconnecting Connectors From Blower Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.

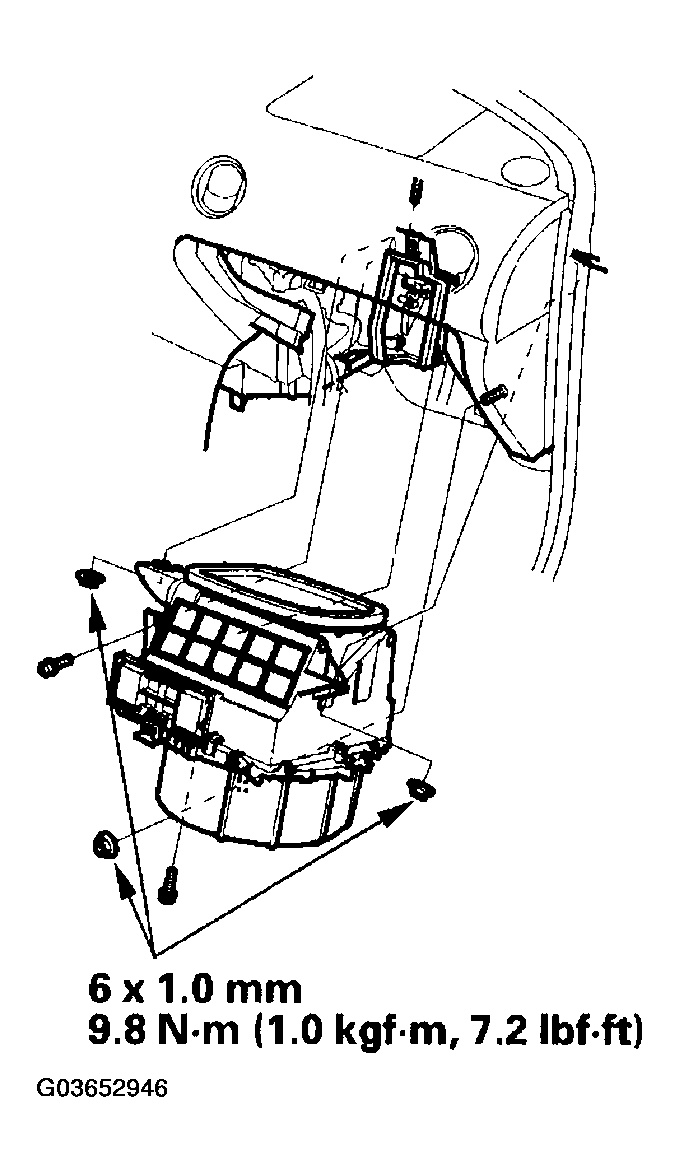

Remove the mounting bolts, the mounting nut, and the blower unit.

Fig 4: Removing Mounting Bolts, Mounting Nut, And Blower Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal. Make sure that there is no air leakage.
