Engine Compartment

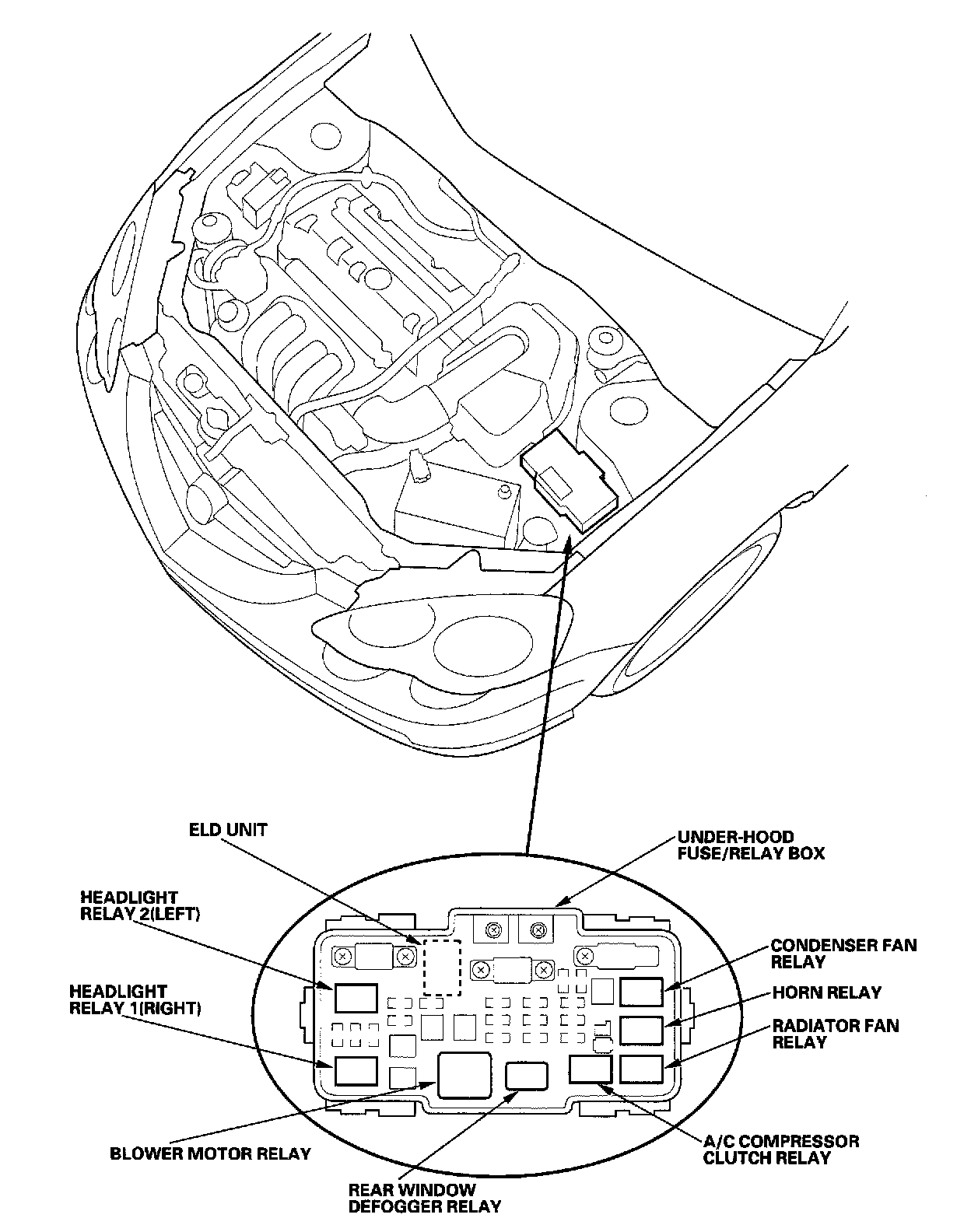

Relay And Control Unit Locations - Engine Compartment:

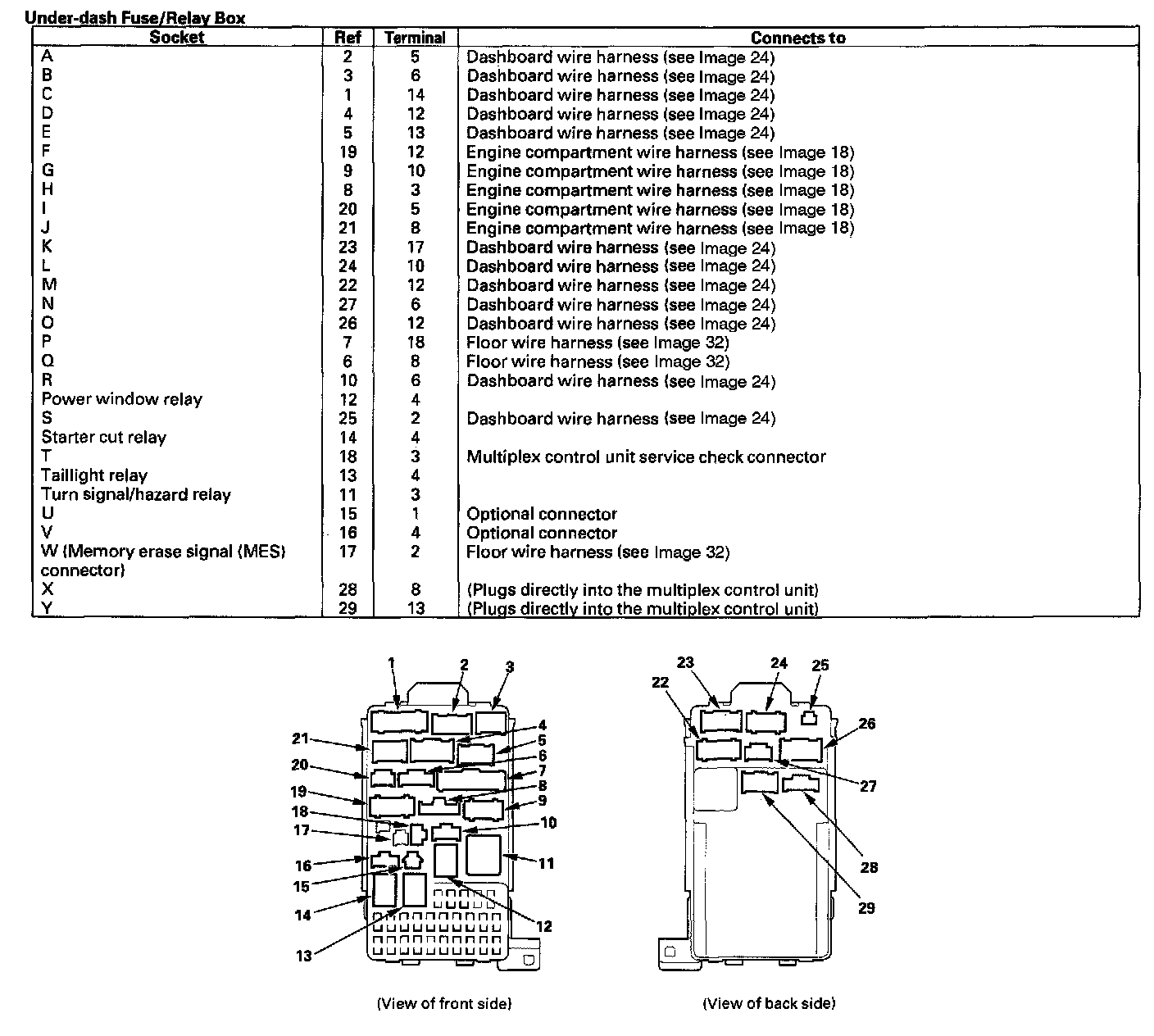

Connector To Fuse/Relay Box Index Image 48:

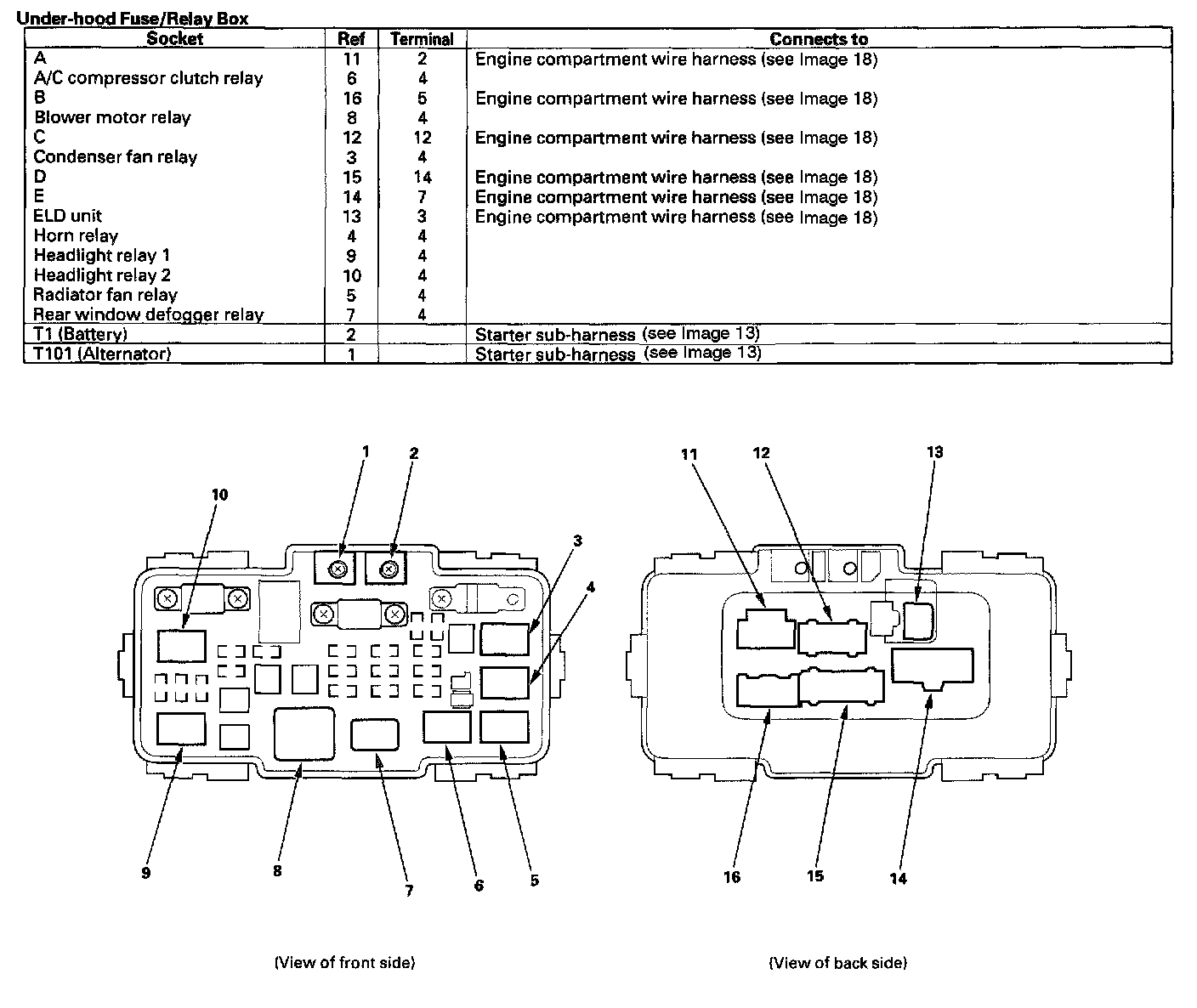

Connector To Fuse/Relay Box Index Image 49:
