View 126-150: 148

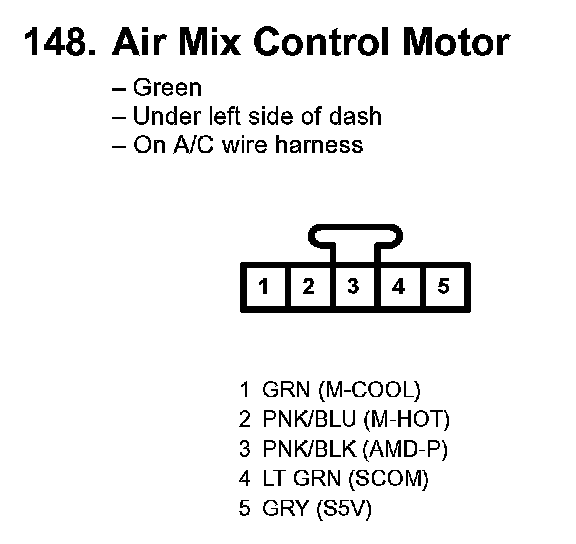

148. Air Mix Control Motor:

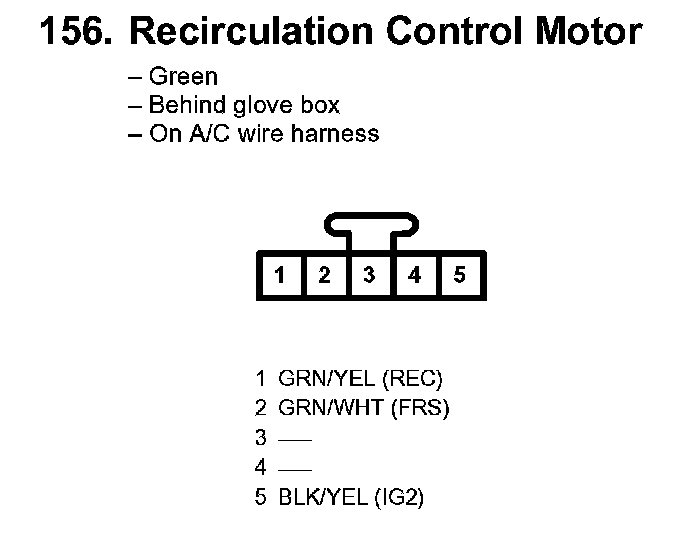

156. Recirculation Control Motor:

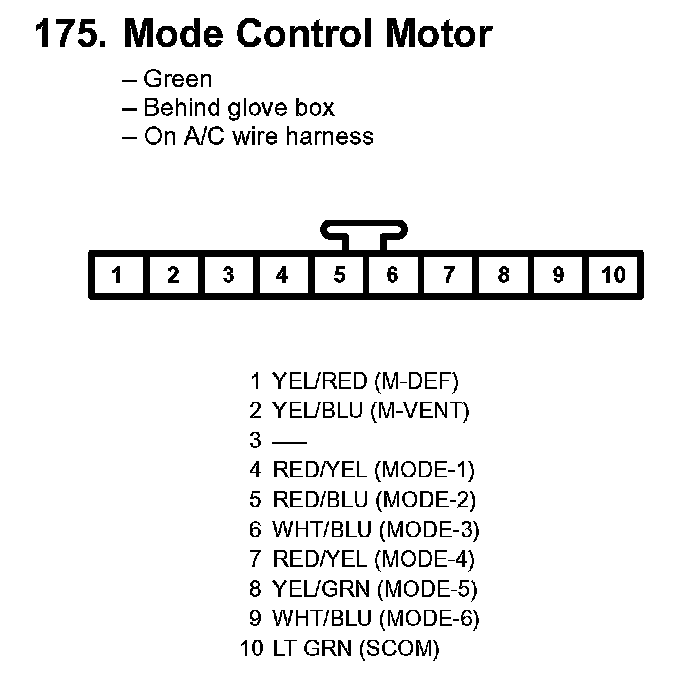

175. Mode Control Motor:
