Electronic Brake Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Electronic Brake Control Module

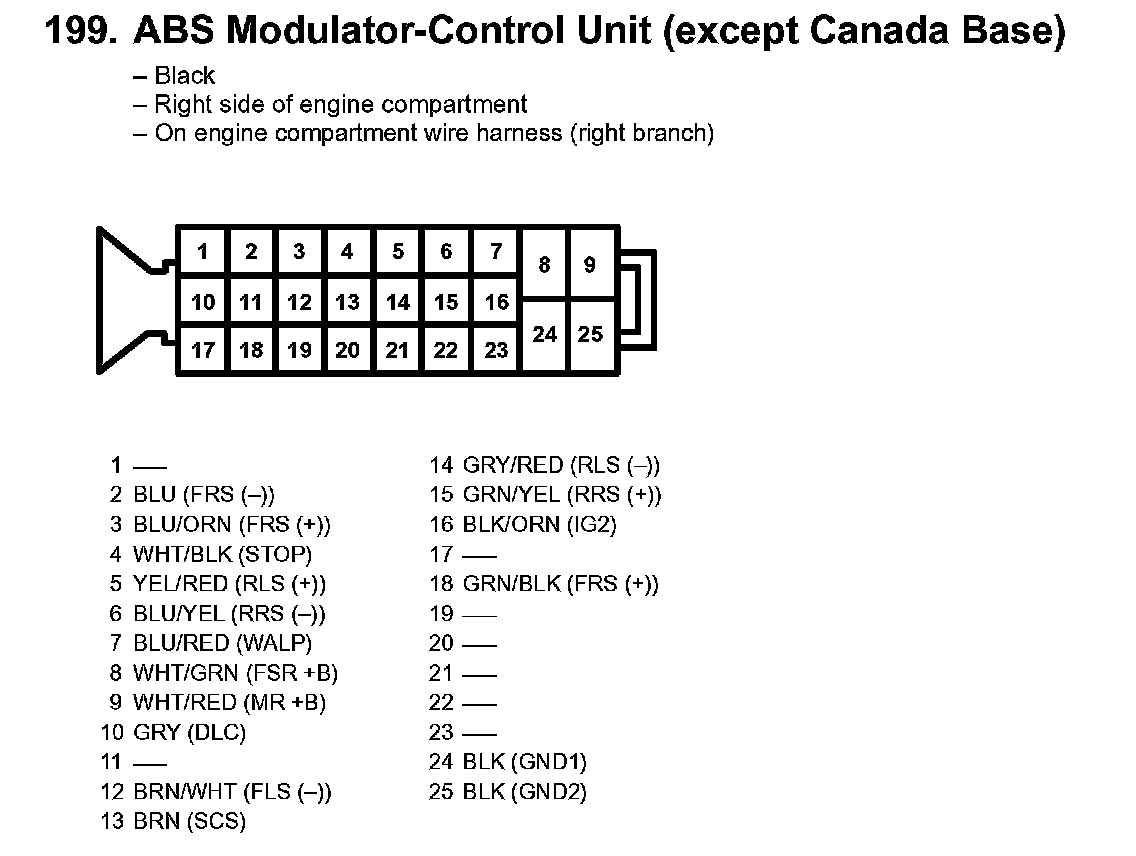

199. ABS Modulator-Control Unit (Except Canada Base):
