Coolant Temperature Sensor/Switch (For Computer): Locations

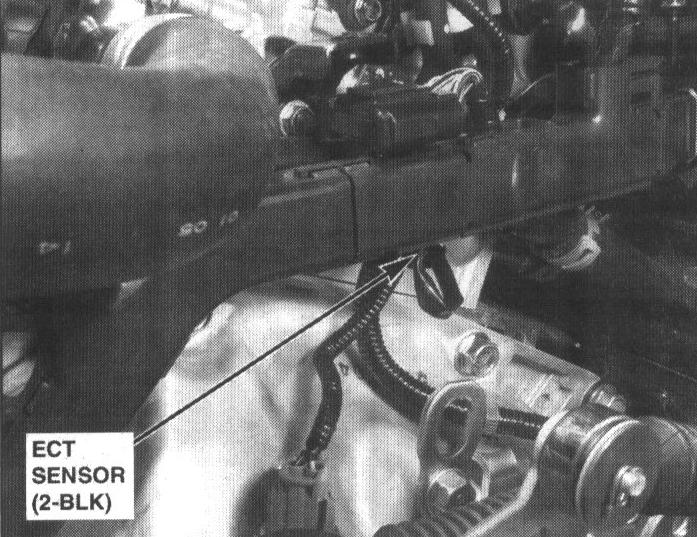

15. Left Side Of Engine:

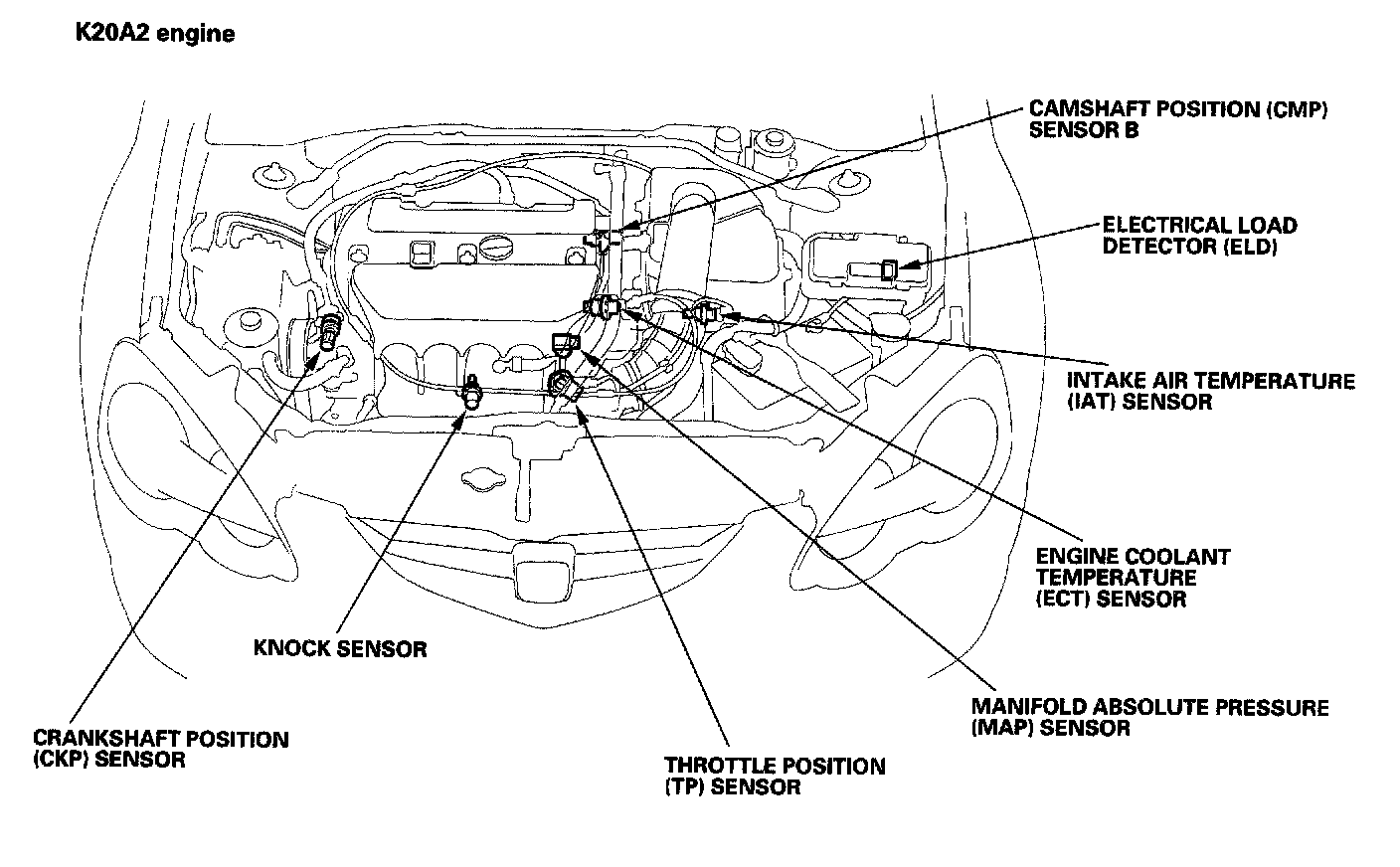

PGM-FI System - Component Location Index (K20A2):

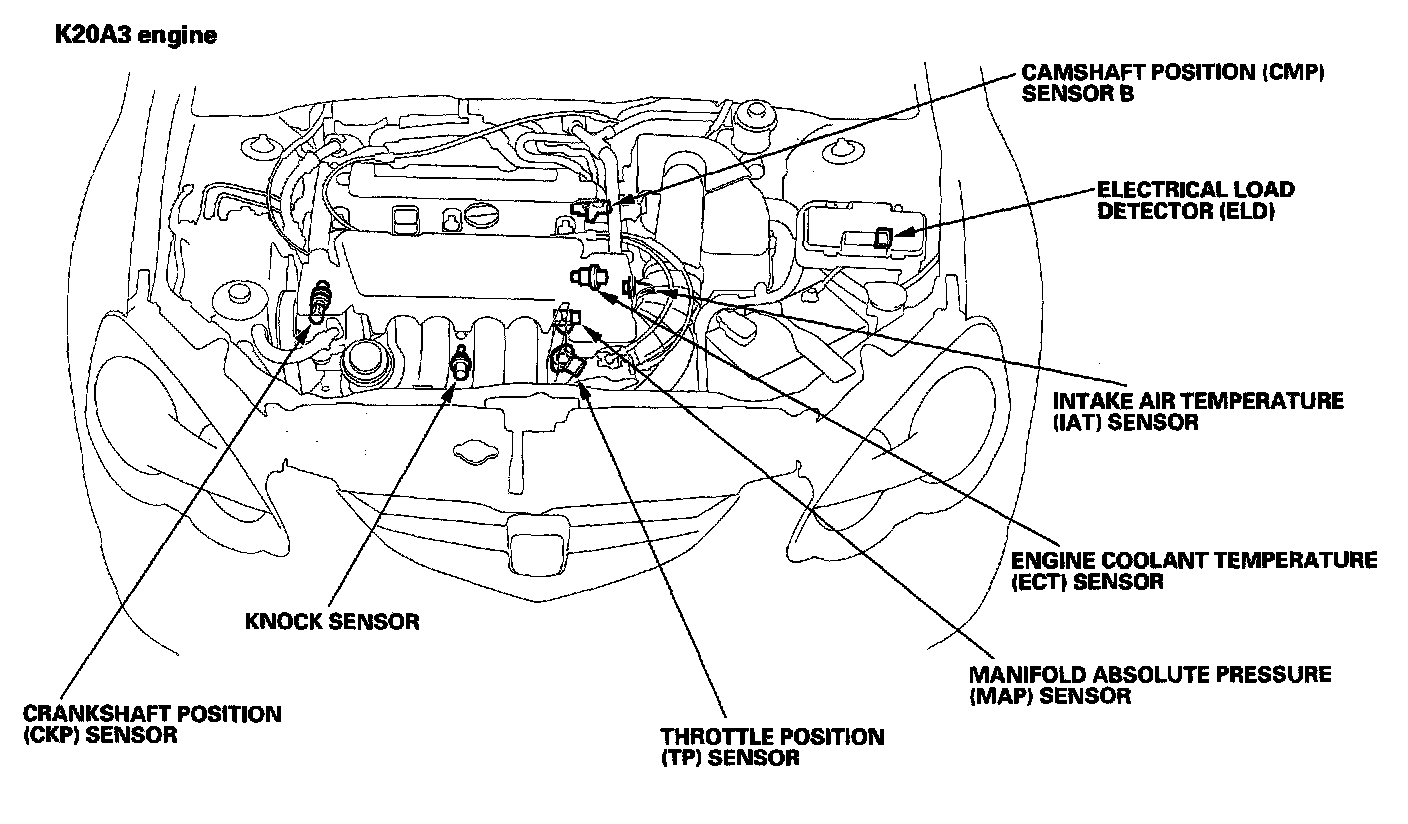

PGM-FI System - Component Location Index (K20A3):
