Vehicle Speed Sensor: Service and Repair

VSS Replacement

M/T only:




1. Remove the air cleaner.
2. Disconnect the 3P connector from the vehicle speed sensor (VSS).

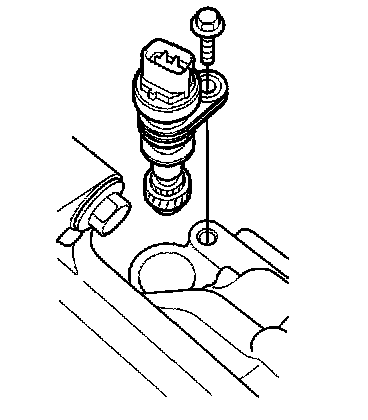

3. Remove the mounting bolt, then remove the VSS.
4. Install the VSS in the reverse order of removal.
