Display Panel Control Unit Inputs and Outputs for Connector A (14P)

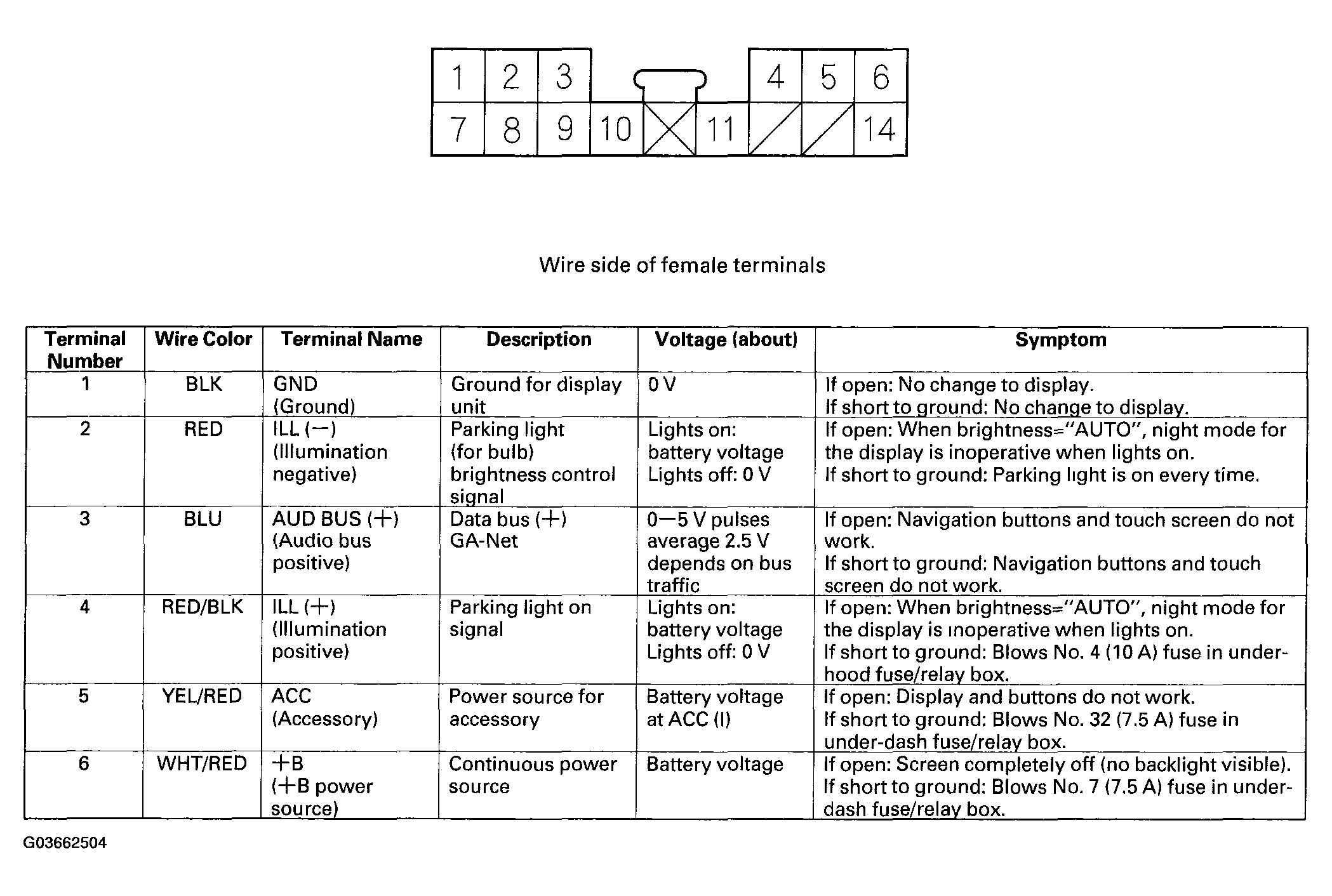

Fig 1: Identifying Connector A (14P) Display Panel Control Unit Inputs And Outputs (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

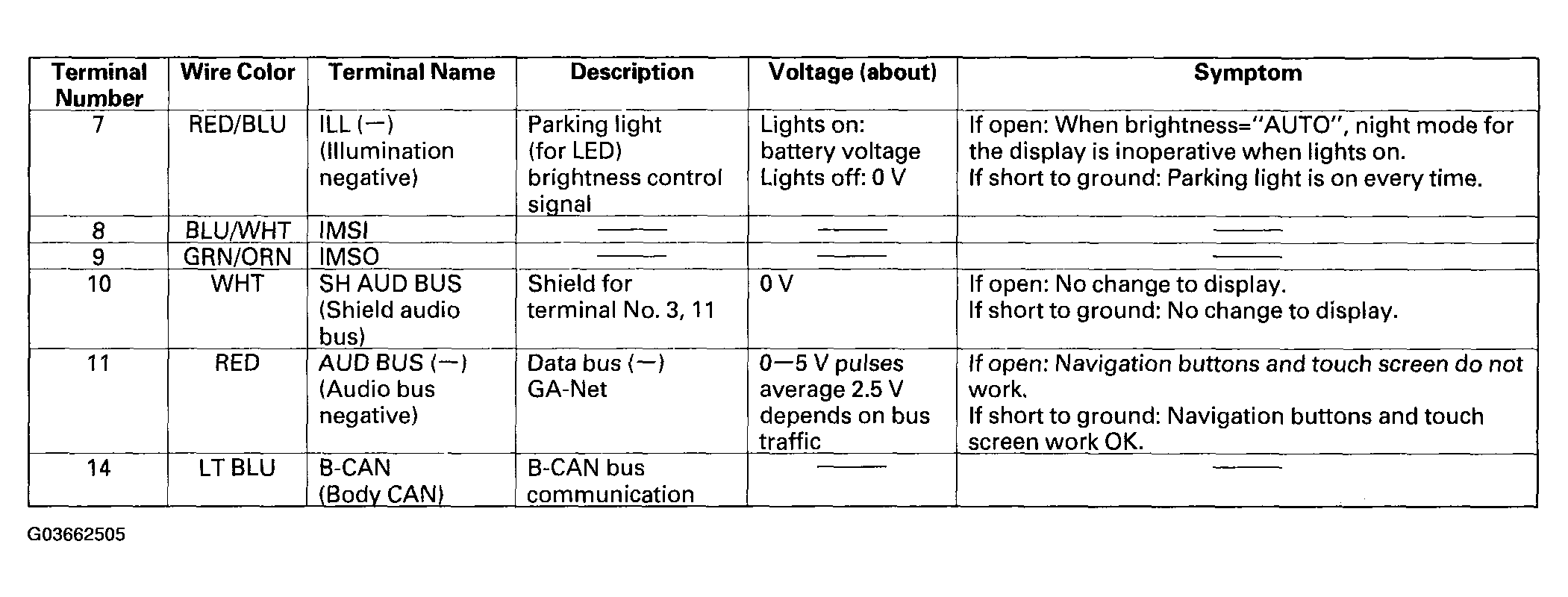

Fig 2: Identifying Connector A (14P) Display Panel Control Unit Inputs And Outputs (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
