Display Panel Control Unit Inputs and Outputs for Connector E (22P)

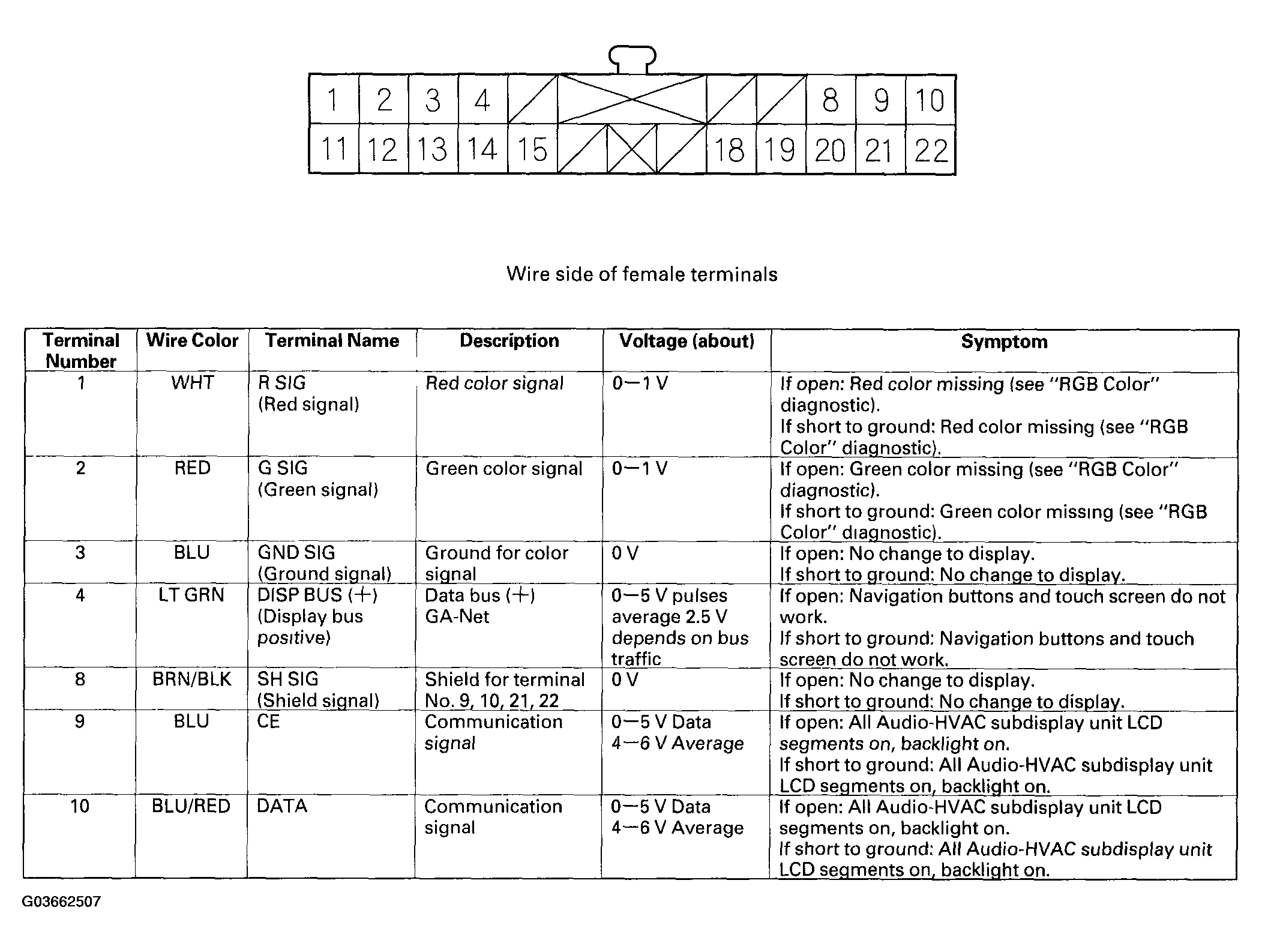

Fig 1: Identifying Connector E (22P) Display Panel Control Unit Inputs And Outputs (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

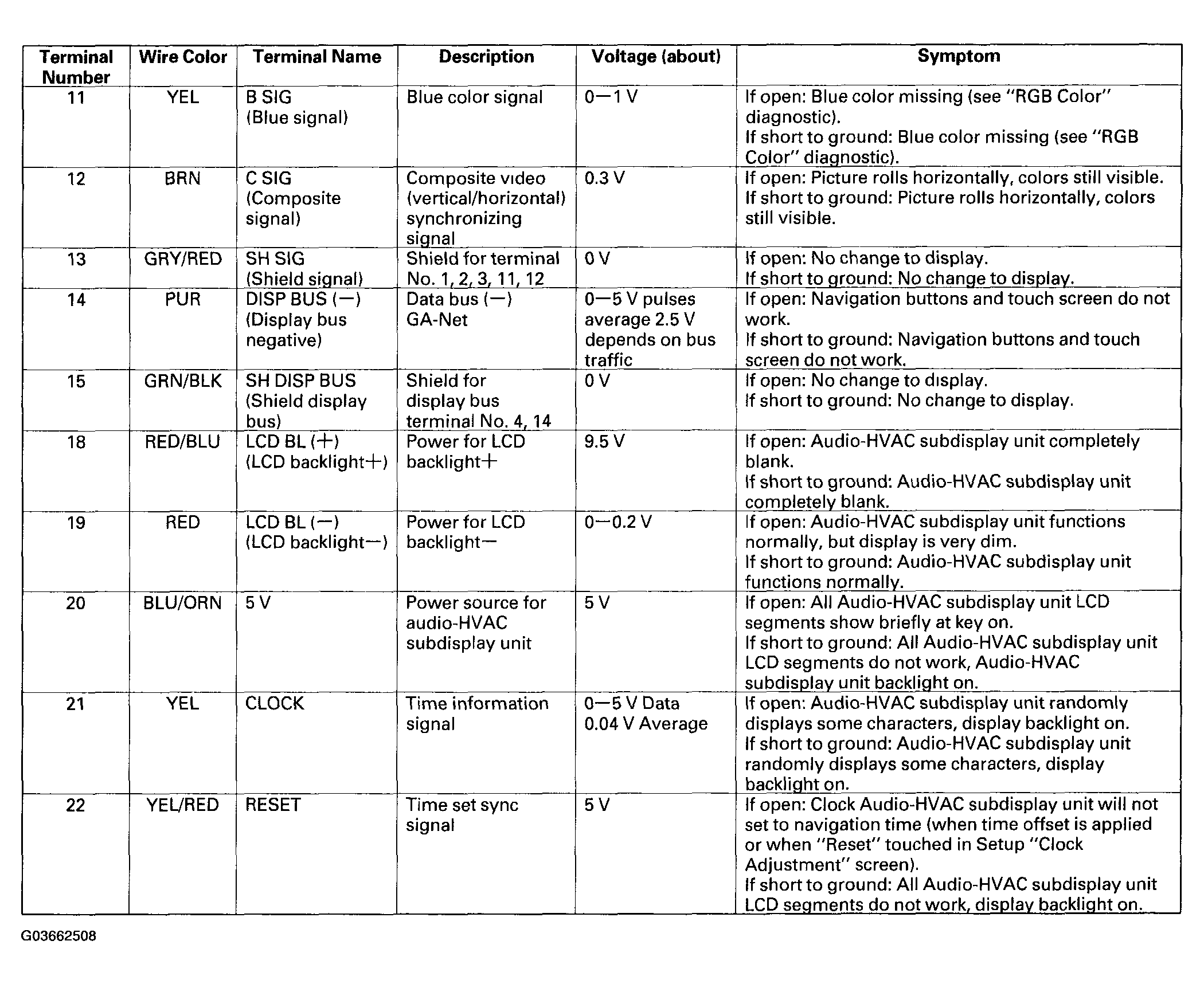

Fig 2: Identifying Connector E (22P) Display Panel Control Unit Inputs And Outputs (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
