Navigation Unit Inputs and Outputs for Connector A (20P)

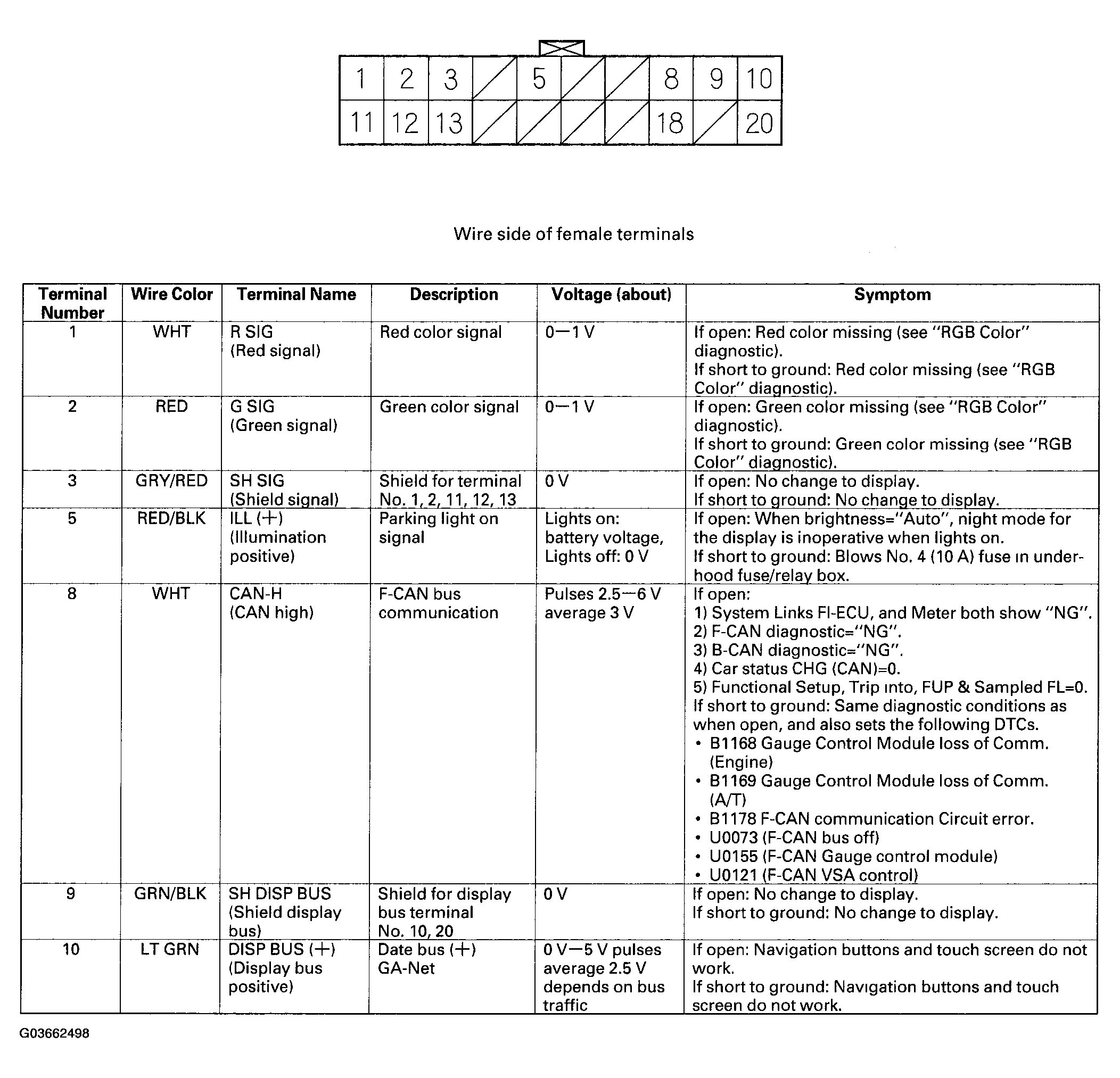

Fig 1: Identifying Connector A (20P) Navigation Unit Inputs And Outputs (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

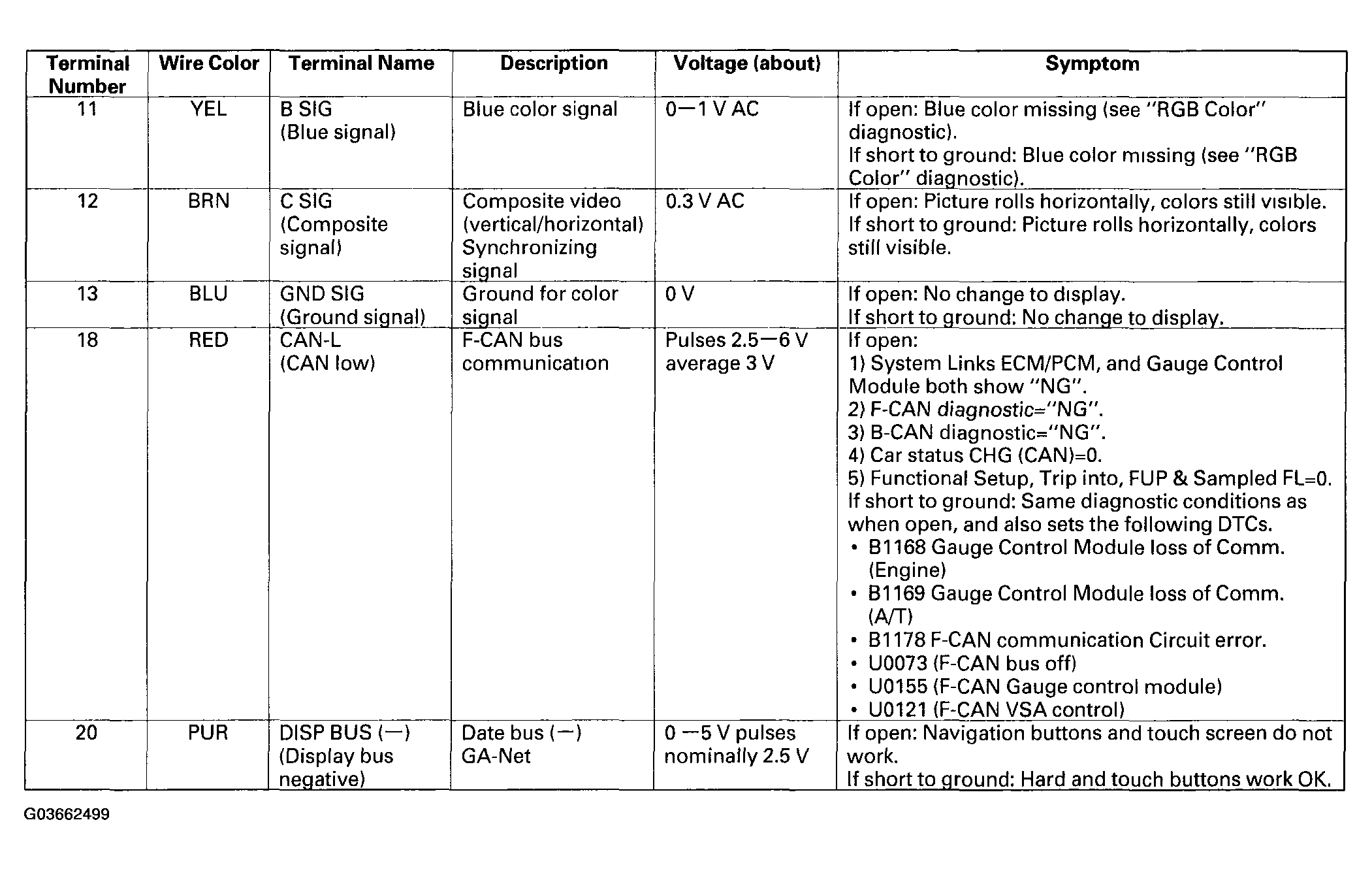

Fig 2: Identifying Connector A (20P) Navigation Unit Inputs And Outputs (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
