Navigation Unit Inputs and Outputs for Connector B (14P)

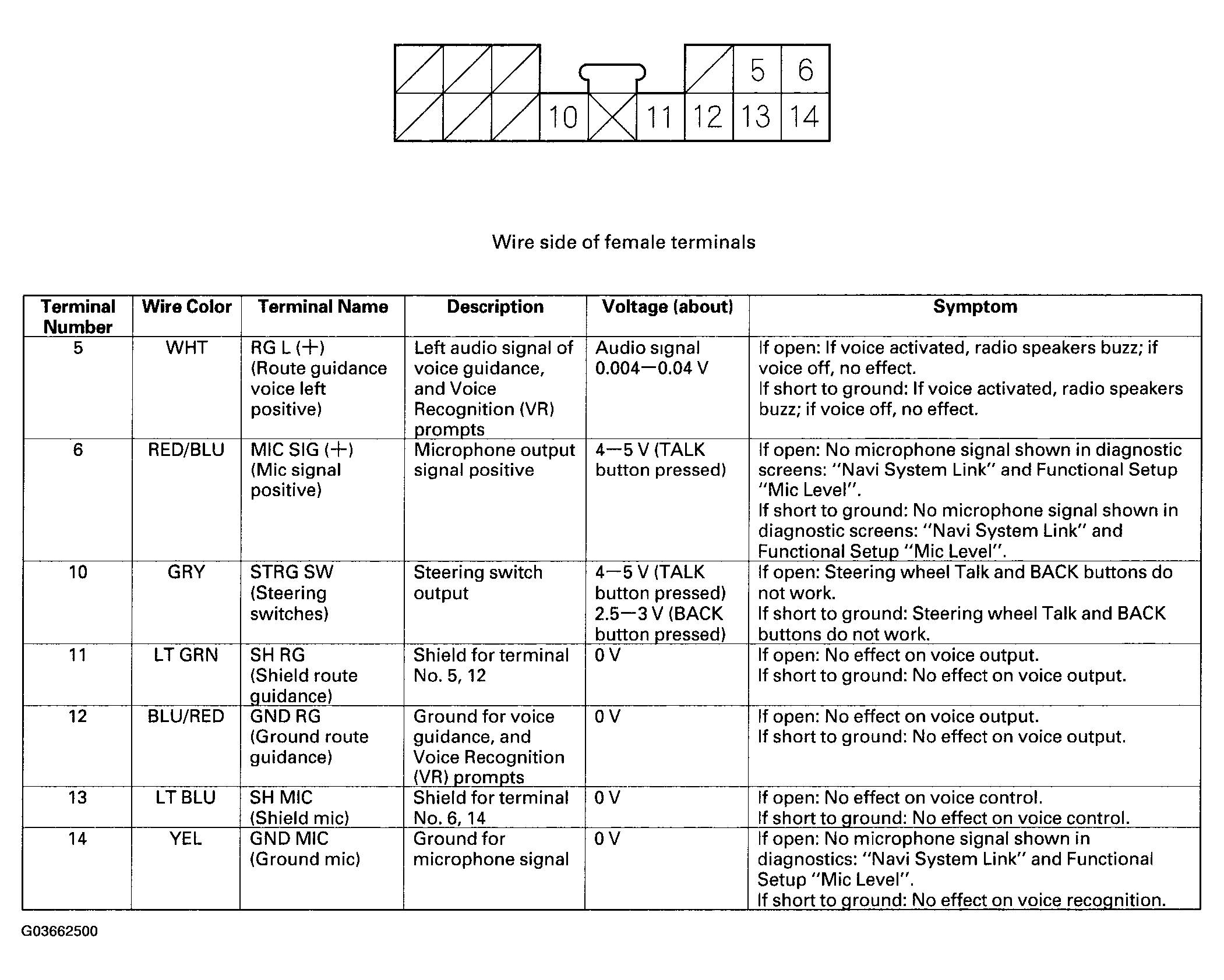

Fig 1: Identifying Connector B (14P) Navigation Unit Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
