Navigation Unit Inputs and Outputs for Connector F (5P)

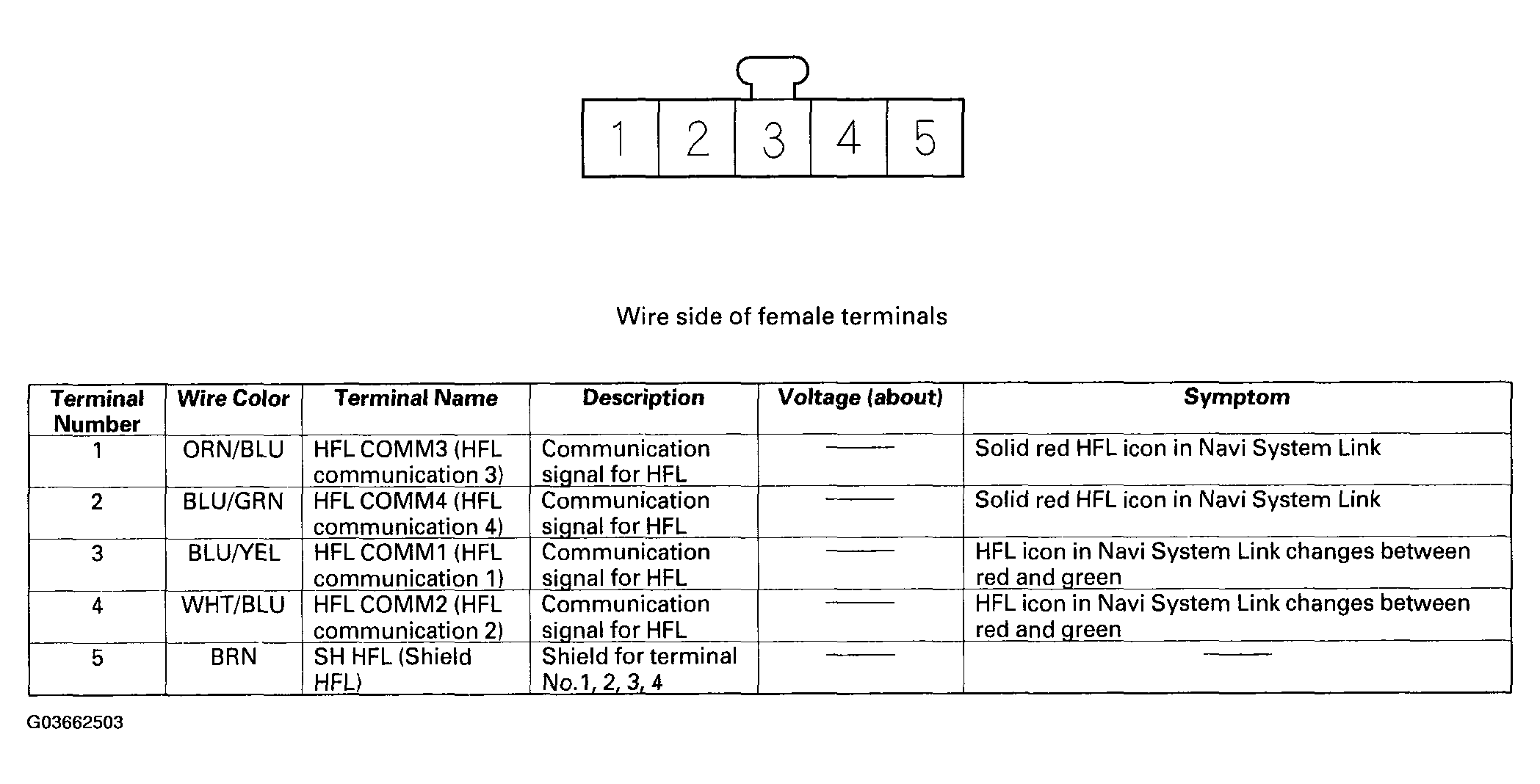

Fig 1: Identifying Connector F (5P) Navigation Unit Inputs And Outputs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
