Navigation Module: Locations

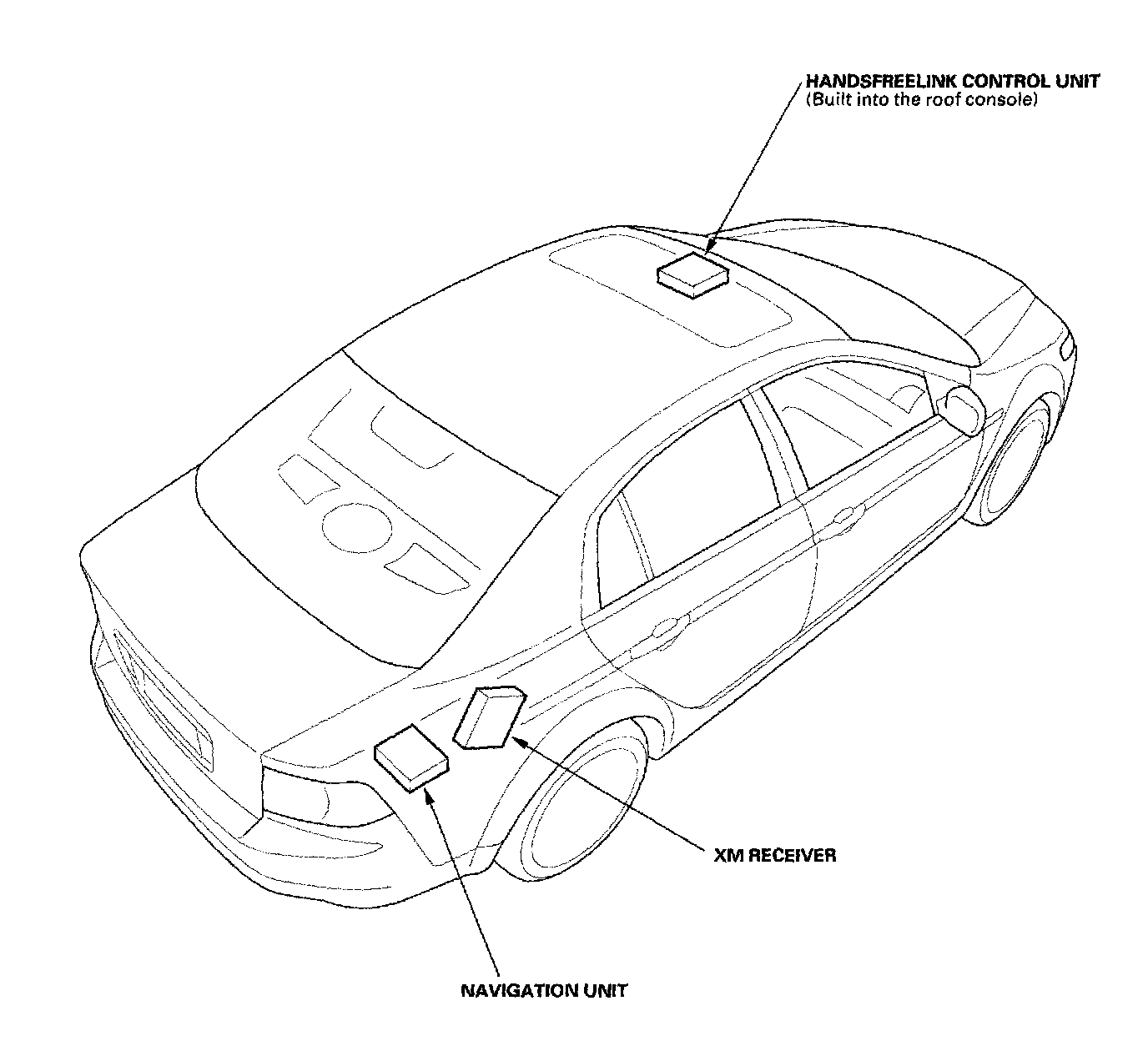

Relay And Control Unit Locations - Roof And Trunk:



HandsFreeLink System - Component Location Index:

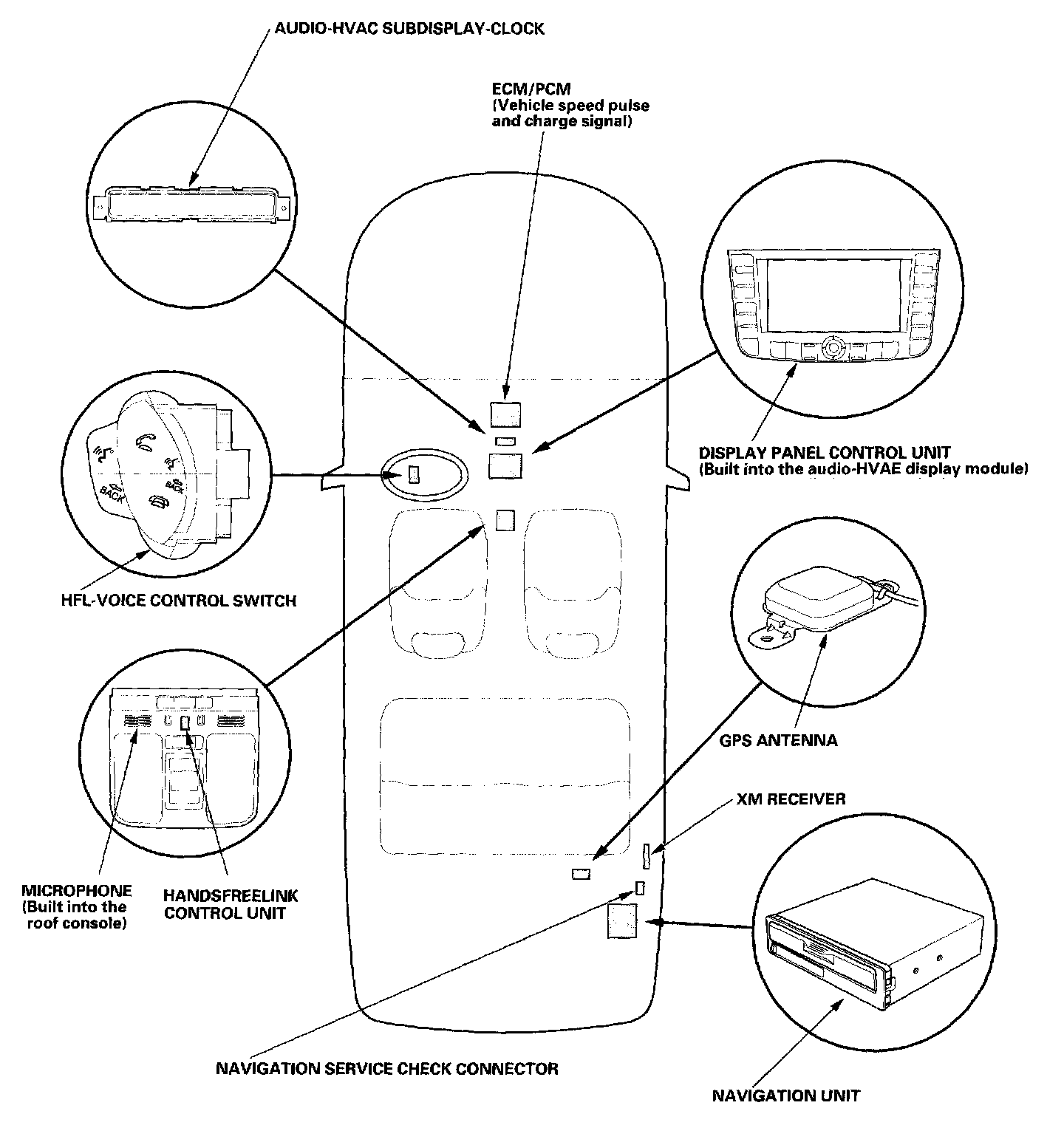

Navigation System - Component Location Index:

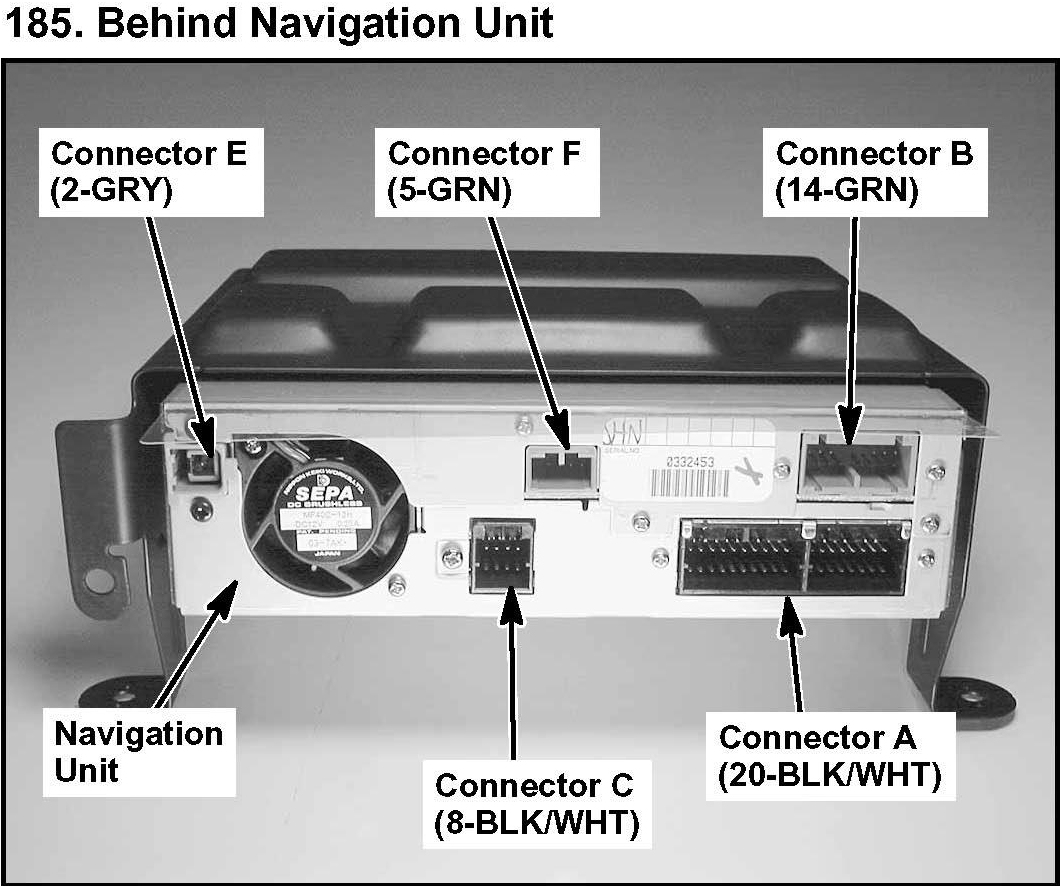

185. Behind Navigation Unit:
