Home >> Acura >> 2004 >> TL V6-3.2L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Mount

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

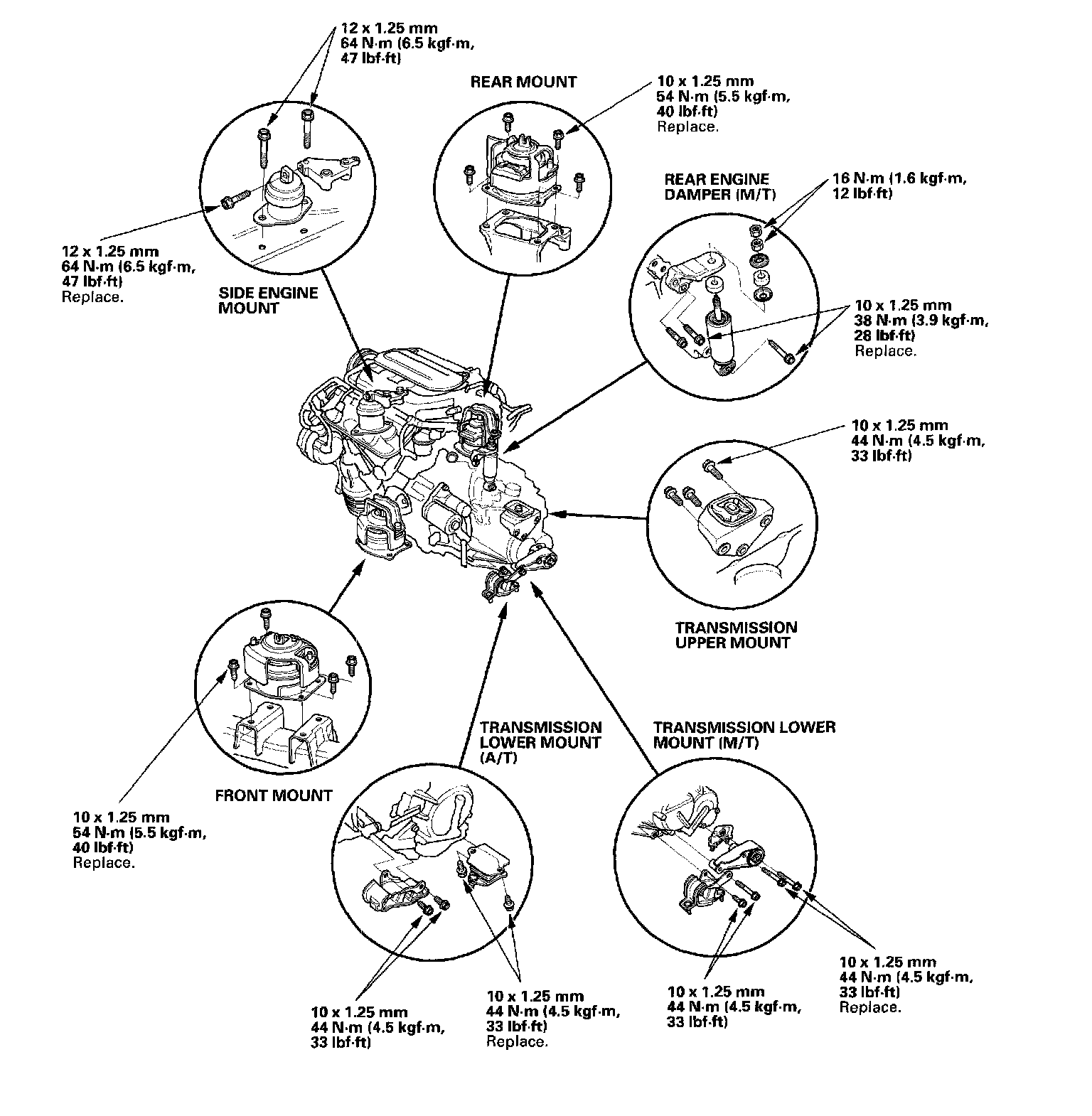

Engine Mount
