Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

1. Remove the crankshaft pulley.
2. Remove the upper and lower front covers from the engine.

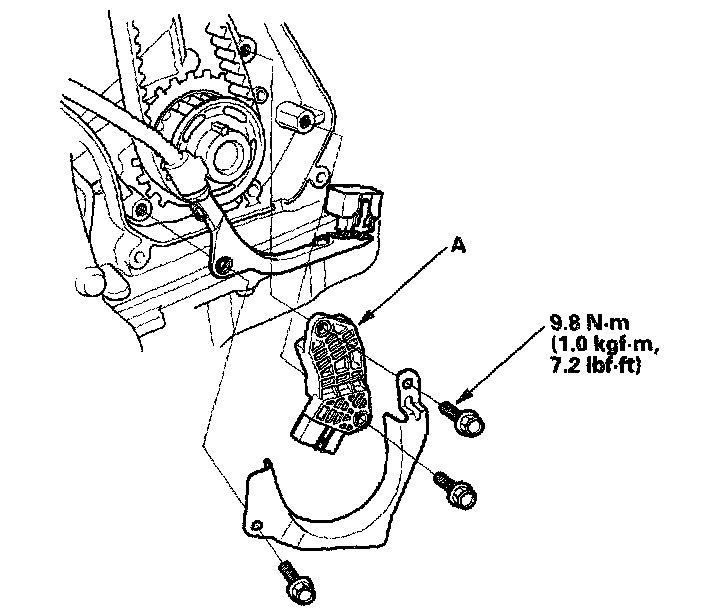

3. Remove the CKP sensor A/B (A) from the oil pump.
4. Install the sensor in the reverse order of removal.
