Mode 6 Data
MODE $06 DATA CHARTS

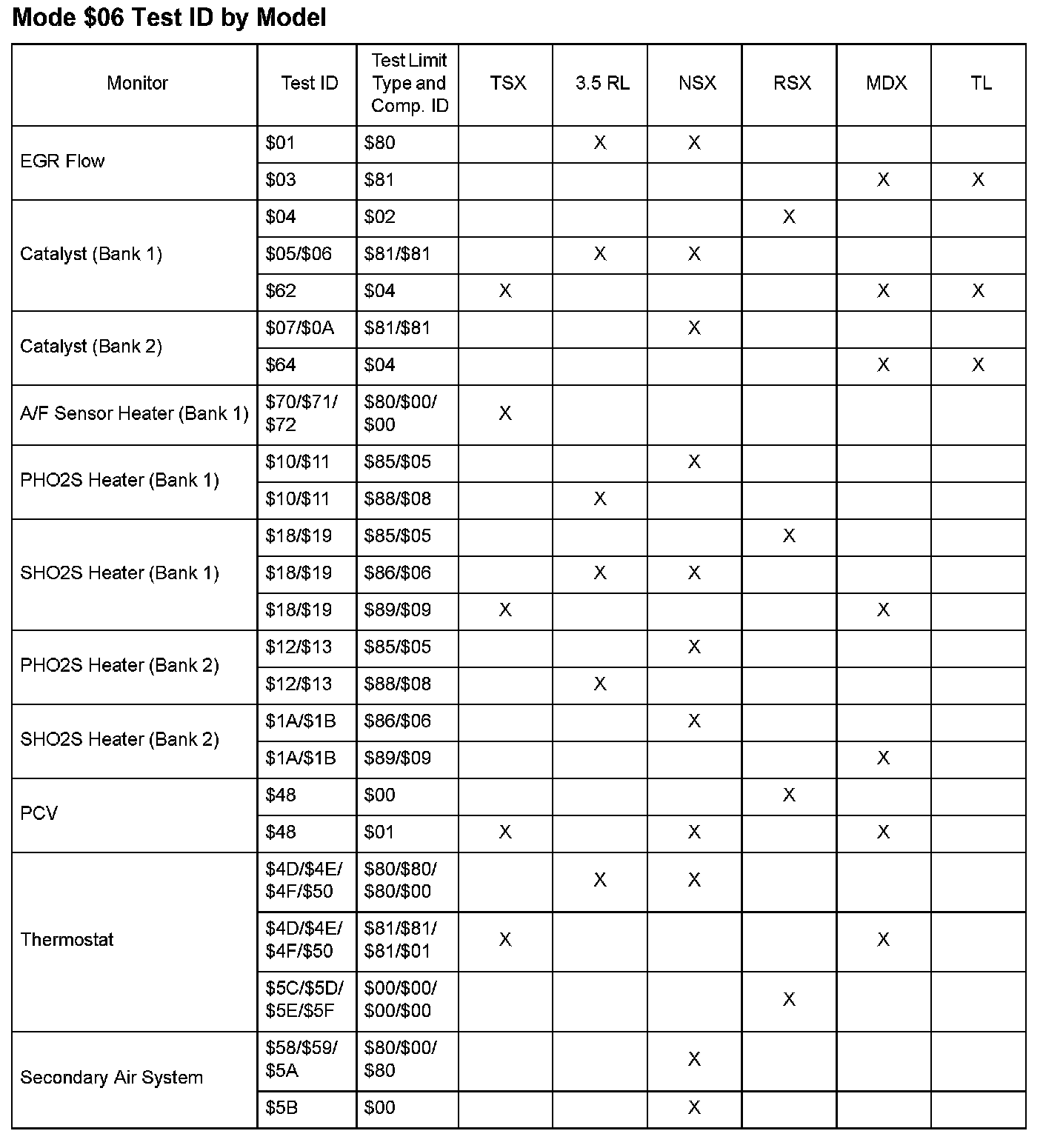

Test ID By Model (1 of 2):

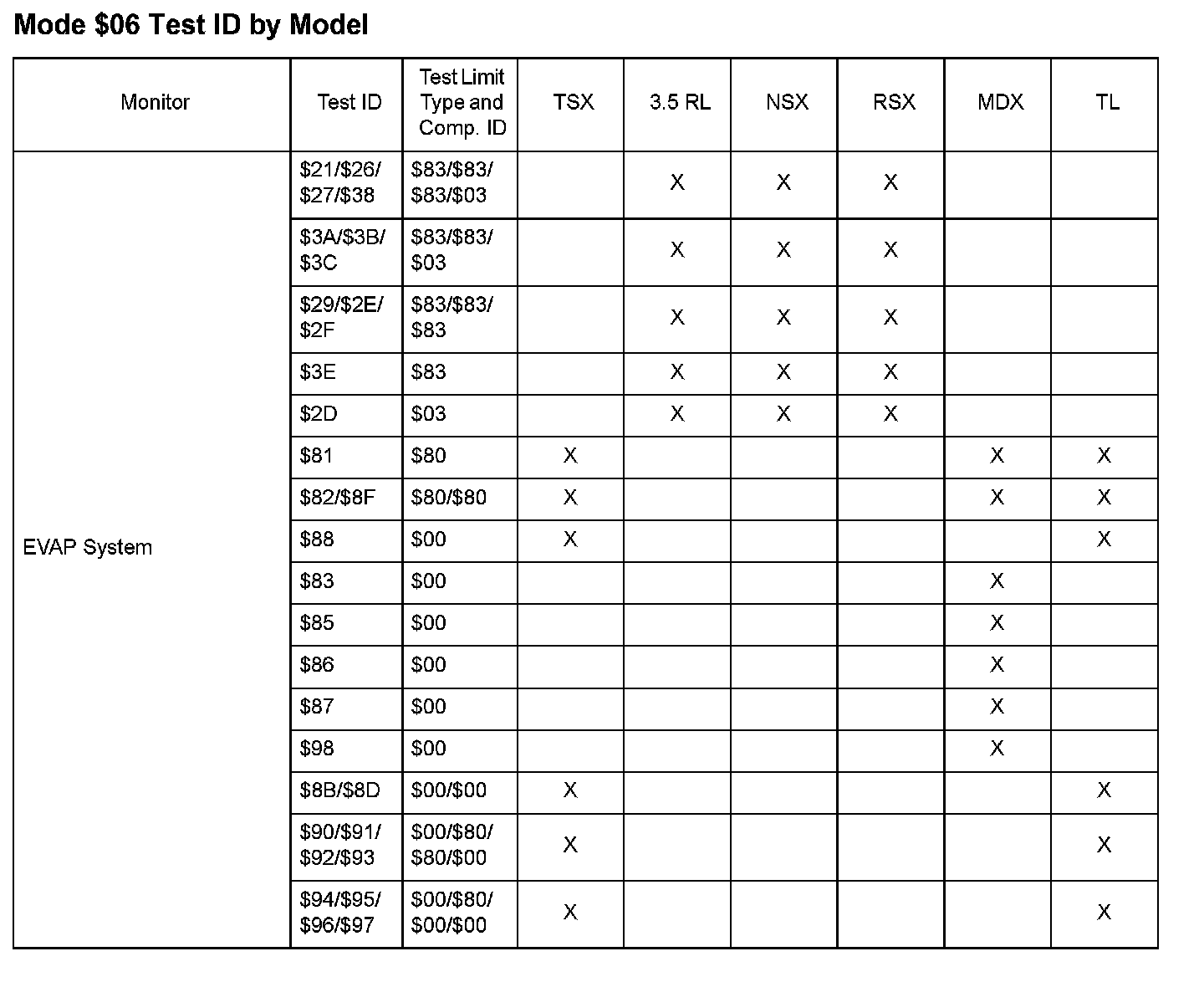

Test ID By Model (2 of 2):

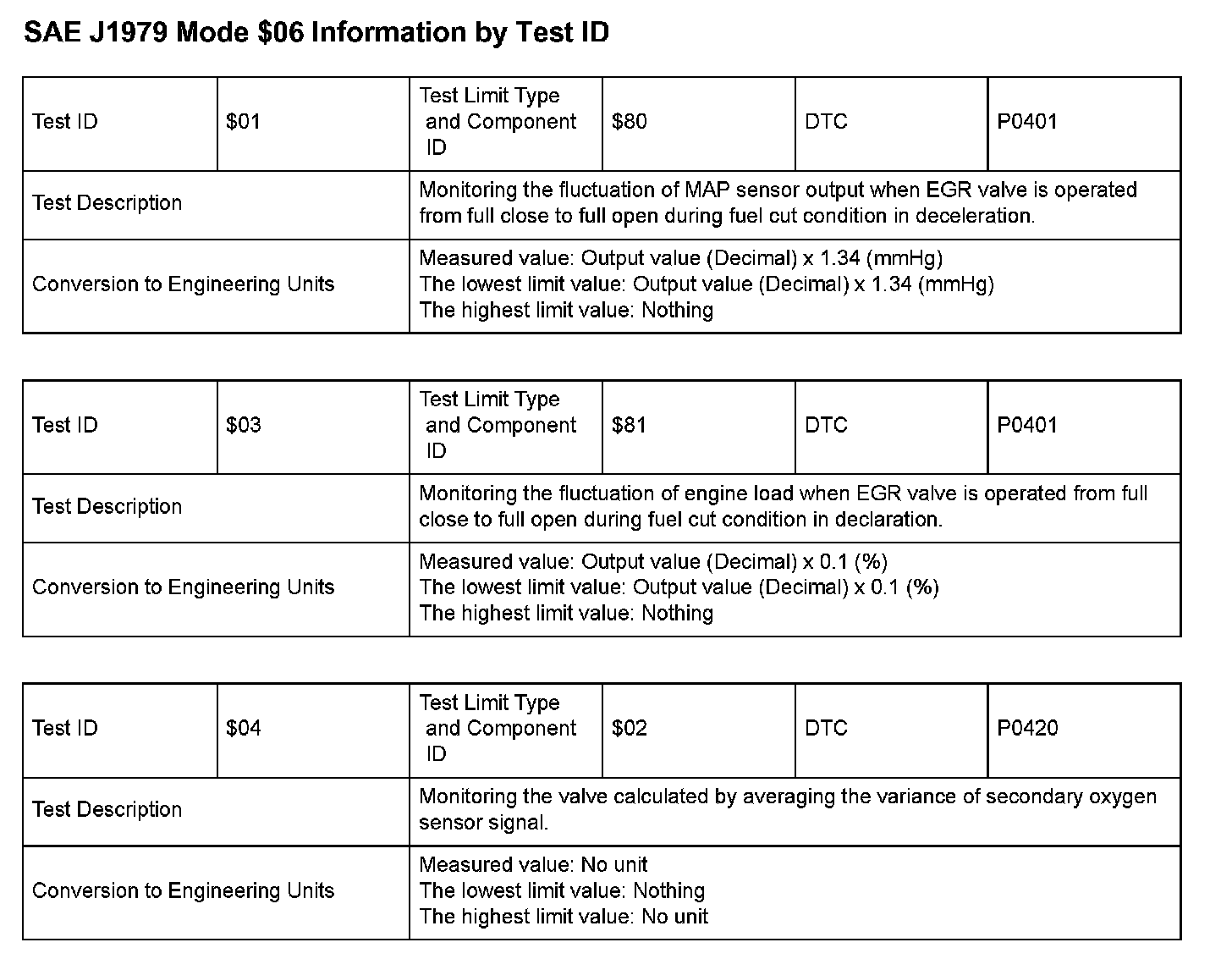

SAE J1979 Information By Test ID ($01 - $04):

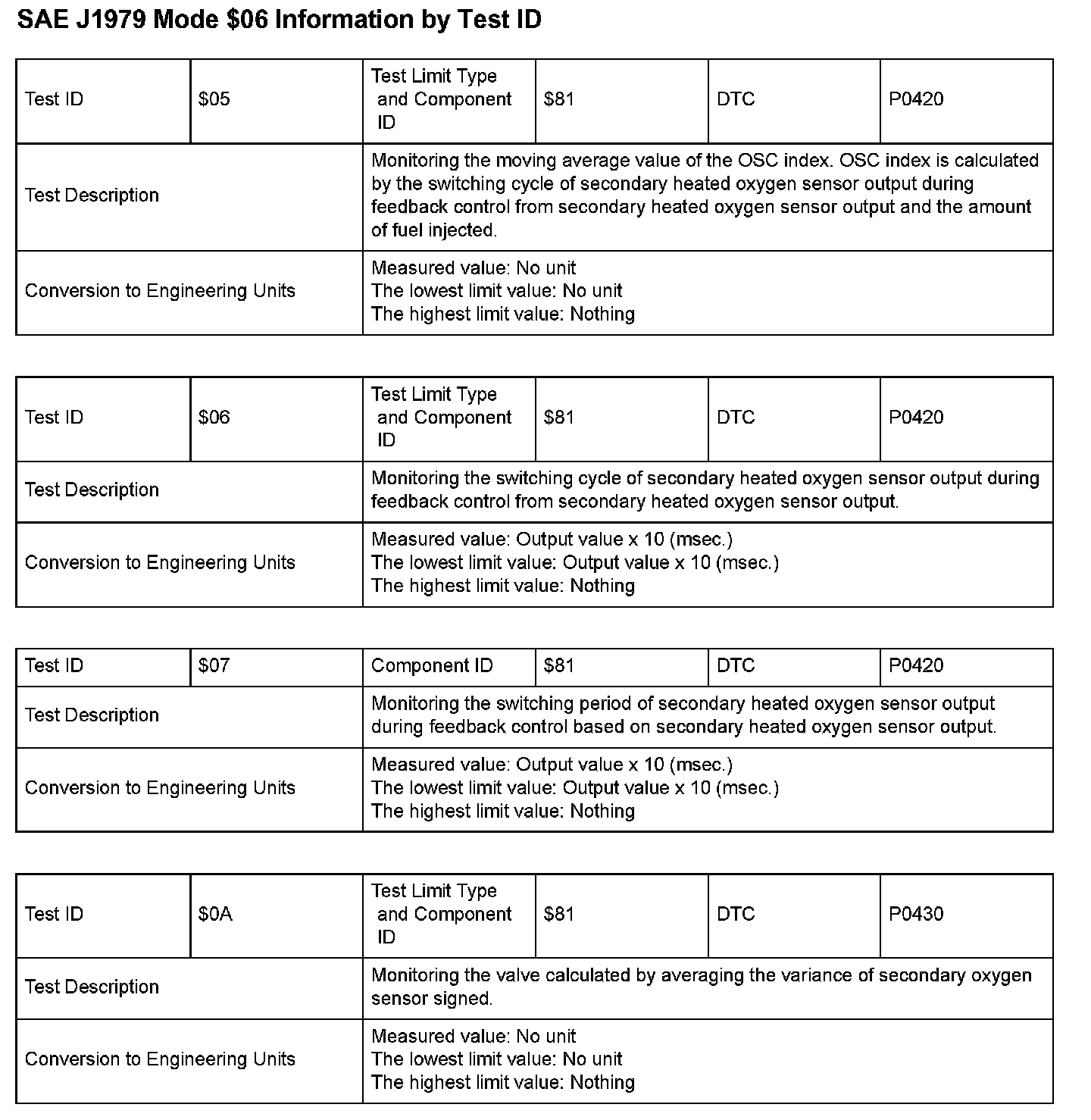

SAE J1979 Information By Test ID ($05 - $0A):

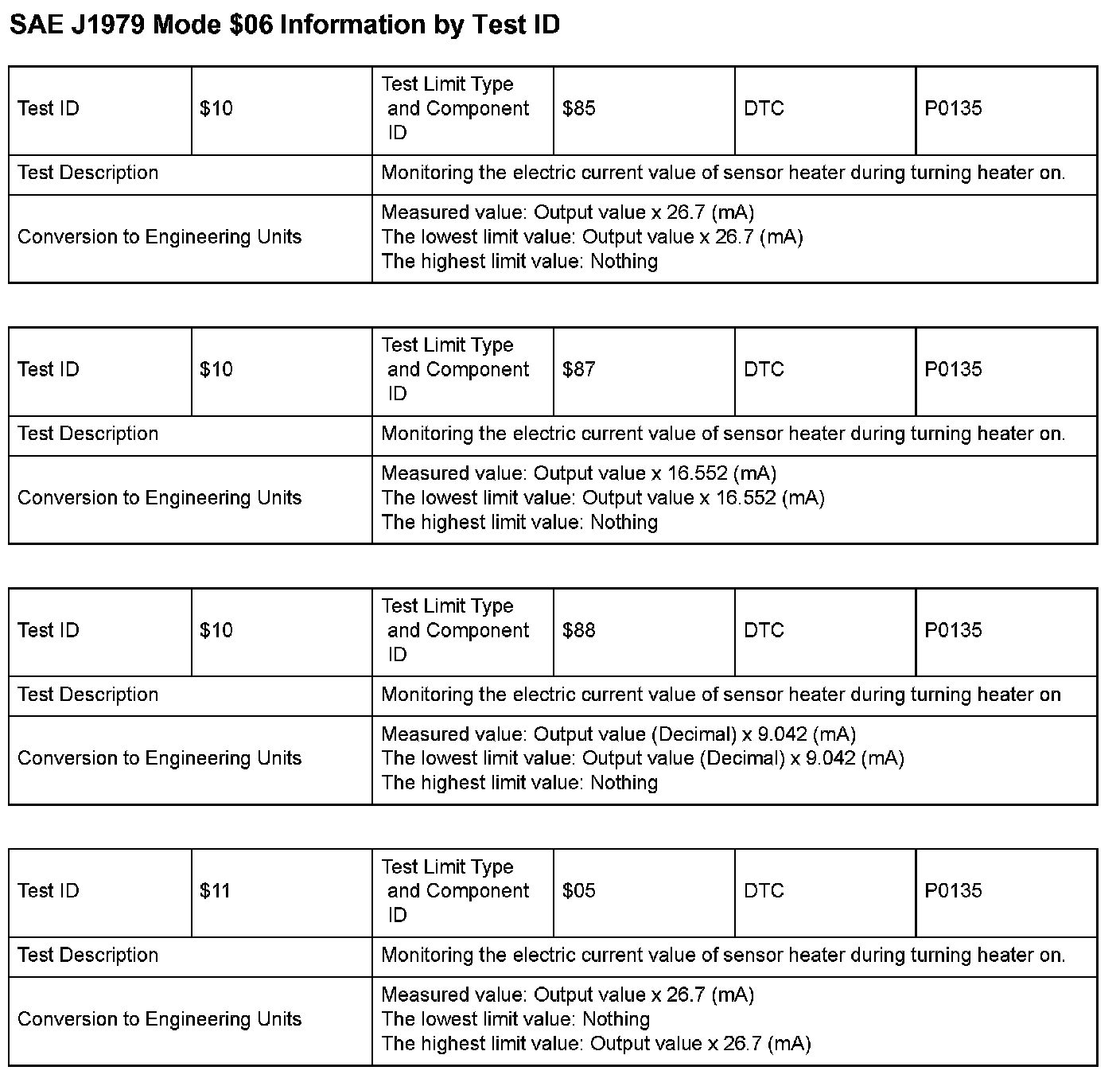

SAE J1979 Information By Test ID ($10 - $11):

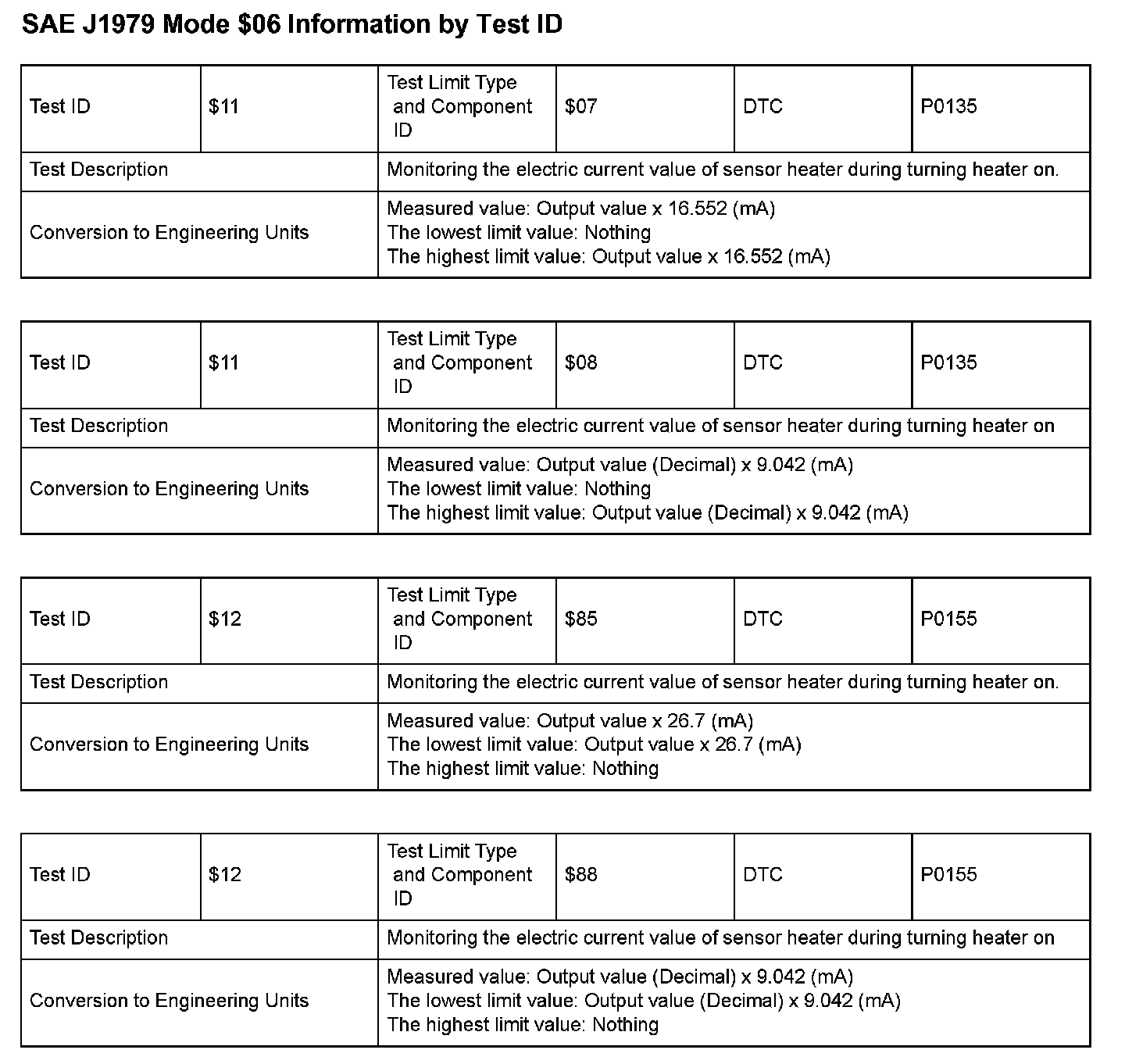

SAE J1979 Information By Test ID ($11 - $12):

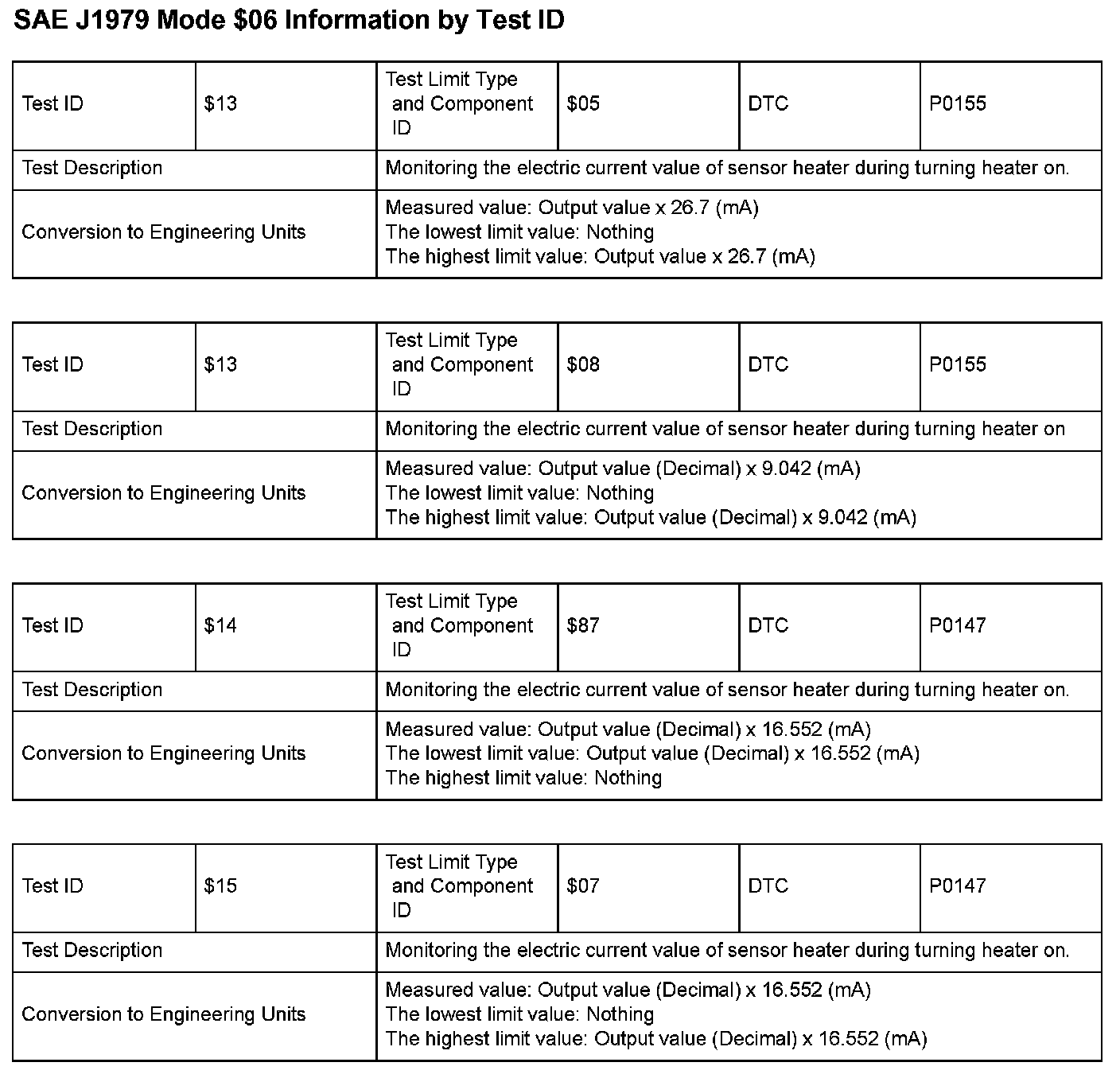

SAE J1979 Information By Test ID ($13 - $15):

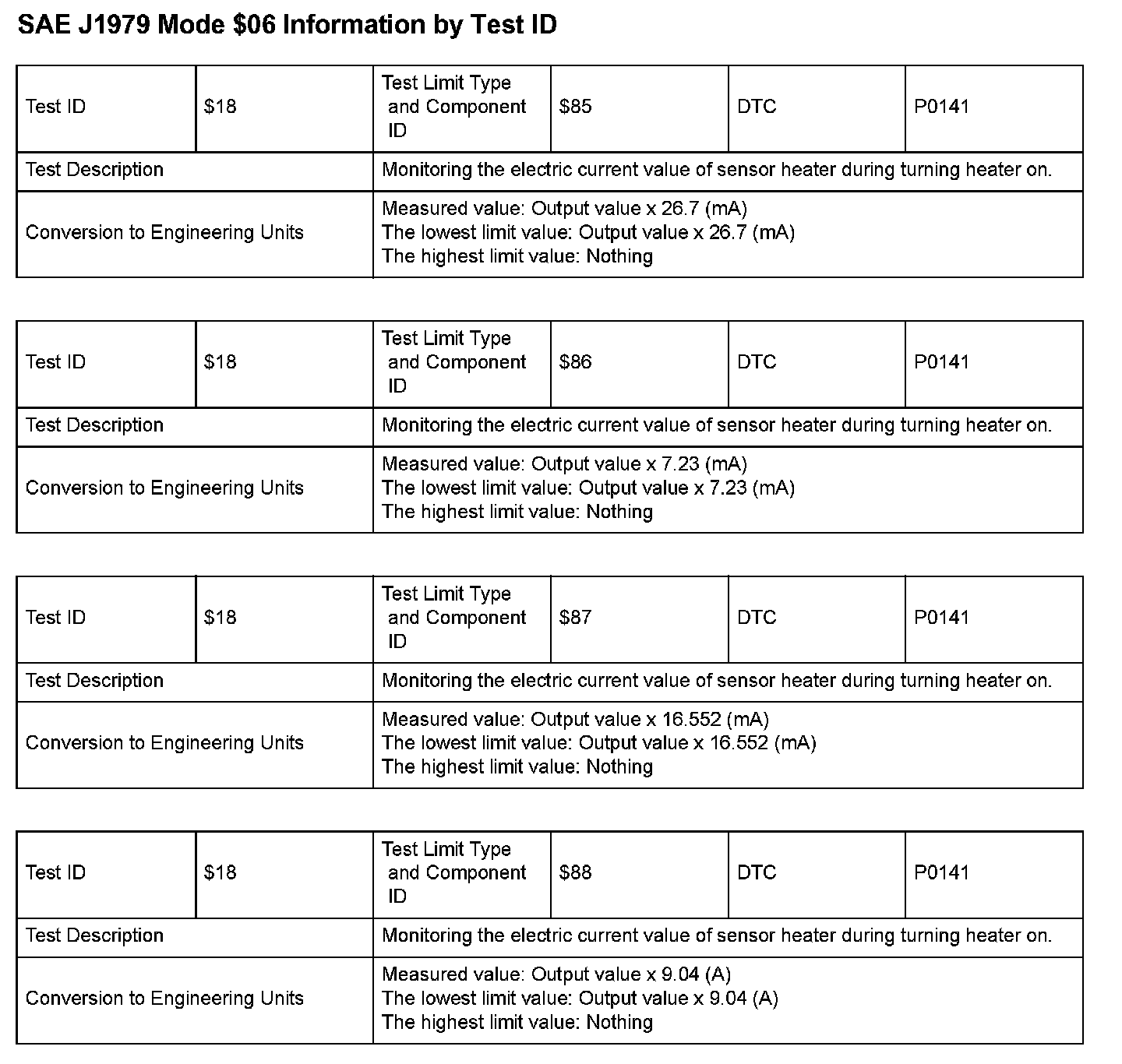

SAE J1979 Information By Test ID ($18):

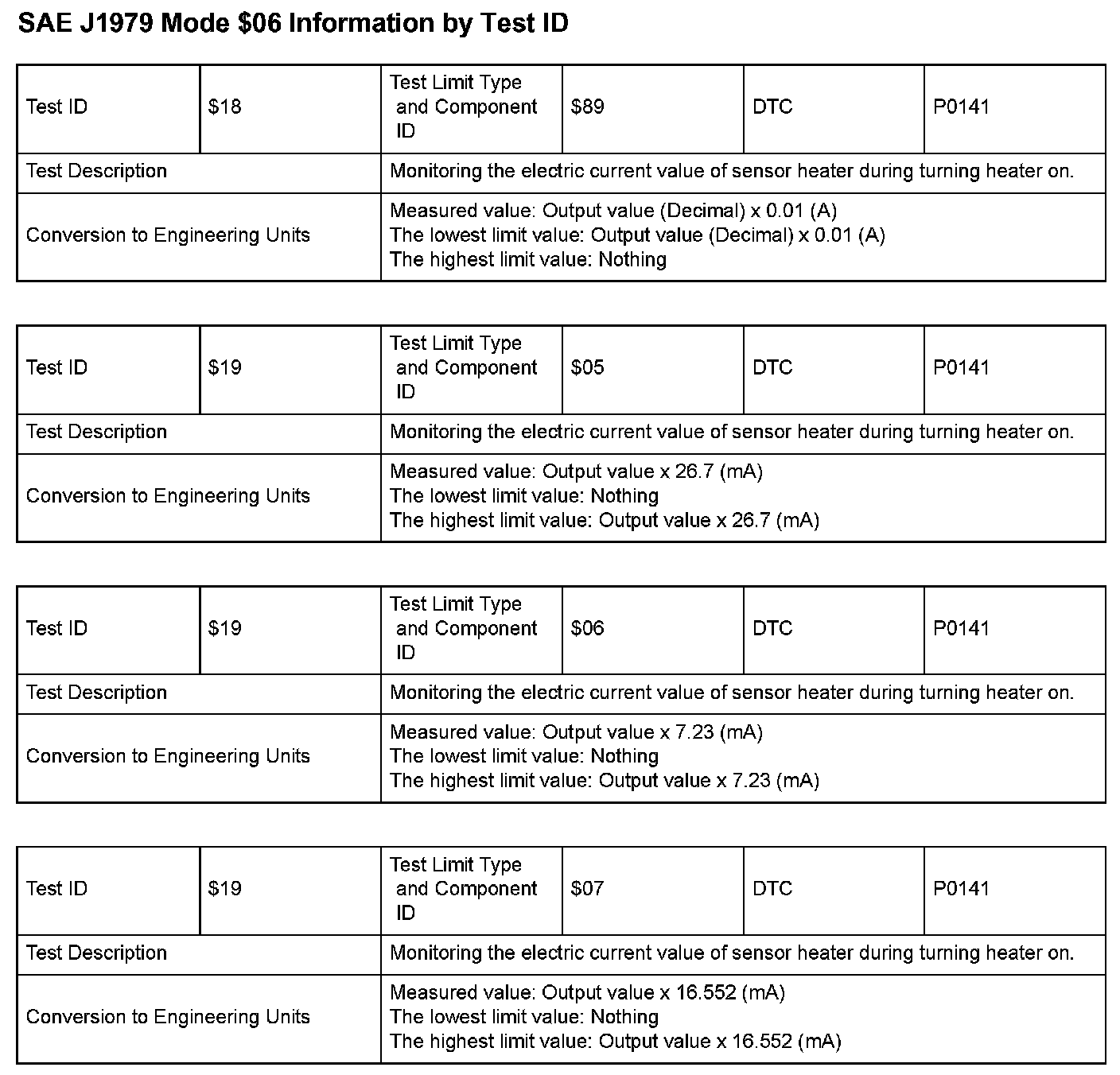

SAE J1979 Information By Test ID ($18 - $19):

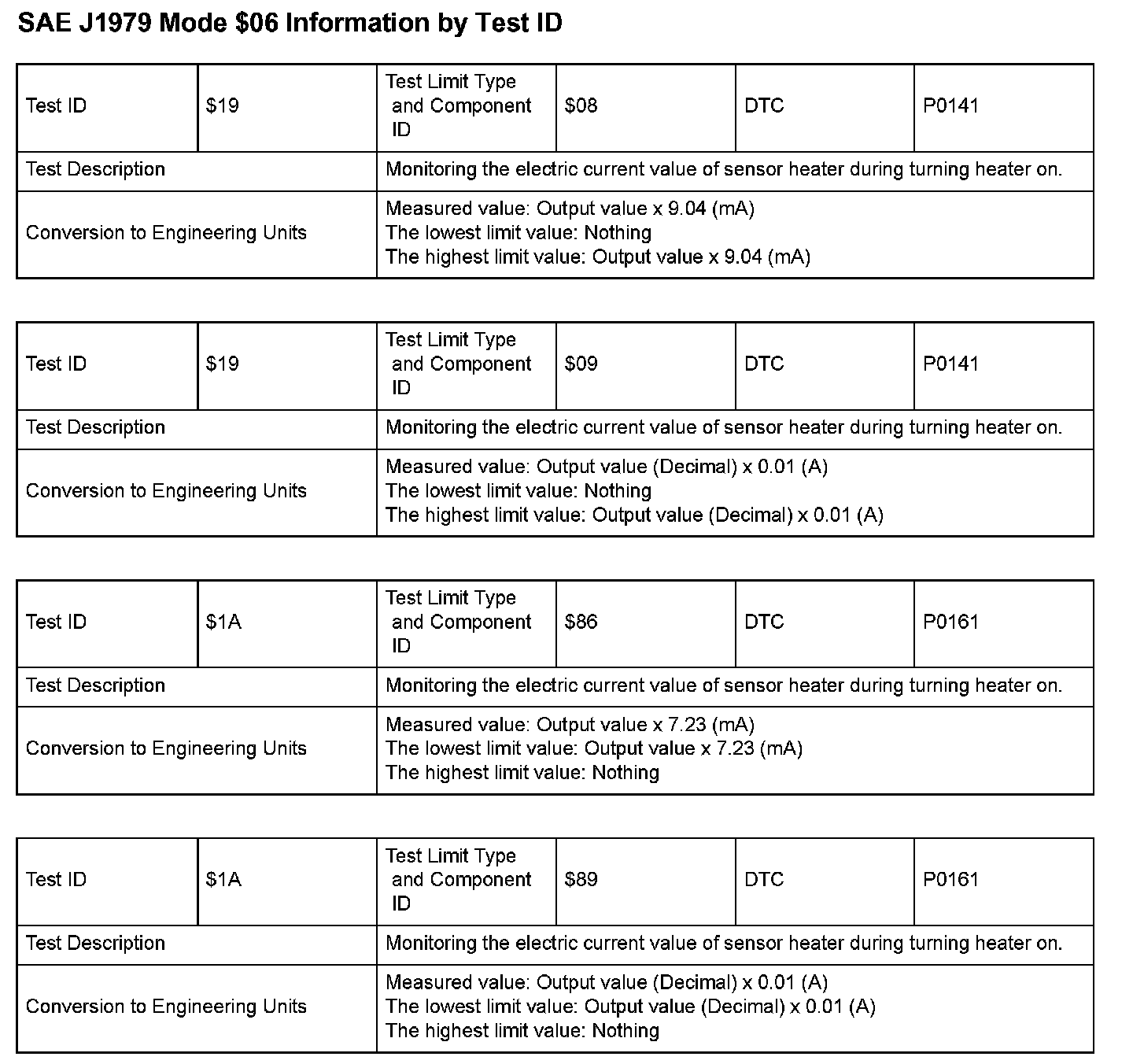

SAE J1979 Information By Test ID ($19 - $1A):

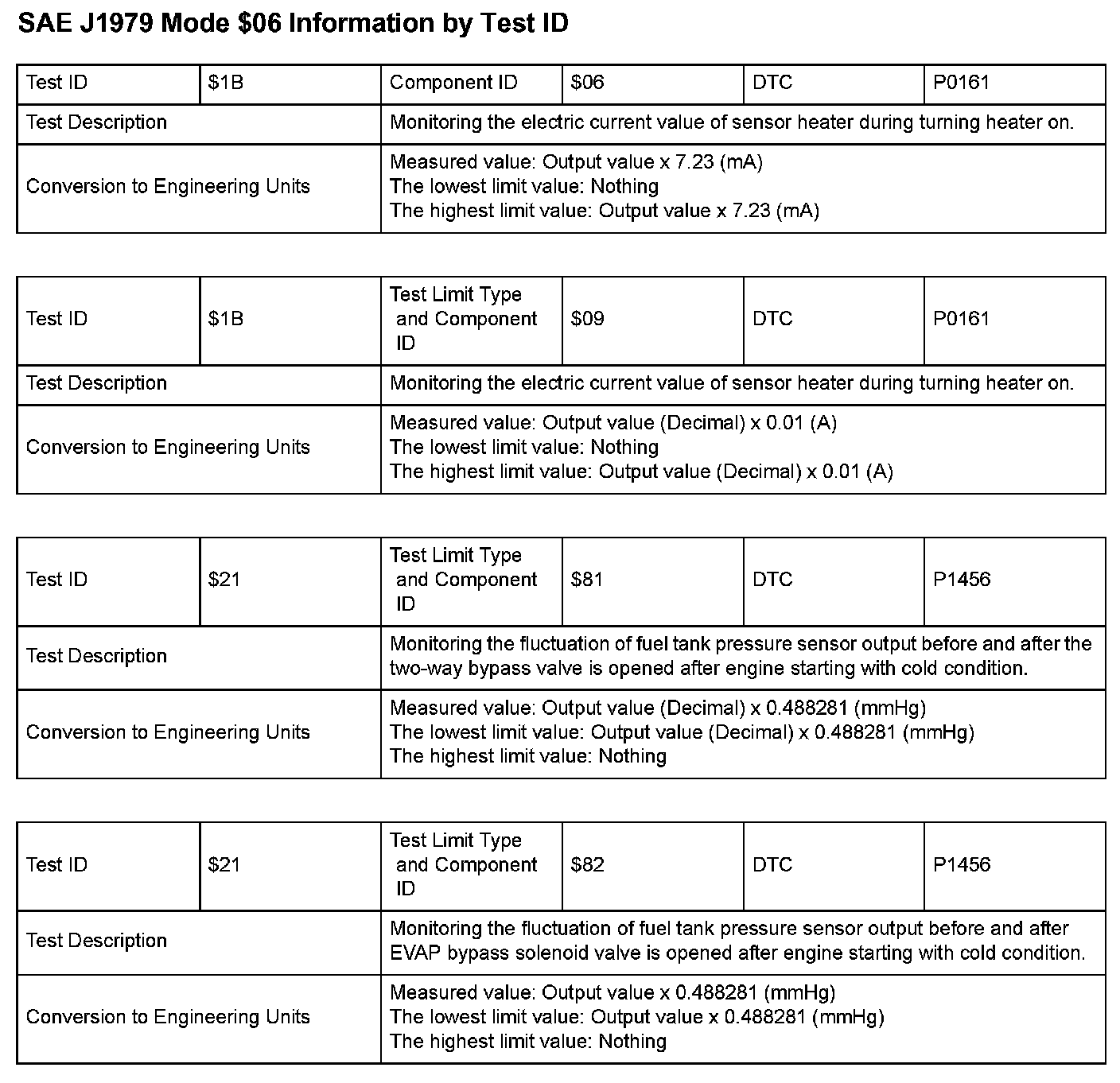

SAE J1979 Information By Test ID ($1B - $21):

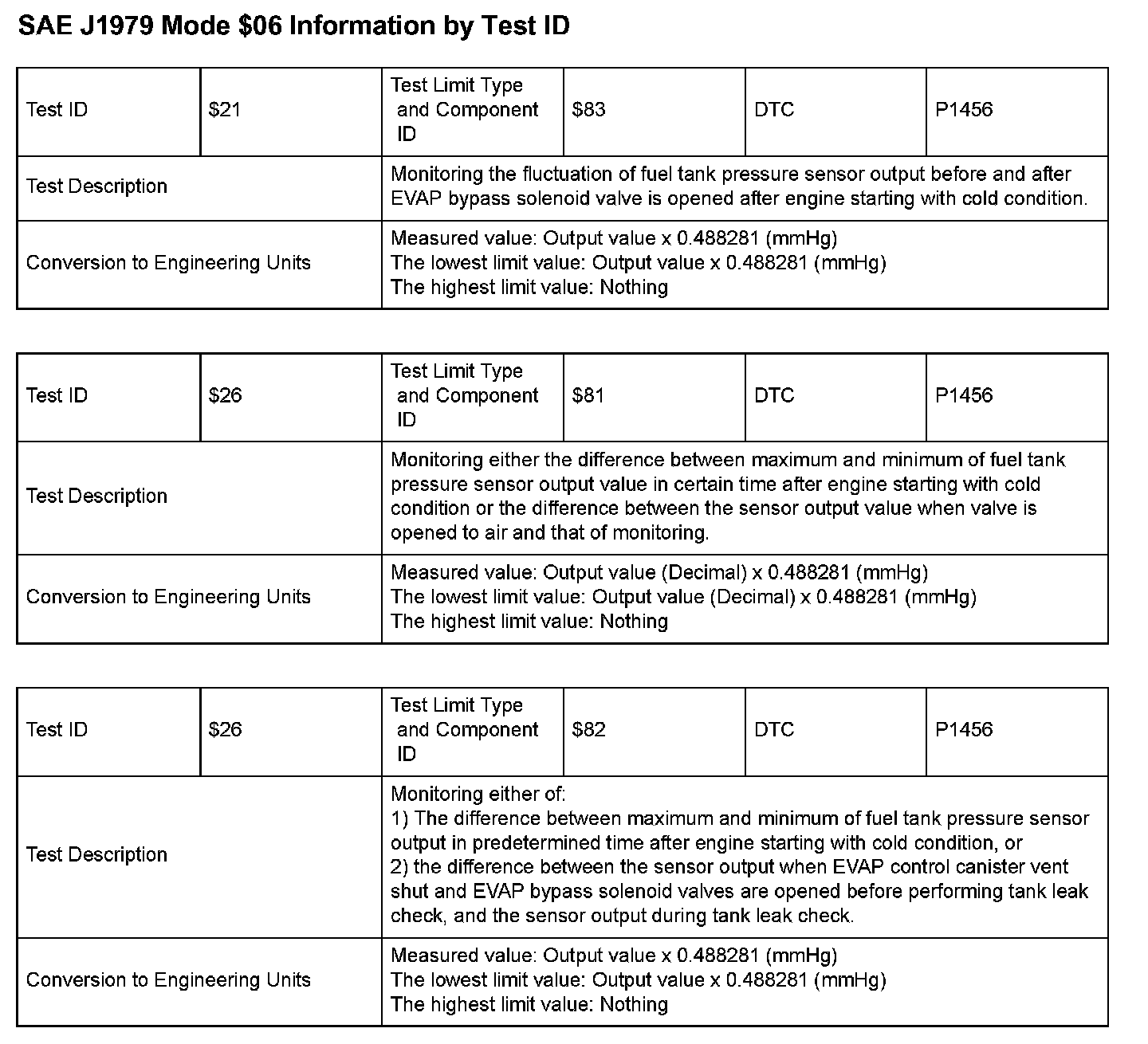

SAE J1979 Information By Test ID ($21 - $26):

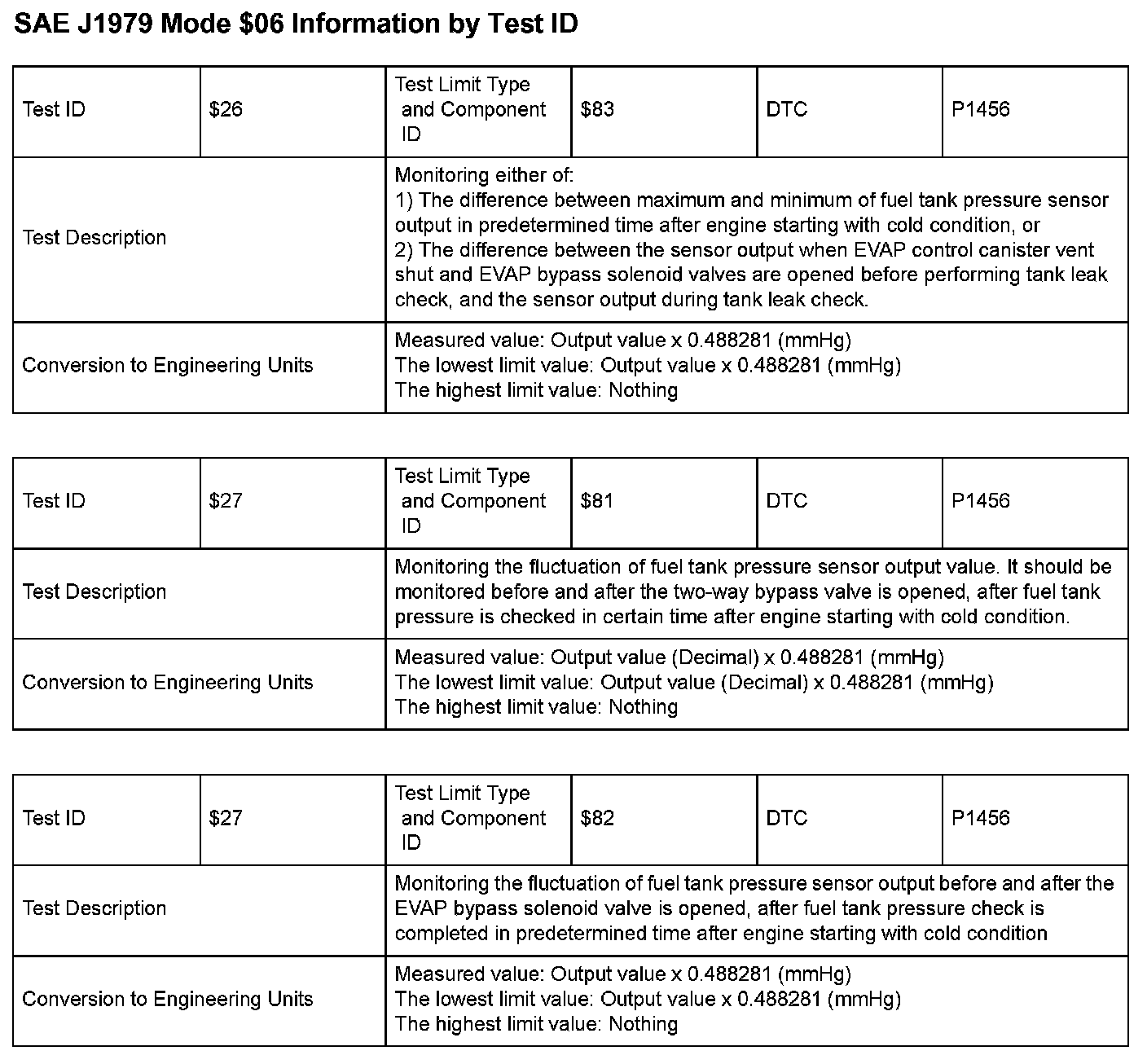

SAE J1979 Information By Test ID ($26 - $27):

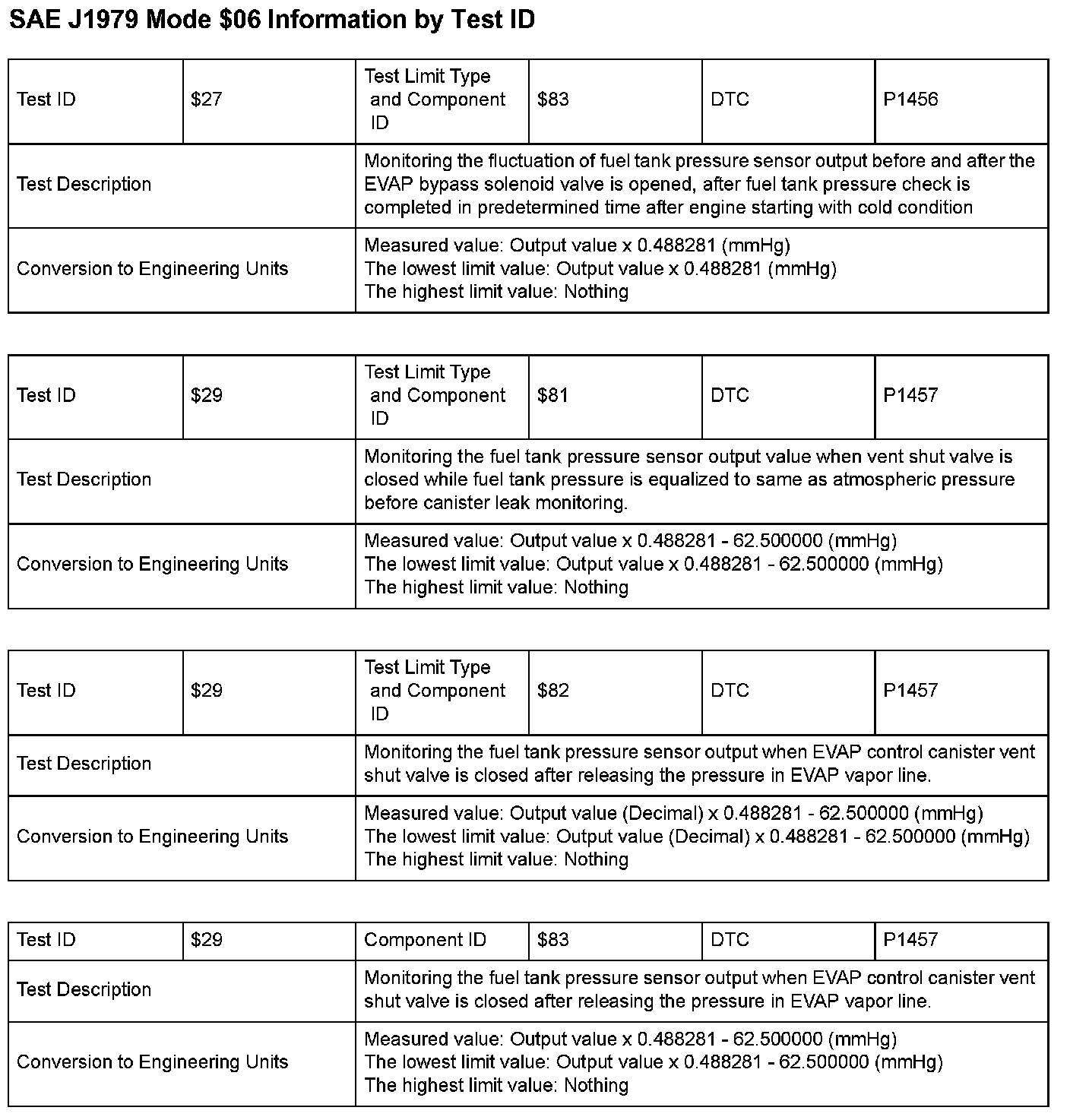

SAE J1979 Information By Test ID ($27 - $29):
SAE J1979 Information By Test ID ($2D - $2E):

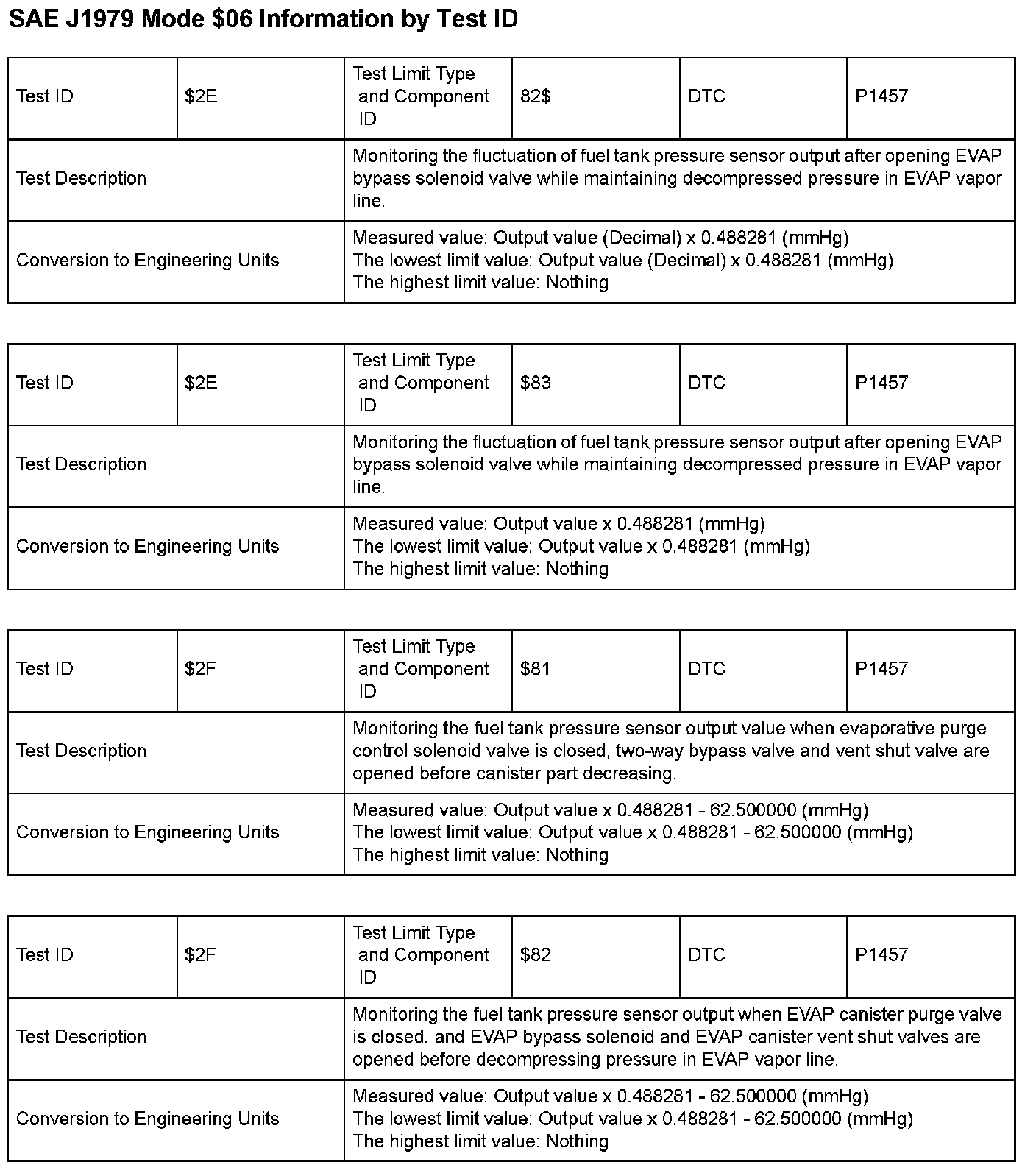

SAE J1979 Information By Test ID ($2E - $2F):

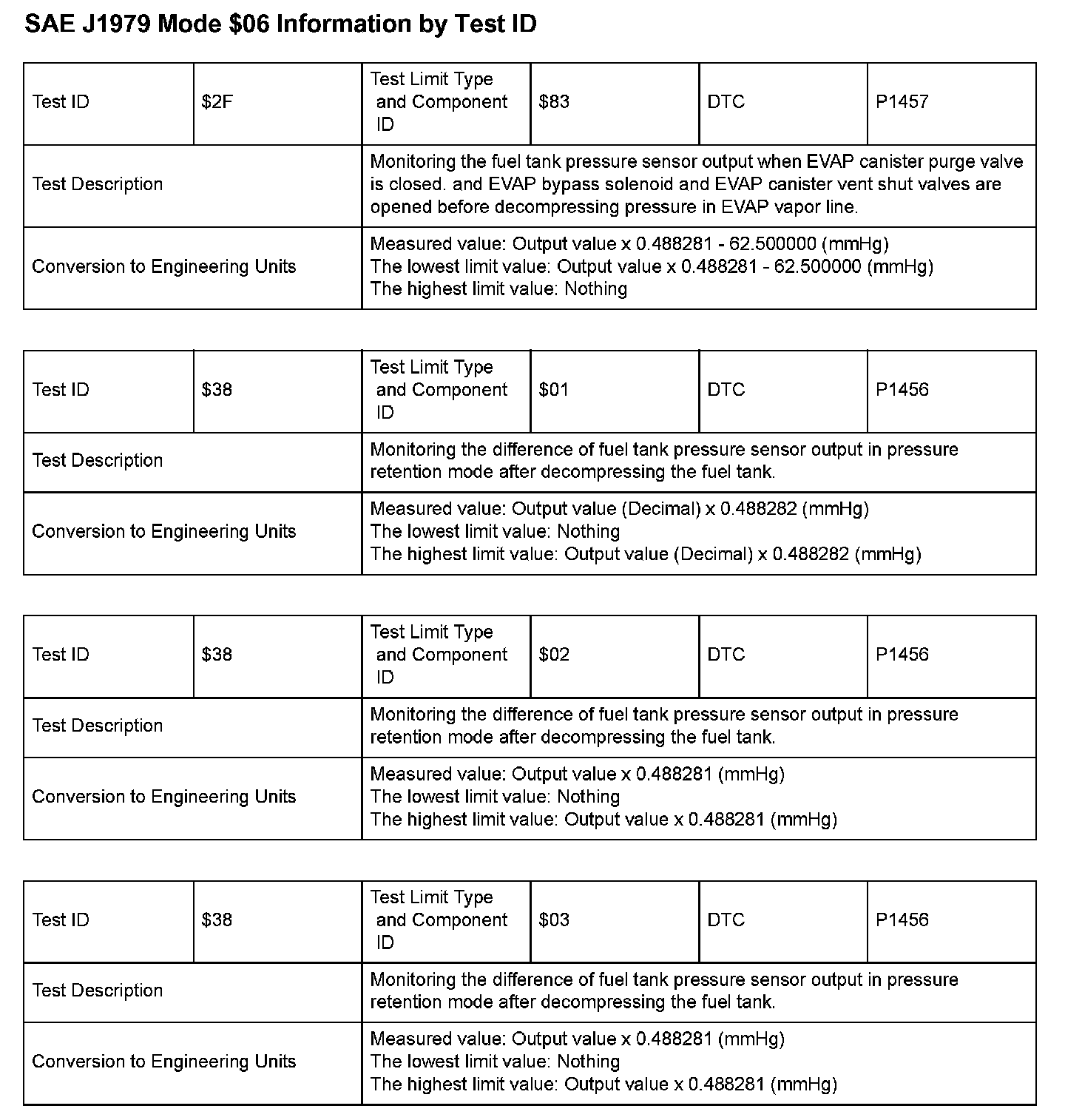

SAE J1979 Information By Test ID ($2F - $38):

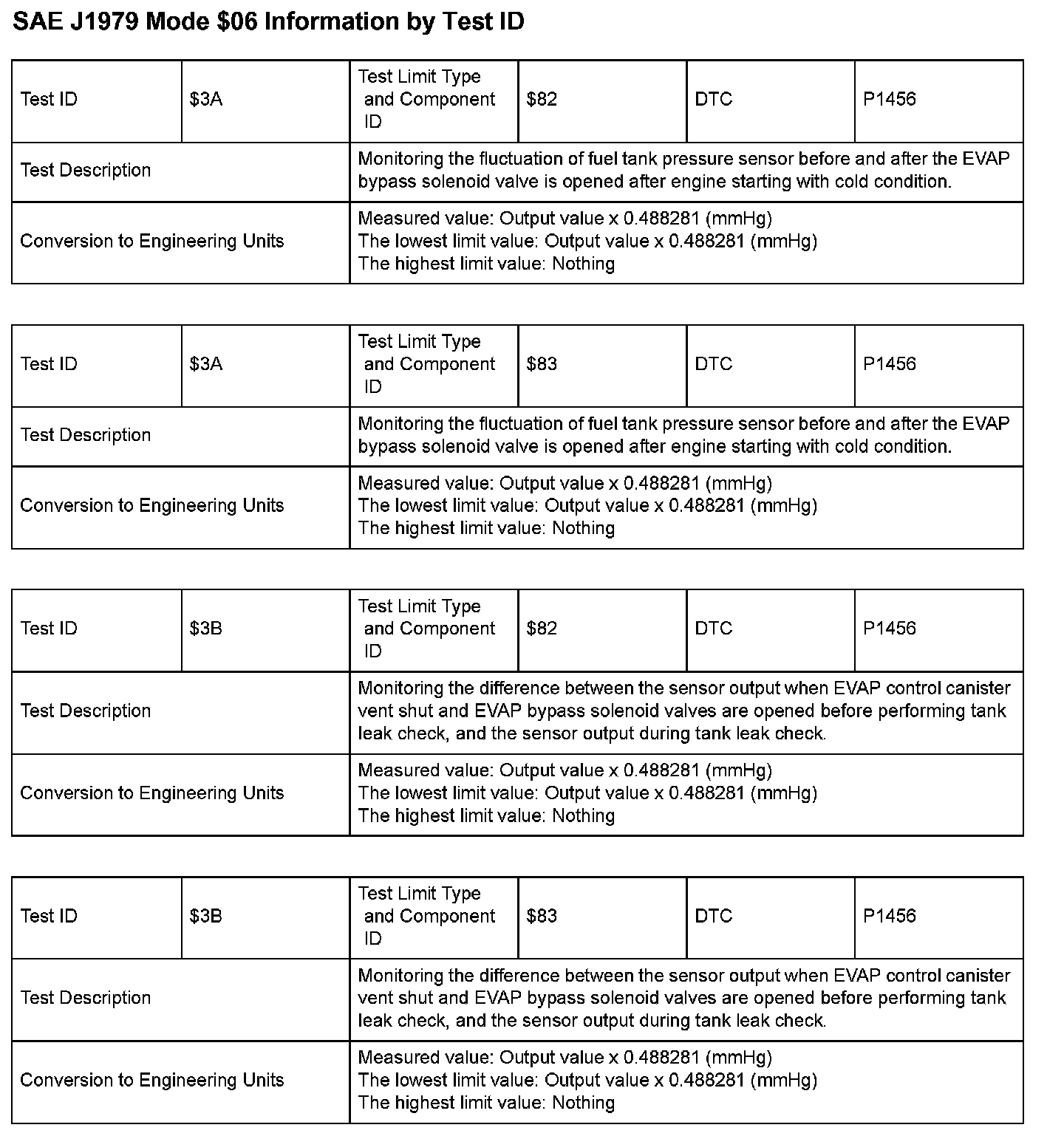

SAE J1979 Information By Test ID ($3A - $3B):

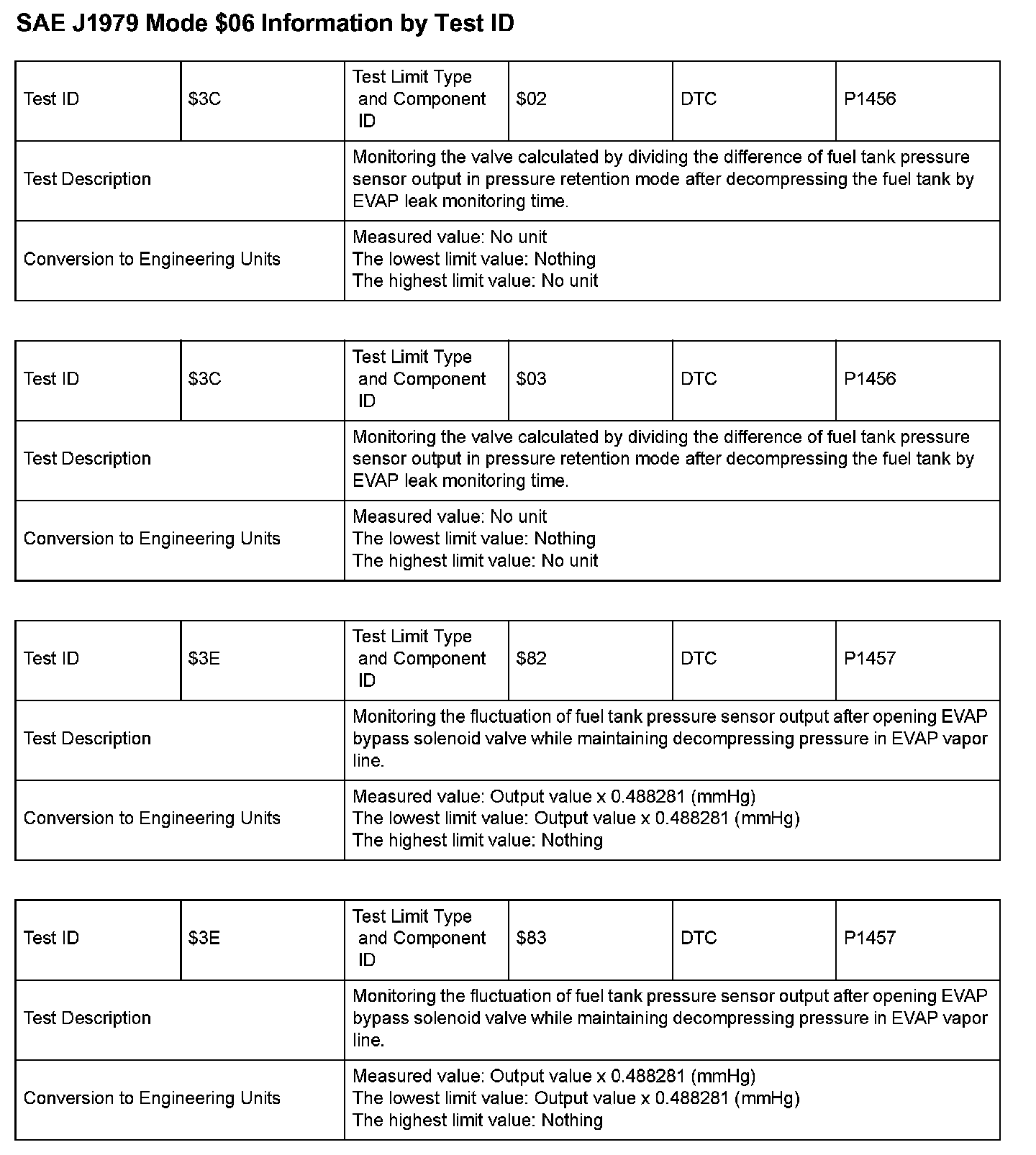

SAE J1979 Information By Test ID ($3C - $3E):

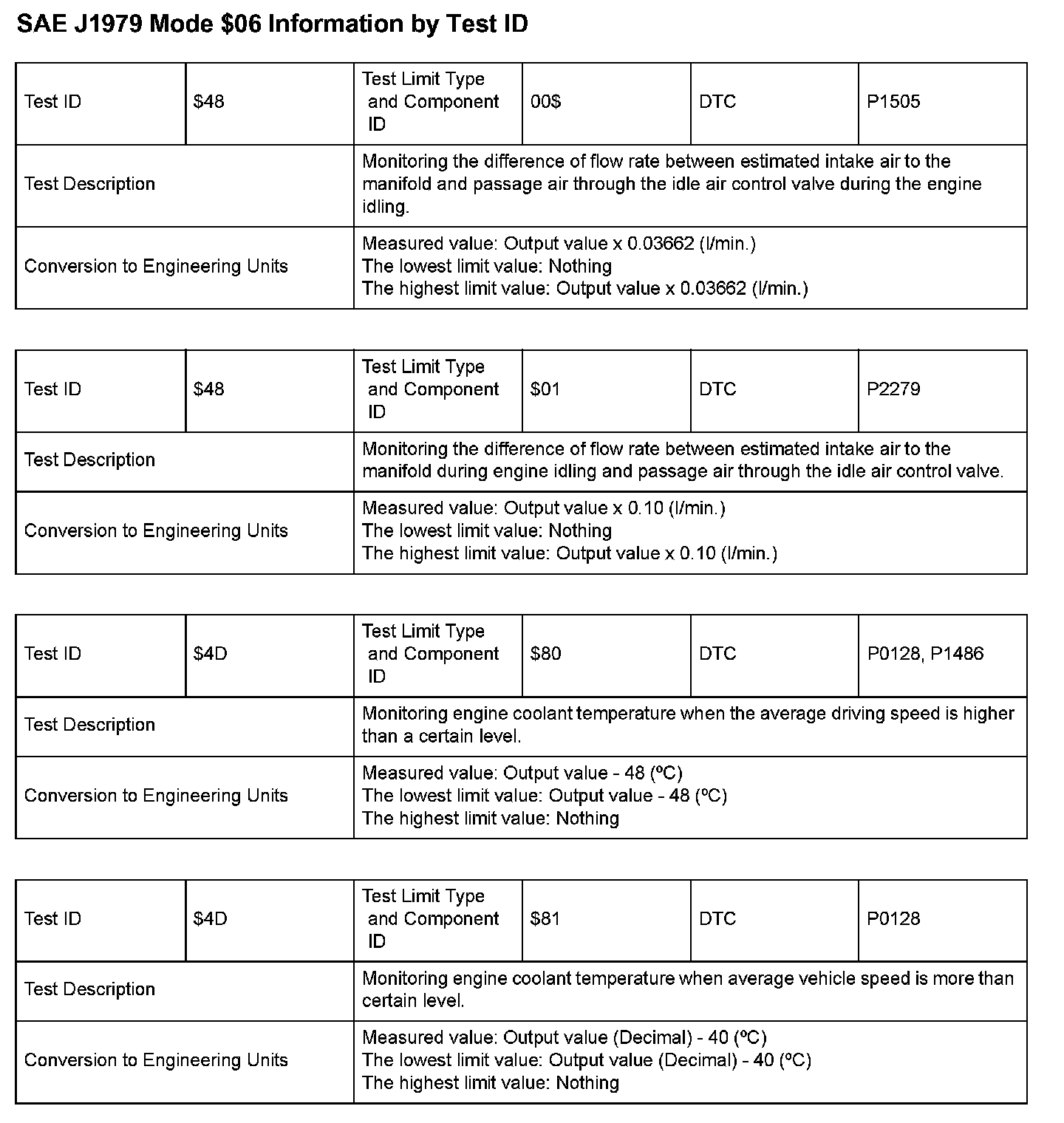

SAE J1979 Information By Test ID ($48 - $4D):

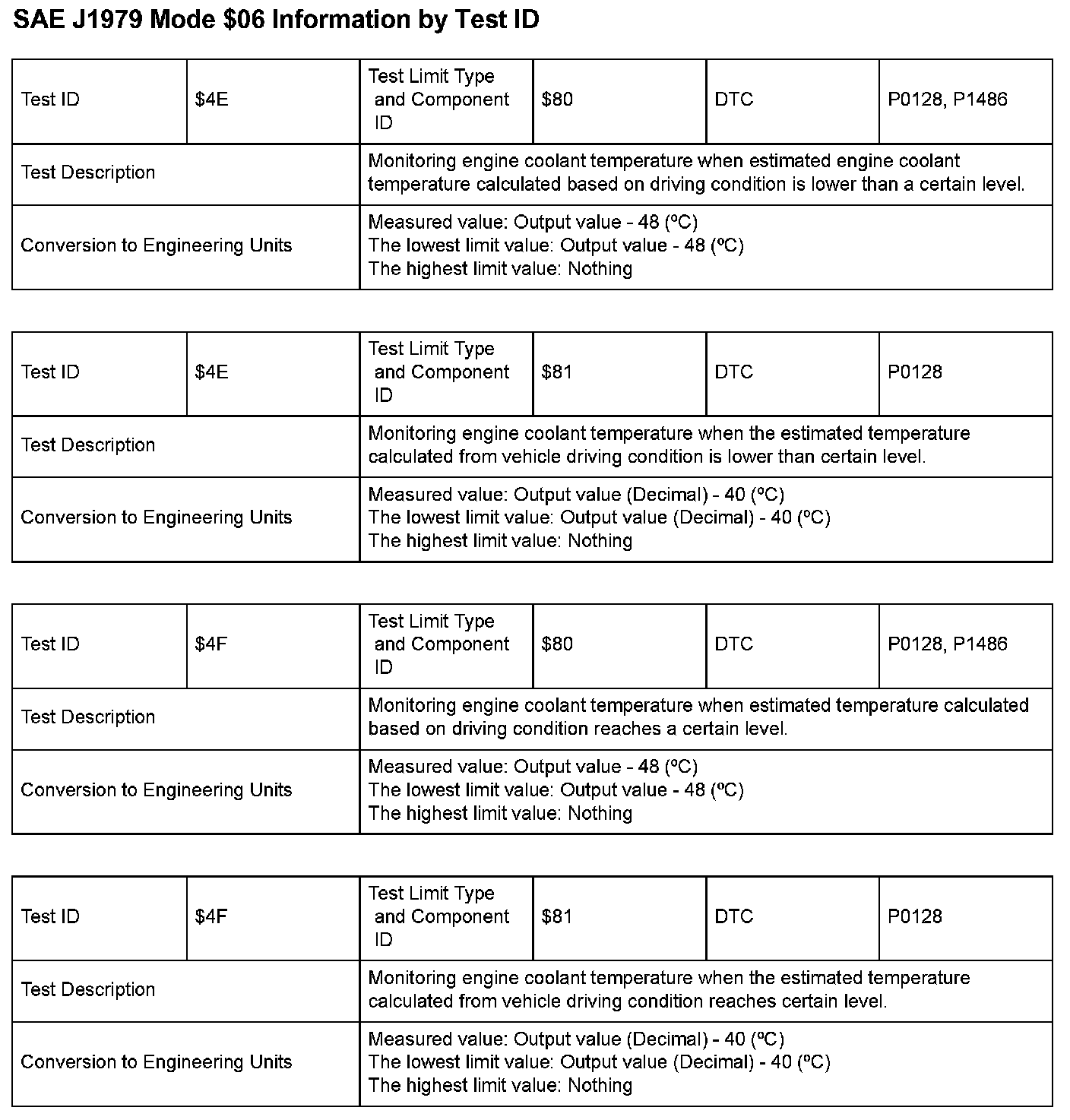

SAE J1979 Information By Test ID ($4E - $4F):

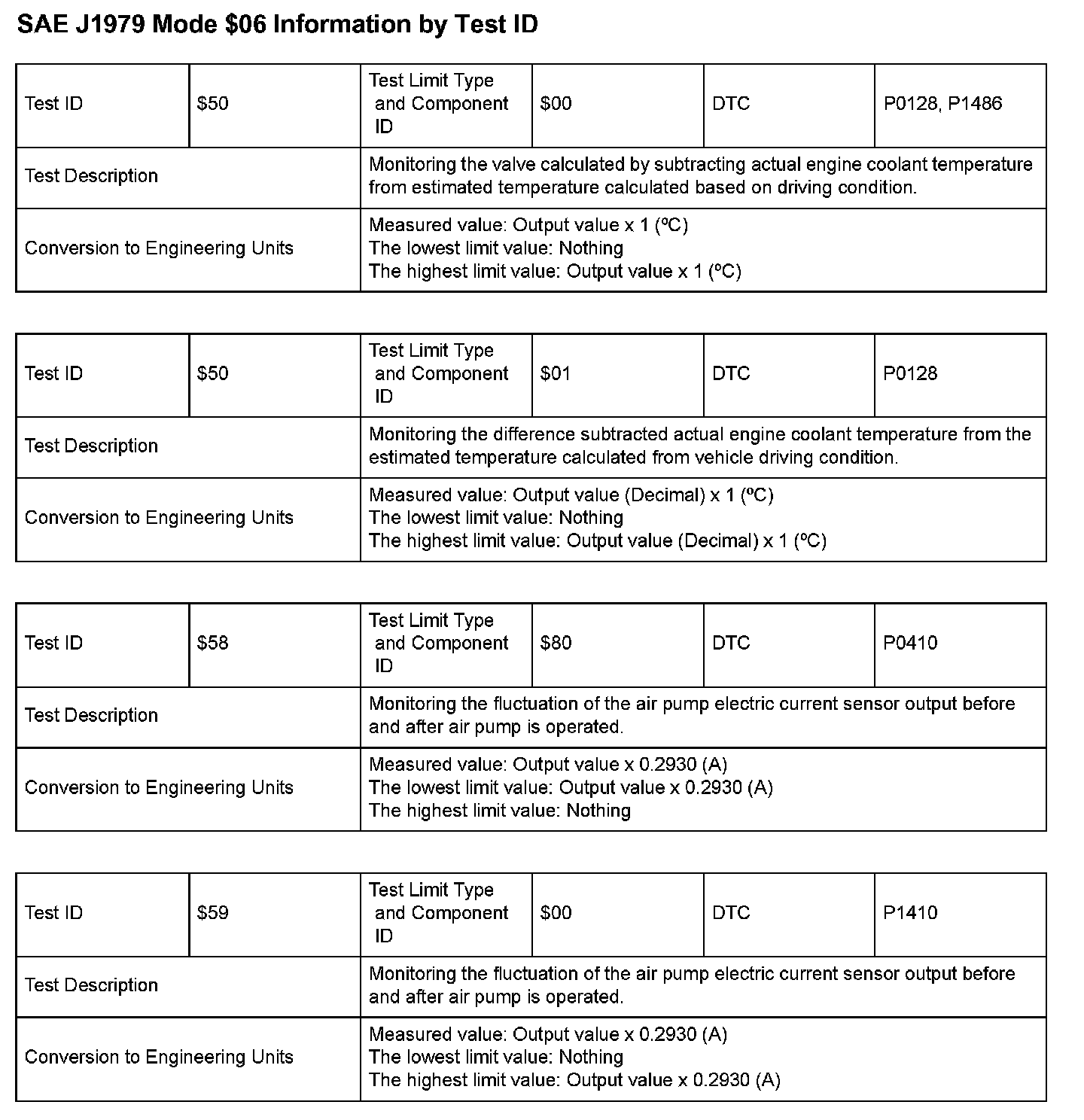

SAE J1979 Information By Test ID ($50 - $59):

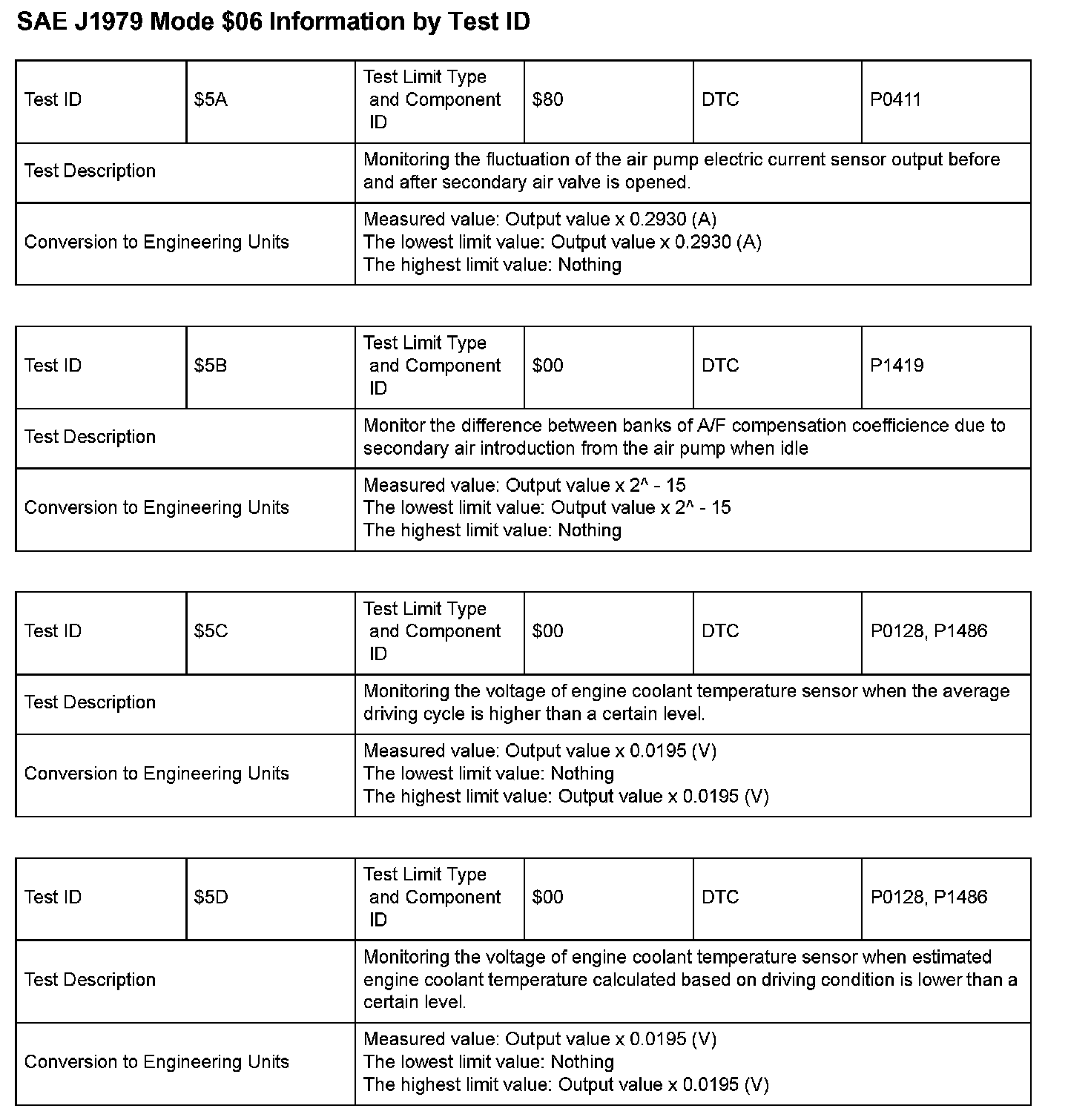

SAE J1979 Information By Test ID ($5A - $5D):

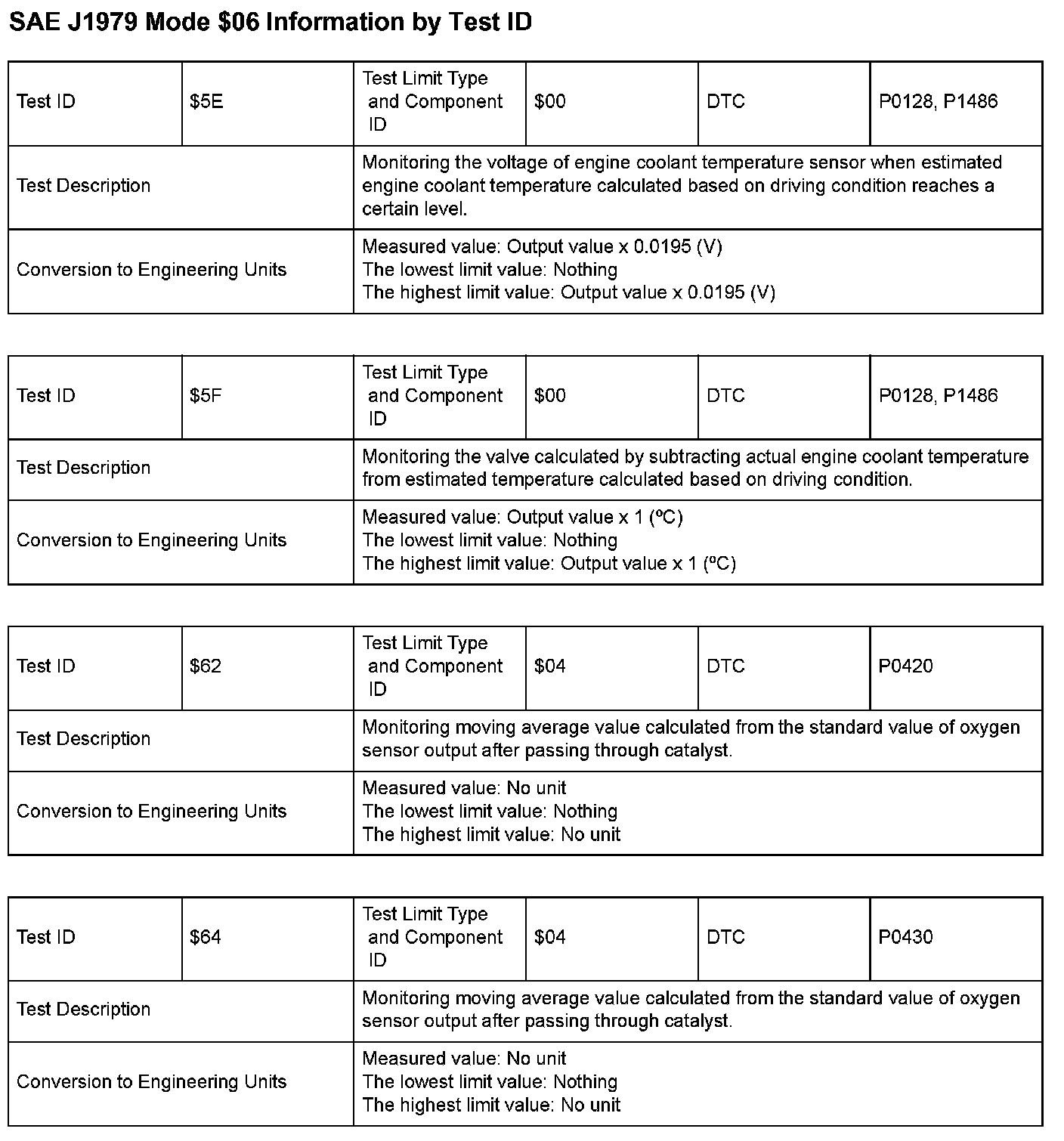

SAE J1979 Information By Test ID ($5E - $64):

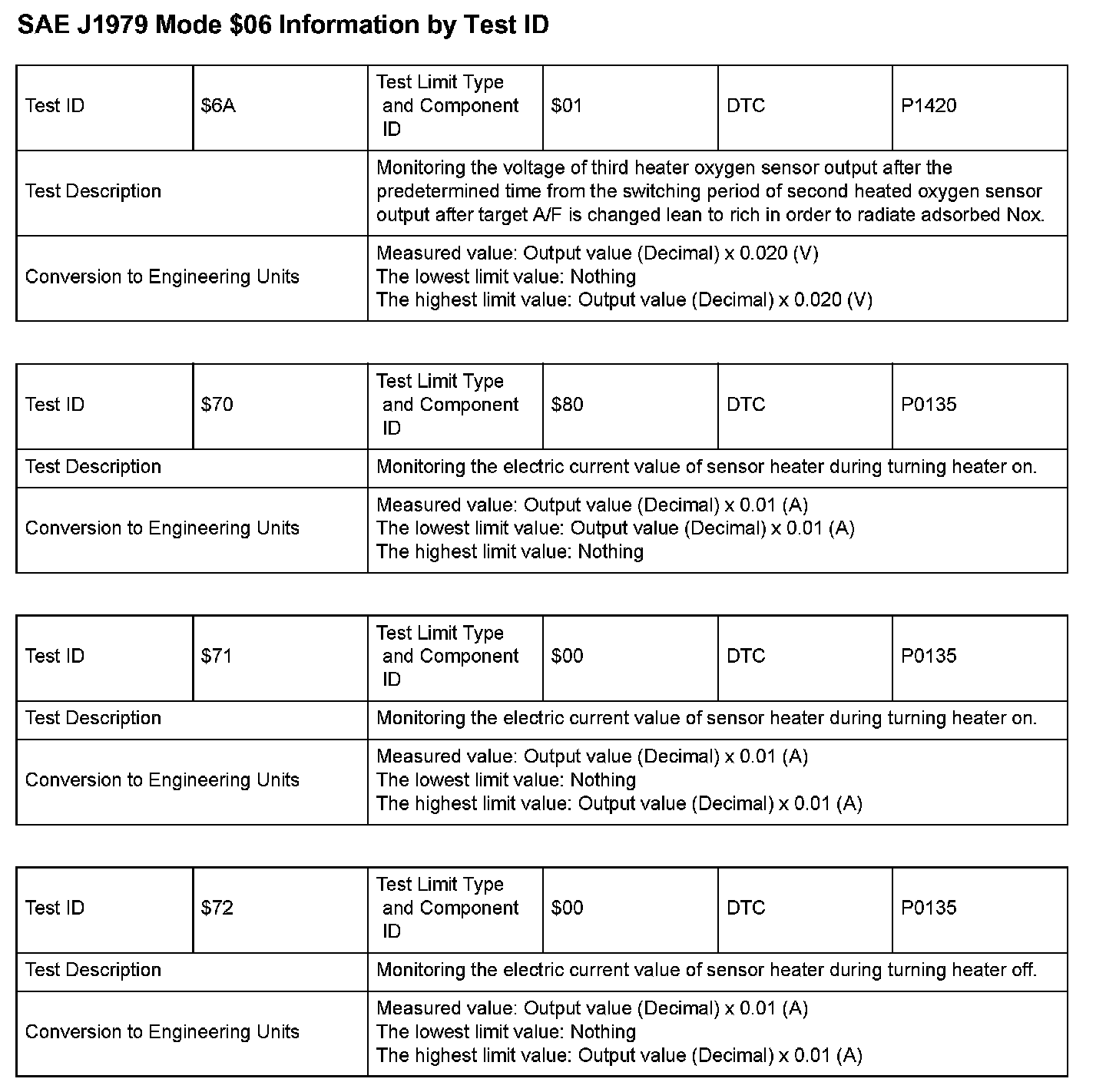

SAE J1979 Information By Test ID ($6A - $72):

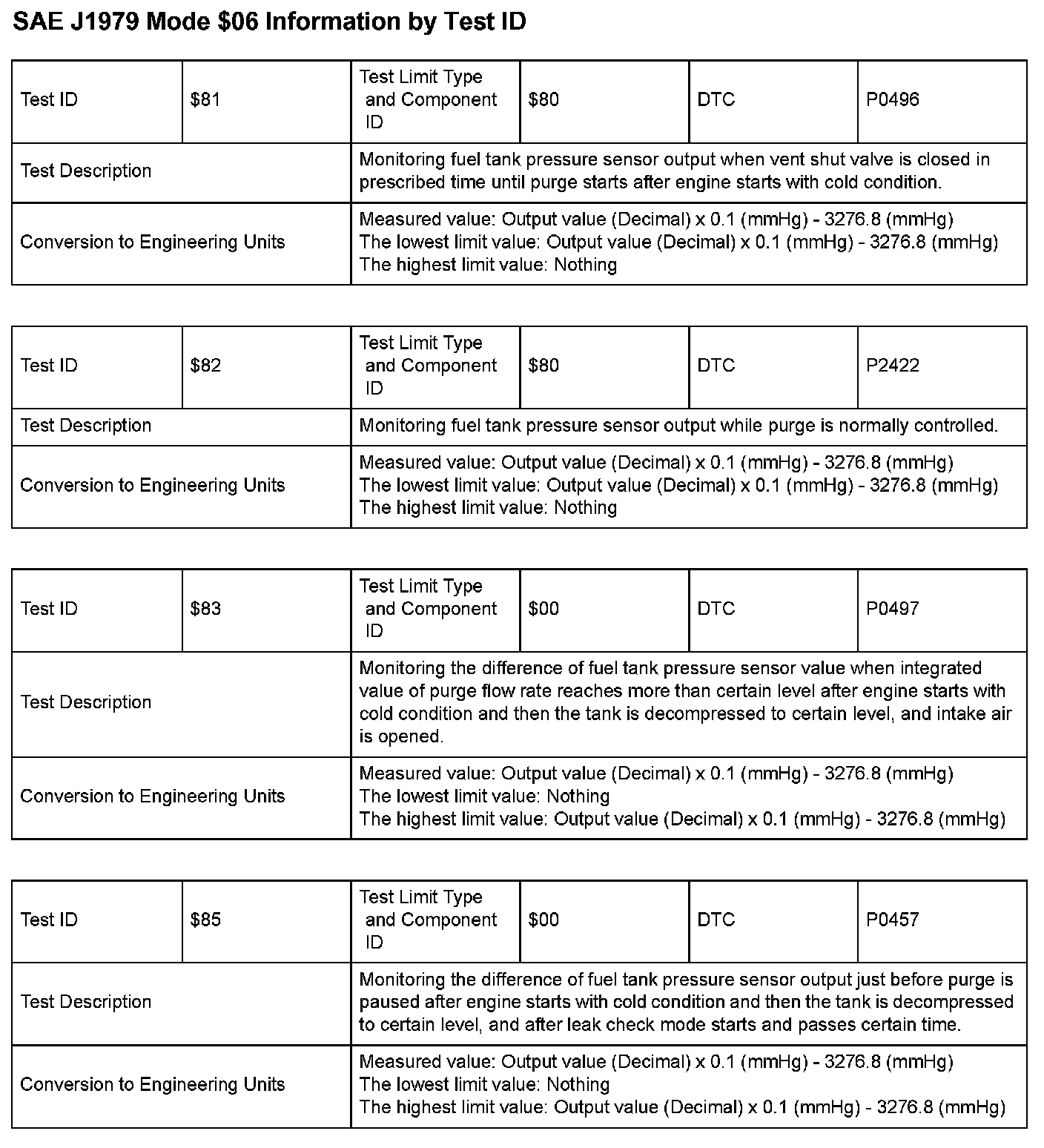

SAE J1979 Information By Test ID ($81 - $85):

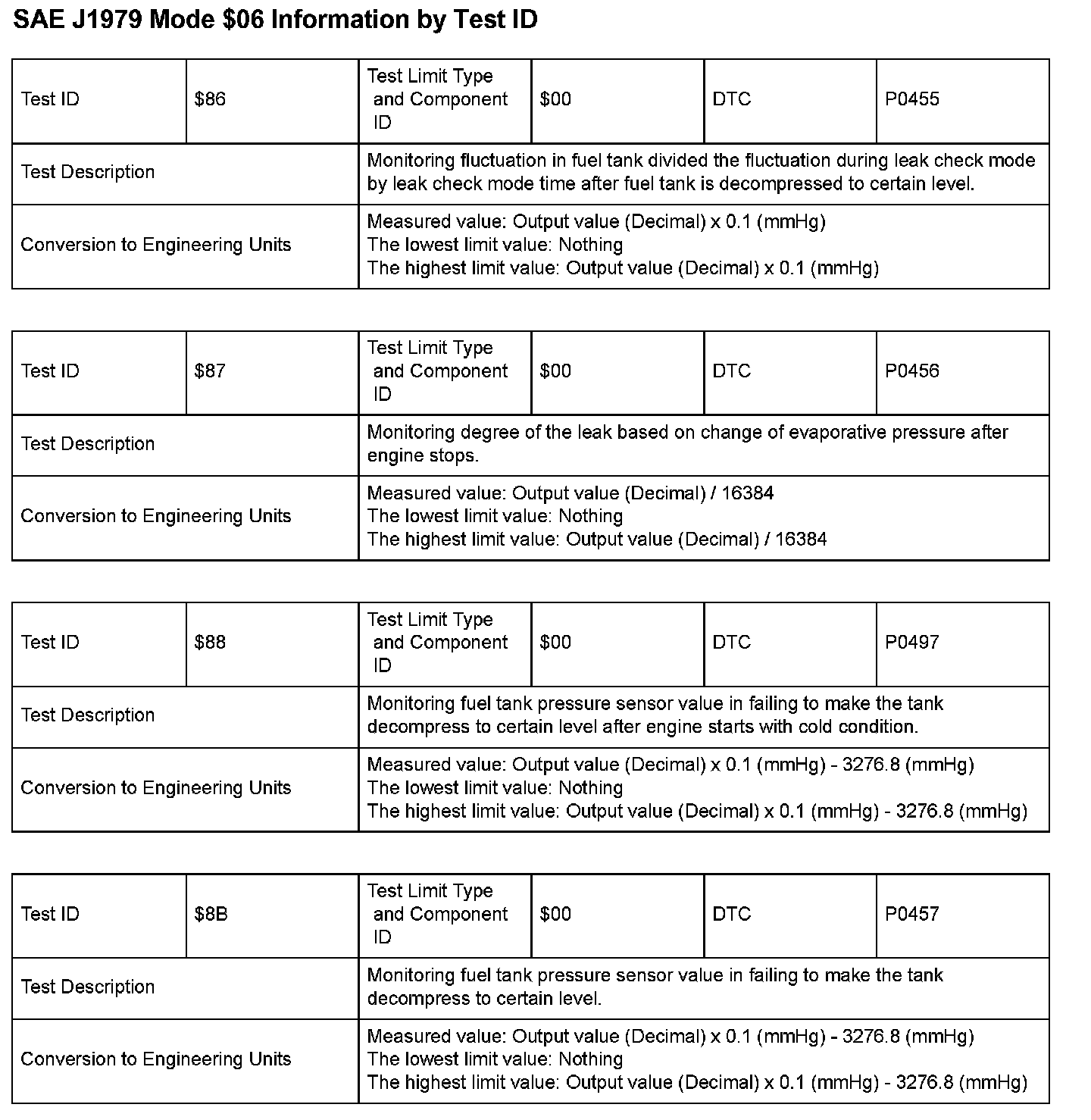

SAE J1979 Information By Test ID ($86 - $8B):

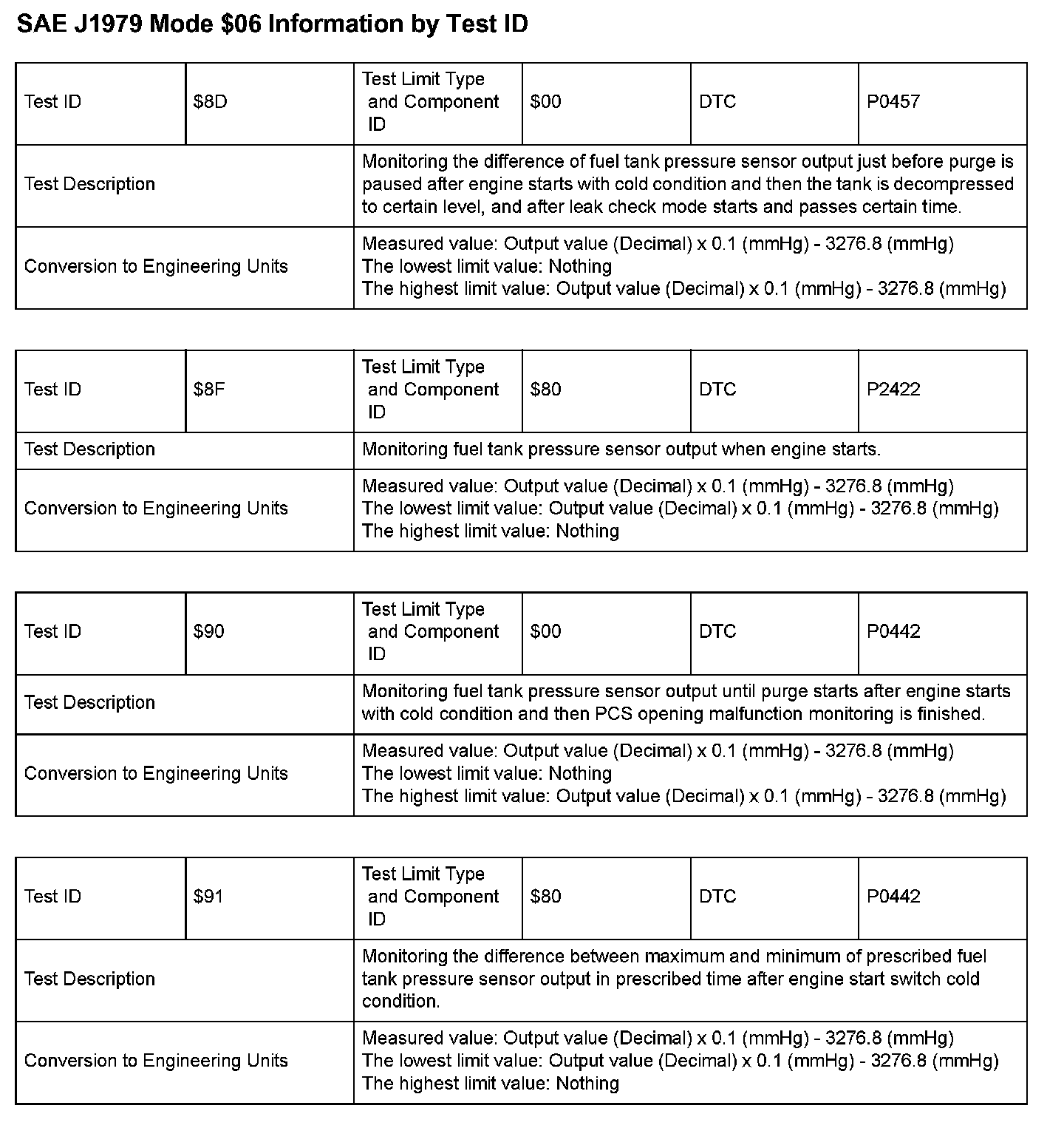

SAE J1979 Information By Test ID ($8D - $91):

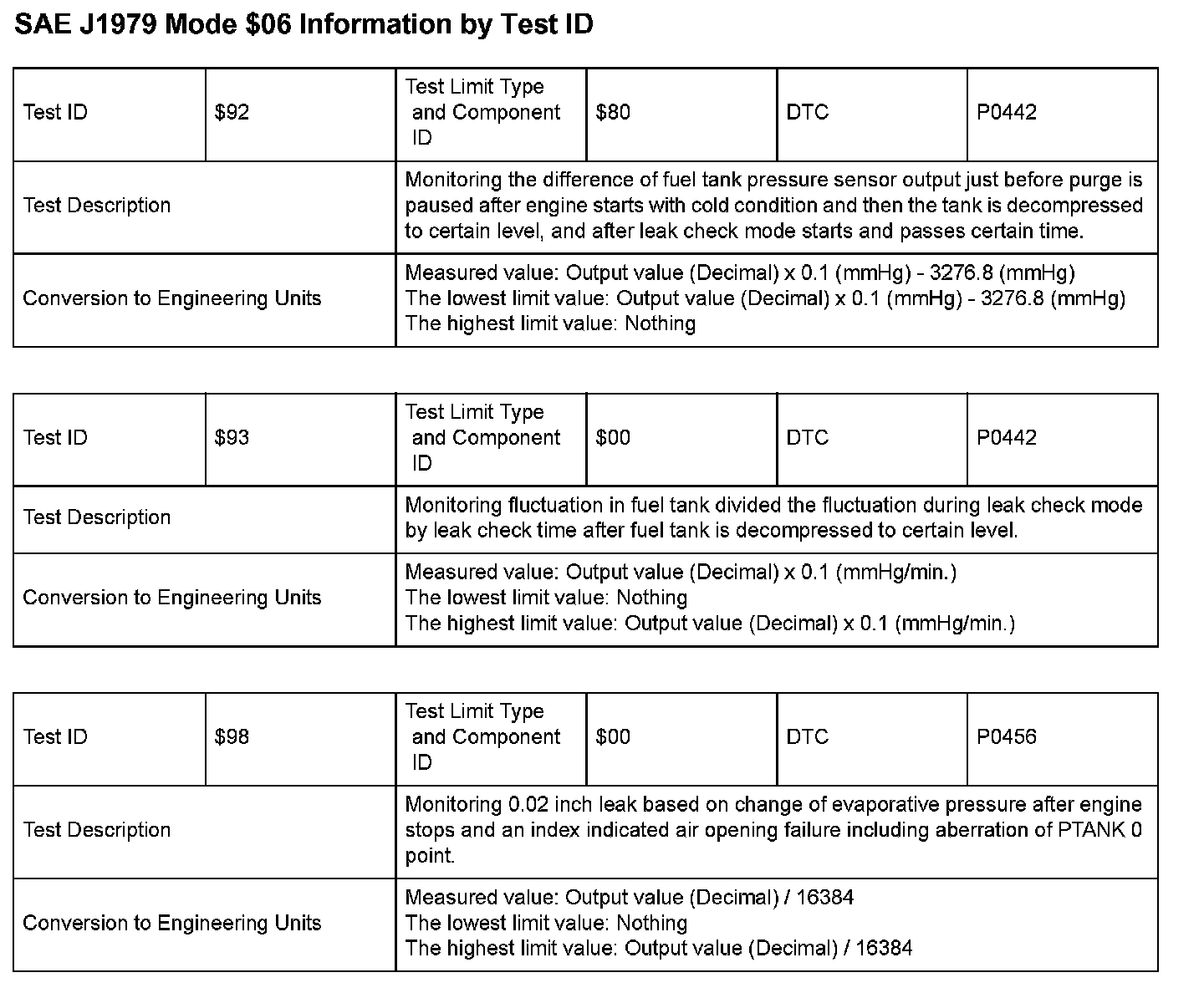

SAE J1979 Information By Test ID ($92 - $98):
