Ignition Coil: Service and Repair

Ignition Coil Removal/Installation




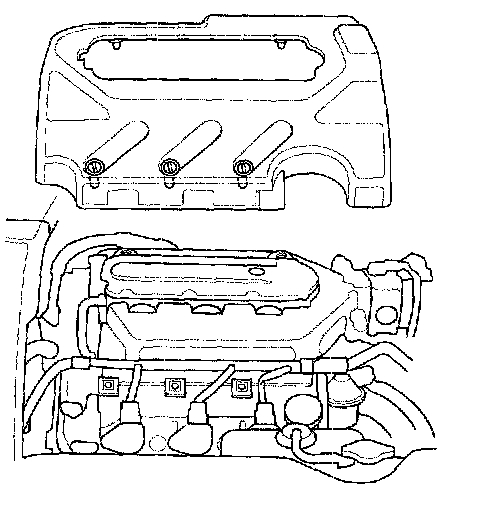

1. Remove the intake manifold cover.




2. Remove the right side engine compartment cover (A), then remove the left rear engine compartment cover (B) and right rear engine compartment cover (C).
3. When removing the No. 6 coil you must remove the reserve tank heat shield and reserve tank.




4. Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
5. Install the ignition coils in the reverse order of removal.
