Symptom Related Diagnostic Procedures

Symptom Troubleshooting Index

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

Part 10:

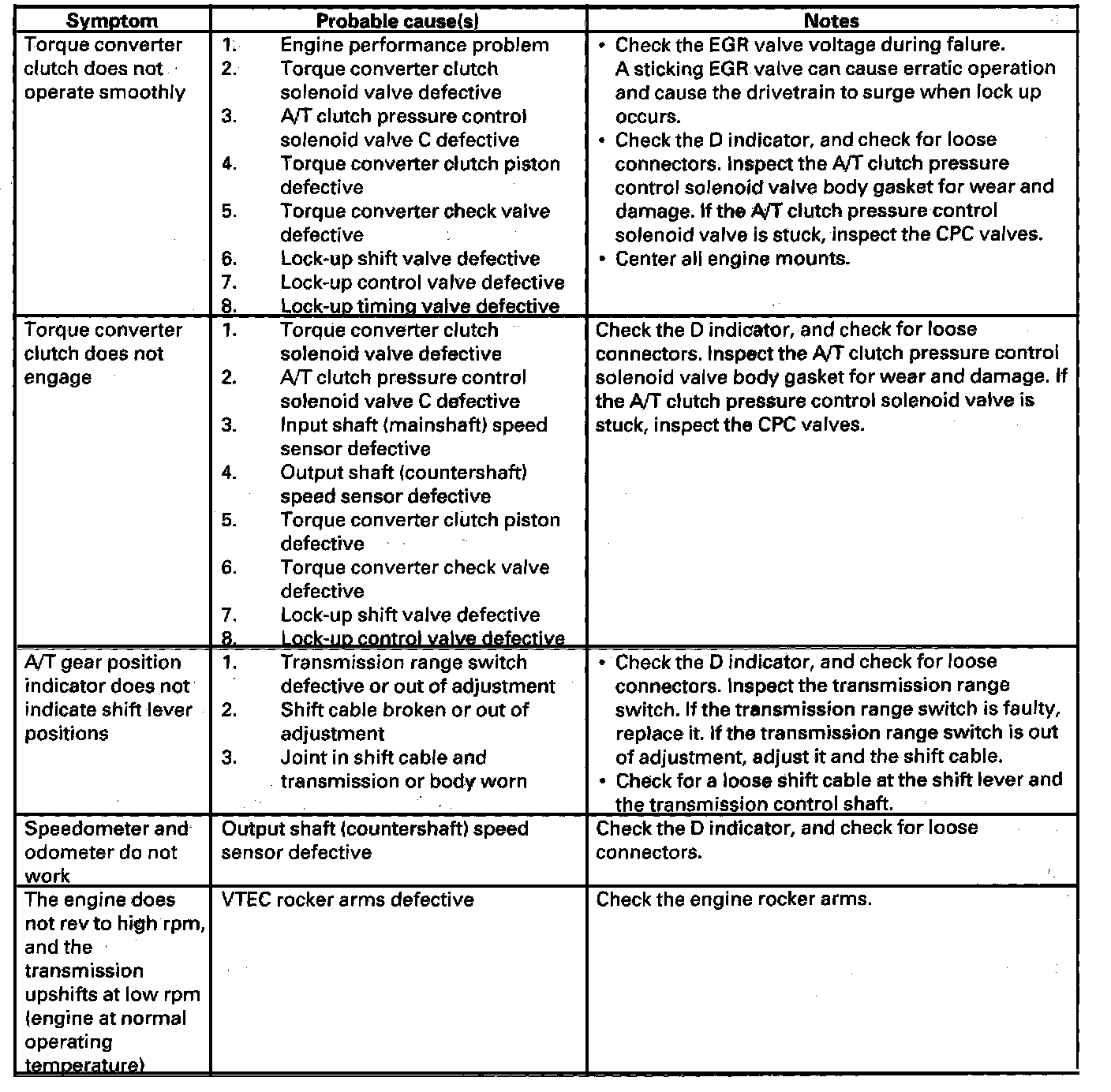

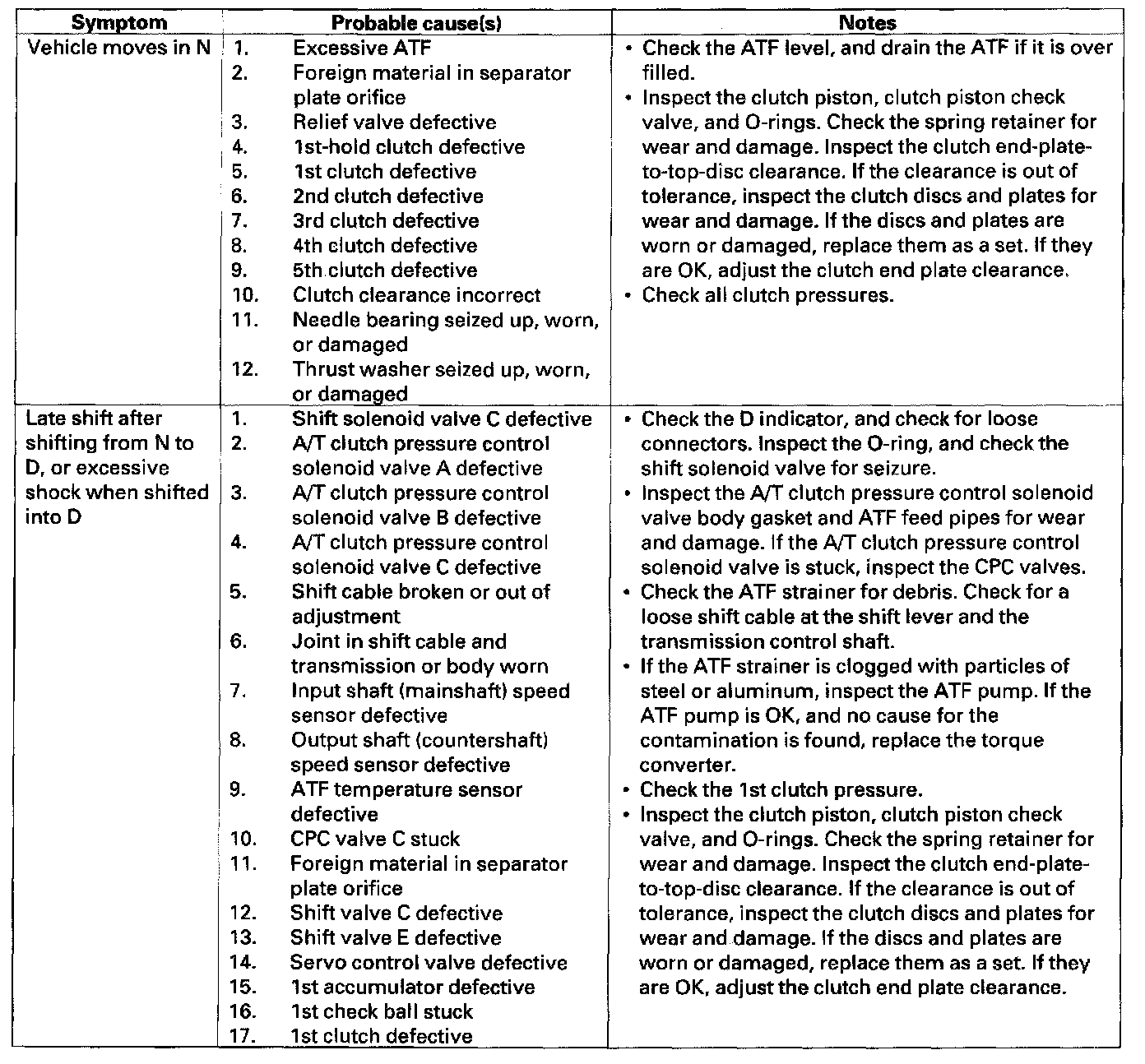

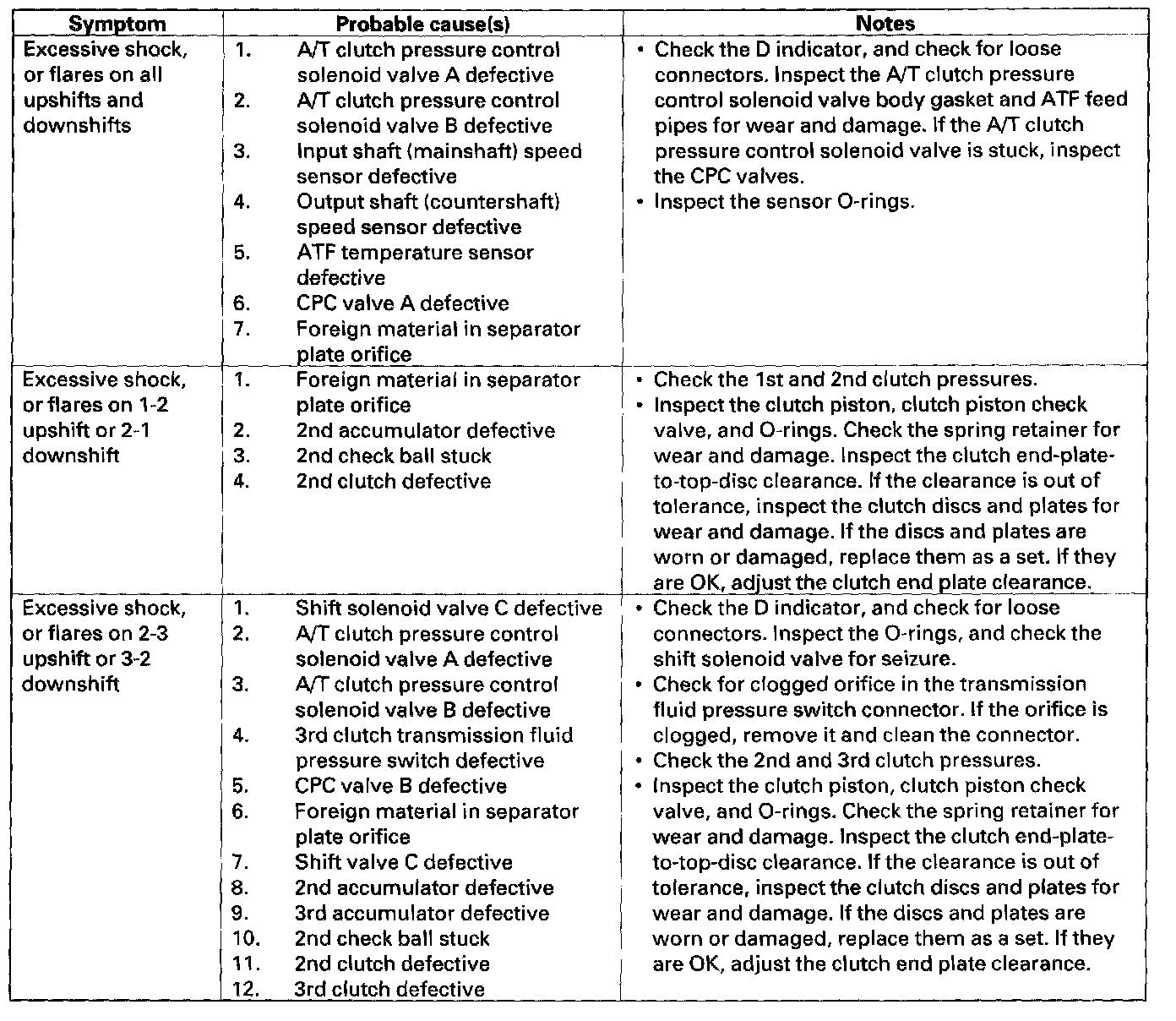

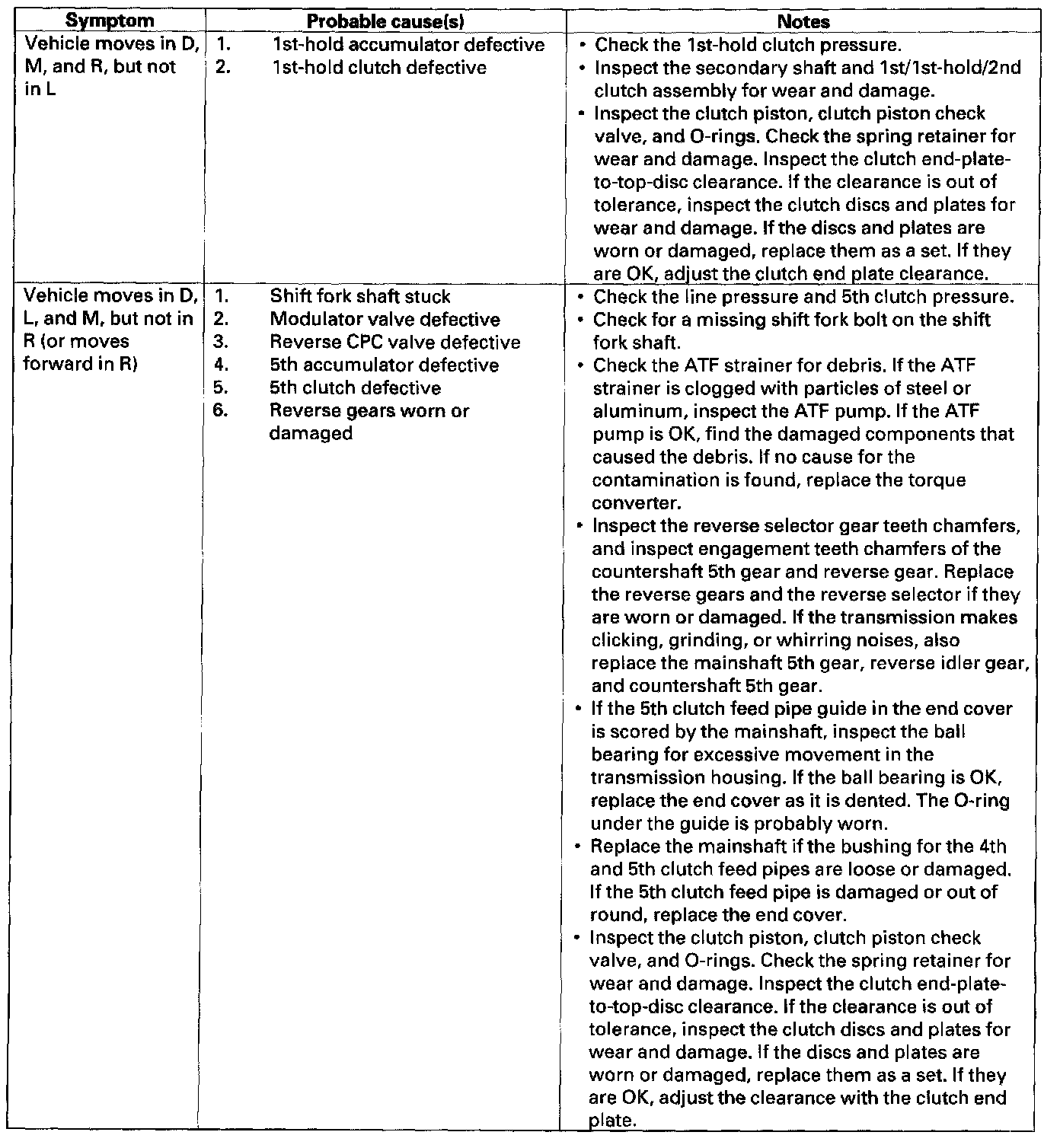

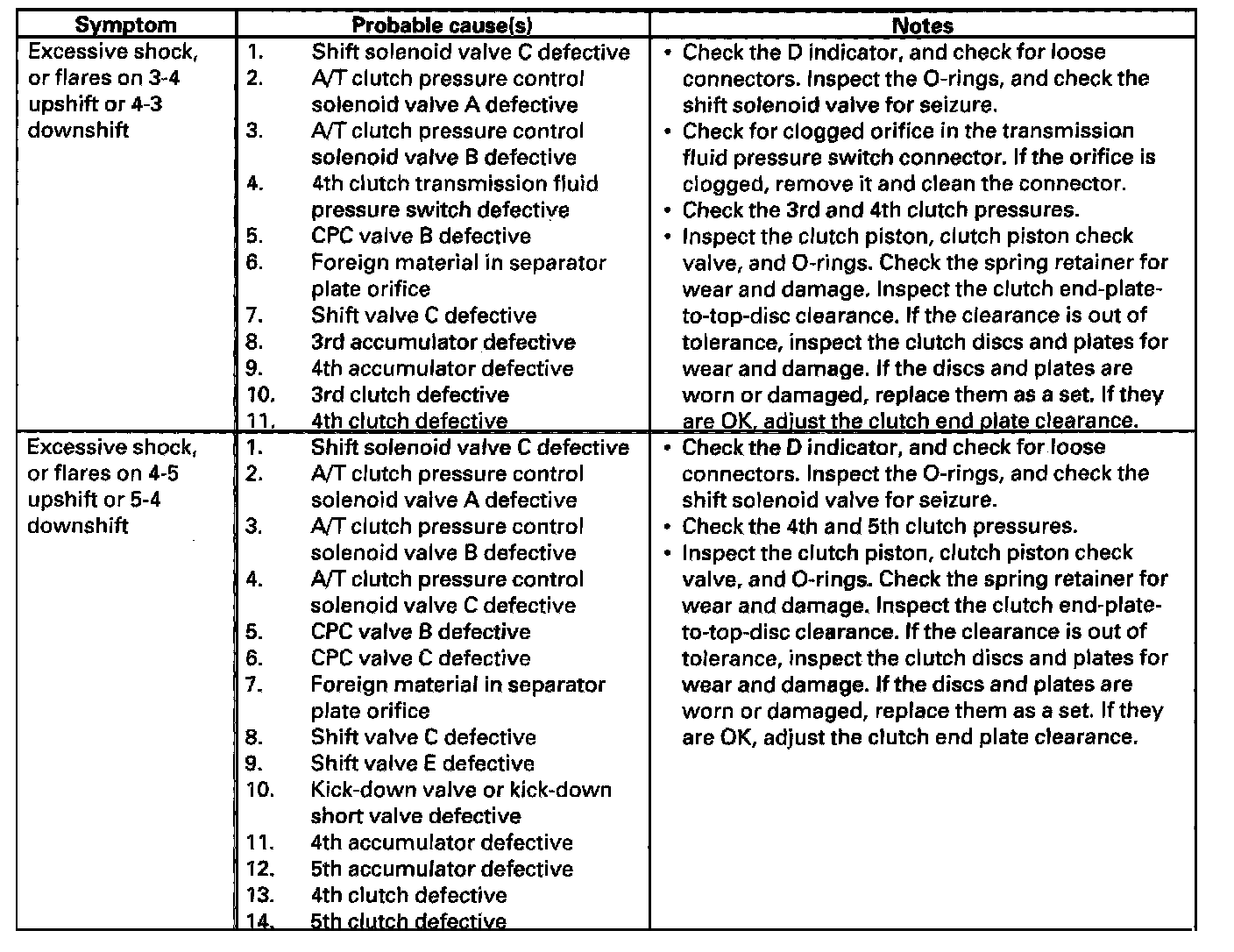

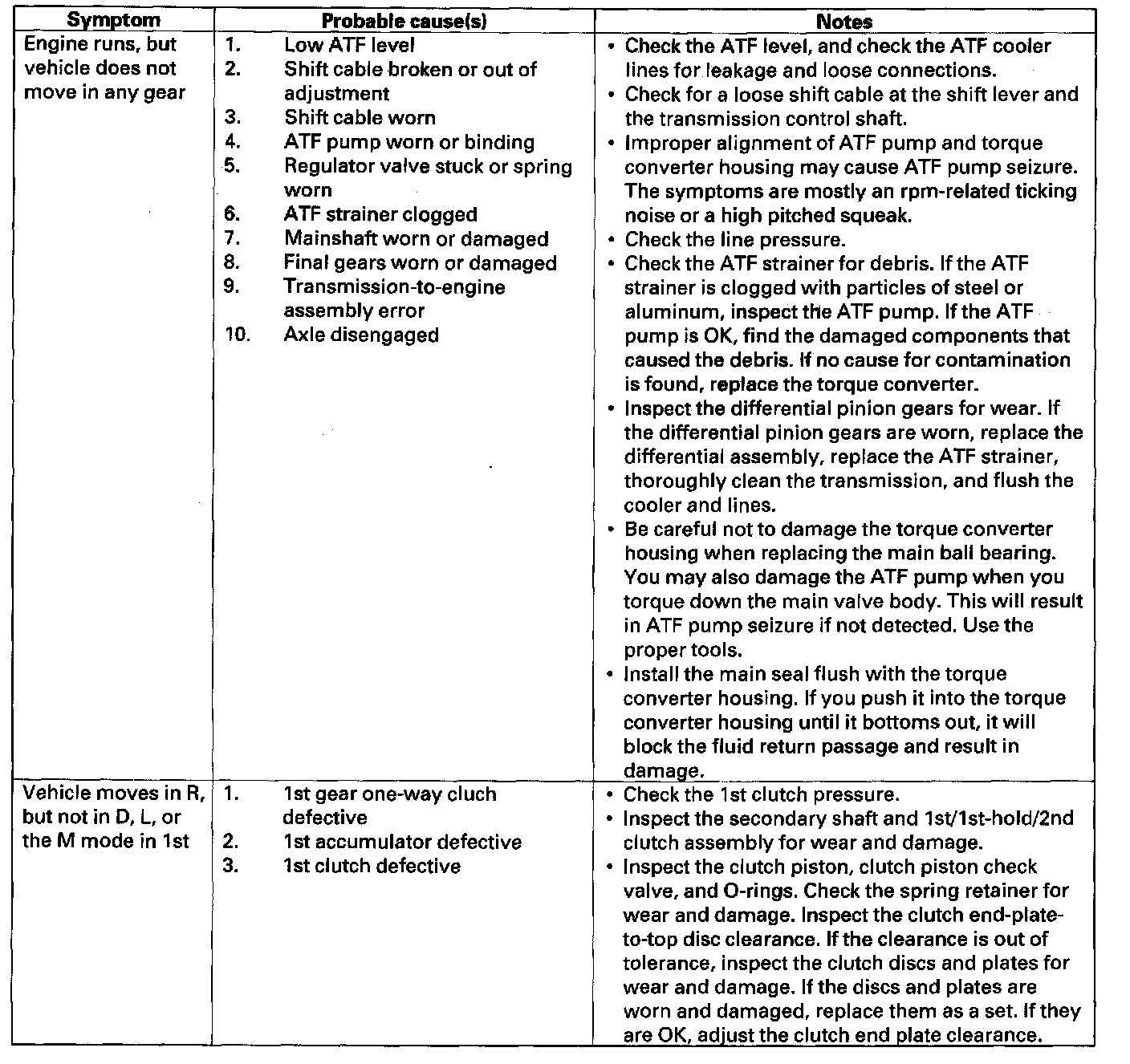

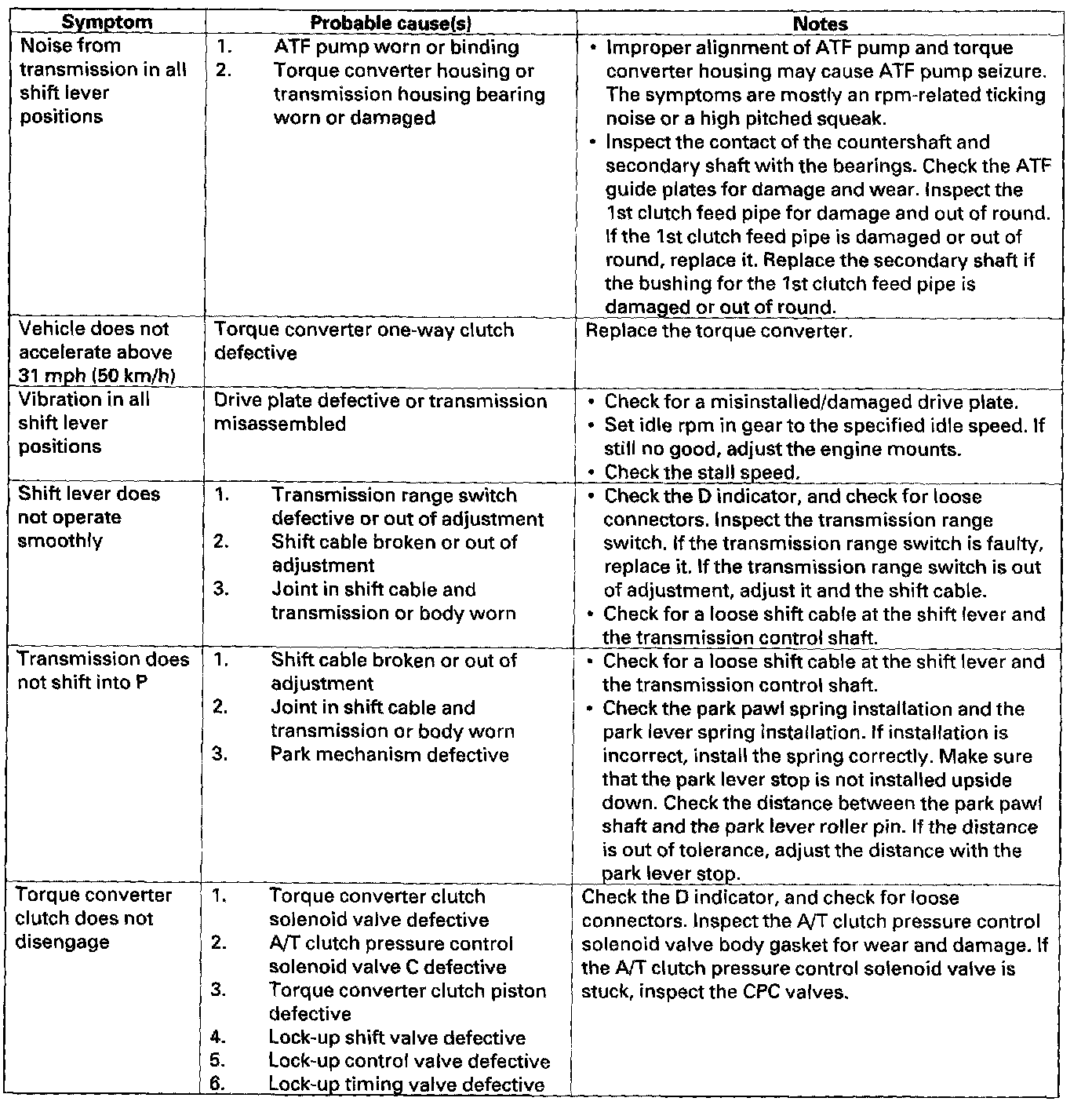

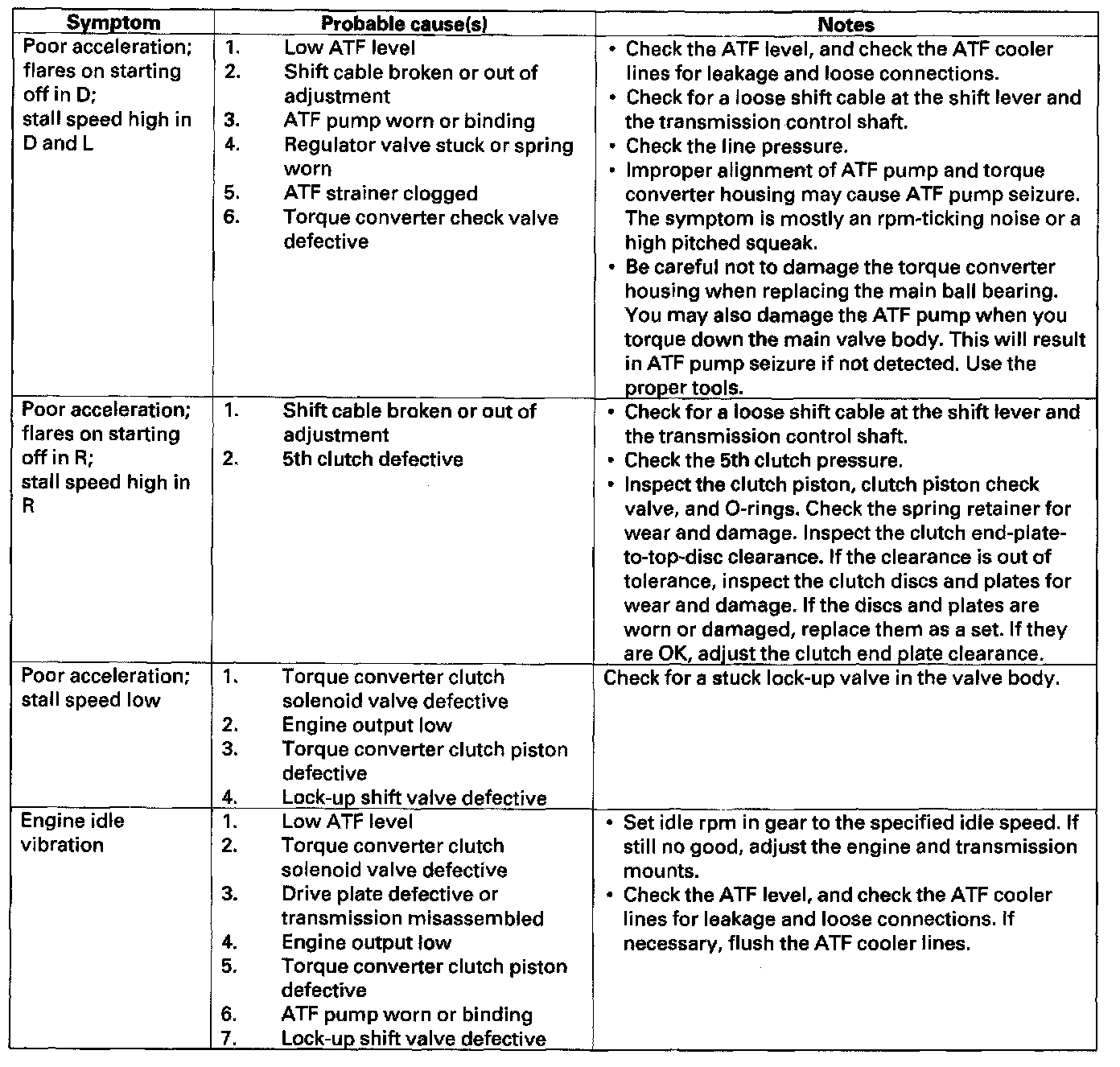

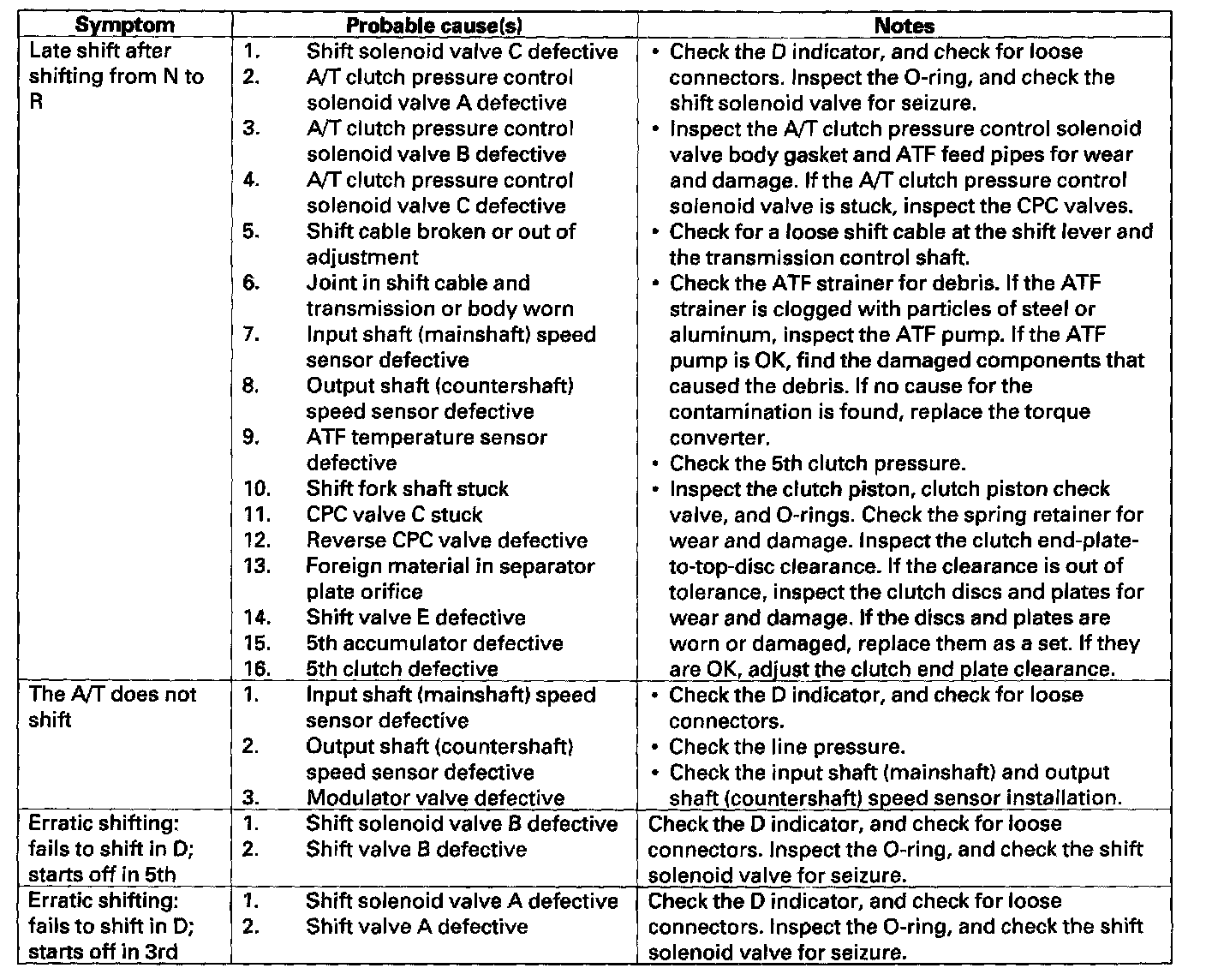

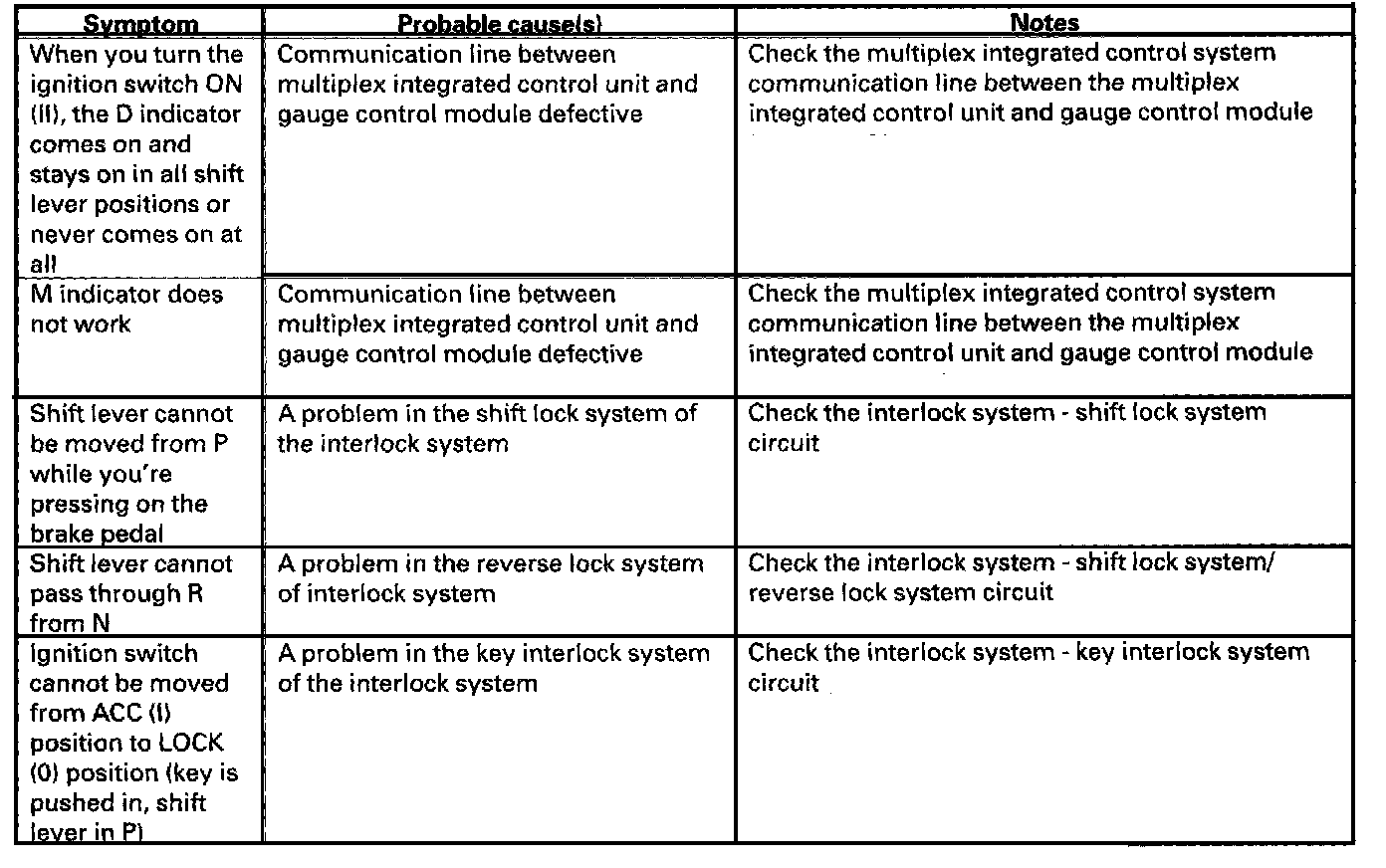

These symptoms DO NOT trigger Diagnostic Trouble Codes (DTCs) or cause the D indicator to blink. If the Malfunction Indicator Lamp (MIL) was reported ON or the D indicator has been blinking, check for DTCs. If there is any DTC(s) found, troubleshoot the DTC(s) first. If the vehicle has one of the symptoms in the following chart, check the probable cause (s) for it, in the sequence listed, until you find the problem.
