Heated Glass Control Module: Service and Repair

Window Antenna Amplifier/Defogger Coil Replacement

1. Remove the left rear pillar trim.

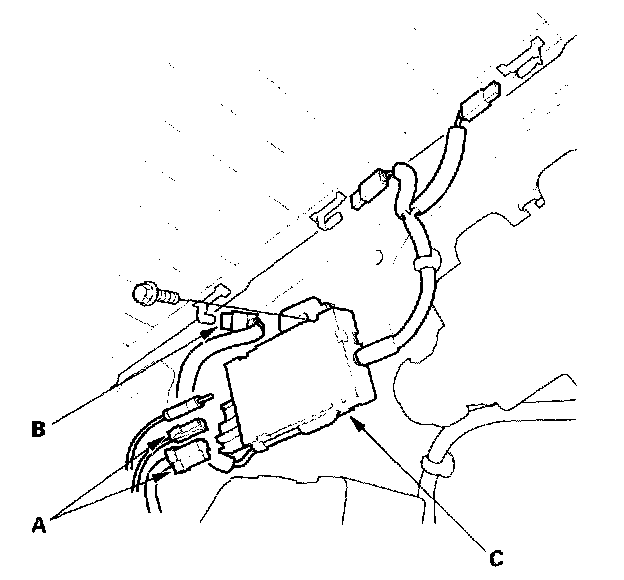

2. Disconnect the 1 P connectors (A) the antenna cable (B), from the window antenna coil (C).
3. Remove the bolt and the window antenna amplifier/defogger coil.
