Power Seat Slide Position Sensor, Driver's (Touring) Connector End View

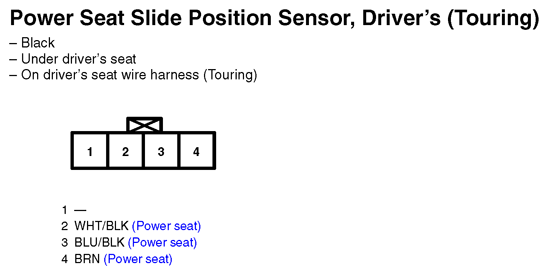

Fig 1: Power Seat Slide Position Sensor, Driver's (Touring) Connector End View
G11248125Courtesy of AMERICAN HONDA MOTOR CO., INC.
