RF Unit 1 Replacement
RF Unit 1 Replacement1. Remove the navigation display unit.

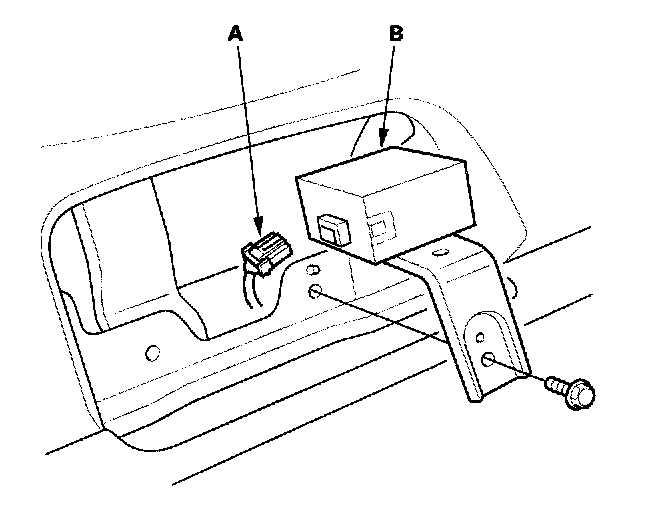

2. Disconnect the 6P connector (A) from the RF unit 1 (B).
3. Remove the bolt and the RF unit 1.
4. Install the unit in the reverse order of removal.
1. Remove the navigation display unit.
2. Disconnect the 6P connector (A) from the RF unit 1 (B).
3. Remove the bolt and the RF unit 1.
4. Install the unit in the reverse order of removal.
