Distance Sensor: Testing and Inspection

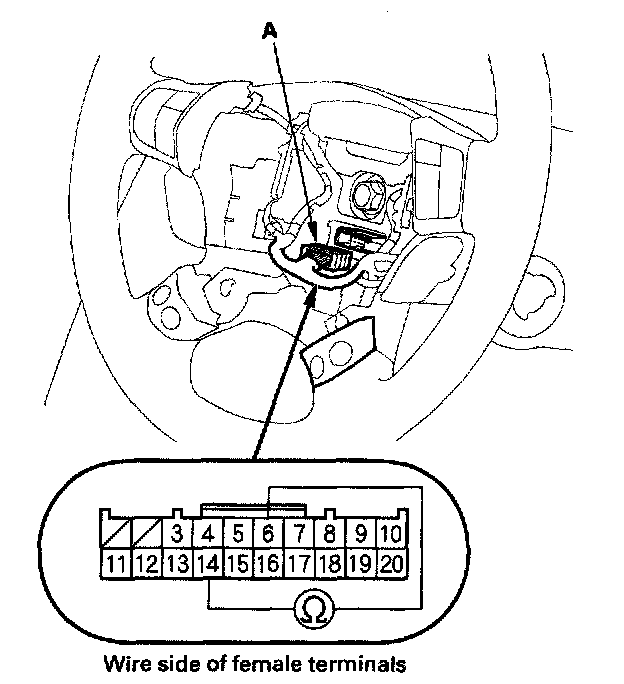

Distance Switch Test1. Remove the driver's airbag.
2. Disconnect the 20P connector (A) from the cable reel.
3. Check for continuity between the 20P connector No. 6 and No. 14 terminals.
- There should be continuity with the distance switch pressed.
- There should be no continuity with the distance switch released.
4. If the continuity check is not as specified, replace the cruise control combination switch assembly.
