Control Unit, Differential Lock

SH-AWD Control Unit Inputs and Outputs

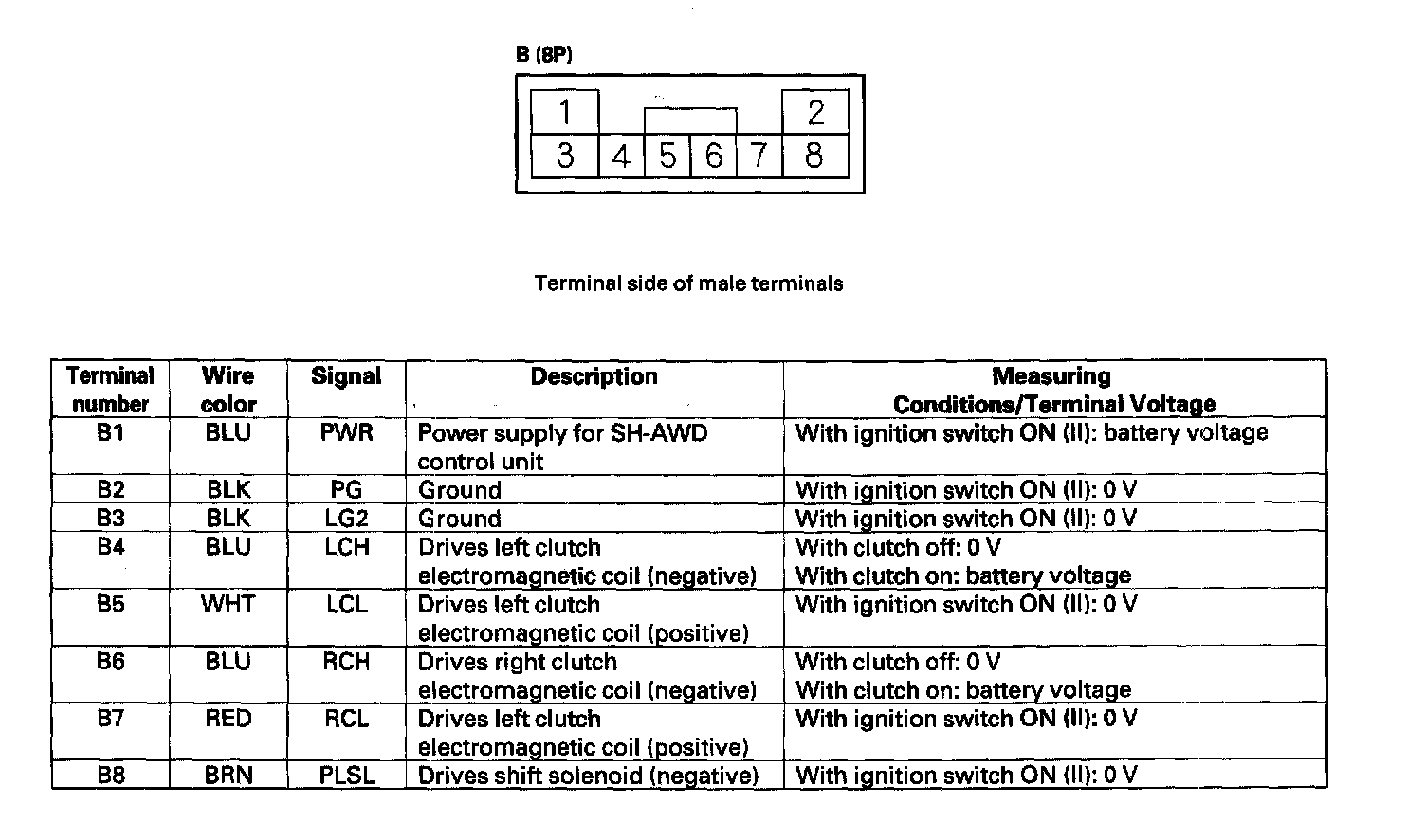

SH-AWD Control Unit Inputs and Outputs:

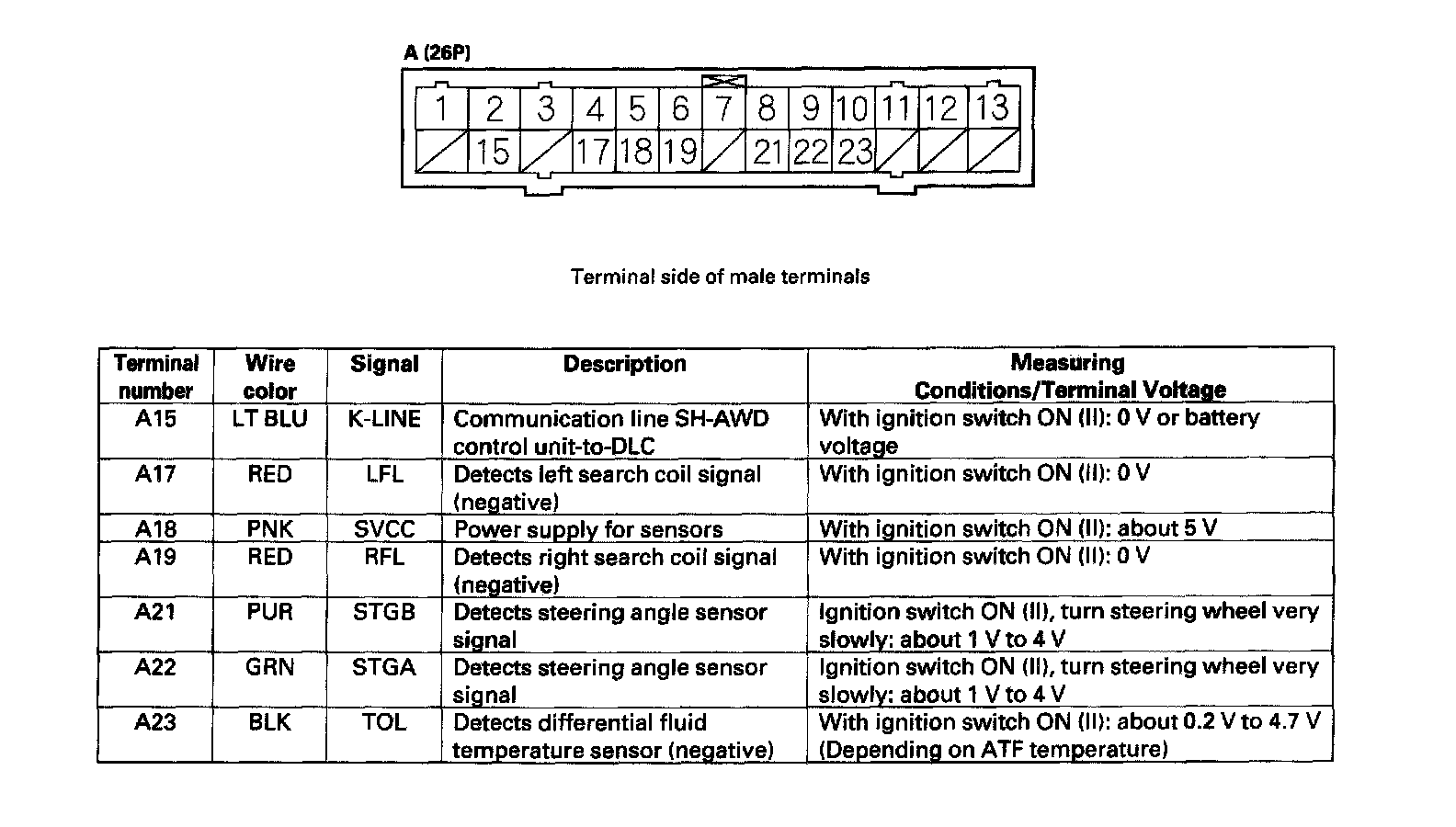

SH-AWD Control Unit Inputs and Outputs:

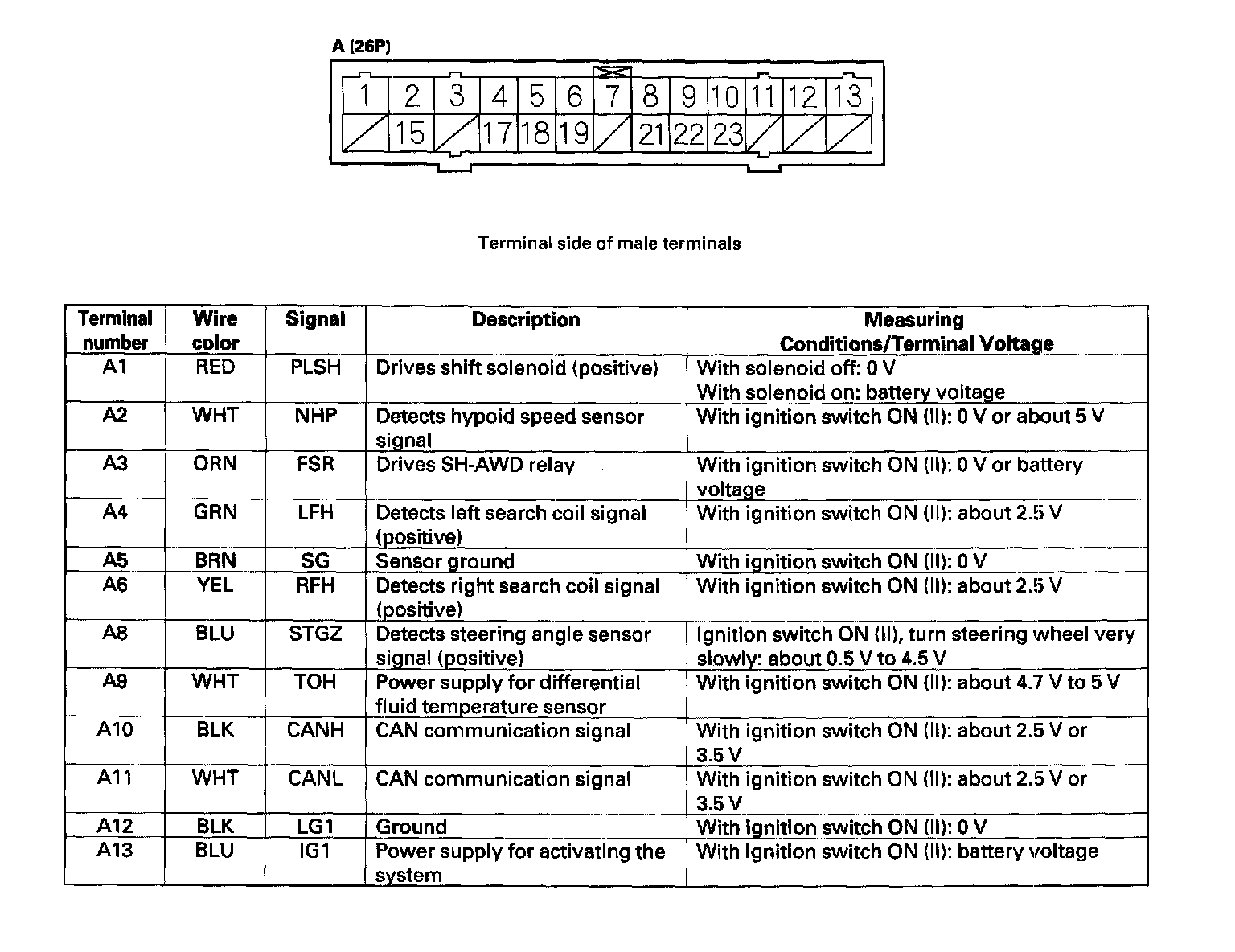

SH-AWD Control Unit Inputs and Outputs:

The SH-AWD control unit terminal voltages and the measuring conditions for the SH-AWD control system.
SH-AWD Control Unit Connector Terminal Locations
