Keyless Entry Module

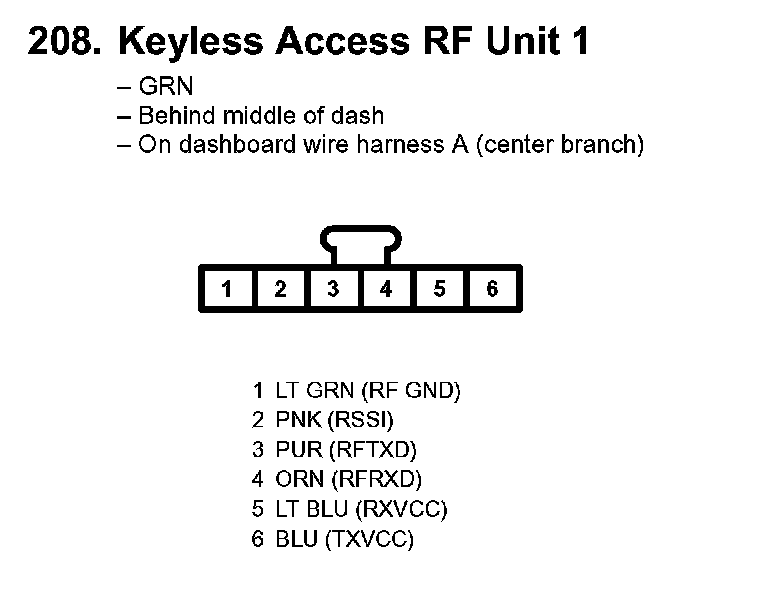

208. Keyless Access RF Unit 1:

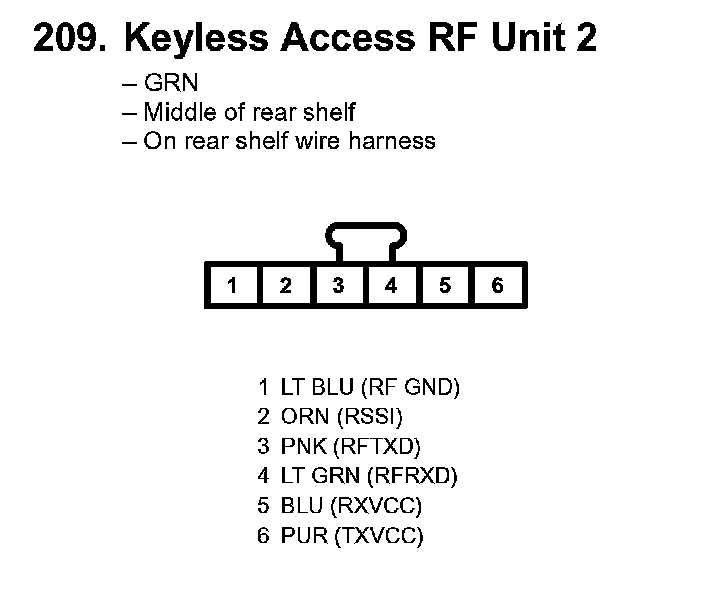

209. Keyless Access RF Unit 2:

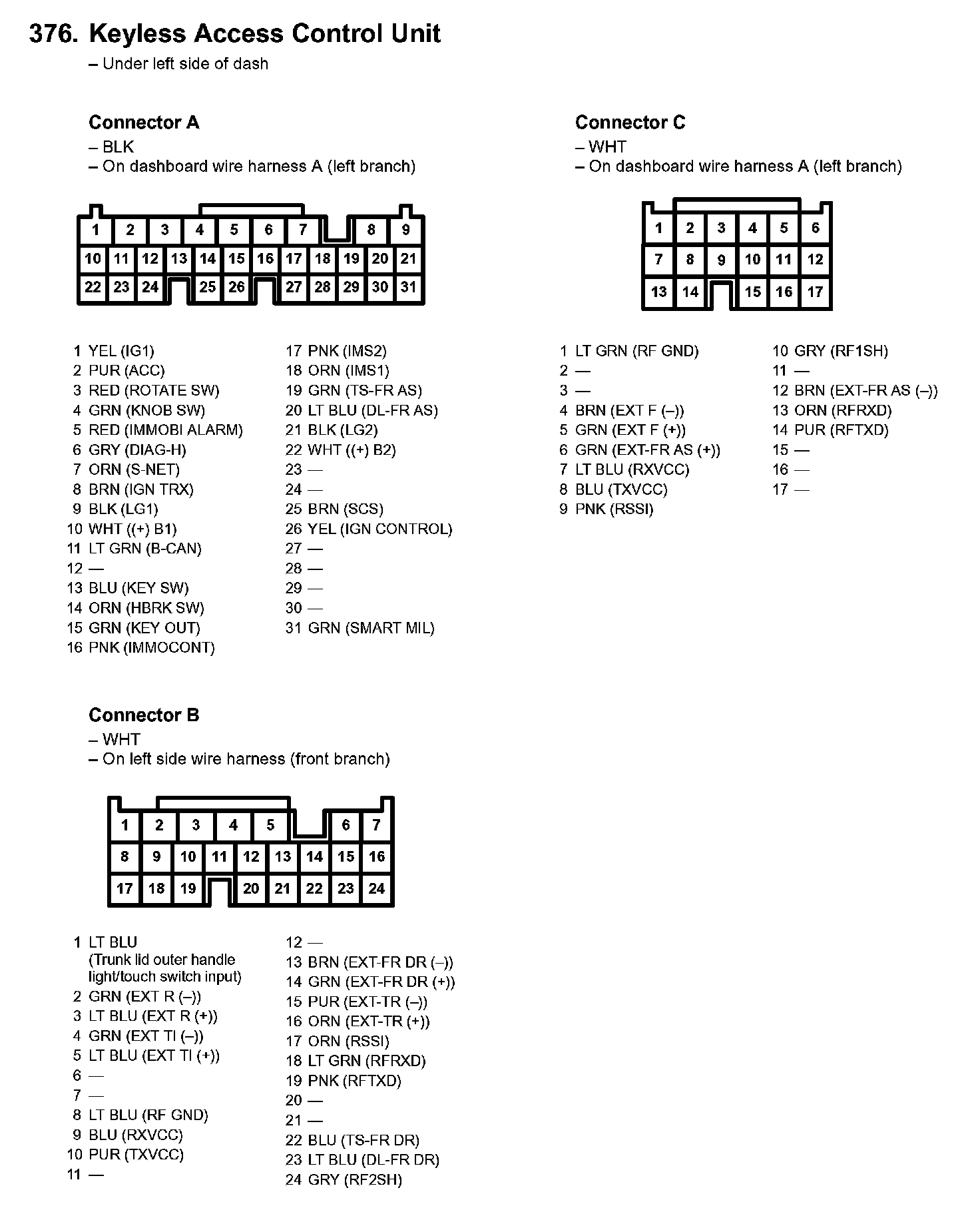

376. Keyless Access Control Unit:
