Climate Control Panel Bulb Replacement

Climate Control Panel Bulb Replacement

1. Remove the climate control panel.

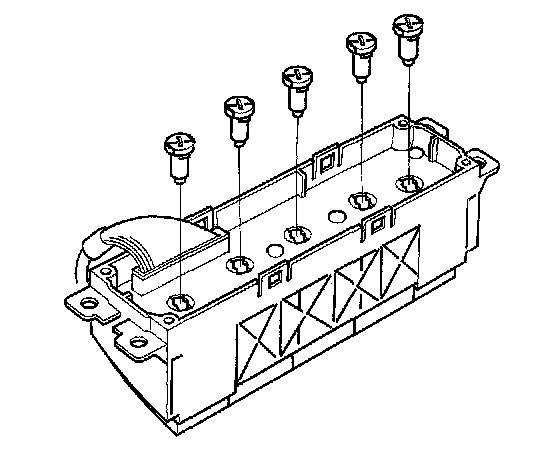

2. Remove the bulb(s) with a flat-tip screwdriver.
3. Install the bulb(s) in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
4. Run the self-diagnostic function to confirm that there are no problems in the system.
