ECT Sensor 2 Replacement

ECT Sensor 2 Replacement

1. Remove the throttle body.

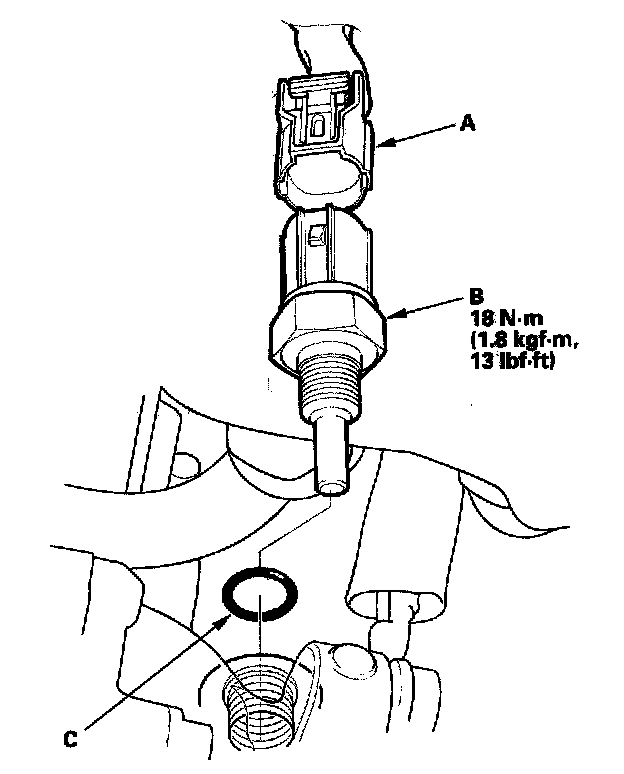

2. Disconnect ECT sensor 2 connector (A).
3. Remove ECT sensor 2 (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant.
