Main Bearing Cap

Main Bearing Cap

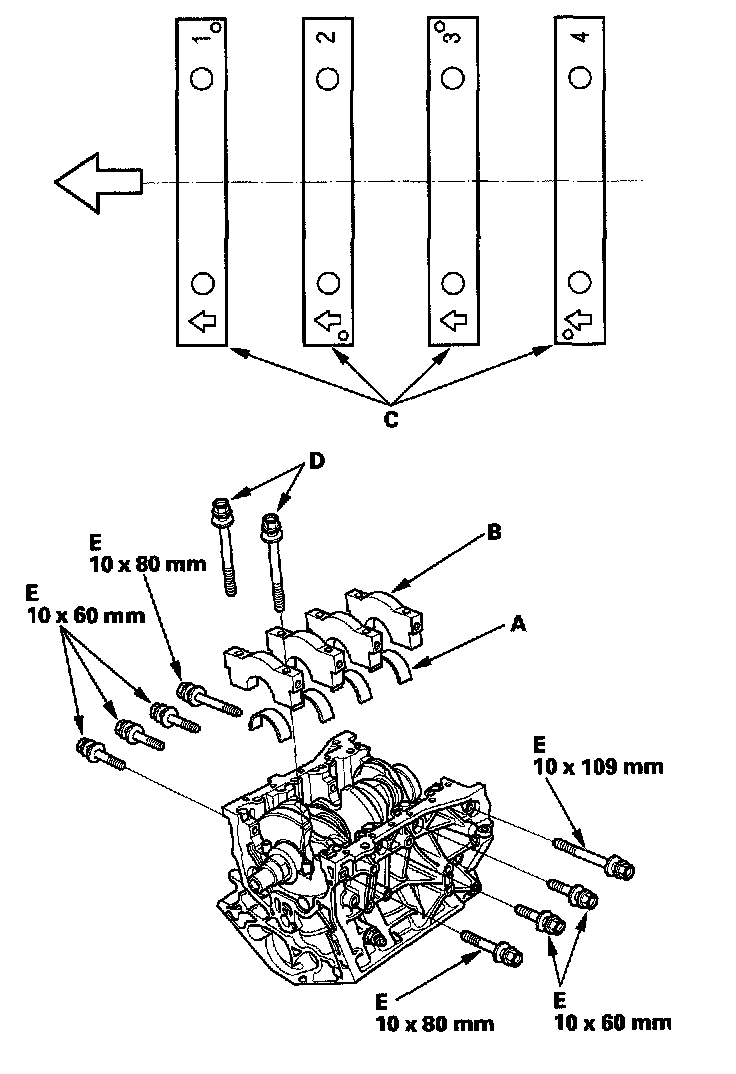

Install the bearings (A) and bearing caps (B) with the arrow (C) facing the timing belt end of the engine.

Apply new engine oil to the bolt threads and flanges, then loosely install the bearing cap bolts (D) and bearing cap side bolts (E).





Tighten the bearing cap bolts, and then the bearing cap side bolts to the specified torque in the sequence as shown. Repeat the torque sequence again to measure the bolts are properly torqued.
