Control Module: Service and Repair
How to Remove and Install the PCM1. Connect the HDS to the DLC.
2. Turn the ignition switch ON (II).
3. Select PGM-Fl SYSTEM with the HDS, then select READ DATA in REPLACE PCM.
4. Turn the ignition switch OFF.
5. Jump the SCS line with the HDS.

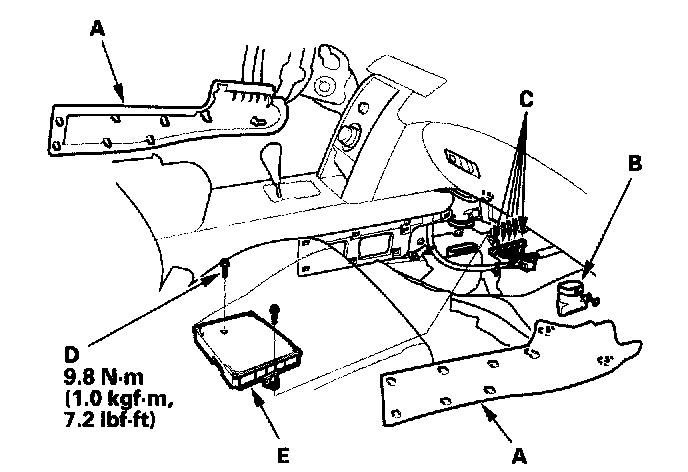

6. Remove the front console cover (A) and pull back the carpet.
7. Remove the ducts (B).
8. Disconnect PCM connectors (C).
9. Remove the two bolts (D), and remove the PCM (E).
10. Install the PCM in the reverse order of removal.
11. Open the SCS with the HDS.
12. Turn the ignition switch ON (II).
NOTE: If DTC: P0630 "VIN Not Programmed or Mismatch" is stored at this time, ignore it and continue this procedure.
13. Input the VIN to the PCM with the HDS.
14. Select PGM-Fl SYSTEM with the HDS, then select WRITE DATA in REPLACE PCM.
15. Rewrite the immobilizer code with the PCM replacement procedure in the HDS; it allows you to start the engine.
16. Reset the PCM with the HDS.
17. Do the PCM idle learn procedure.
18. Do the CKP pattern learn procedure.
