IMT Actuator Replacement

  1. Remove the engine cover (see step 1 under INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
  2. Disconnect the IMT actuator 5P connector (A).

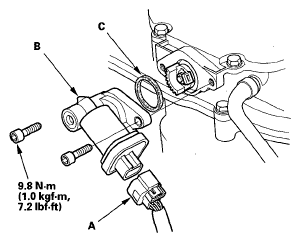

    Fig 1: IMT Actuator With Torque Specifications
    G05495306Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the IMT actuator (B).
  4. Install the parts in the reverse order of removal with a new O-ring (C).
