Circuit Diagram

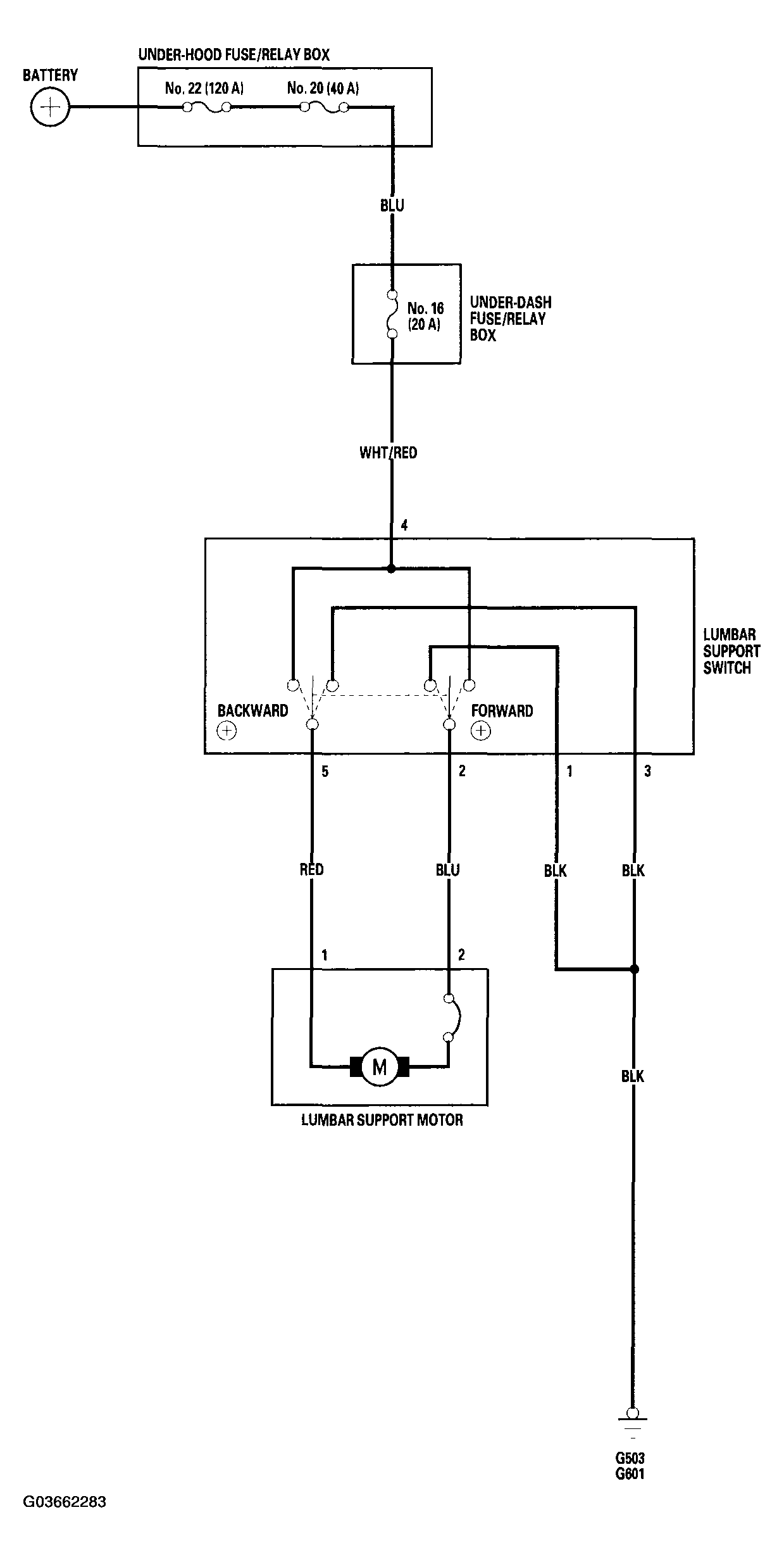

Fig 1: Power Lumber Support - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
