Rain Sensor and Automatic Wiper Control Unit (Auto Wiper) Connector End View

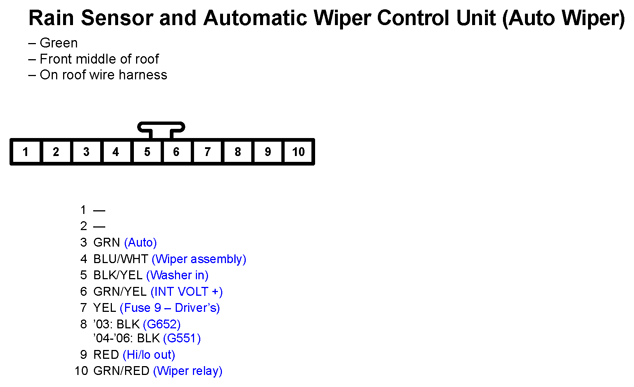

Fig 1: Rain Sensor and Automatic Wiper Control Unit (Auto Wiper) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
