Wiper Motor, Windshield Connector End View

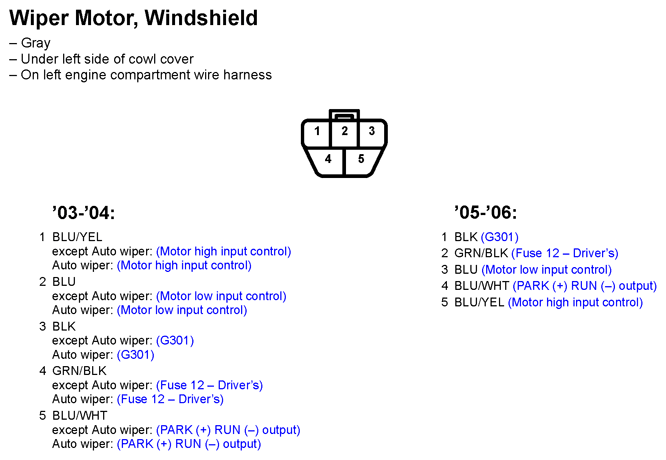

Fig 1: Wiper Motor, Windshield Connector End View
G11248157Courtesy of AMERICAN HONDA MOTOR CO., INC.
