Control Module Pinout Values, ABS

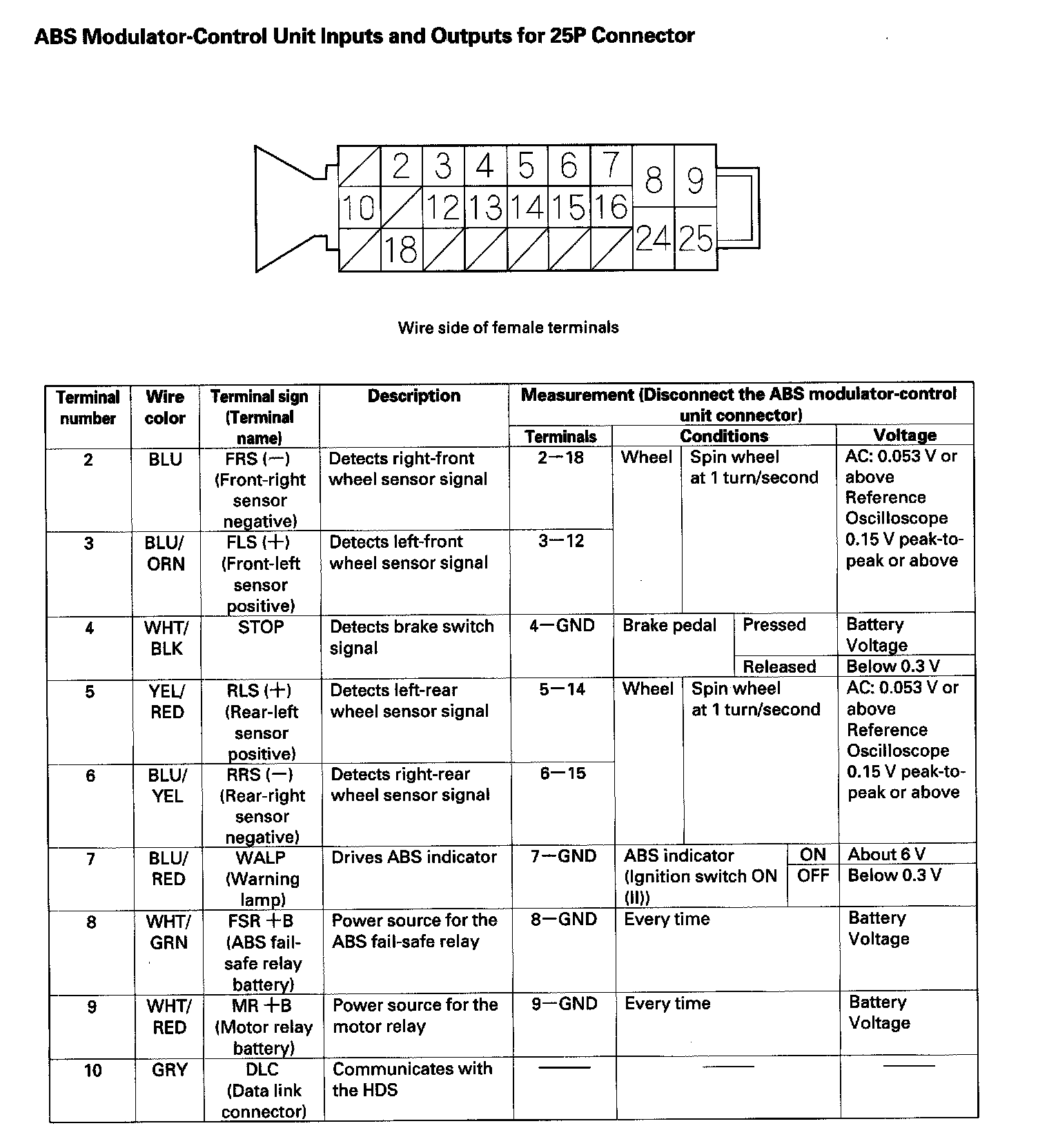

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector:

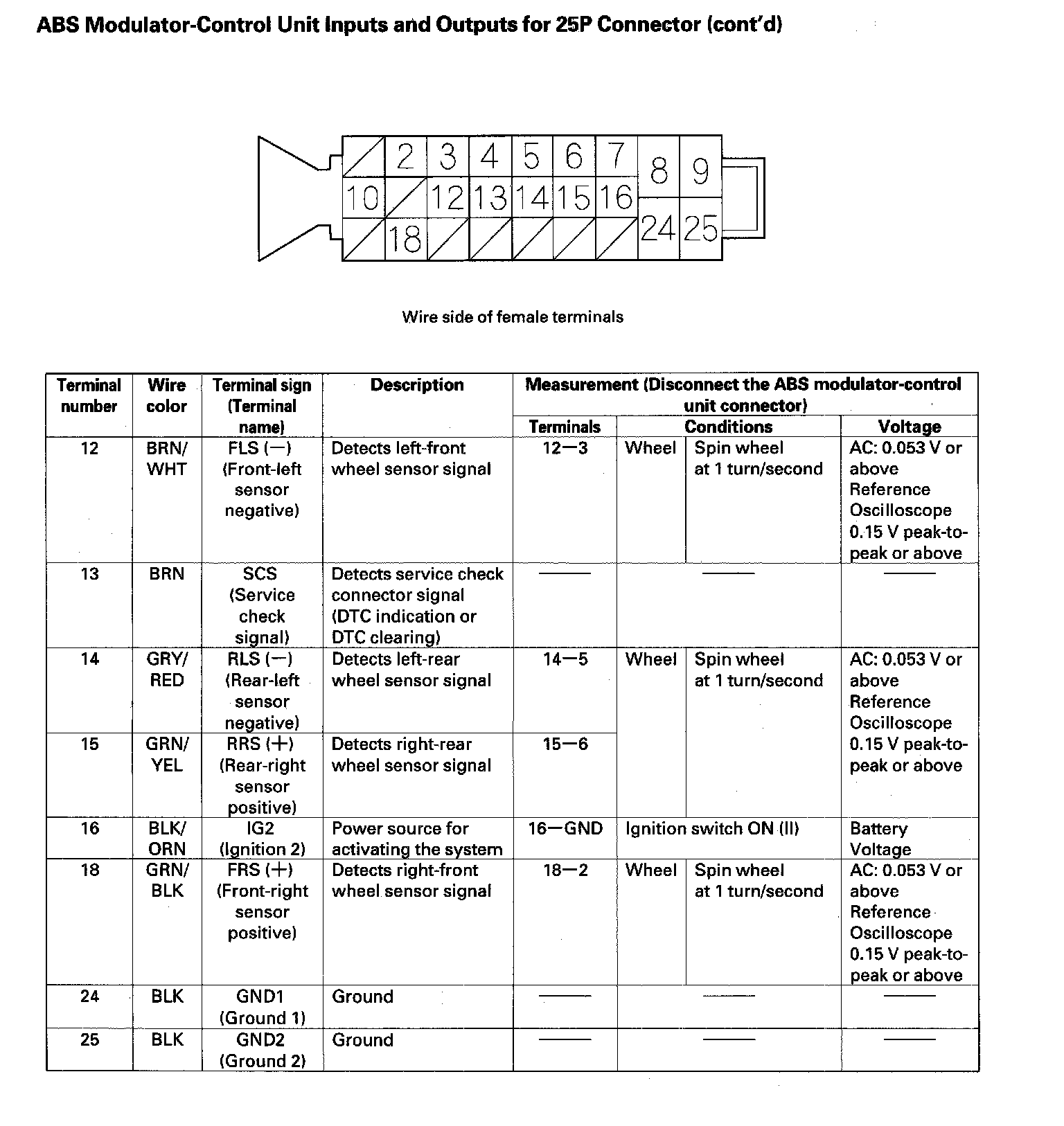

ABS Modulator-Control Unit Inputs and Outputs for 25P Connector:
