Engine Control Module: Locations

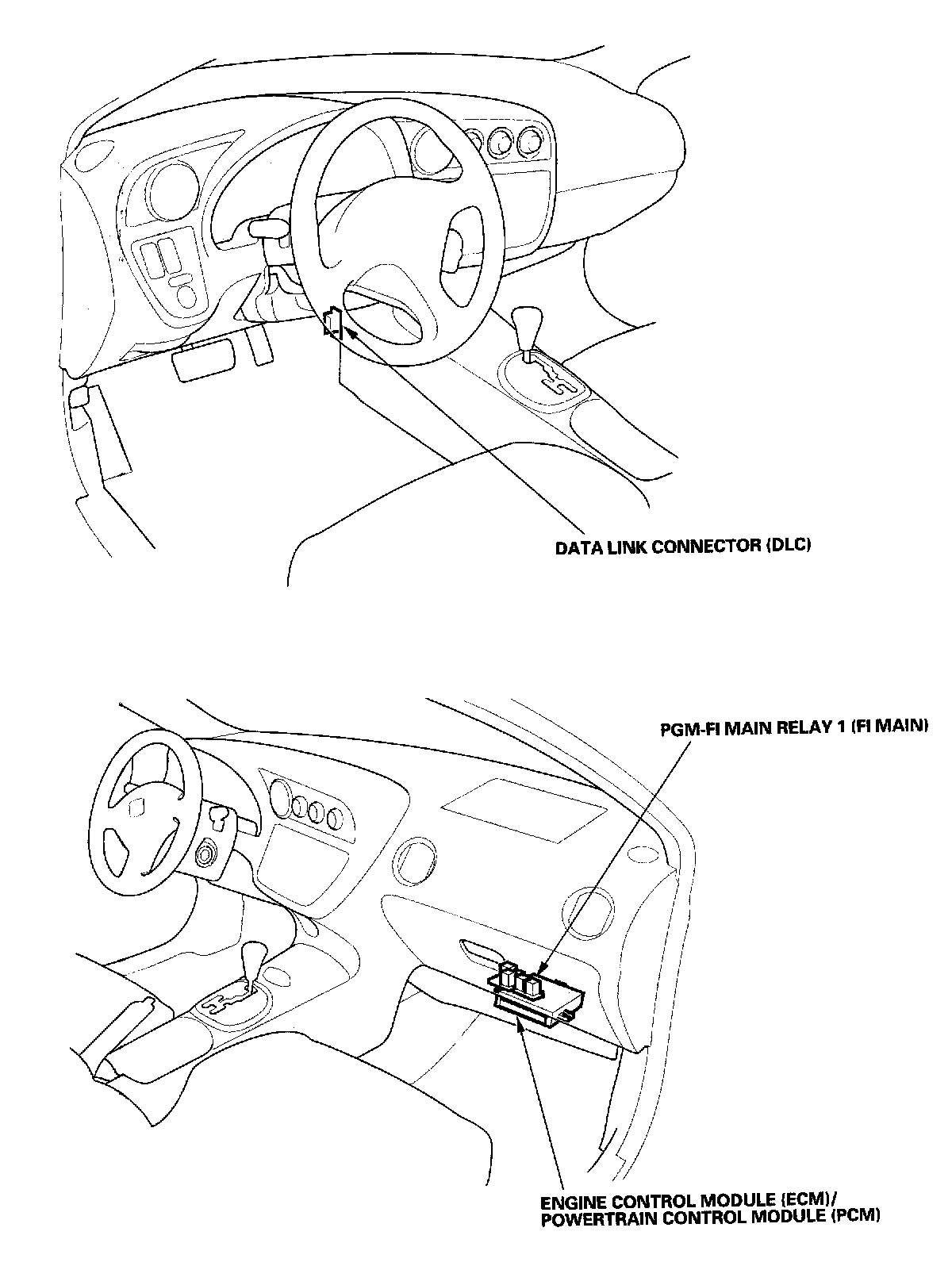

PGM-FI System - Component Location Index:

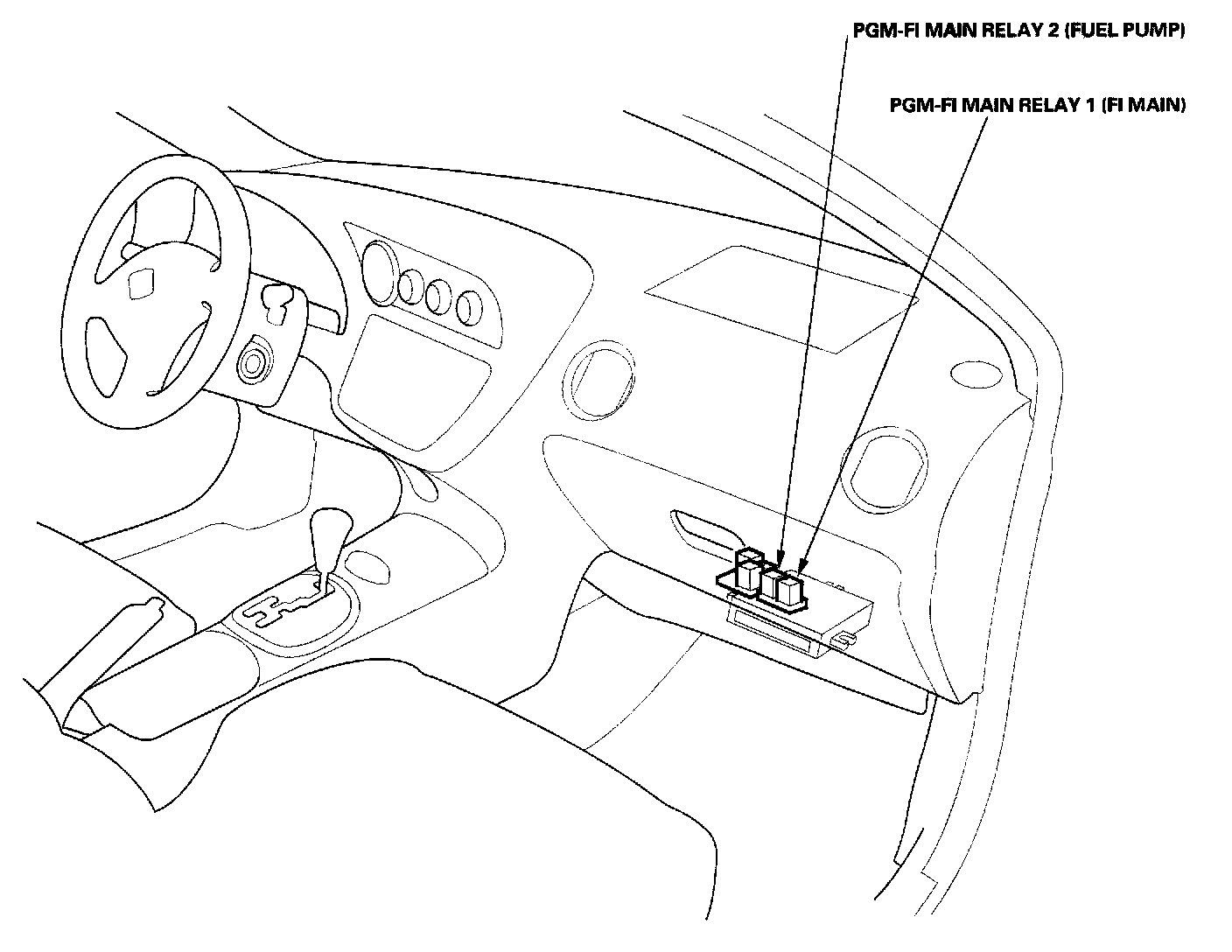

Fuel Supply System - Component Location Index:

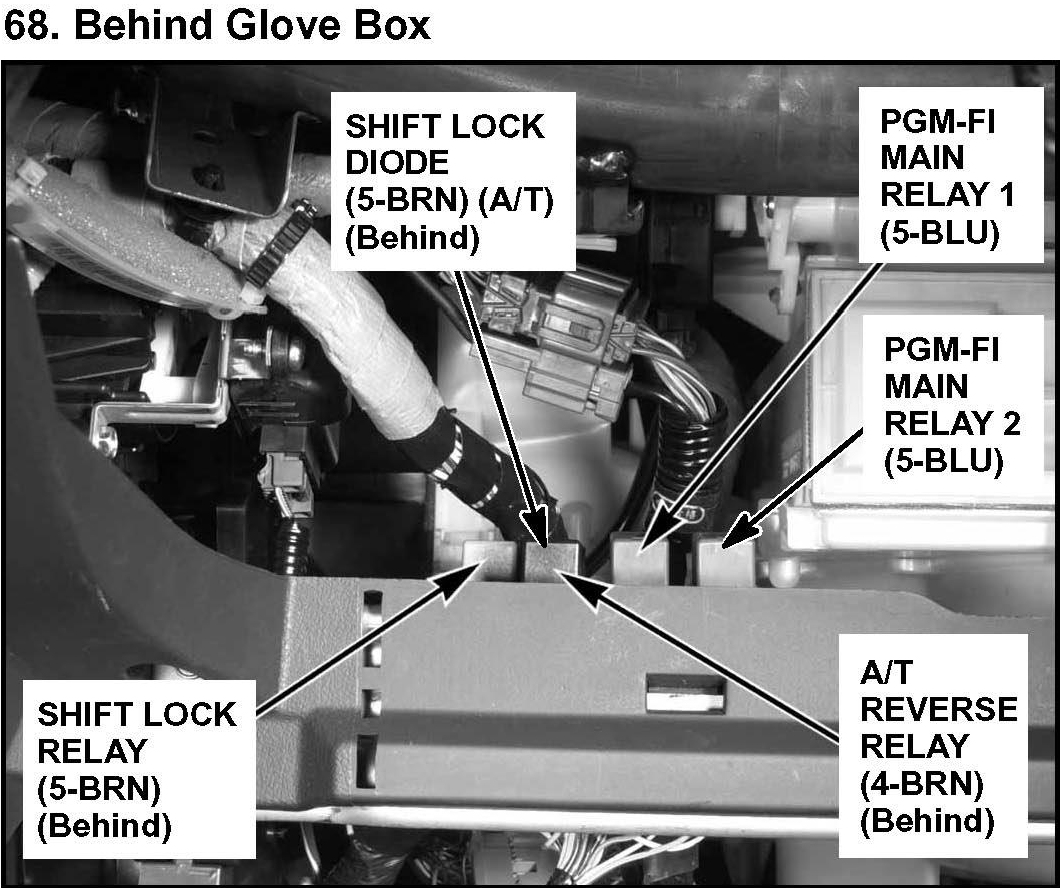

68. Behind Glove Box:

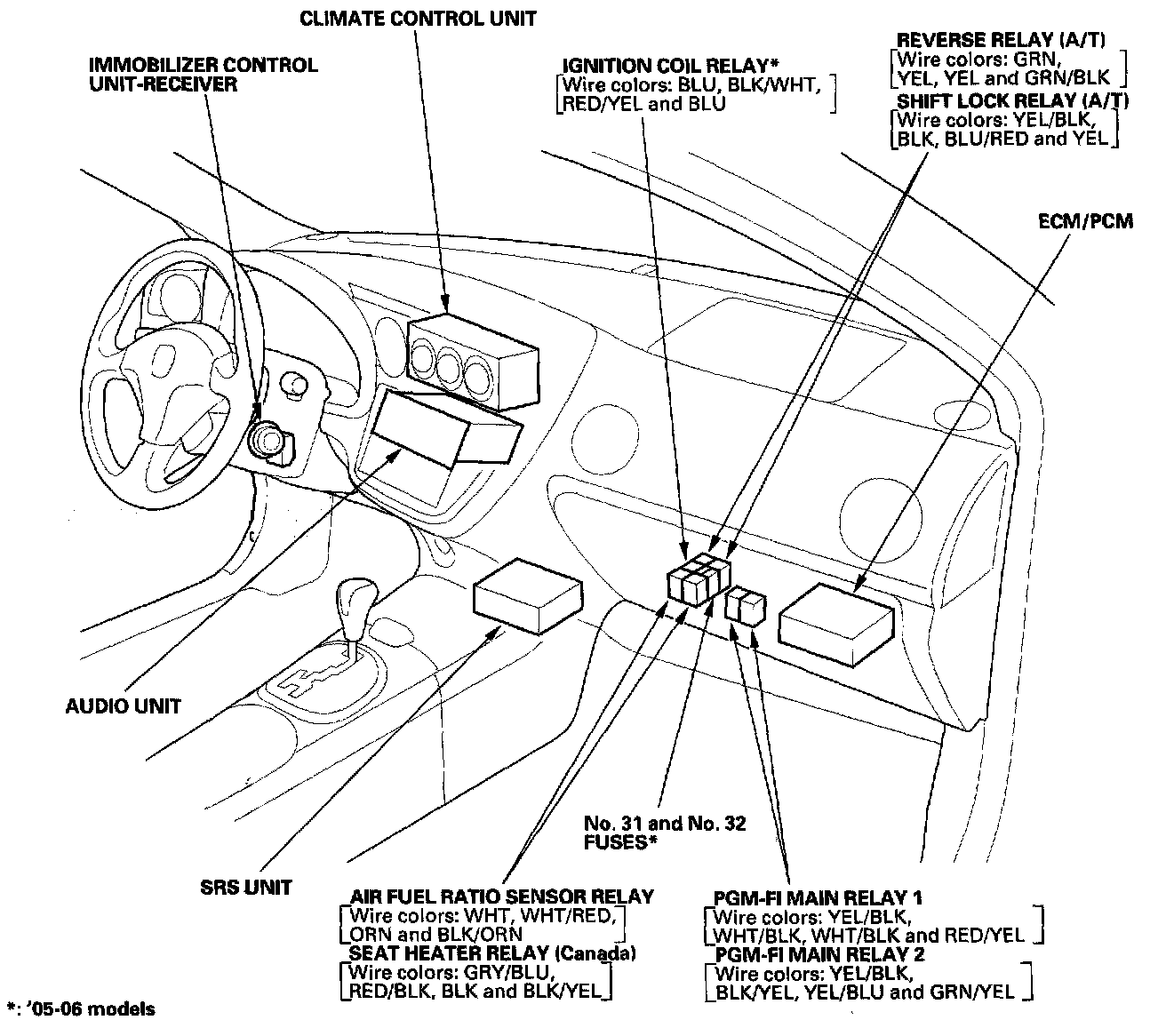

Relay And Control Unit Location - Dashboard:
