Crankshaft Pulley

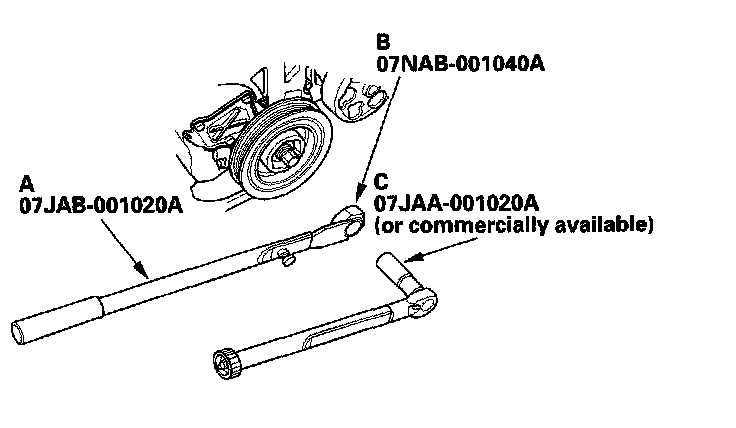

Install the crankshaft pulley, and hold the pulley with holder handle (A) and holder attachment (B).
Tighten the bolt to 49 Nm (5.0 kgf-m, 36 ft. lbs.) with a torque wrench and 19 mm socket (C). Do not use an impact wrench.
Tighten the pulley bolt an additional 90°.





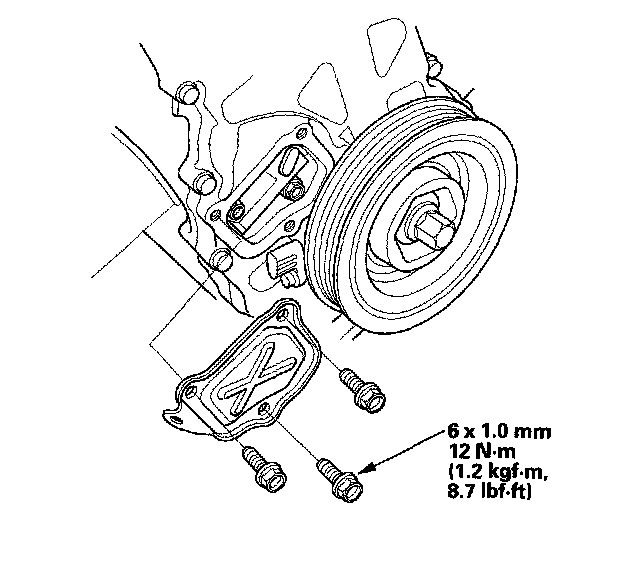

Timing Chain Tensioner





Timing Chain Cover
