Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

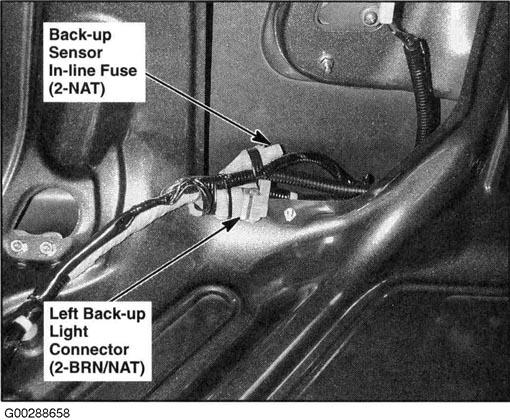

Back-Up Sensor In-Line Fuse Left side of trunk lid. See Figure .
Under-Dash Fuse/Relay Box Behind left end of dash. See Figure .
Under-Hood Fuse/Relay Box Left rear of engine compartment. See Figure .
