ECT Sensor/ECT Sensor 1 Replacement

ECT Sensor/ECT Sensor 1 Replacement

1. Remove the air cleaner.
2. Remove the EVAP canister purge valve.
3. Unbolt the under-hood fuse/relay box bolt and move the box aside.

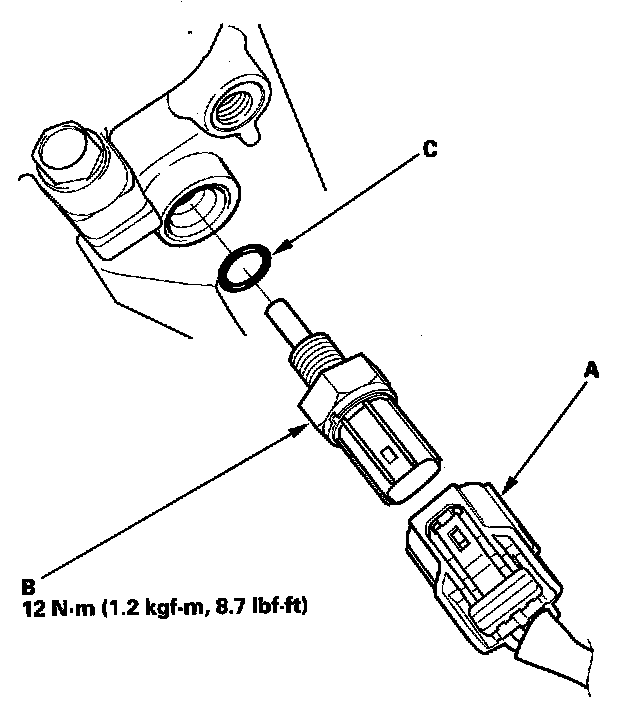

4. Disconnect the ECT sensor/ECT sensor 1 connector (A).
5. Remove the ECT sensor/ECT sensor 1 (B).
6. Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant.
