Engine Control Module: Locations

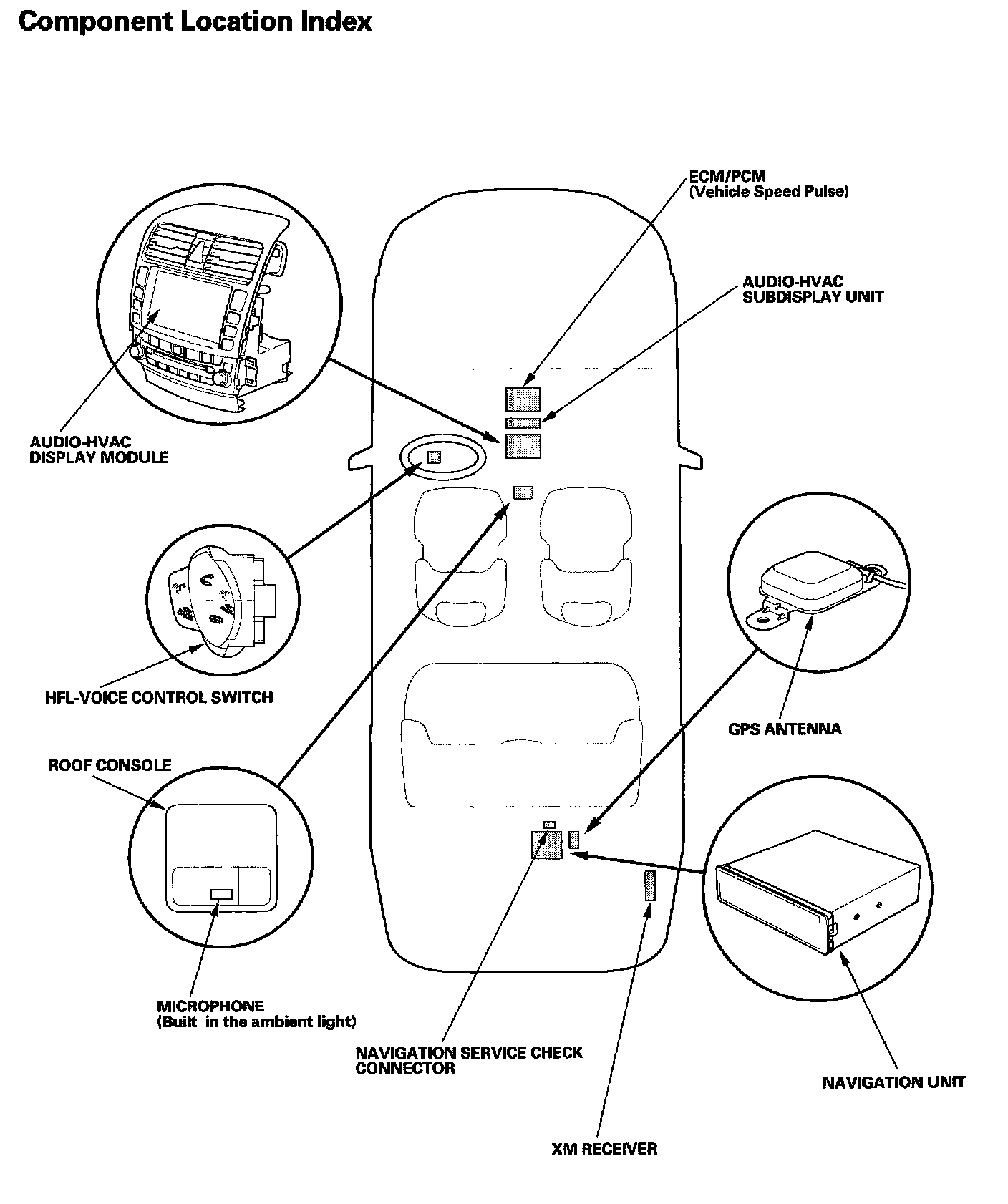

Navigation System - Component Location Index:

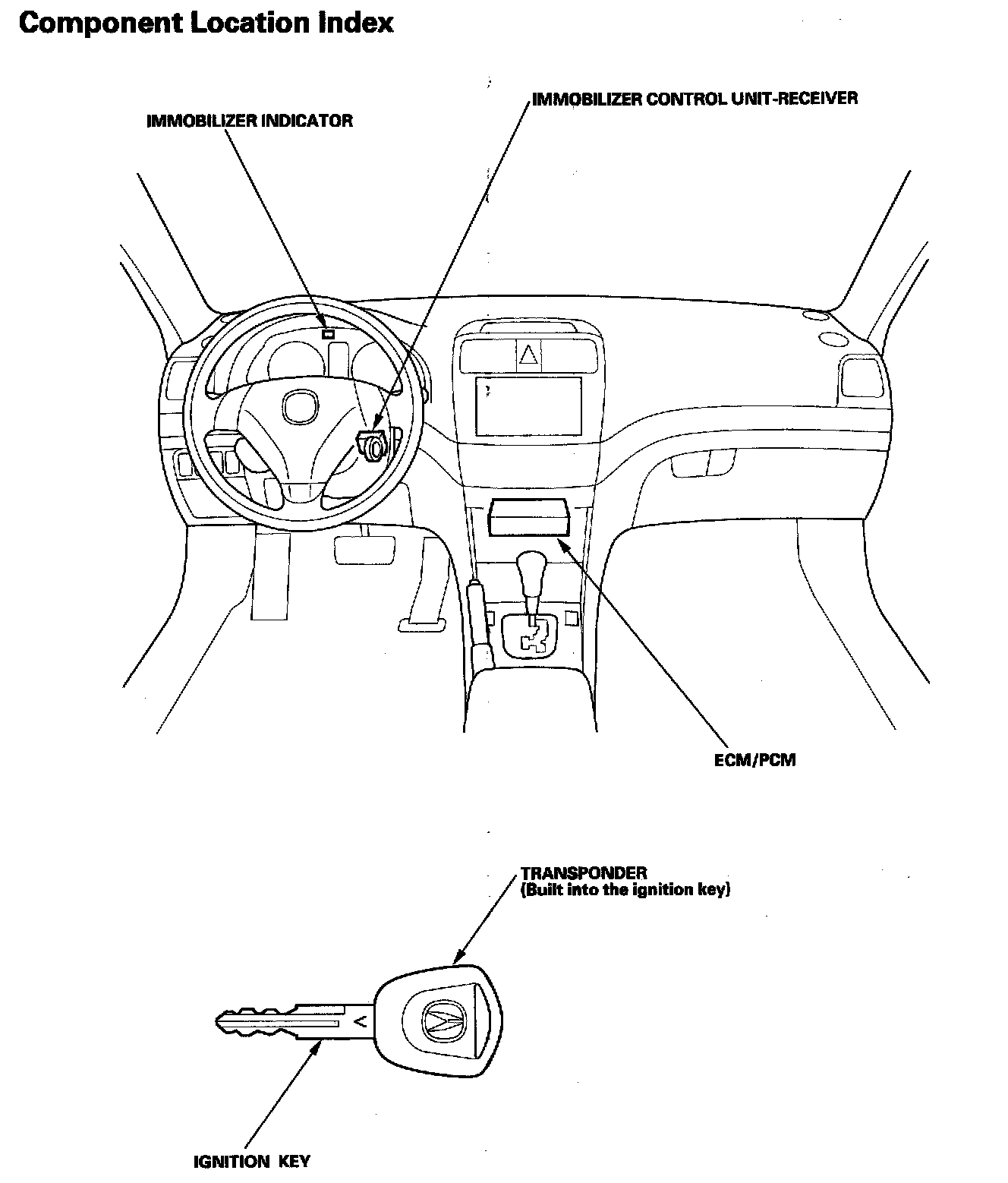

Immobilizer System - Component Location Index:

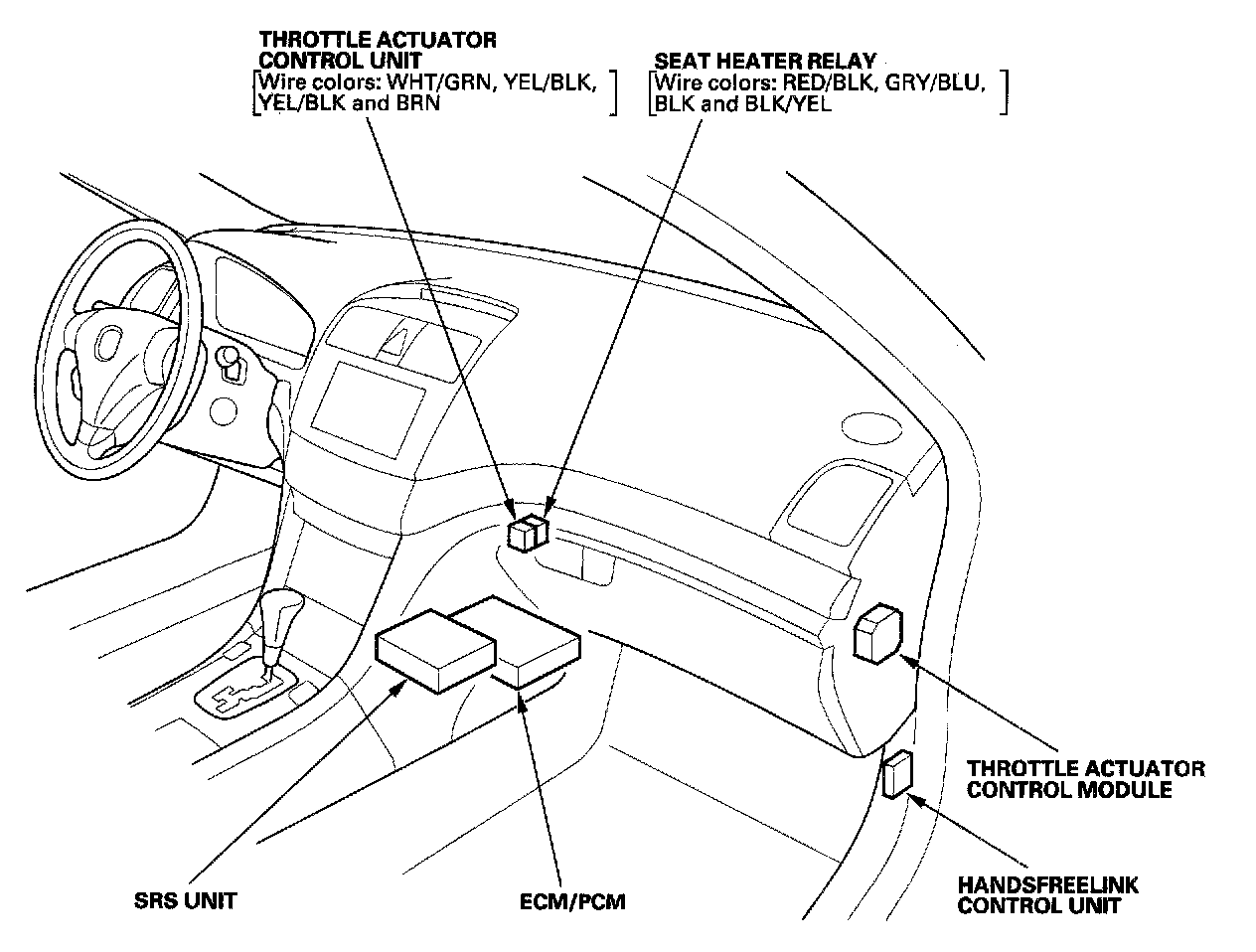

Relay And Control Unit Locations - Dash Board:

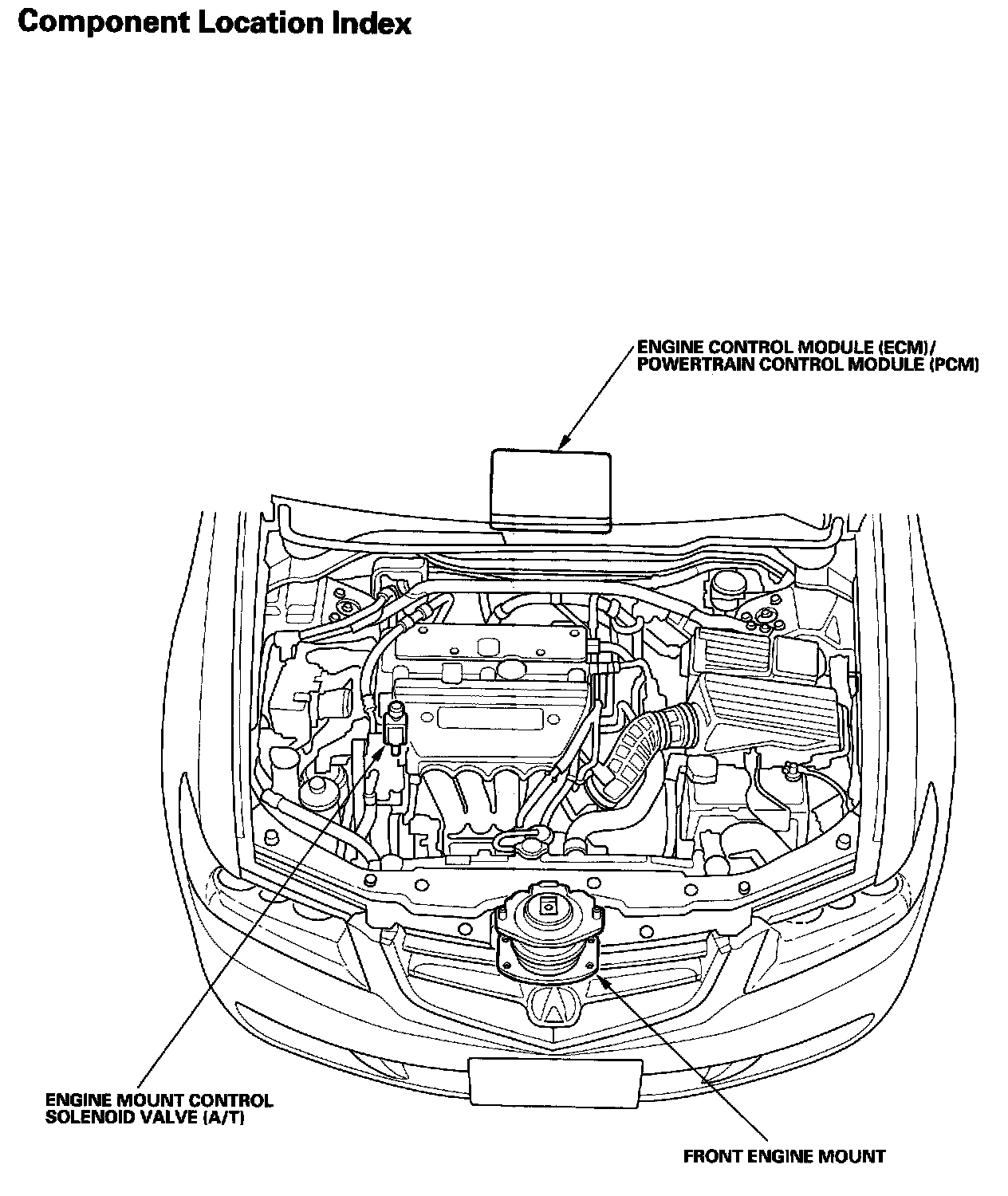

Engine Mount Control System - Component Location Index:

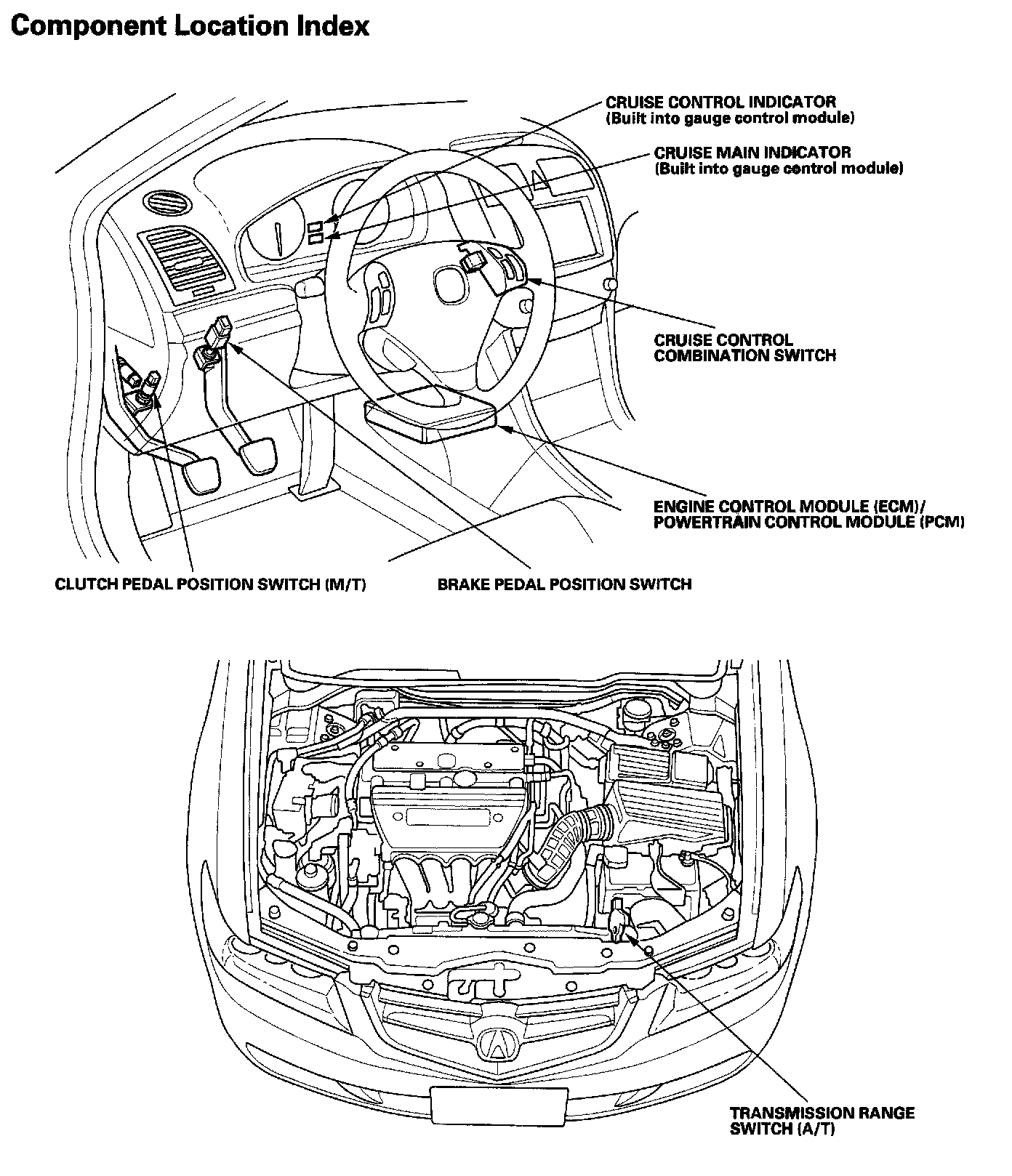

Cruise Control - Component Location Index:

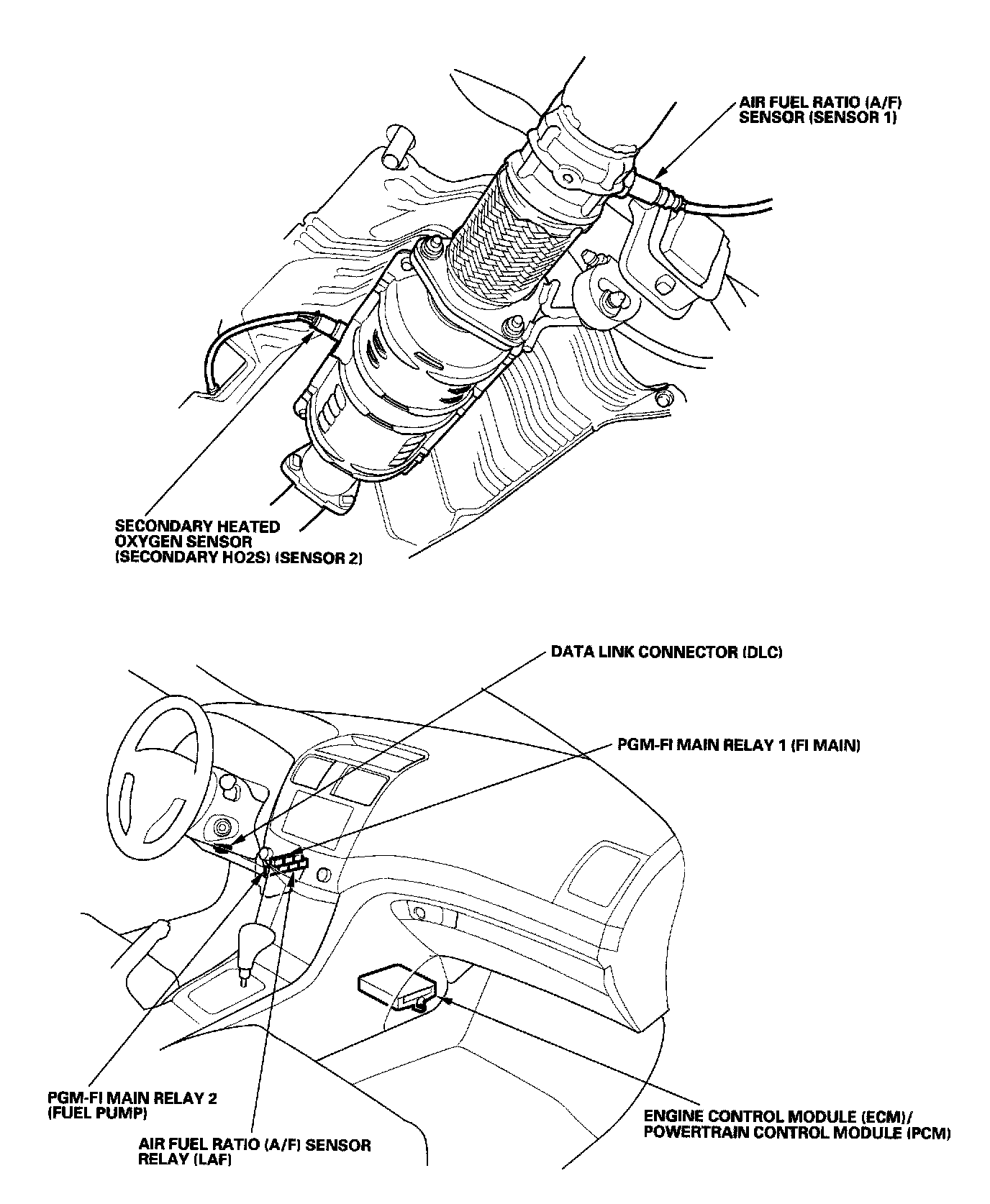

PGM-FI System - Component Location Index:

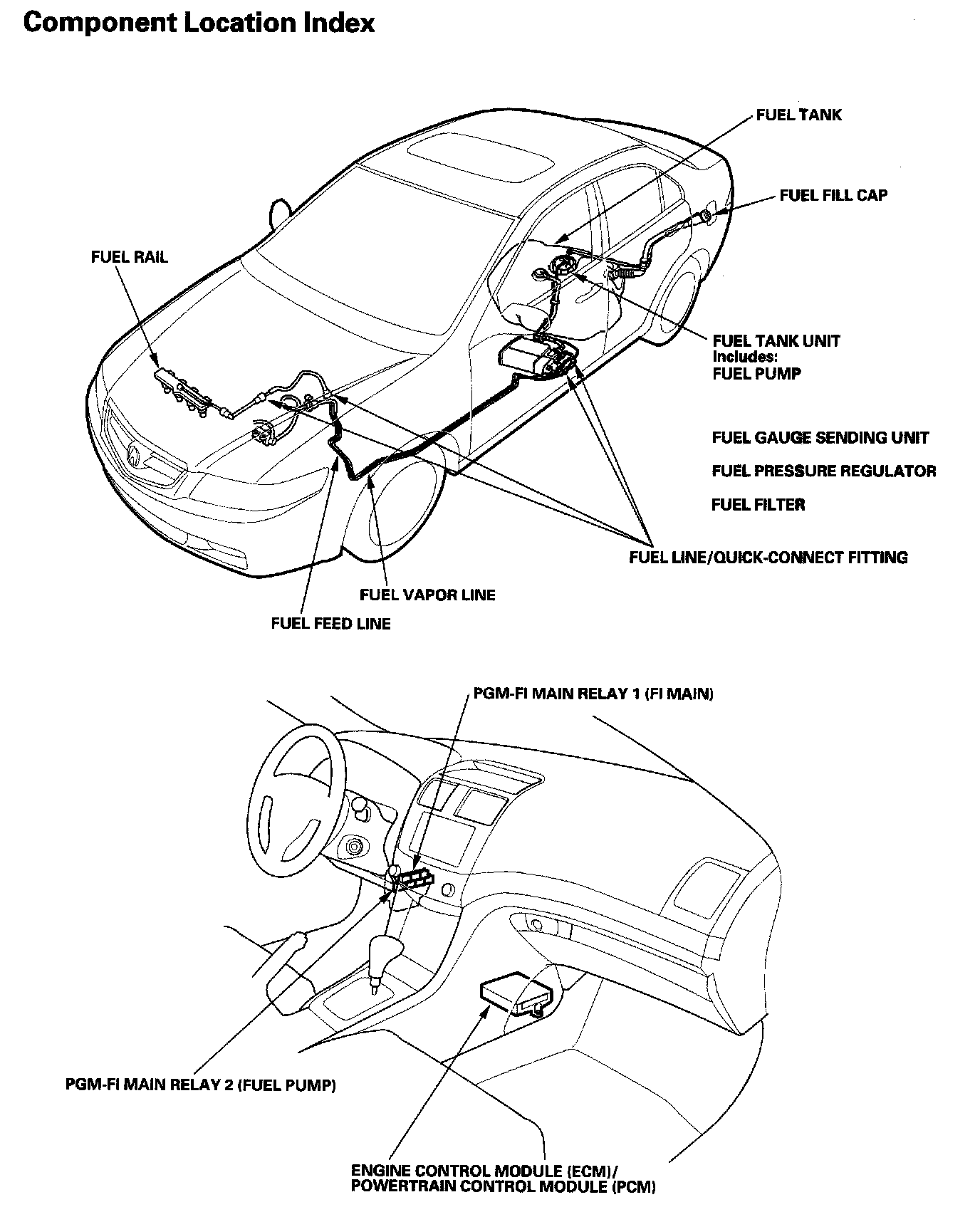

Fuel Supply System - Component Location System:



90. Under Middle Of Dash:
