Scan Tool Testing and Procedures

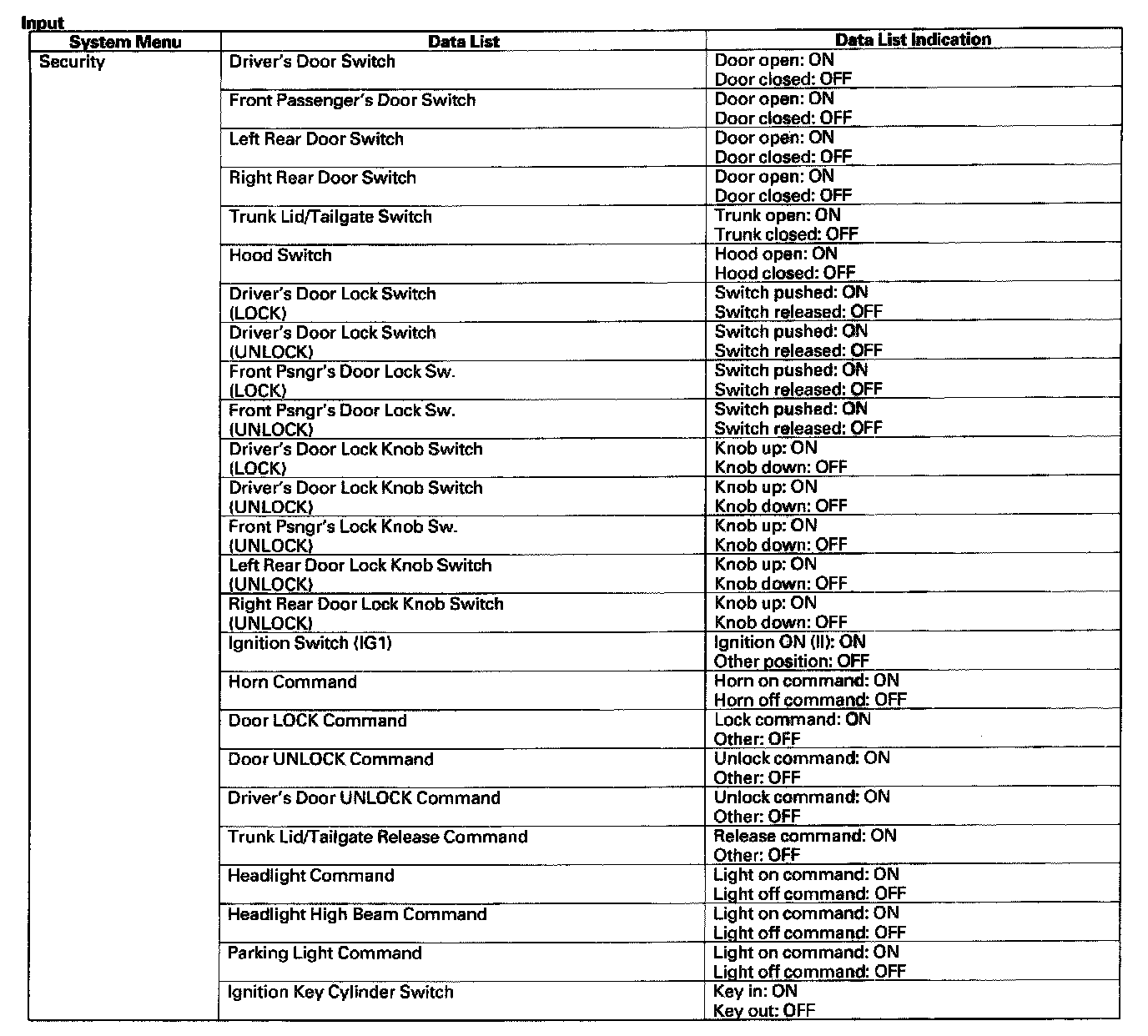

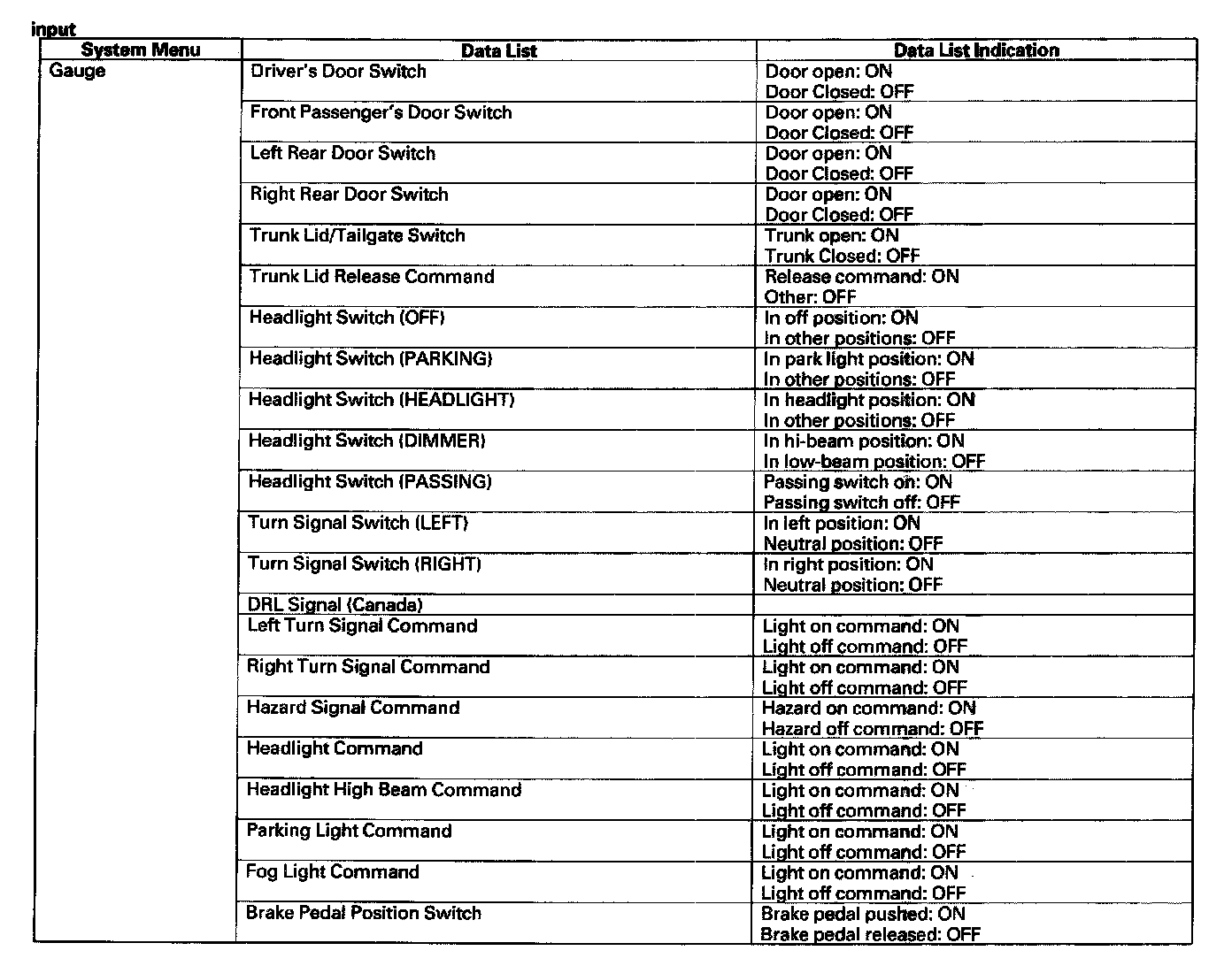

HDS Inputs And Commands:

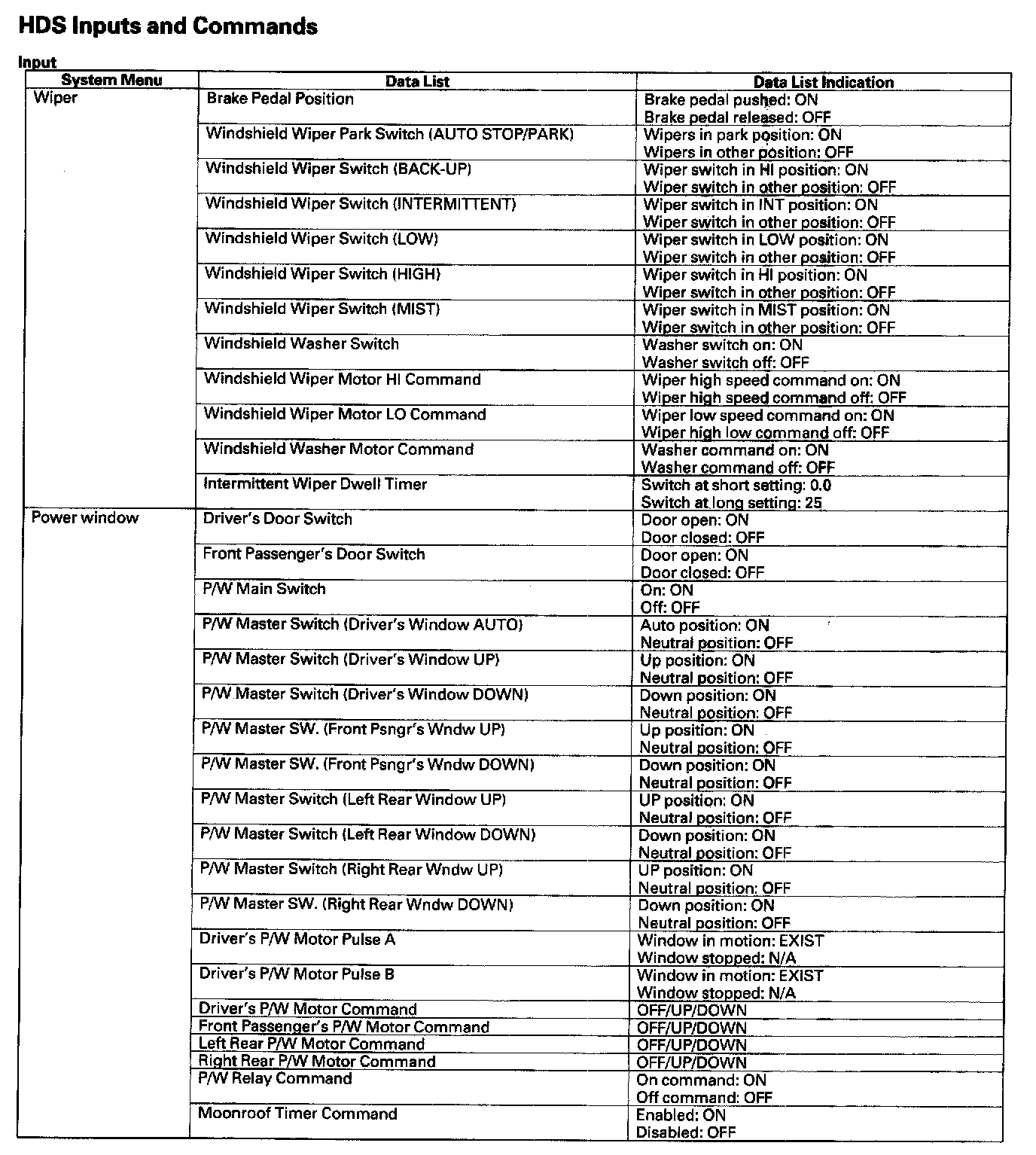

HDS Inputs And Commands:

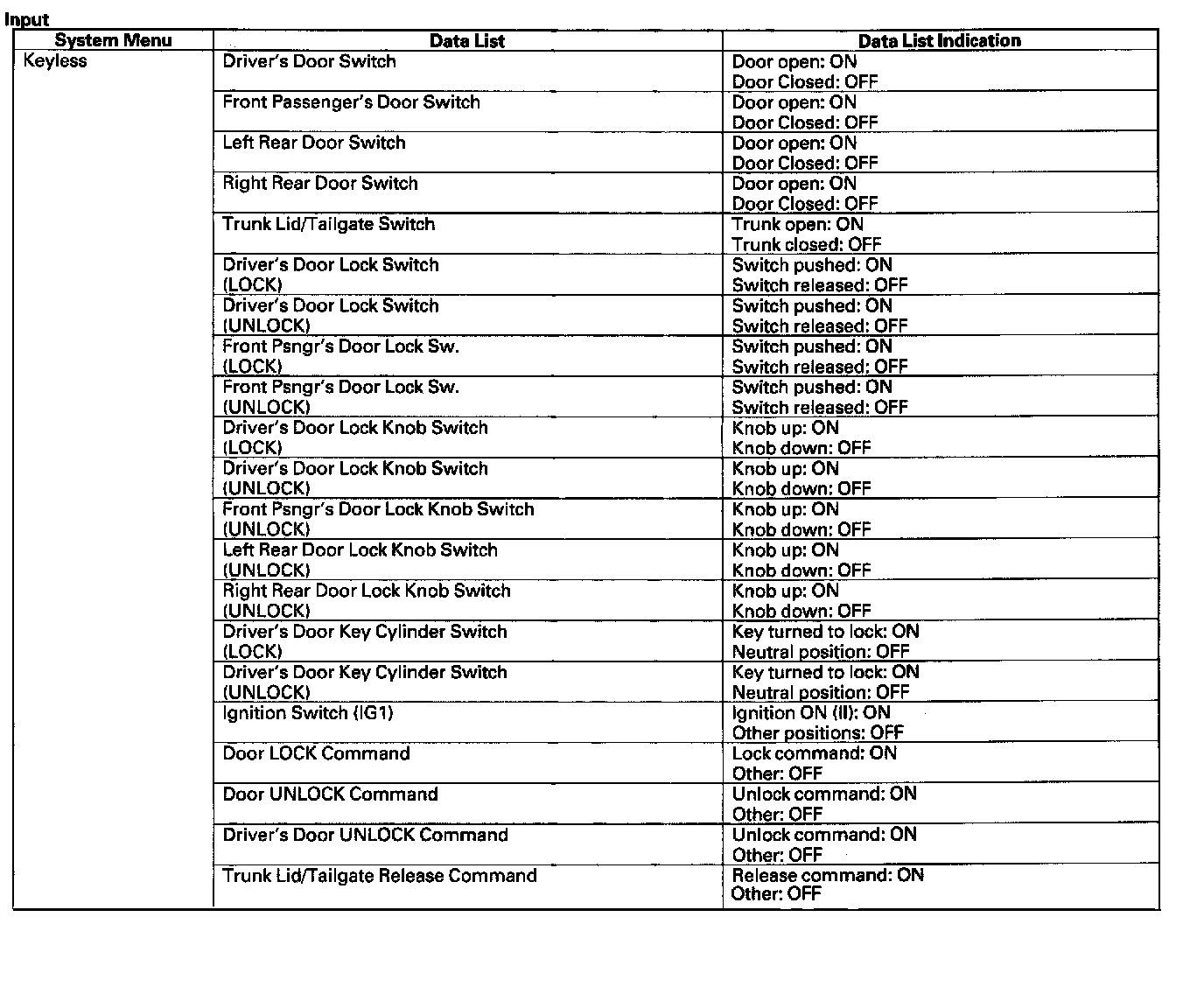

HDS Inputs And Commands:

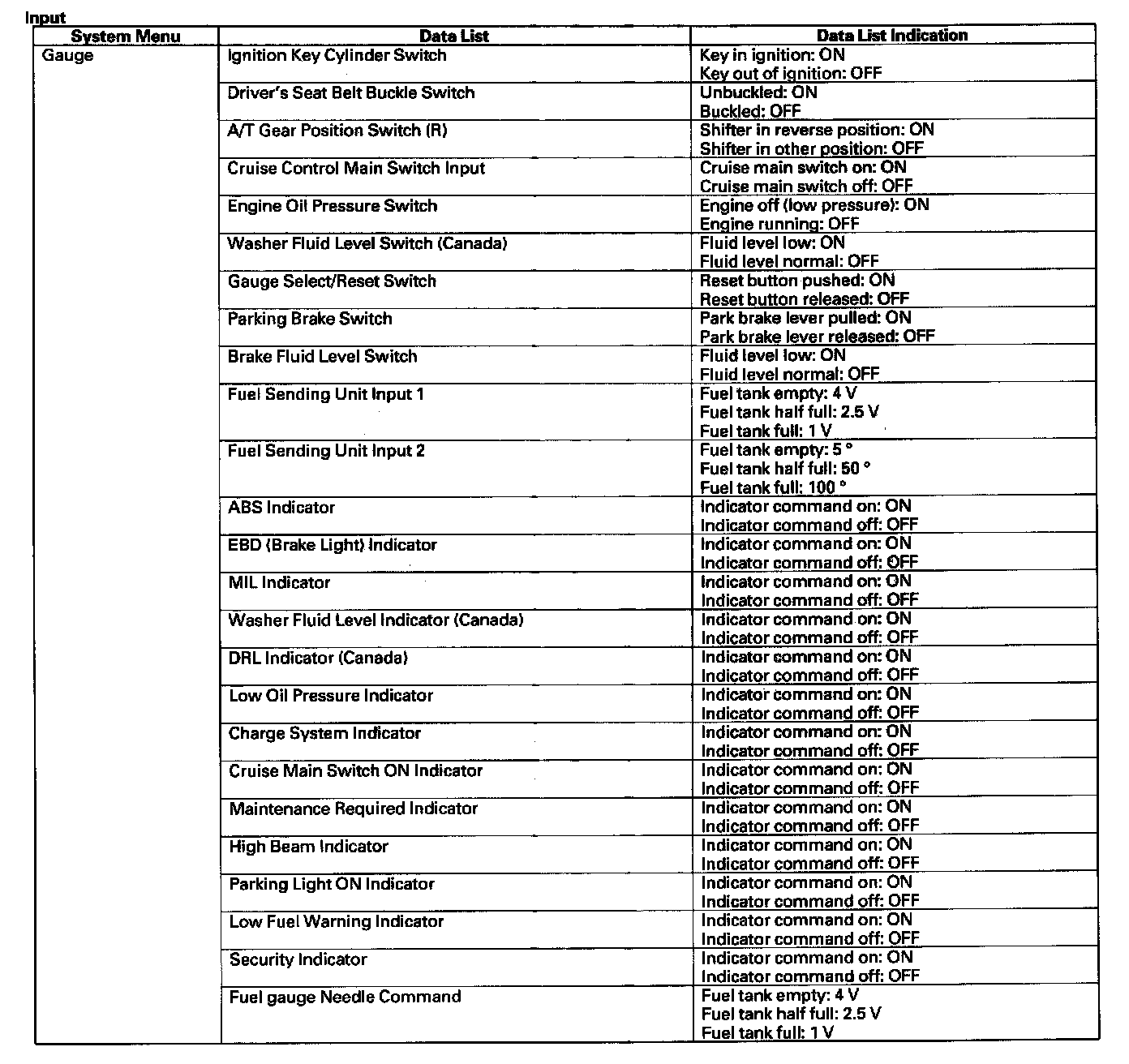

HDS Inputs And Commands:

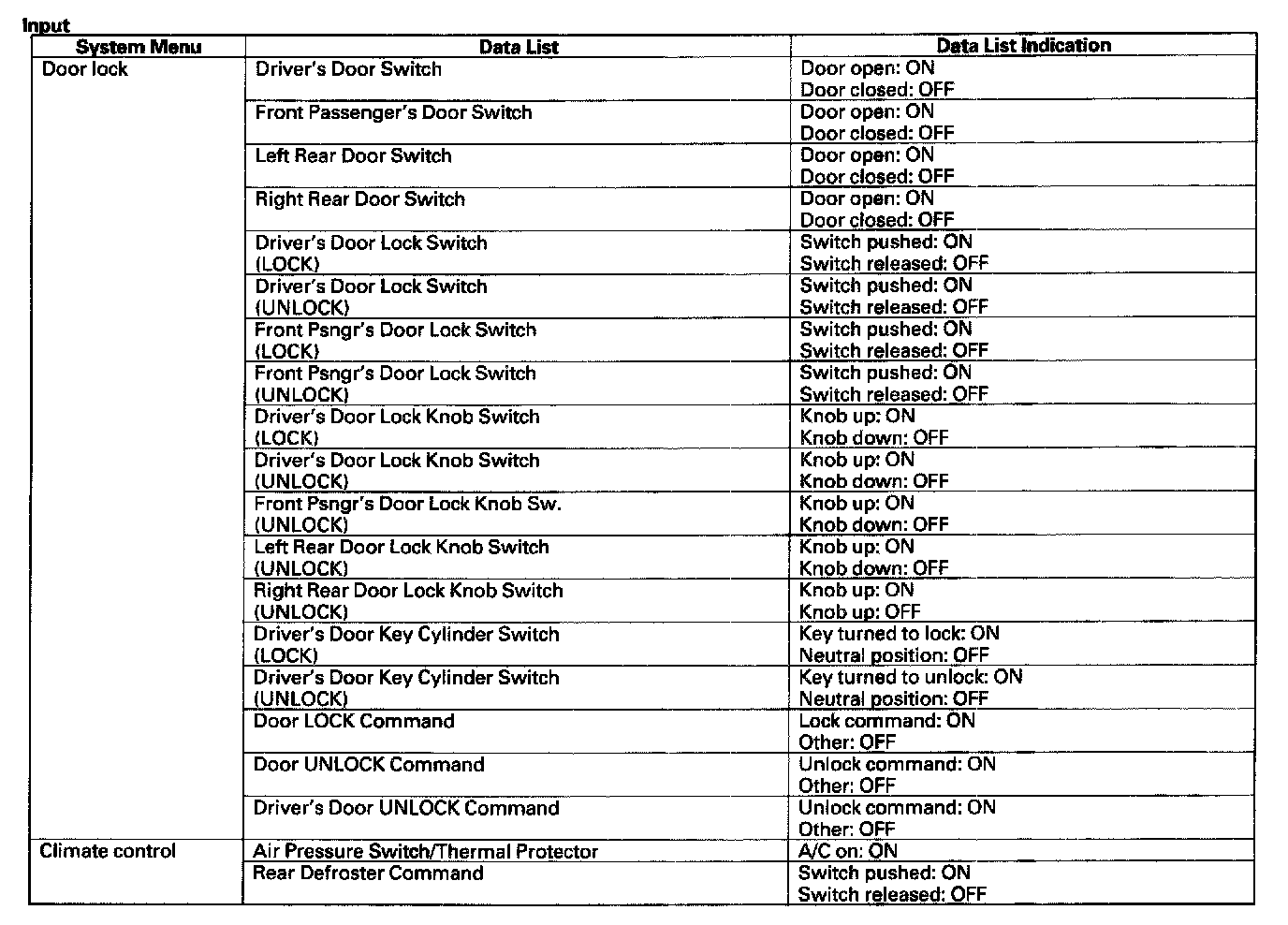

HDS Inputs And Commands:

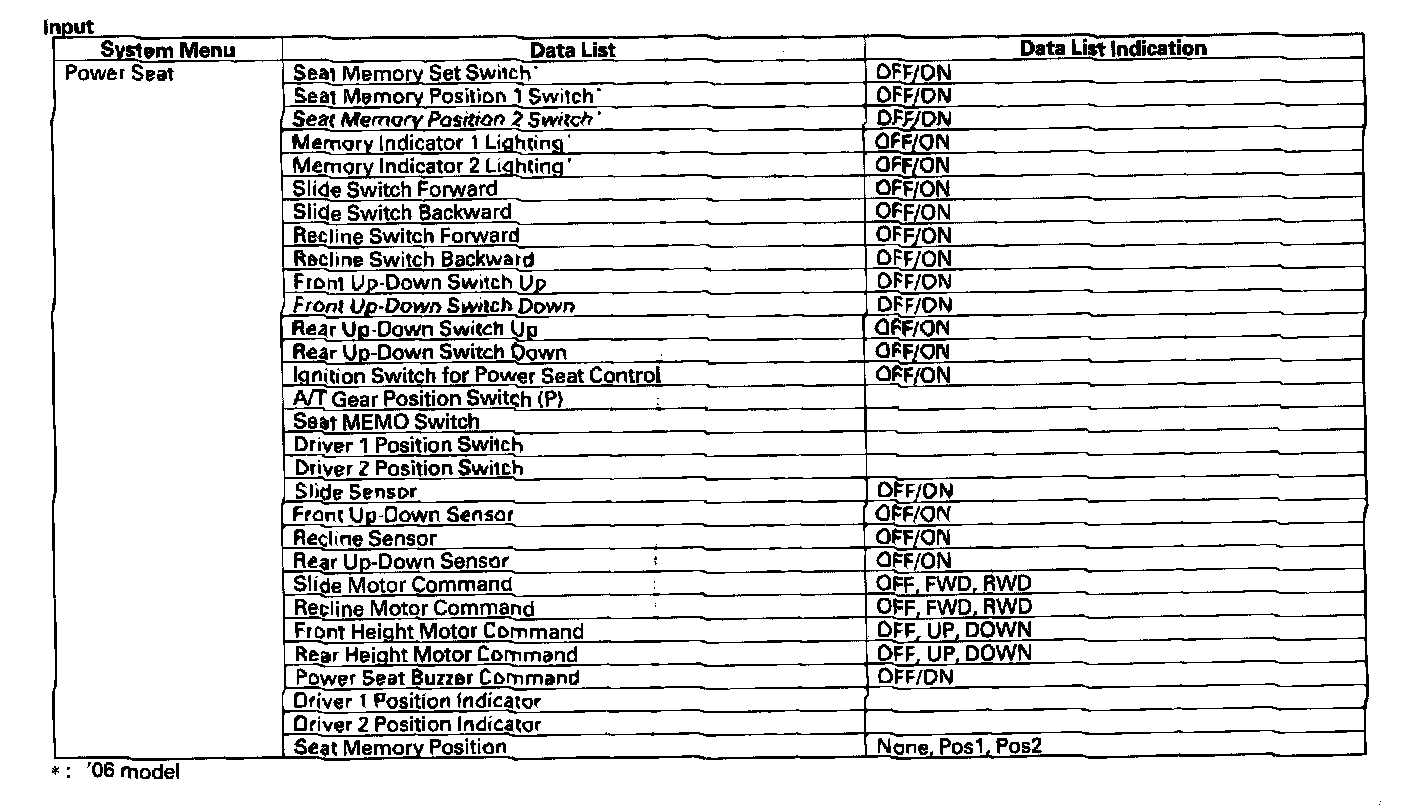

HDS Inputs And Commands:

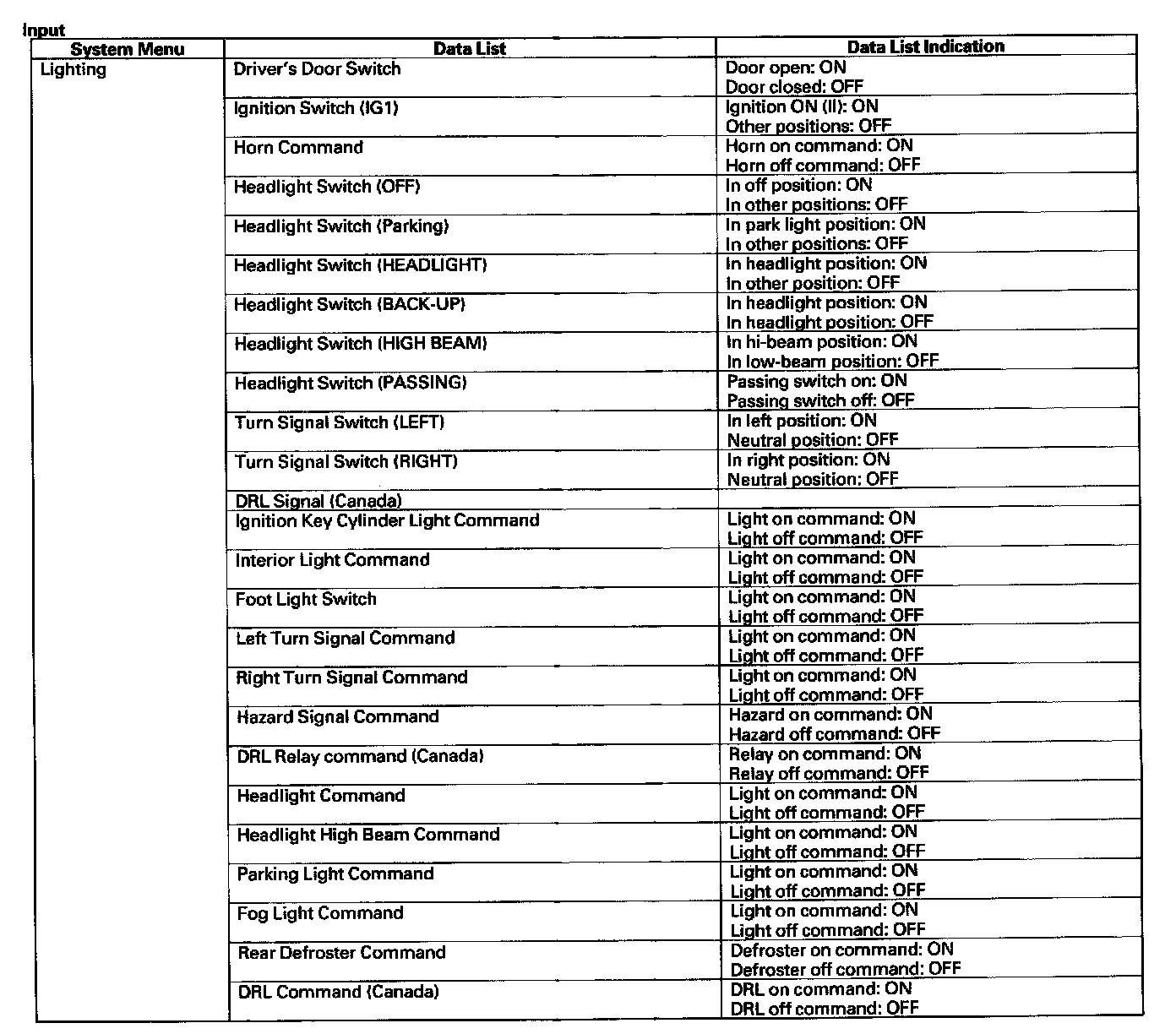

HDS Inputs And Commands:



HDS Inputs And Commands:

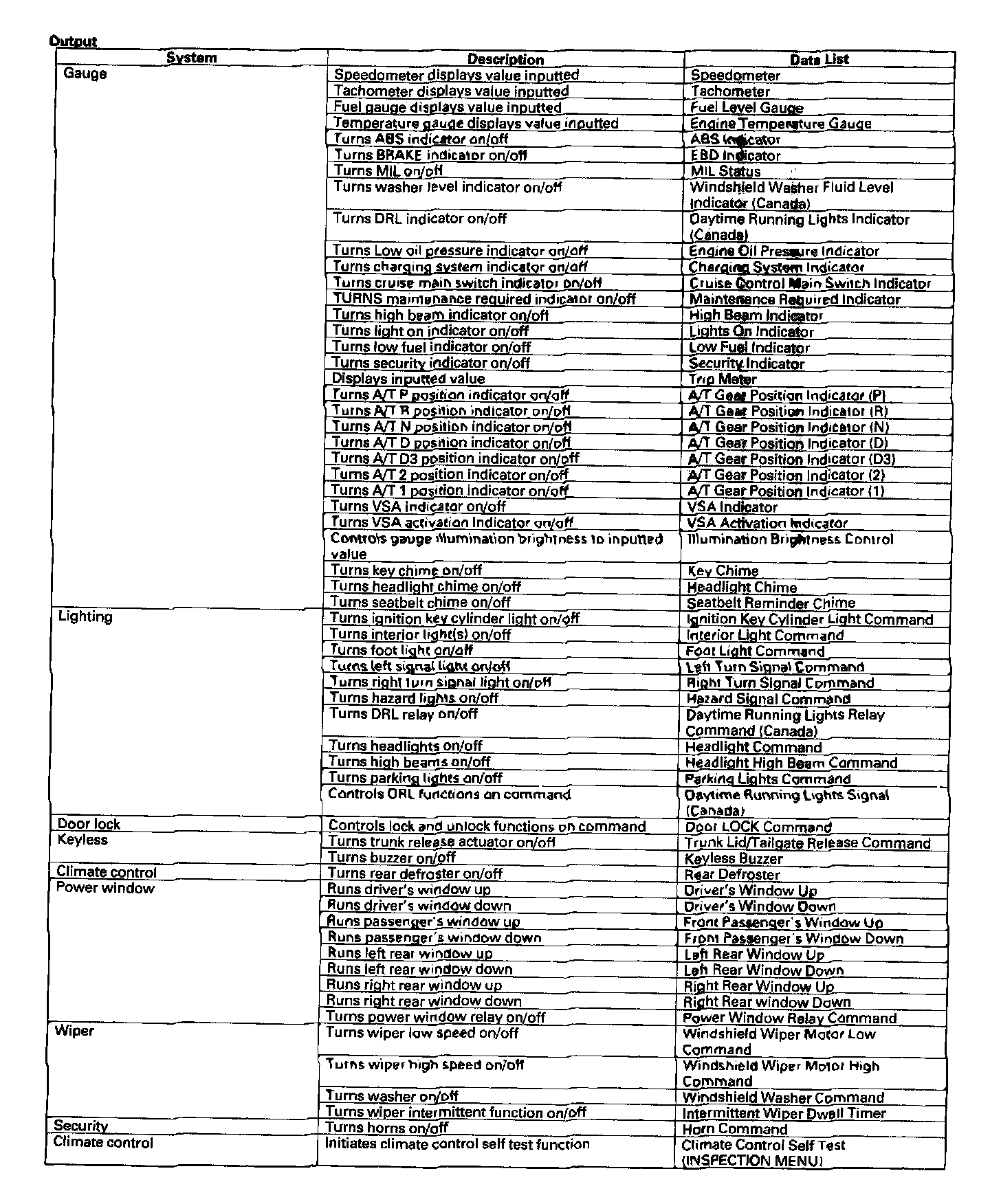

HDS Inputs And Commands-Output:



HDS Inputs And Commands-Output:
