Knock Sensor: Service and Repair

Knock Sensor Replacement

1. Remove the intake manifold; 2004-2005 models, 2006 model.

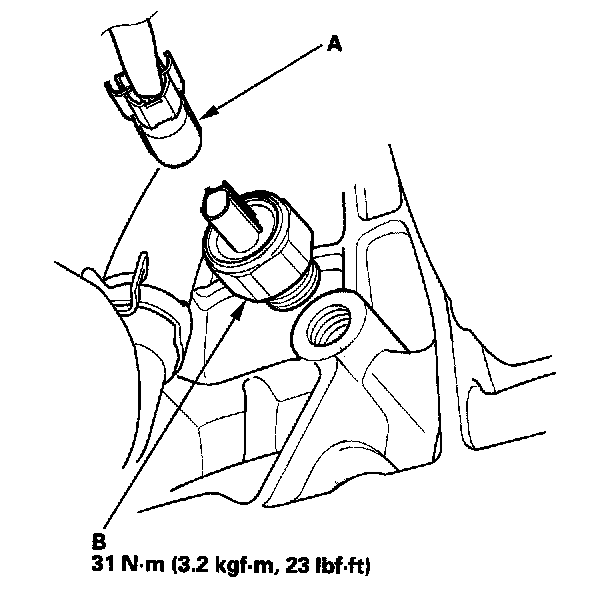

2. Disconnect the knock sensor connector (A).
3. Remove the knock sensor (B).
4. Install the sensor in the reverse order of removal.
